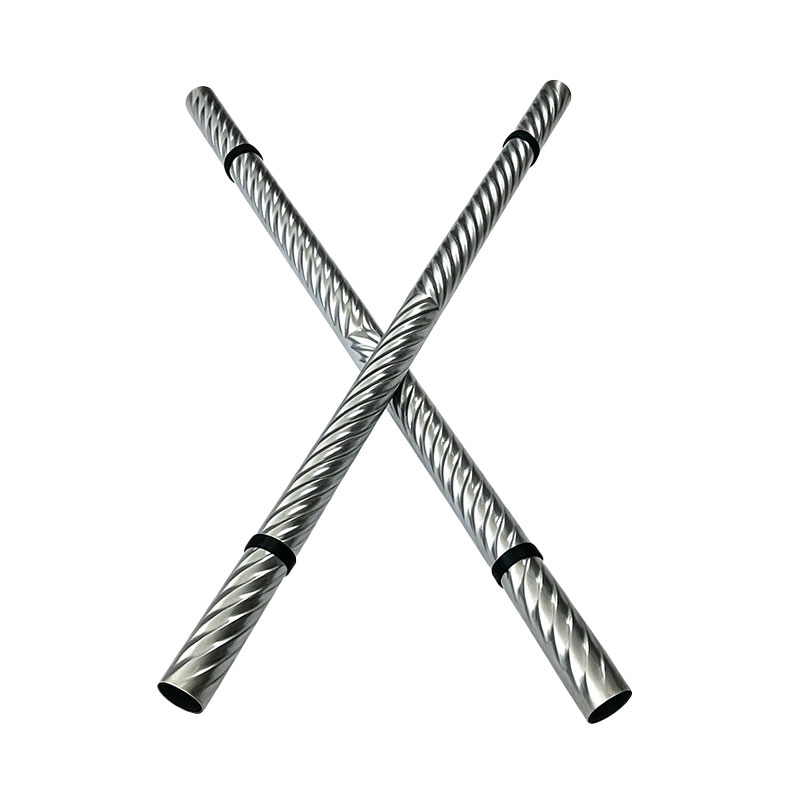

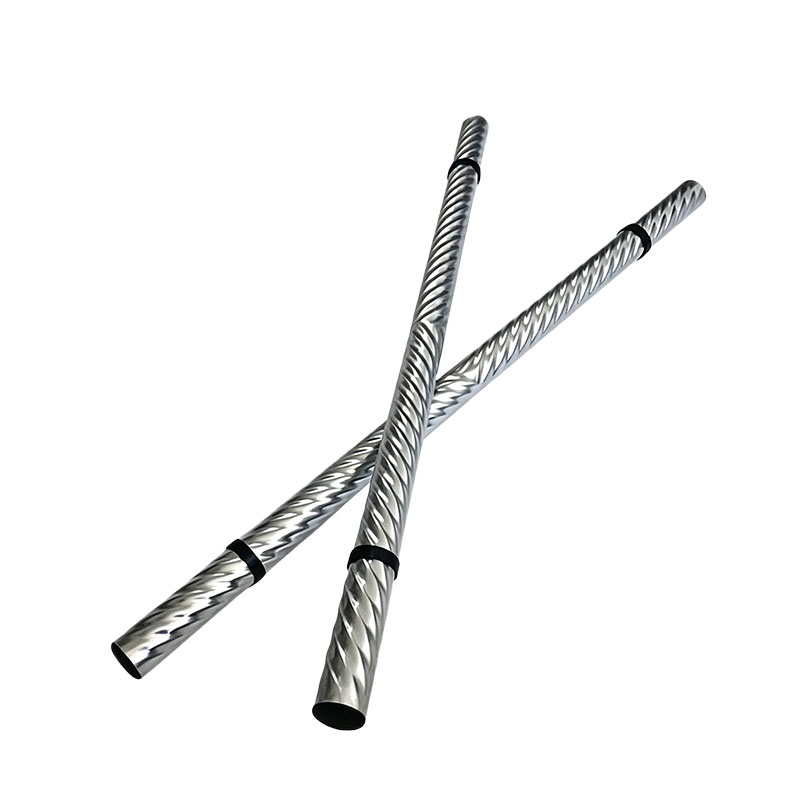

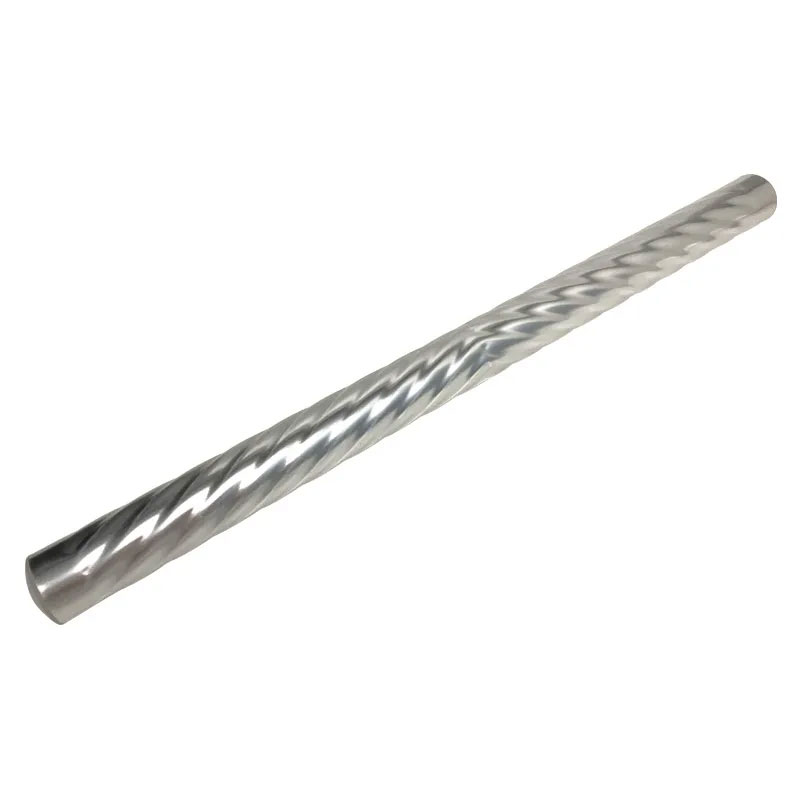

Precision Aluminum Magnetic Ink Mixing Rollers for Printing Machine

The AstraRoll Technical Advantage

We engineered our ink agitators to provide maximum fluid dynamics while protecting your expensive printing equipment:

Zero-Energy Magnetic Rotation: There are no motors, cables, or air hoses required. The roller harnesses the rotational energy of your existing printing cylinder via magnetic attraction, spinning effortlessly in the ink pan.

Two-Way Helical Homogenization: The specialized nylon rope winding is not just for texture; it acts as an Archimedes screw. It constantly pulls stagnant ink from the outer edges of the fountain pan toward the center, ensuring consistent viscosity and color density across the entire web width.

Bubble Isolation & Defoaming: Air bubbles trapped in the ink cause microscopic unprinted dots on the final packaging. The continuous churning action of the textured roller mechanically breaks down surface tension, bursting air bubbles before they can reach the anilox or gravure cylinder.

Hermetically Sealed Aluminum Shell: Printing solvents are highly aggressive. We encapsulate the internal magnets within a thick-walled, hard-anodized aluminum tube, tightly sealed with chemical-resistant POM (Polyoxymethylene) end caps to ensure a lifetime of leak-proof operation.

Key Specifications

Please note: We manufacture the length of the mixing roller to match your specific ink pan and printing cylinder width.

Outer Diameter (O.D.): Standard 40mm, 42mm, or custom dimensions.
Face Length: Custom cut from 300mm up to 2,000mm+ (to match your press width).
Tube Material: 6063-T5 Extruded Aluminum (Anodized).
Rope Material: Solvent-resistant Nylon, Cotton, or custom corrugated wire.
End Caps: Anti-friction POM/PTFE (Protects the ink tray from abrasion).

Why Choose AstraRoll?

1. Custom Rope Pitch for Specific Inks

The viscosity of your ink dictates how it should be mixed. For highly viscous (thick) inks, we wind the nylon rope with a wider pitch to prevent the roller from bogging down. For thin, solvent-based inks, we use a tight, dense wrap to maximize surface agitation and bubble bursting.

2. Factory-Direct Consumable Supply

Magnetic mixing rollers are essential consumables in flexible packaging plants. They eventually require replacement when the rope becomes permanently saturated or worn. By partnering with AstraRoll, large-scale printing facilities and equipment OEMs secure these critical mixing components at high-volume B2B wholesale pricing.

Frequently Asked Questions (FAQs)

Q: How exactly does this roller spin without being attached to a motor?
A: The mixing roller is placed loosely in the ink pan, directly underneath your main steel printing cylinder. The permanent magnets inside the roller attract it toward the steel cylinder. Because the mixing roller has POM plastic end caps (which are slightly larger than the aluminum tube), the caps lightly touch the spinning printing cylinder. The friction causes the mixing roller to spin in the opposite direction, vigorously churning the ink bath.

Q: Can I use this with aggressive solvent-based inks?
A: Yes. The anodized aluminum body, internal seals, and POM end caps are highly resistant to standard printing solvents, including Ethyl Acetate, Toluene, and MEK.

Q: How do we clean the magnetic ink mixing roller?
A: At the end of a print run, simply remove the roller from the ink pan and wash it in your standard solvent bath or parts washer. For rope-wrapped rollers, allow the rope to soak briefly to dissolve trapped pigments. For the fastest cleaning times, we recommend choosing our CNC Spiral Grooved Aluminum models, which have no rope and wipe clean instantly.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
