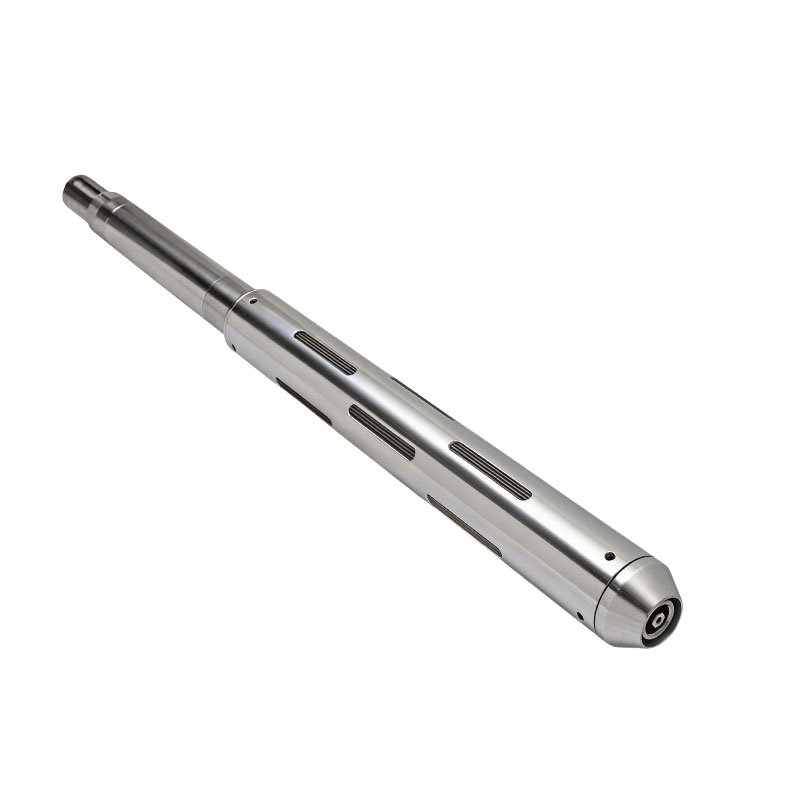

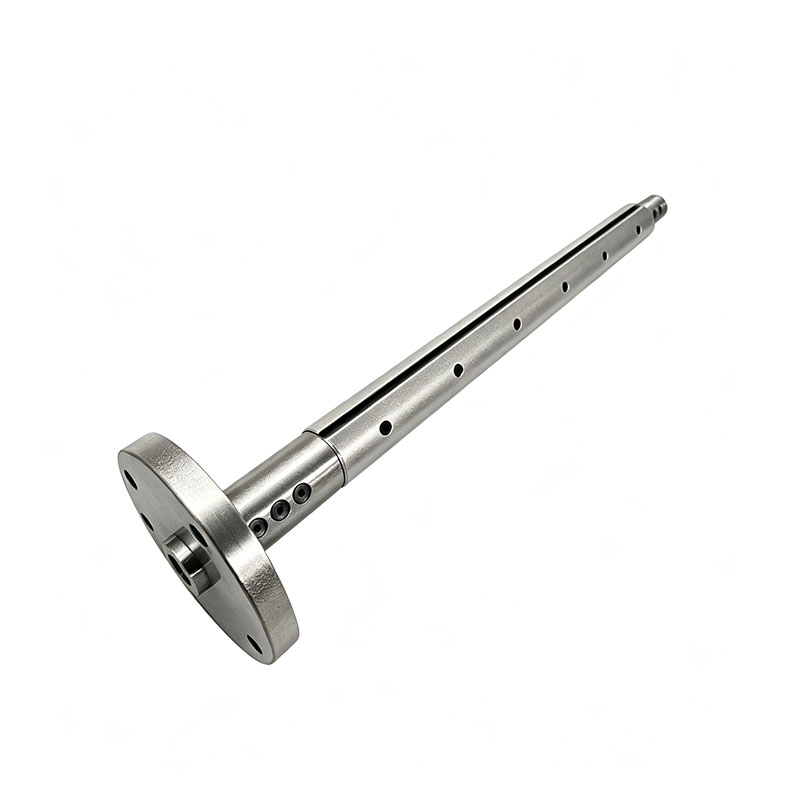

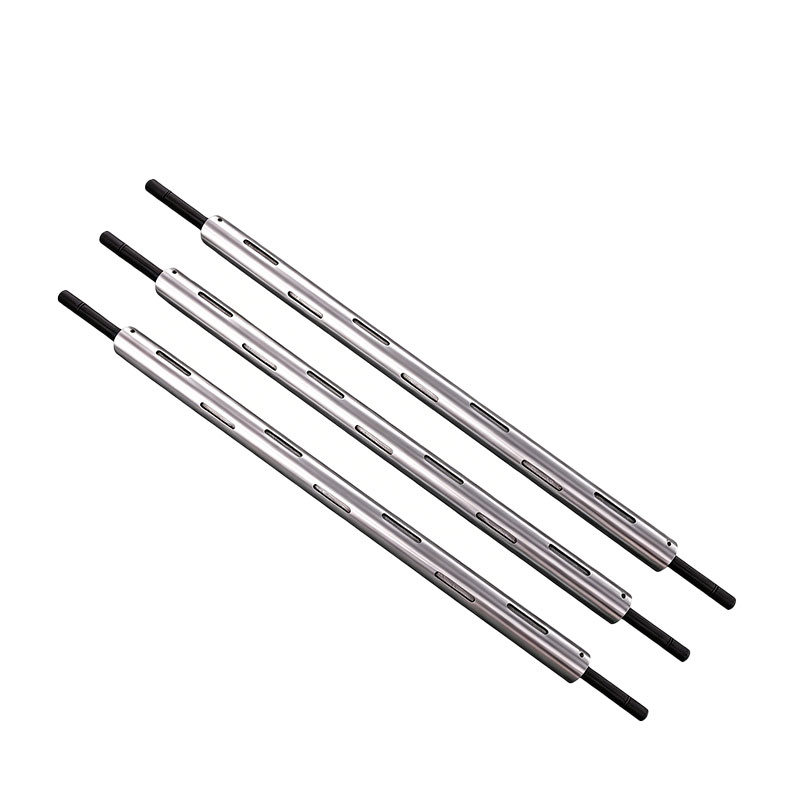

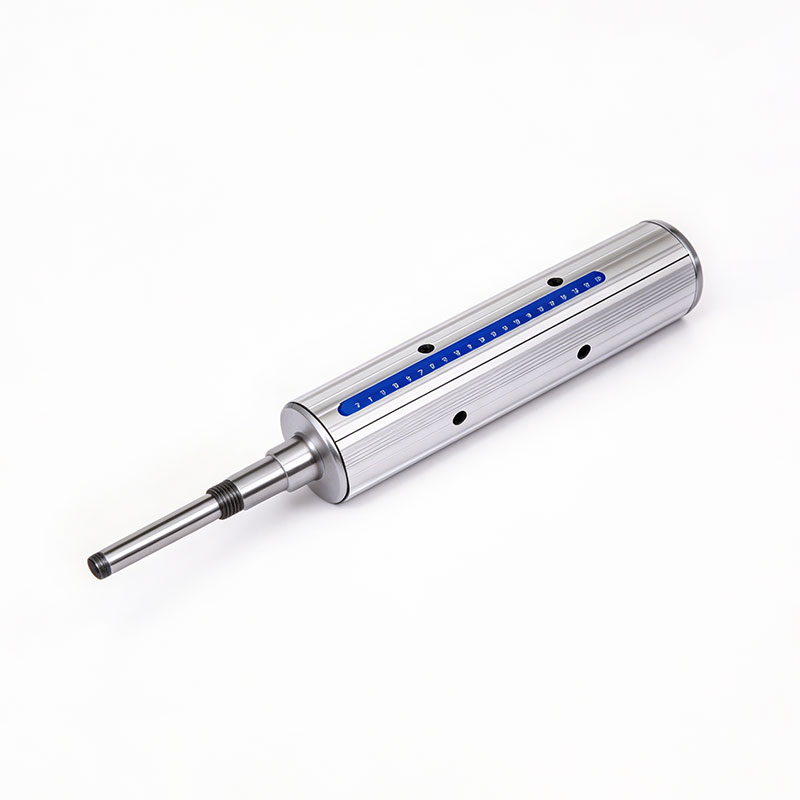

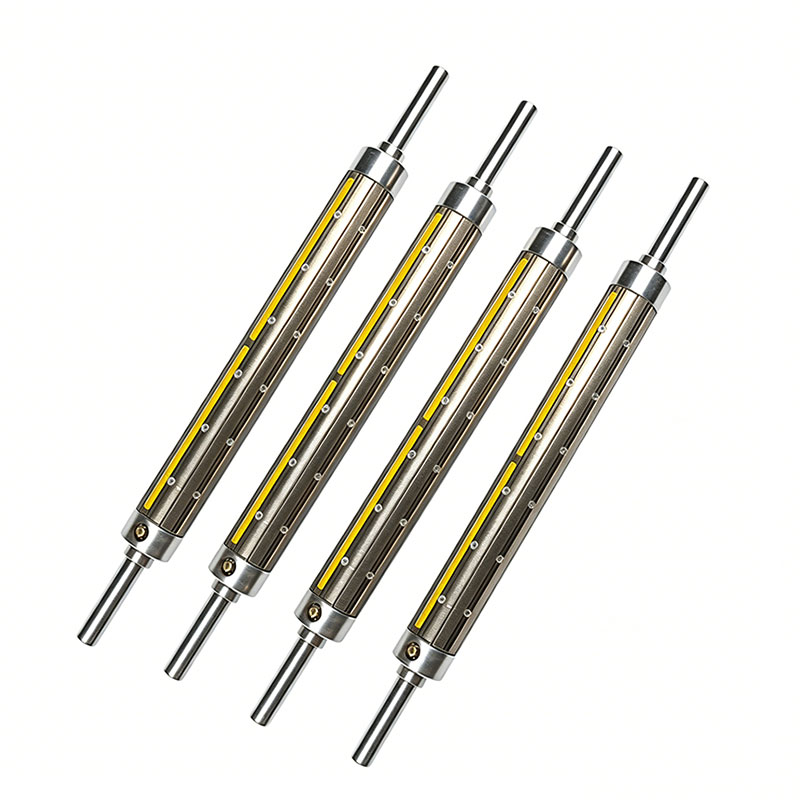

Lightweight Aluminum Air Shafts Manufacturer

We engineer our pneumatic shafts to eliminate air leaks, maximize torque, and protect your machine operators:

Aerospace-Grade Aluminum Extrusion: We utilize optimized multi-chamber aluminum extrusions that provide an exceptional stiffness-to-weight ratio. This drastically reduces the physical burden on your operators while easily supporting standard master roll weights without sagging.

Hybrid Steel-Journal Architecture: While the main body is lightweight aluminum, we CNC-machine the end journals (the parts that rest in your machine's safety chucks) from high-tensile forged steel. This ensures the shaft ends will not snap or wear down under heavy rotational torque.

Leak-Proof Polyurethane Bladders: The most common failure of an air shaft is a ruptured internal bladder. We utilize premium, ultra-thick PU bladders combined with proprietary vulcanized sealing techniques, ensuring the shaft holds air pressure reliably over millions of inflation cycles.

Perfect Dynamic Concentricity: An unbalanced shaft will cause web-tension fluctuations and vibration at high speeds. Our aluminum bodies are precision-cylindrical ground, ensuring that when the lugs expand, the roll is held in perfect, dead-center alignment.

Key Specifications

Please note: We manufacture the journal ends entirely to your OEM machine drawings.

Standard Outer Diameters (O.D.): 1", 1.5", 2", 3", 4", 6", 8" (or metric equivalents like 76mm, 152mm).
Face Length: Custom manufactured from 200mm up to 4,000mm+.
Working Air Pressure: 0.6 MPa (6 Bar / ~87 PSI).
Lug/Leaf Expansion Height: ~6mm to 8mm expansion beyond the resting diameter.
Material Combination: Hard-Anodized Aluminum Body + Carbon Steel End Journals.

Why Choose AstraRoll?

1. Drop-In OEM Replacement

You do not need to alter your machine's safety chucks or drive motors. Simply provide us with a drawing (or just a few basic measurements) of your current shaft's end journals. AstraRoll will custom-machine the steel ends to perfectly drop into your existing equipment, providing a seamless upgrade.

2. Easy Maintenance & Modular Design

Many cheap air shafts are permanently glued or welded shut, meaning a punctured bladder ruins the entire shaft. AstraRoll air shafts feature a modular, bolted end-cap design. If a bladder ever fails after years of use, your maintenance team can easily unbolt the end cap, slide out the old bladder, and install a replacement in under 15 minutes.

Frequently Asked Questions (FAQs)

Q: Should I choose a "Lug / Key Type" or a "Leaf Type" air shaft?

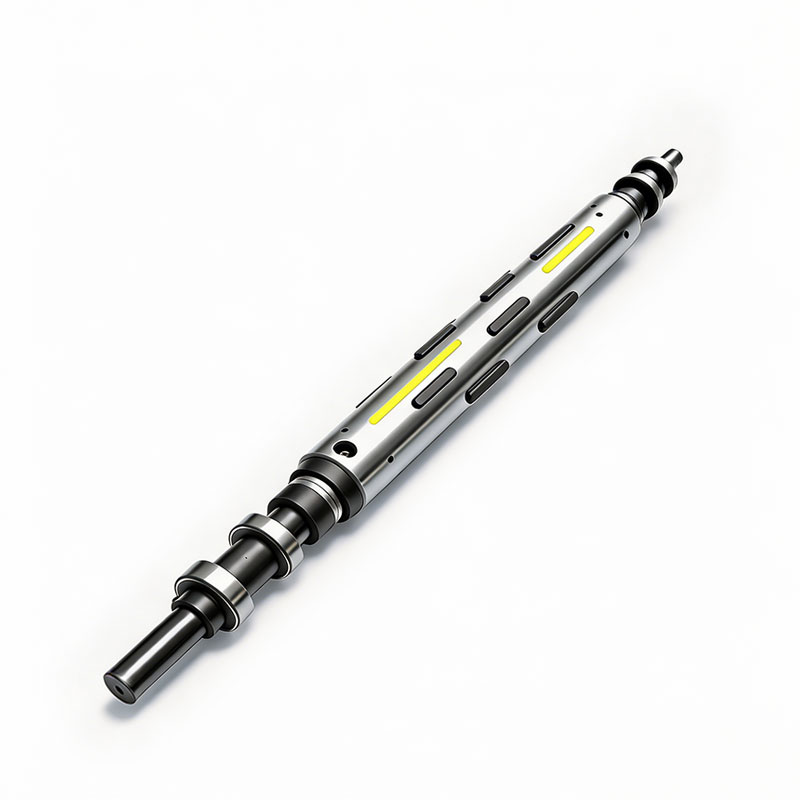

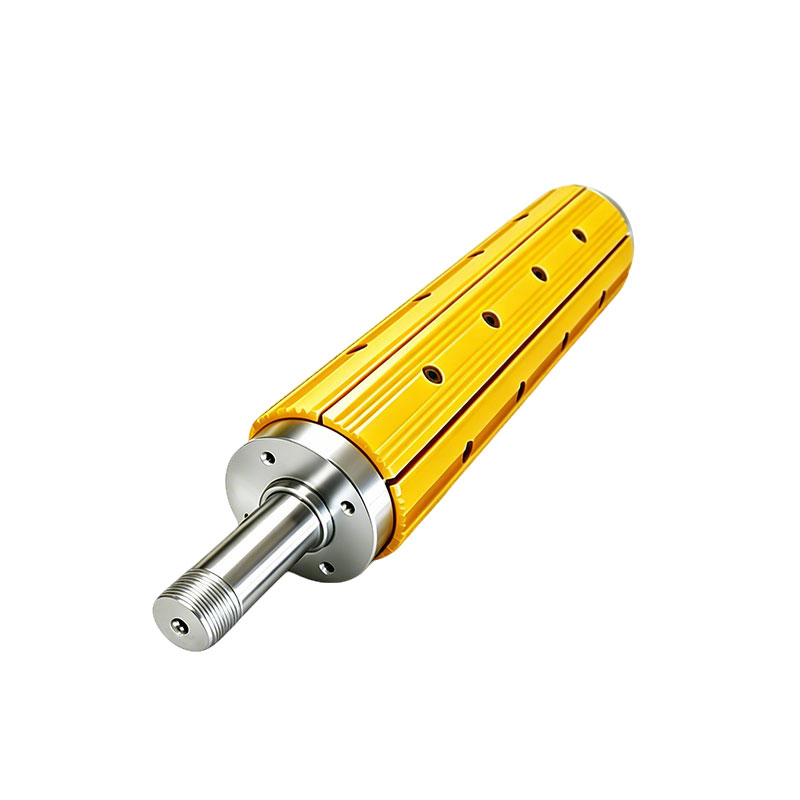

A: Choose a Lug/Key Type if you are running standard cardboard or thick plastic cores. The individual metal or rubber keys bite aggressively into the core, handling very high torque. Choose a Leaf Type (which has wide, continuous aluminum plates that expand) if you are running thin-walled cores, delicate materials, or coreless winding, as the wide plates apply even pressure and prevent the core from distorting or crushing.

Q: Will an aluminum air shaft bend if I put a heavy roll of paper on it?
A: For standard packaging films, labels, and medium-weight paper rolls, aluminum is perfect and will not bend. However, for extreme loads (e.g., massive 2-ton jumbo rolls of kraft paper in a steel mill), we will recommend upgrading the main body to carbon steel to prevent deflection. Our engineers will calculate the required material based on your roll weight and web width.

Q: Can you manufacture air shafts for 6-inch cores?
A: Yes. 3-inch (76mm) and 6-inch (152mm) are the global industry standards. We manufacture both daily, along with custom sizes ranging up to 12 inches for specialized corrugated board or tissue applications.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
