Silicone Roller

AstraRoll Silicone Roller is engineered with exceptional high and low temperature resistance, enabling stable performance in extreme thermal conditions without hardening or losing elasticity. It features outstanding ozone, oxygen and light aging resistance, maintaining consistent physical properties over long-term use and resisting premature degradation even in demanding environments. With superior air permeability far exceeding many conventional materials, this roller supports safe, gentle handling in food, packaging and pharmaceutical applications. Its strong chemical inertness delivers excellent resistance to a wide range of chemicals and solvents, ensuring reliable performance in pharmaceutical, food processing and industrial manufacturing settings. Combined with smooth operation and long service life, it provides dependable, low-maintenance performance for specialized processing and conveying systems.

Silicone Rubber Press and Printing Roller Manufacturer

Industrial Silicone Rubber Cutting and Sealing Rollers for Print Finishing

Custom Silicone Rubber Rollers for High-Temp Printing Materials

Custom Cleanroom Silicone Rubber Roller

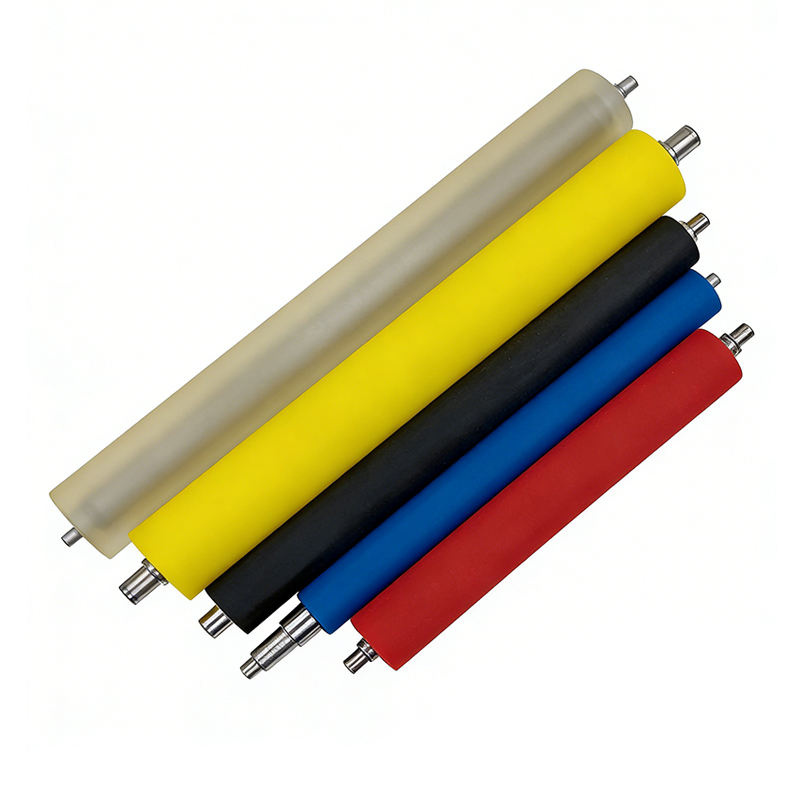

Custom Heat Transfer Silicone Rubber Roller

Anti-Static Silicone Rubber Roller Manufacturer

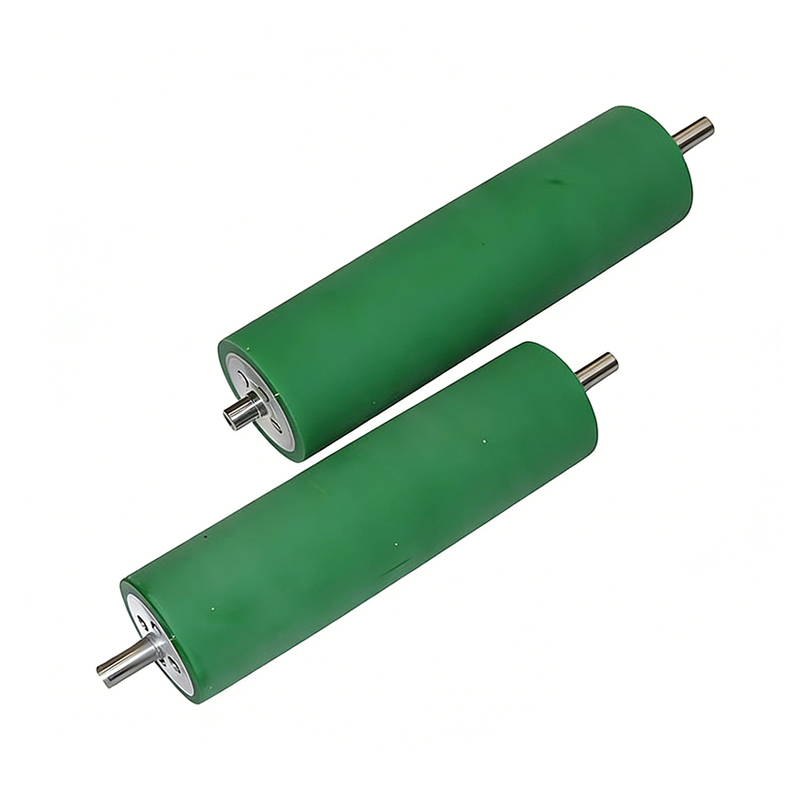

Silicone Rubber Lamination Roller Supplier

Automatic Grade Industrial Silicone Roller

Wholesale Heat Resistant Silicone Roller

Silicone Roller FAQs

1. What is the maximum continuous working temperature of your silicone rollers?

Standard silicone rollers can work continuously at 200°C, high-temperature models can reach 250°C, and special high-temperature grades can achieve long-term stability at 300°C. Short-term peak temperatures can be higher, but long-term use above rated temperature will accelerate aging.

2. Do silicone rollers generate static electricity? Can anti-static versions be customized?

Standard silicone is an insulator and prone to static electricity. For printing, electronics, and film applications, we can provide anti-static or conductive silicone rollers to control surface resistance and eliminate static hazards.

3. What factors affect the service life of silicone rollers?

Main factors include continuous working temperature, working pressure, linear speed, chemical exposure, and wear intensity. Under reasonable use, the service life is generally 1–3 years, and high-temperature harsh environments may shorten it accordingly.

4. How does hardness affect pressure uniformity in laminating applications?

Softer silicone distributes pressure more evenly across wide webs, compensating for slight unevenness in materials. Harder silicone provides higher concentrated pressure for embossing and creasing. We can recommend the optimal hardness based on your web width and material.

5. What’s the difference between solid silicone roller and coated silicone roller?

Solid silicone rollers are made entirely of silicone, with higher elasticity but lower load capacity, suitable for light-duty applications. Coated silicone rollers have a metal core inside, providing higher rigidity, torque resistance, and better stability under high speed or pressure, which is the standard industrial version we provide.

What you may want to know about Silicone Roller

AstraRoll Silicone Rollers are designed for applications requiring non-stick performance, high-temperature resistance, soft contact, and food-safe operation. Combining a precision-machined metal core with high-quality silicone rubber coating, these rollers excel in packaging, heat sealing, printing, laminating, food processing, textile drying, and plastic forming lines. They offer stable performance under high heat, excellent release properties, gentle contact with delicate materials, and strong resistance to aging, making them irreplaceable in processes where metal rollers would cause adhesion, scratching, or thermal damage.

Material Structure & Core Design

Our silicone rollers consist of a high-precision metal core (carbon steel or stainless steel) and a professional-grade silicone elastomer coating. The core provides rigidity, torque resistance, and dimensional stability, while the silicone layer offers the functional surface. We use heat-resistant, food-grade, and high-strength silicone compounds tailored to different temperatures and loads. The bonding process between silicone and core is specially treated to prevent peeling, bubbling, or deformation even under long-term high-temperature operation.

Silicone Hardness & Performance Characteristics

Silicone hardness directly affects application performance and can be customized according to process requirements.

Soft silicone (40–60 Shore A): Provides gentle contact, prevents scratching, and is suitable for delicate films, foils, labels, and soft materials.
Medium hardness (60–80 Shore A): Balances grip and release, widely used in sealing, laminating, and transferring.
High hardness (80–90 Shore A): Offers better wear resistance and pressure stability for hot pressing, embossing, and heavy conveying.

All silicone formulations support high-temperature resistance, low compression set, non-stick behavior, and ozone/aging resistance.

Temperature Resistance & Application Stability

AstraRoll Silicone Rollers are available in different temperature grades to match various thermal processes. Standard-grade silicone operates stably between -60°C and 200°C, while high-temperature silicone can withstand up to 250–300°C for long-term use. Unlike other rubbers, silicone does not harden, crack, or produce residue under continuous heat, making it ideal for heat sealing, heat transfer, shrink packaging, drying lines, and thermoforming. It also remains flexible at low temperatures without becoming brittle.

Non-Stick & Hygienic Properties

Silicone's natural non-stick surface prevents adhesion with adhesives, plastics, resins, food pastes, and hot melt materials. The smooth, non-porous surface does not trap dust or contaminants and is easy to clean. Food-grade silicone versions comply with FDA and EU food safety standards, allowing direct contact with baked goods, confectionery, chocolate, and packaging materials without odor or contamination.

Industry Adaptability & Functional Scenarios

Silicone rollers are widely used across industries requiring thermal processing, surface protection, or non-stick conveying. In packaging, they support heat sealing, shrink wrapping, and bag making. In printing and laminating, they ensure uniform pressure and prevent scratching on films and papers. In food production, they handle baking, chocolate molding, and confectionery transfer. In textiles and nonwovens, they are used in drying and setting processes. They also serve in electronics manufacturing for gentle pressing and insulation applications.

Customization & Processing Options

We provide full customization to meet process parameters and equipment dimensions. Core material (steel or stainless steel), roller diameter, coating thickness, shaft style, and keyway design can all be customized. We also offer surface machining such as grooved rollers, embossed patterns, concave/convex profiles, and tapered rollers. Silicone color can be customized for identification or industry requirements. All products can be designed to replace existing rollers without modification.

Why Choose AstraRoll Silicone Rollers?

AstraRoll is your professional partner for high-performance silicone rollers, with rich experience in coating technology and functional rubber roller design. We provide stable, high-temperature-resistant, non-stick rollers tailored to sealing, laminating, food, and thermal processing lines. We support full customization with reliable bonding quality and efficient lead times, backed by strict quality inspection and responsive after-sales support to ensure stable production, reduce material waste, and extend service life.
