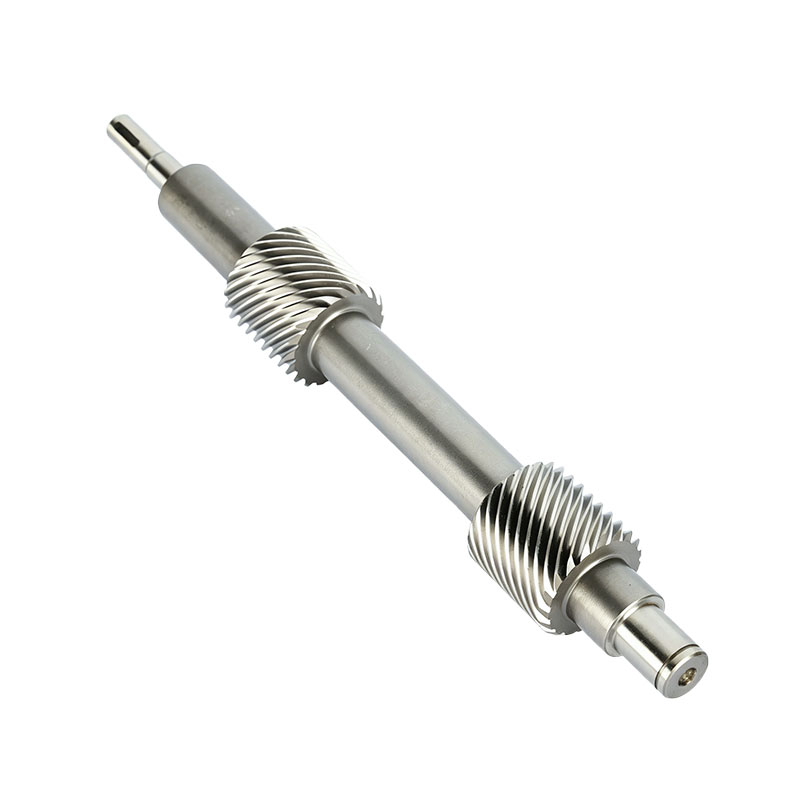

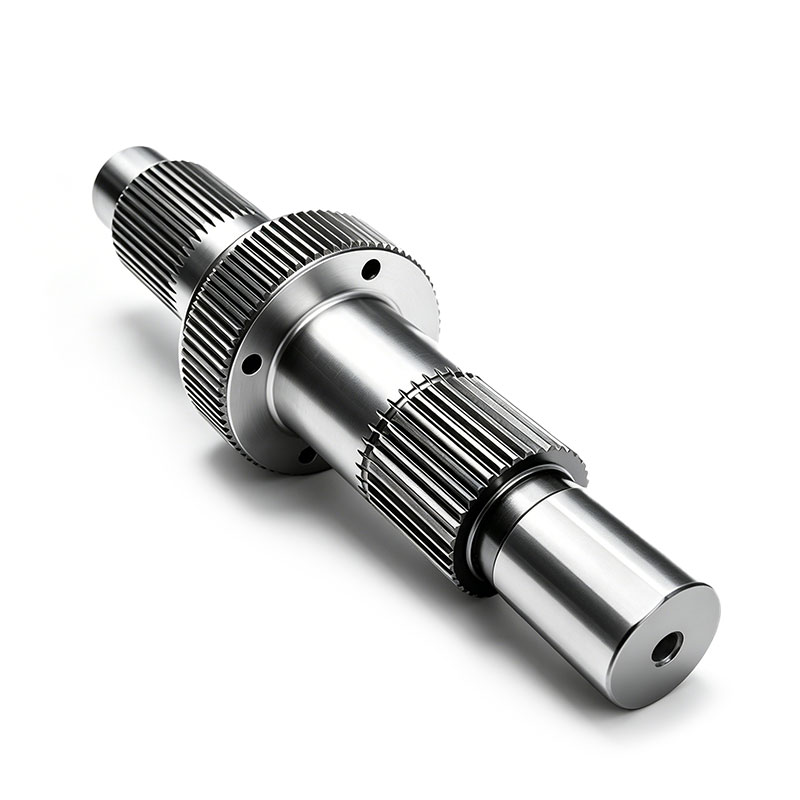

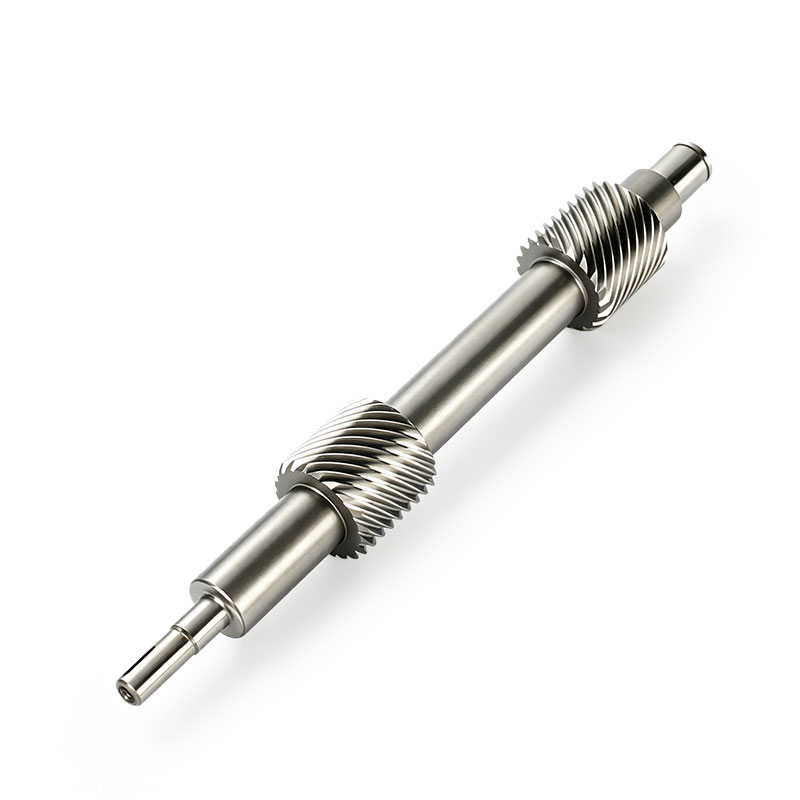

Heavy-Duty Stainless Steel Spline Gear Shafts Manufacturer

The AstraRoll Technical Advantage

Machining heavy-duty splines into stainless steel requires specialized tooling to prevent work-hardening and galling. AstraRoll masters this complex metallurgy:

Heavy-Duty Stainless Selection: Standard 304/316 stainless is too soft for heavy gear loads and will quickly wear down. We engineer our heavy-duty spline shafts using 17-4PH (SUS630) or SUS420. After machining, these alloys are heat-treated to achieve extreme surface hardness (up to 45+ HRC) while remaining completely impervious to rust.

Zero-Backlash Spline Hobbing: A loose spline connection causes vibration and accelerated wear. We utilize heavy-duty CNC gear hobbing machines to cut involute and straight splines to strict DIN 5480 or ANSI B92.1 standards, ensuring a perfect, zero-backlash sliding fit with your mating female hub.

Monolithic Gear Integration: Rather than pressing a gear onto a splined shaft—which creates a weak point—AstraRoll can machine spur gears, helical gears, or worm threads directly into the solid stainless steel billet alongside the splines, creating a single, indestructible transmission component.

Micro-Precision Journal Grinding: The sections of the shaft that support the bearings must be flawless. We CNC cylindrical-grind the bearing journals to extreme tolerances (e.g., h6 or g6 fits) and Ra 0.4 surface roughness to prevent bearing failure at high RPMs.

Key Specifications

Please note: AstraRoll spline and gear shafts are 100% custom-manufactured to your exact engineering blueprints and load requirements.

Outer Diameter (O.D.): Custom machined from 15mm up to 300mm+.
Overall Length: Custom manufactured up to 3,000mm.
Spline Standards: DIN 5480, DIN 5482, ANSI B92.1, ISO 14, or custom proprietary profiles.
Tolerance: Precision ground to micrometers (IT6 to IT7 grades).
Hardness: Custom heat treatment available depending on the stainless alloy (e.g., Solution Annealing & Aging for 17-4PH).

Why Choose AstraRoll?

1. One-Stop Gear & Shaft Machining

Many machine shops can turn a straight shaft, but very few have the specialized 5-axis milling and gear hobbing equipment required to cut heavy-duty involute splines and helical gears into tough stainless steel. AstraRoll houses turning, hobbing, broaching, and cylindrical grinding under one roof, eliminating sub-contractor delays.

2. Custom Female Hub & Broaching Matching

A spline shaft is only as good as the hub it mates with. In addition to manufacturing the male splined shaft, AstraRoll can utilize our heavy vertical broaching machines to manufacture the exact mating internal (female) splined gears, couplings, or sleeves, providing you with a guaranteed, perfectly matched transmission set.

Frequently Asked Questions (FAQs)

Q: Can I use SUS304 (304 Stainless) for a heavy-duty splined drive shaft?
A: We strongly advise against it for heavy-duty applications. SUS304 and SUS316 are austenitic stainless steels; they have excellent corrosion resistance but are relatively soft and cannot be heat-treated. Under heavy torque, the spline teeth will "gall" (smear and tear) and wear rapidly. For heavy loads, we will always guide you toward 17-4PH (Precipitation Hardening) or Martensitic (400-series) stainless steels, which offer both rust protection and extreme hardness.

Q: Do you manufacture both Involute and Straight-Sided splines?
A: Yes. We can hob Involute Splines (which have curved teeth like a gear, offering self-centering and higher torque capacity) and mill Straight-Sided / Parallel Splines (often used for components that need to slide linearly along the shaft under load).

Q: Can you harden the bearing journals of a stainless steel shaft?
A: Yes, depending on the alloy selected. While standard 304/316 cannot be induction hardened, alloys like 420, 431, or 17-4PH can undergo specific thermal treatments (like quenching and tempering, or aging) to significantly increase the surface hardness of the bearing journals and spline teeth, maximizing the operational lifespan.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
