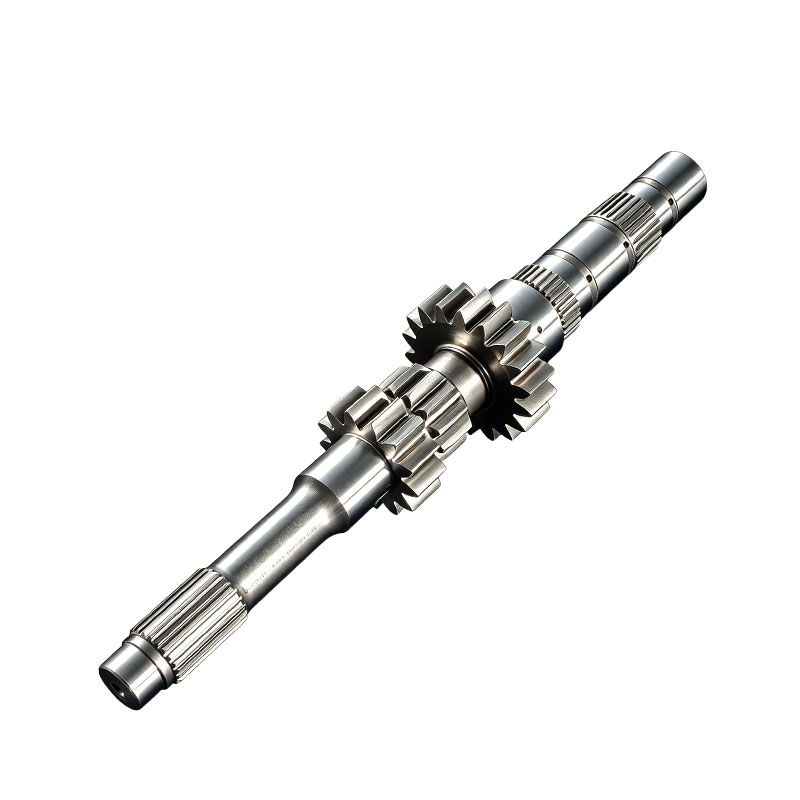

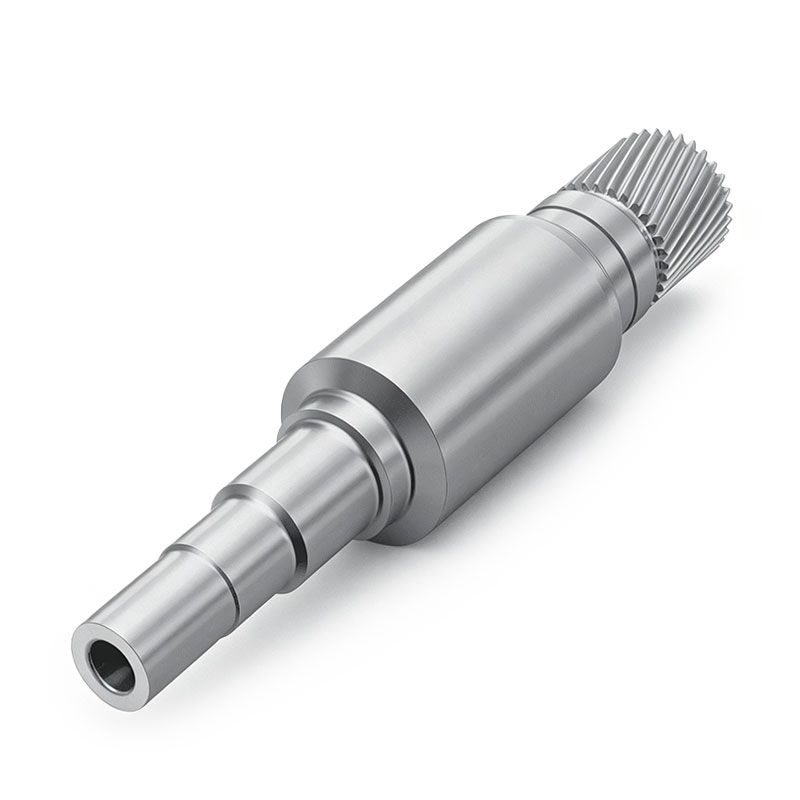

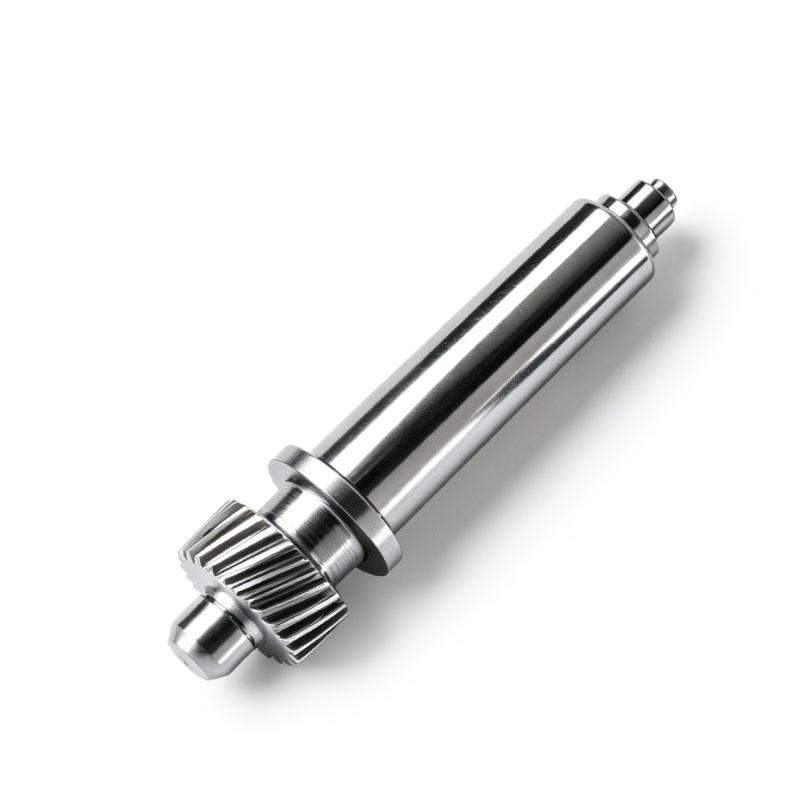

Custom Stainless Steel Electric Rotor Shafts

The AstraRoll Technical Advantage

We manufacture our electric motor shafts to meet the extreme tolerances required by modern high-speed stators and gearboxes:

Micron-Level Concentricity: At 15,000+ RPM, even a fraction of a millimeter of runout causes destructive vibration. We utilize advanced CNC cylindrical grinders to machine the bearing journals and lamination seating areas to a Total Indicator Runout (TIR) of ≤ 0.005mm.

Advanced Spline Manufacturing: Connecting the electric motor to the transmission requires flawless engagement. We hob and grind involute or straight-sided splines directly into the shaft, ensuring zero backlash and maximizing torque transfer efficiency.

Dynamic Balancing: A machined shaft is only half complete. Every AstraRoll high-speed rotor shaft undergoes rigorous computerized dynamic balancing (removing microscopic amounts of material) to achieve ISO 1940 G2.5 or stricter balancing grades, ensuring whisper-quiet motor operation.

Hollow Shaft Cooling Technology: For advanced EV e-drives that generate massive heat, AstraRoll offers deep-hole drilling services. We create precise hollow cores within the shaft to allow for internal oil or water cooling, significantly increasing the motor's continuous power rating.

Key Specifications

Please note: AstraRoll electric rotor shafts are 100% custom-manufactured to your exact CAD blueprints and OEM specifications.

Outer Diameter (O.D.): Custom machined from 10mm (servo motors) up to 150mm+ (heavy traction motors).、
Overall Length: From compact 50mm pump shafts up to 1,000mm+ industrial drive shafts.
Surface Roughness: Ra 0.4 or better on critical bearing and oil seal journals.
TIR (Total Indicator Runout): ≤ 0.005mm (Depending on length and diameter).
Spline Standards: DIN 5480, ANSI B92.1, or custom OEM profiles.

Why Choose AstraRoll?

1. One-Stop E-Motor Component Supplier

Navigating multiple vendors for turning, spline hobbing, deep-hole drilling, and dynamic balancing introduces massive logistical delays and quality control risks. AstraRoll is a fully integrated manufacturer. We handle the raw material sourcing, complete precision machining, balancing, and CMM inspection entirely in-house, ensuring absolute dimensional consistency for your motor assembly lines.

2. Strict Quality Control & CMM Inspection

Electric motor shafts require tight geometric dimensioning and tolerancing (GD&T). Every batch of AstraRoll shafts is subjected to rigorous inspection using advanced Coordinate Measuring Machines (CMM), optical shaft measurement systems, and surface profilometers. We provide comprehensive inspection reports with every delivery, guaranteeing true plug-and-play assembly.

Frequently Asked Questions (FAQs)

Q: Why would I choose Stainless Steel over 4140 Alloy Steel for a rotor shaft?
A: For standard electric vehicles or dry industrial environments, 4140 or 42CrMo alloy steel is the industry standard due to its high yield strength and lower cost. However, you must choose Stainless Steel if the electric motor will be exposed to corrosive elements—such as chemical transfer pumps, submerged marine motors, or hygienic stainless steel washdown motors used in the food and beverage industry.

Q: Can you manufacture the rotor shaft and press the magnetic laminations onto it for us?
A: AstraRoll specializes exclusively in the precision machining of the bare metallic shaft. We supply the high-precision finished shaft to your assembly facility, where your team will handle the pressing of the silicon steel lamination stacks, magnets, and copper windings.

Q: How do you ensure the bearing journals are perfectly smooth?
A: After the initial CNC turning process, the shaft is transferred to a precision cylindrical grinding machine. We grind the bearing seating areas and the oil seal contact zones to extremely tight tolerances (e.g., h6 fits) and an ultra-fine surface finish (often Ra 0.4 to Ra 0.2), ensuring the bearings seat perfectly and the oil seals do not wear prematurely.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
