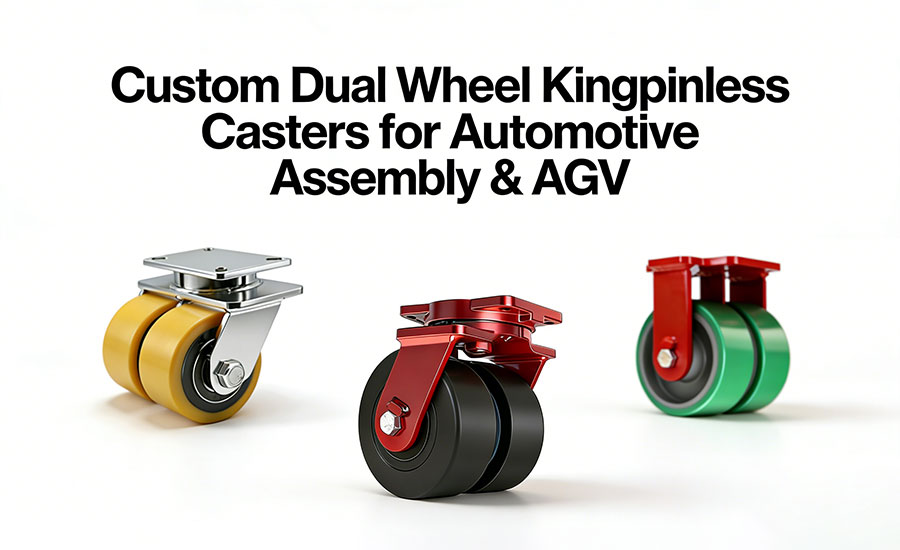

Custom Dual Wheel Kingpinless Casters for Automotive Assembly & AGV

The AstraRoll Technical Advantage: Engineered for High-Speed & High-Load
Modern assembly lines and automated systems require a fundamentally different approach to swivel mechanics and load distribution:

The Kingpinless Advantage: Traditional casters rely on a center bolt (kingpin) that absorbs 100% of the lateral shock load during towing. Over time, this bolt stretches, bends, or shears off. Our Kingpinless Raceway uses a precision-machined, heat-treated path where the ball bearings lock the swivel together, distributing the load over a larger area. This makes the caster virtually immune to the catastrophic failure caused by forklift impact or high-speed towing.

Dual-Wheel Differential Effect: When a single wide wheel turns, the inner and outer edges "scrub" the floor at different speeds, creating massive friction. Our dual wheels rotate independently, acting as a differential. This drastically reduces swivel resistance, enabling AGVs to preserve battery life and allowing human operators to turn heavy carts with 40% less physical effort.

Product Features & Engineering Specs

Ultra-High Capacity Stability: The dual-wheel design spreads the weight over two independent treads, doubling the capacity in the same footprint and preventing "flat-spotting" during long periods of static storage.

Optimized for AGV Navigation: Precision-machined swivel raceways provide a "zero-play" interface, ensuring that Automated Guided Vehicles (AGVs) can maintain perfect tracking and millimeter-accurate positioning on the factory floor.

High-Speed Towing Capability: Engineered for power-towed applications, these casters remain stable and vibration-free at speeds exceeding 6–10 mph, even when moving multi-ton assembly racks.

Ergonomic Swivel Effort: The reduced footprint of two separate wheels makes the "swivel-on-a-dime" capability a reality, significantly lowering the force needed to change direction under maximum payload.

Premium Tread Formulations: Available with high-rebound Polyurethane that rejects metal shavings and provides quiet operation, or Forged Steel for the absolute highest capacities in extreme environments.

Key Attributes

Load Capacity: 2,000 lbs – 10,000 lbs (900 kg - 4,500 kg) per caster.
Wheel Diameter: 6", 8", 10", 12" (Custom dual-wheel sizes available).
Tread Material: High-Performance Polyurethane (95 Shore A), Nylon, or Forged Steel.
Hardness: Shore A 95 or Shore D 80+.
Brake Type: Four-Position Swivel Lock or Heavy-Duty Side Brake.
Bearing Type: Precision Tapered Roller Bearings (For high-speed towing).
Mounting Type: Extra-Thick Forged Steel Top Plate.

Why Choose AstraRoll?

Precision Engineering & Reliability
AGV System Integration: We provide precision-engineered wheels that match the exact torque and dimensional requirements of your AGV/AMR platforms, ensuring maximum uptime and battery efficiency for your automated fleet.
Forged for Durability: Our top plates and raceways are CNC-machined from forged steel, not stamped. This ensures a perfectly uniform structure that withstands 24/7 operation in the most demanding automotive plants.

Customization for Industry 4.0
Tread Compounding: We work with your engineers to select the specific polyurethane compound required—whether it’s high-rebound for easy rolling, conductive for ESD-safe areas, or extra-tough for debris-heavy scrap zones.

Frequently Asked Questions (FAQ)

Q: Why is a Kingpinless design better for towing?
A: In power-towing applications, carts are often jerked or subjected to sudden side-impacts. In a standard caster, the kingpin bolt is the weakest link and will eventually fail. A kingpinless caster has no central bolt to break, distributing those forces evenly across a hardened raceway.

Q: Do dual wheels really make a difference for AGV battery life?
A: Yes. By reducing the "swivel lead" and eliminating the scrubbing friction during turns, the AGV's motors draw significantly less current to change direction. This leads to longer run times between charges across your entire fleet.

Q: Can I customize the top plate to fit my existing assembly carts?
A: Absolutely. We offer fully customizable top plate dimensions and bolt hole patterns to ensure our casters are a direct, drop-in replacement for your existing equipment without the need for chassis modification.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
