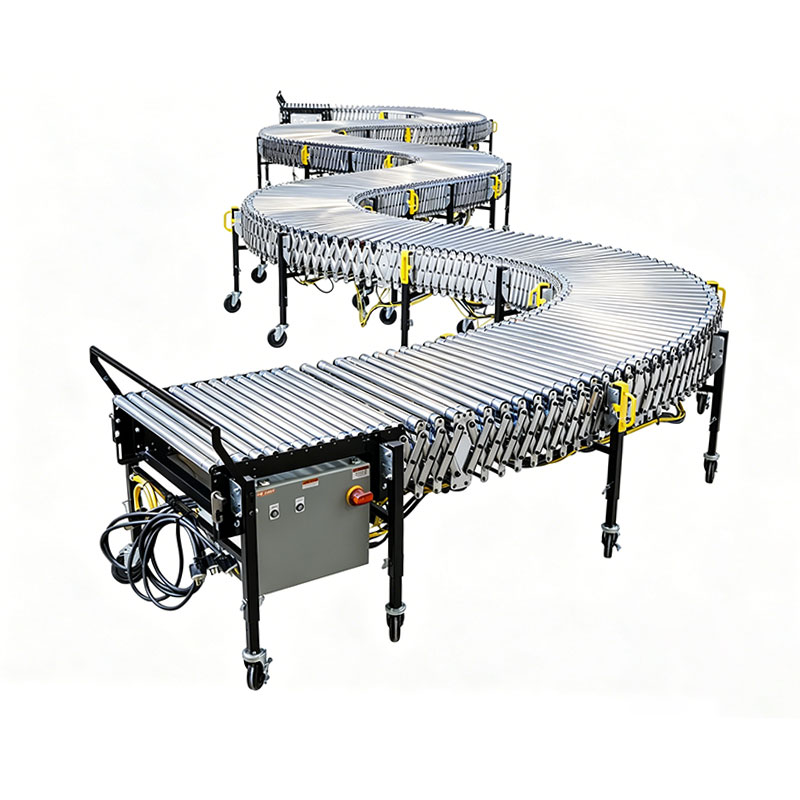

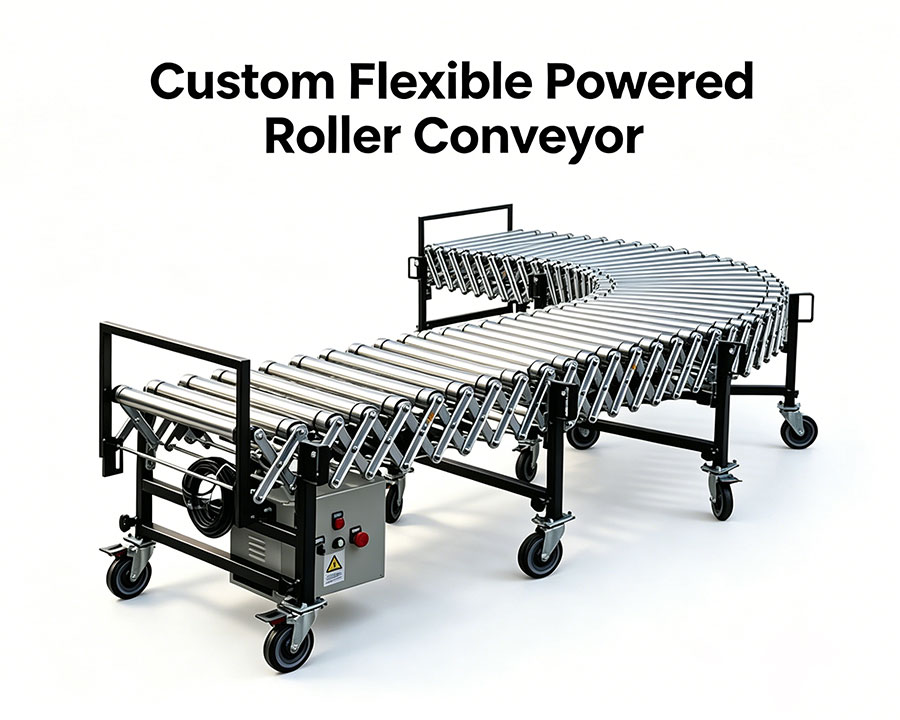

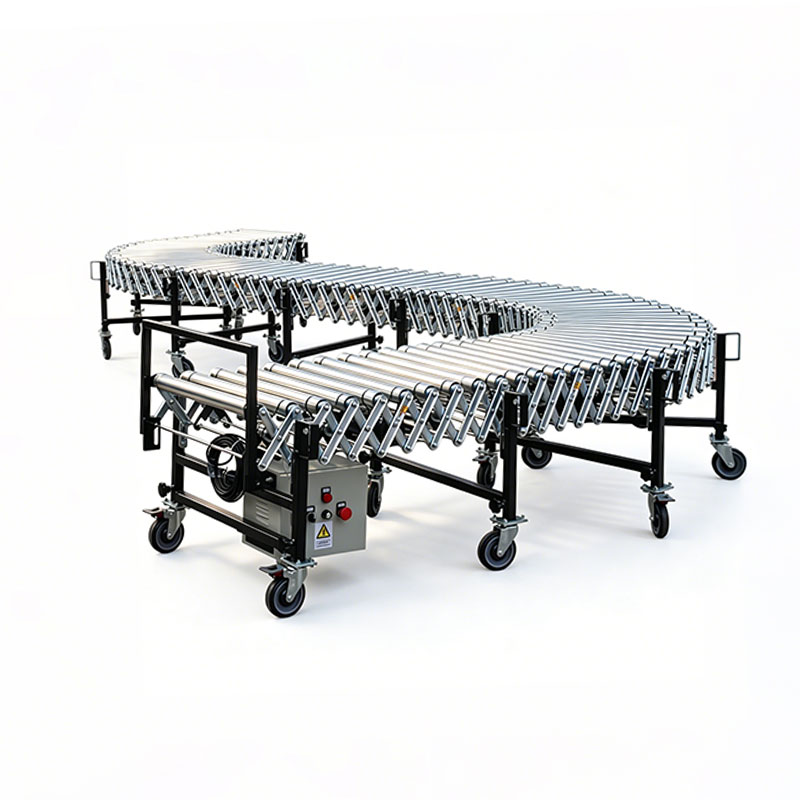

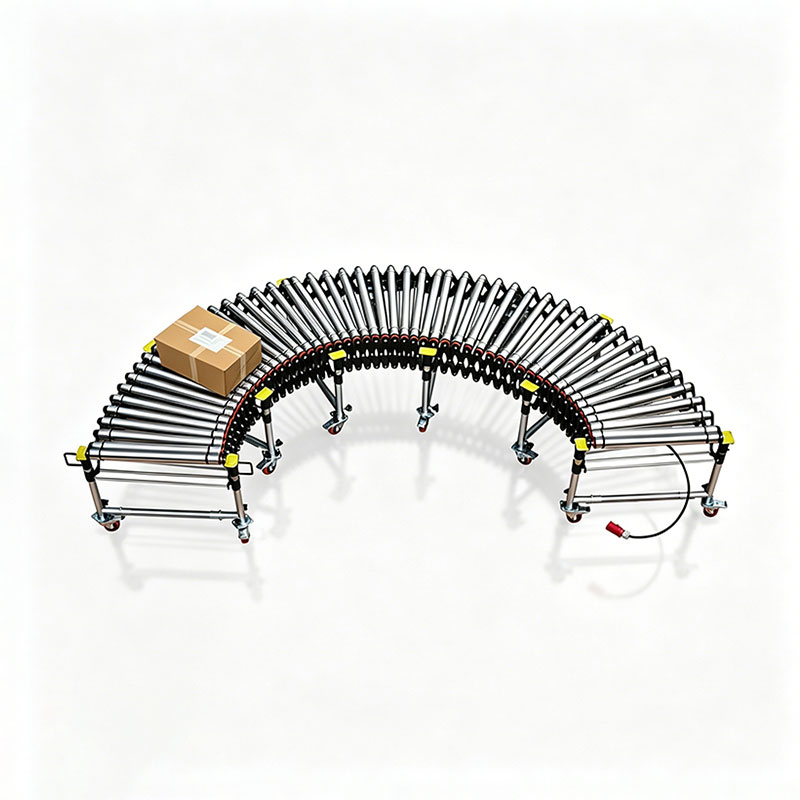

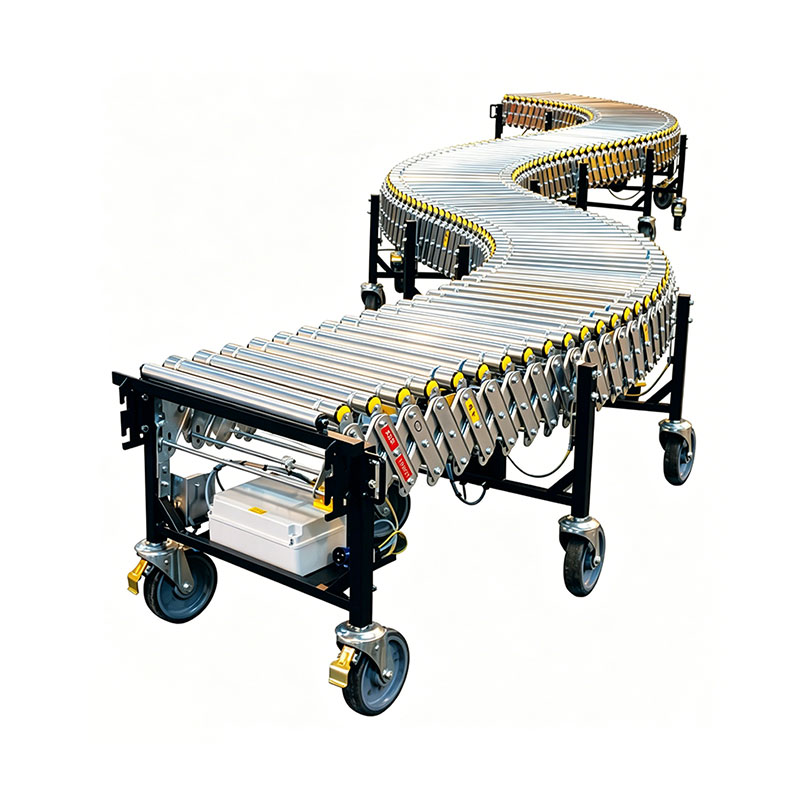

Custom Flexible Powered Roller Conveyor

The AstraRoll Technical Advantage: Rugged Automation
Standard flexible motorized conveyors often suffer from warped frames and burnt-out motors under high-volume dock conditions. We engineered our system to prioritize structural integrity and smart package handling:

Optical Zero-Pressure Accumulation (ZPA): Instead of relying on packages physically bumping into mechanical levers, we use advanced electronic photo-eye sensors. The system automatically divides the line into zones. When a package stops at the end, the conveyor intelligently halts incoming items zone-by-zone, leaving a safe gap between cartons to ensure zero crushing or product damage.

Reversible & Variable Speed Flow: Truck loading requires dynamic control. Our integrated control panels allow operators to adjust the belt speed from 0 up to 120 Feet Per Minute (FPM). With a simple switch, the flow direction reverses, instantly turning your outbound shipping line into an inbound receiving line.

Industrial-Grade Structural Rigidity: Motorized systems are heavy. To prevent the "center sag" common in cheaper models, we build our accordion side-links from heavy-duty 8-gauge or 11-gauge steel, supported by massive structural tubing legs and premium 6" to 8" industrial casters.

Custom Product Features & Capabilities

High-Volume Load Capacity: Custom-gauged frame and drive systems engineered to continuously transport heavy industrial cartons and totes with zero hesitation.

1.9" Galvanized Rollers: Premium 16-gauge precision rollers provide full-width, continuous support for irregular packages, eliminating the jams associated with skatewheel systems.

Protected Articulated Wiring: All power cables and sensor wiring are securely routed through industrial protective drag chains to prevent pinching or snapping when the conveyor stretches and bends.

Ergonomic Elevation Adjustments: Heavy-duty telescopic legs feature secure locking mechanisms, allowing precise height adjustments to match dock plates, truck beds, or existing permanent conveyor lines.

Lockable Heavy-Duty Mobility: Outfitted with 6" or 8" oversized polyurethane swivel casters with total-lock brakes to anchor the motorized frame solidly against the intense forces of automated truck loading.

Key Specifications & Capabilities

Drive Technology: 24V DC Motor Driven Rollers (MDR) with high-torque Poly-V or O-ring belts.
Roller Specifications: 1.9" OD x 16-gauge galvanized steel (Standard) or high-friction Polyurethane-sleeved.
Speed Contro: Variable frequency from 0 to 120 FPM (Feet Per Minute), fully bi-directional (Forward/Reverse).
Accumulation Logic: Pre-wired Optical Zero-Pressure Accumulation (ZPA) via integrated photo-eye sensors.
Load Capacity: Custom-engineered per motorized zone to handle high-volume industrial unit loads.
Expansion Ratio: Up to a 3:1 compaction ratio (e.g., a 24ft line collapses to 8ft for dock storage).
Power Supply: Standard 110V/220V AC input, internally converted to safe 24V DC logic.
Casters & Mobility: Heavy-duty 6" or 8" polyurethane swivel casters with total-lock brakes.

Frequently Asked Questions (FAQs)

Q: When should I upgrade from a Gravity Flex Conveyor to a Powered Flexible Conveyor?
A: You need to upgrade to powered if: 1) Your operators are manually pushing boxes long distances. 2) You need to move packages up an incline into a high truck bed. 3) You handle fragile goods and cannot risk boxes crashing into each other at the end of the line (requiring ZPA).

Q: Can this conveyor be used for both loading and unloading trucks?
A: Absolutely. Our control panels feature a simple directional switch. You can run the rollers forward to flow packages deep into an outbound trailer, and instantly reverse the flow for inbound receiving operations.

Q: How do you prevent packages from flying off the end if the operator steps away?
A: The integrated Zero-Pressure Accumulation (ZPA) photo-eyes automatically detect if a package has reached the end-stop. It will halt the final zone, and cascade that "stop" command down the line, holding all incoming packages safely in place until the operator removes the first box.

Q: Will the drive belts snap when we bend the conveyor around a corner?
A: No. We utilize high-elasticity, industrial-grade drive bands (like Poly-V or heavy-duty O-rings) specifically engineered to maintain perfect tension and torque transfer even when the conveyor is flexed into sharp curves.

Why Choose AstraRoll?

Plug & Play ZPA: Pre-wired and pre-programmed optical sensors. Just plug it into a standard outlet—no costly PLC integration needed.

Sag-Free Frame: Heavy-duty 8-gauge steel side plates and oversized legs easily support the massive weight of motorized drives and heavy payloads.

Snap-Proof Wiring: All electrical cables are shielded inside industrial drag chains, completely eliminating the #1 cause of failure: pinched or snapped wires.

Factory-Direct Customization: We custom-build the exact width, length, and roller pitch for your specific dock, delivering superior systems at aggressive wholesale pricing.


Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
