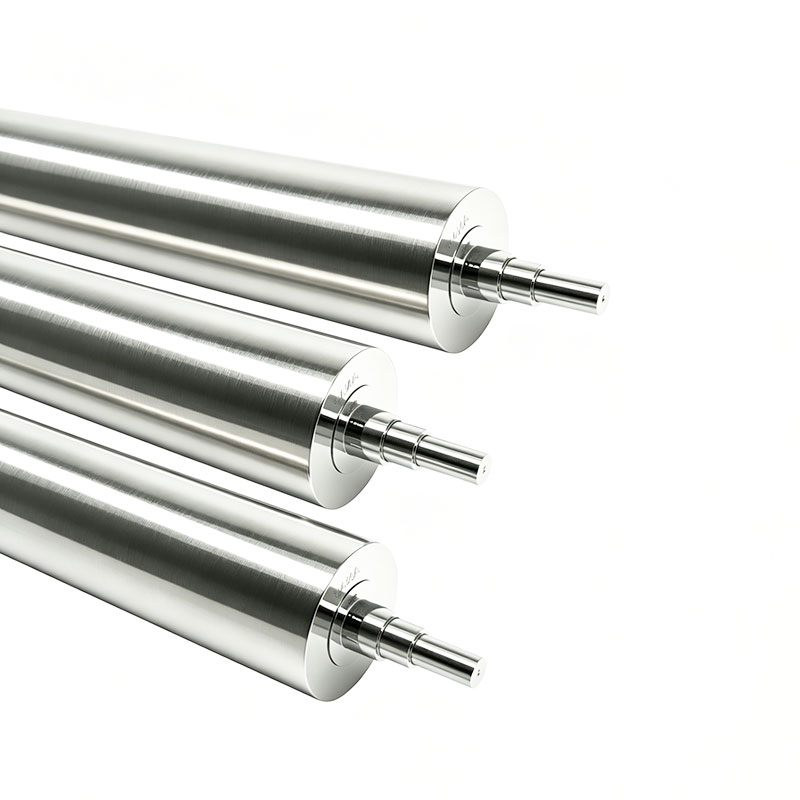

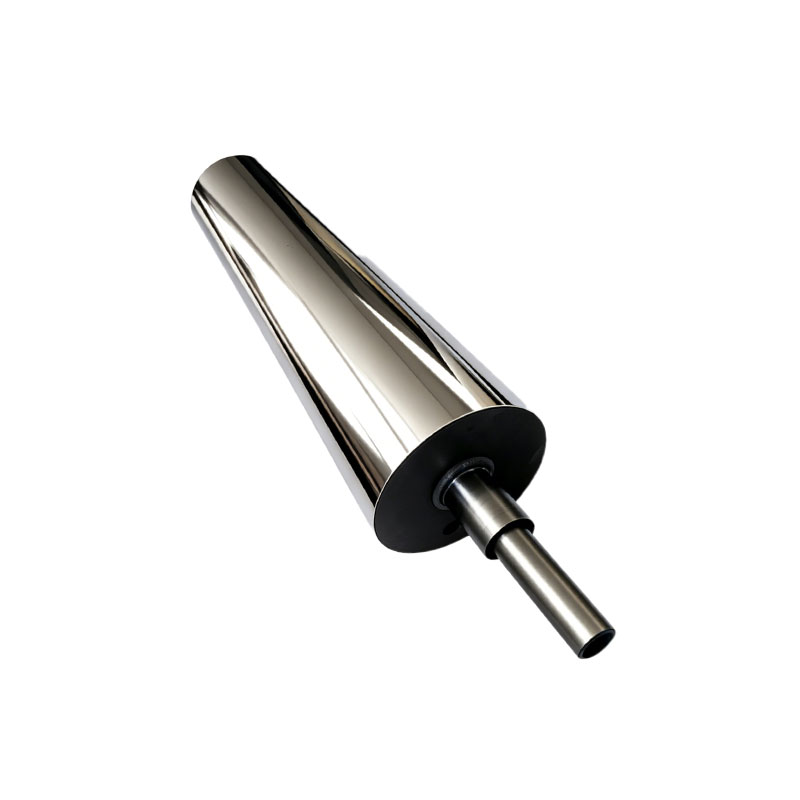

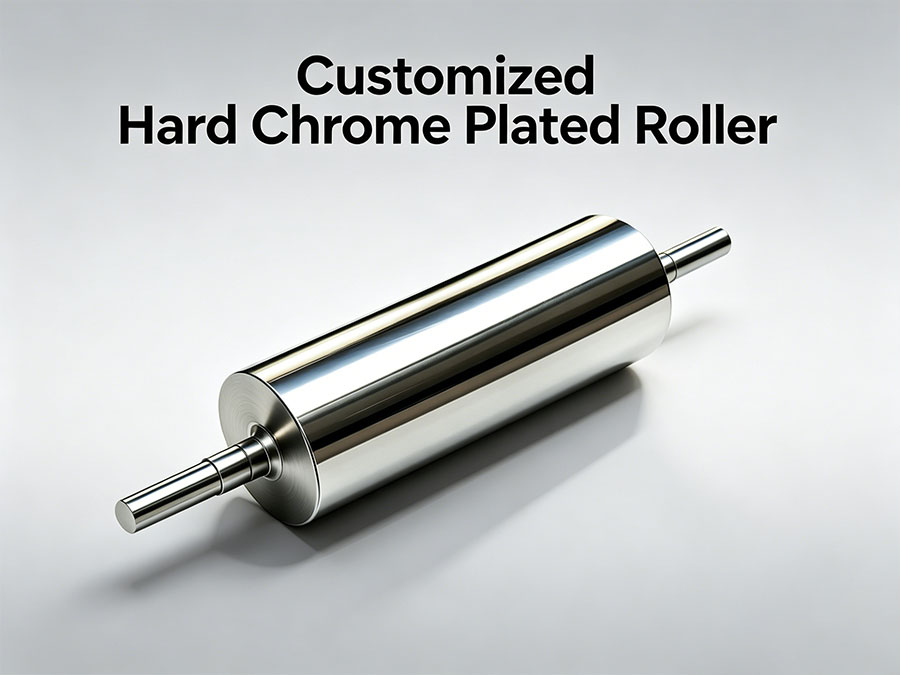

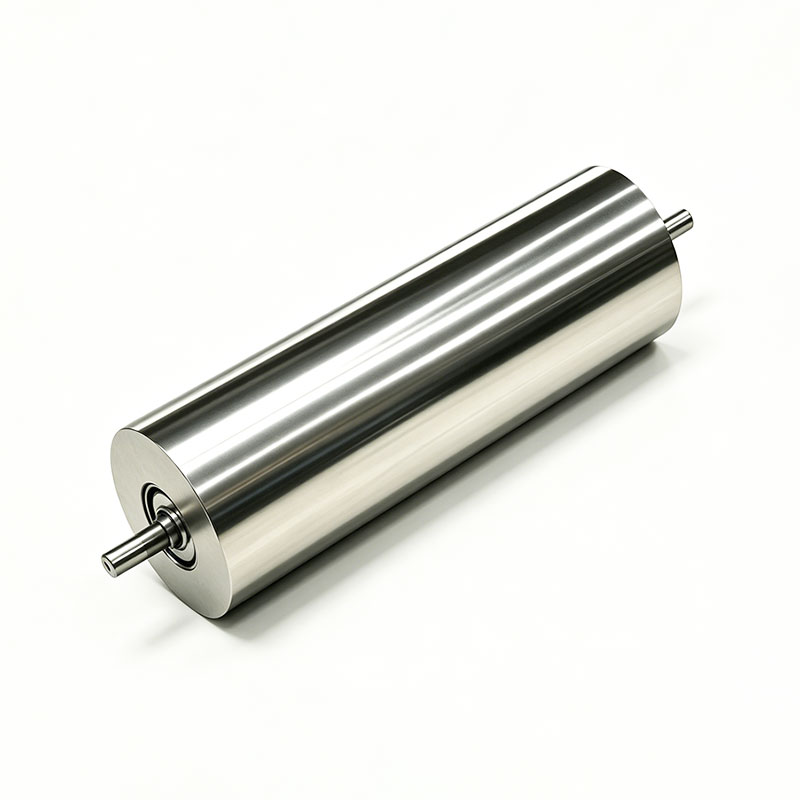

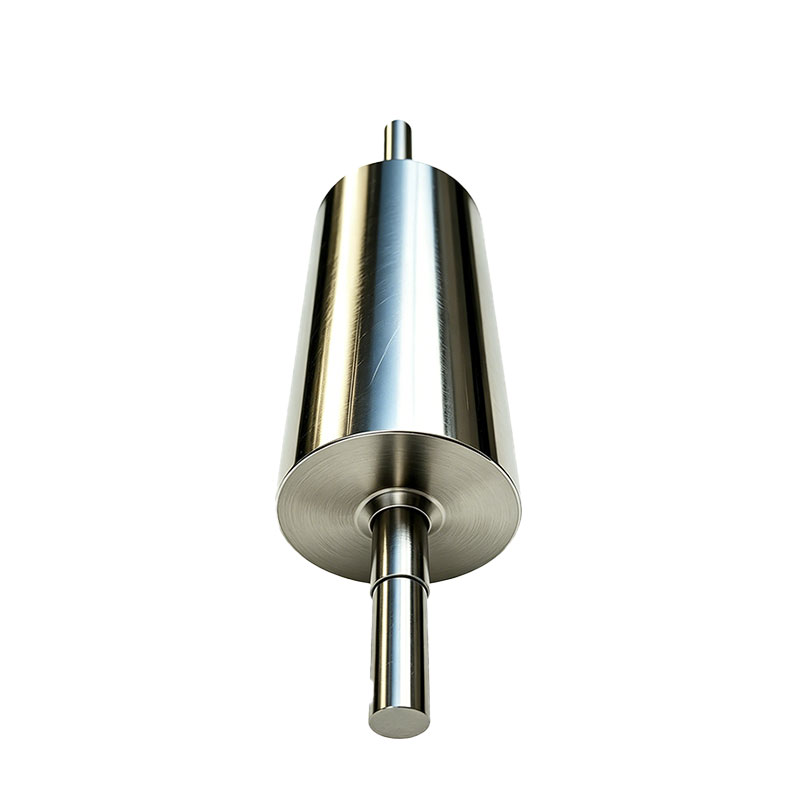

Customized Hard Chrome Plated Roller

AstraRoll's Customized Hard Chrome Plated Rollers are high-precision industrial components engineered for applications requiring extreme surface hardness, superior wear resistance, and a flawless finish. Each roller is crafted from a high-grade steel core, which undergoes a rigorous electroplating process to deposit a high quality thick layer of industrial hard chrome. This is followed by multi-stage precision grinding and mirror polishing to achieve a surface that facilitates the smooth moving of delicate materials like films, foils, and papers without friction or damage.

Designed to withstand the most demanding mechanical stresses, our chrome-plated rollers support a higher loading capacity while providing a barrier against chemical corrosion and abrasive materials. The result is a component that delivers exceptional driving quiet wear resistance and stable smooth driving even at high operational speeds. Furthermore, our hard chrome rollers are fully customizable to interface seamlessly with various models of printing, coating, and laminating machinery to meet your exact engineering tolerances.

Technical Parameter

Base Material: High-grade Carbon Steel (S45C/CK45), Alloy Steel, or SUS304/316

Tube Diameter: 50mm–1000mm (Customizable based on machinery requirements)

Shaft Diameter: Precision machined to customer specifications (H6/G6 tolerances)

Plating Thickness: 0.03mm – 0.15mm (Uniform industrial hard chrome layer)

Surface Hardness: HRC 60 – 65 (HV 800 - 1000) for maximum durability

Surface Finish: Mirror Finish (Ra 0.01μm – 0.05μm) or Super-finish Grinding

Load Capacity: Supports higher loading capacity (up to several tons per unit)

Concentricity / TIR: Within 0.005mm – 0.01mm for high-speed stability

Temperature Resistance: Continuous operation up to 250°C (Optimized for smooth driving)

Bearing Type: Compatible with precision cylindrical or spherical roller bearings

Application Industrial

Printing & Packaging: Essential for rotogravure, flexographic printing, and high-speed offset presses.

Coating & Laminating: Used for BOPP film, adhesive tape, and functional material coating lines.

Plastic & Film Industry: High-precision rollers for film extrusion, stretching, and winding.

Textile Processing: Dyeing, finishing, and calendering rollers requiring high quality anti-stick surfaces.

Paper & Pulp: Heavy-duty chrome cylinders for paper calendering and sizing sections.

Why choose AstraRoll's Customized Hard Chrome Plated Roller?

Extreme Surface Hardness: Our specialized plating process achieves a hardness of HRC 60+, ensuring exceptional driving quiet wear resistance even in abrasive environments.

Ultra-Precision Mirror Finish: We utilize advanced grinding technology to achieve a mirror finish (Ra < 0.02μm), facilitating the smooth moving of materials without scratches.

Superior Corrosion Resistance: The dense chrome layer acts as a protective shield against acids, alkalis, and moisture, extending the roller’s service life.

High Loading Performance: Engineered with reinforced steel cores to support a higher loading capacity, ensuring structural integrity under extreme tension.

Engineering Versatility: Furthermore, our hard chrome rollers are fully customizable to interface seamlessly with various models of high-speed industrial production lines and specific OEM equipment.

FAQ

Q: What is the maximum length and diameter you can plate?

A: We can handle rollers up to 6000mm in length and 1000mm in diameter, facilitating smooth moving for even the largest-scale industrial machines.

Q: Can you repair and re-chrome old rollers?

A: Yes. We offer a full stripping and re-chroming service to restore your rollers to a high quality finish, returning them to original tolerances for stable smooth driving.

Q: How do you ensure the uniformity of the chrome layer?

A: We use advanced electrolytic monitoring and precision cylindrical grinding to ensure the plating thickness is uniform, supporting a higher loading capacity across the entire surface.

Q: Is the surface finish customizable for specific friction requirements?

A: Absolutely. While we specialize in mirror finishes, we can provide matte, satin, or textured chrome finishes to optimize driving quiet wear resistance for your specific substrate.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
