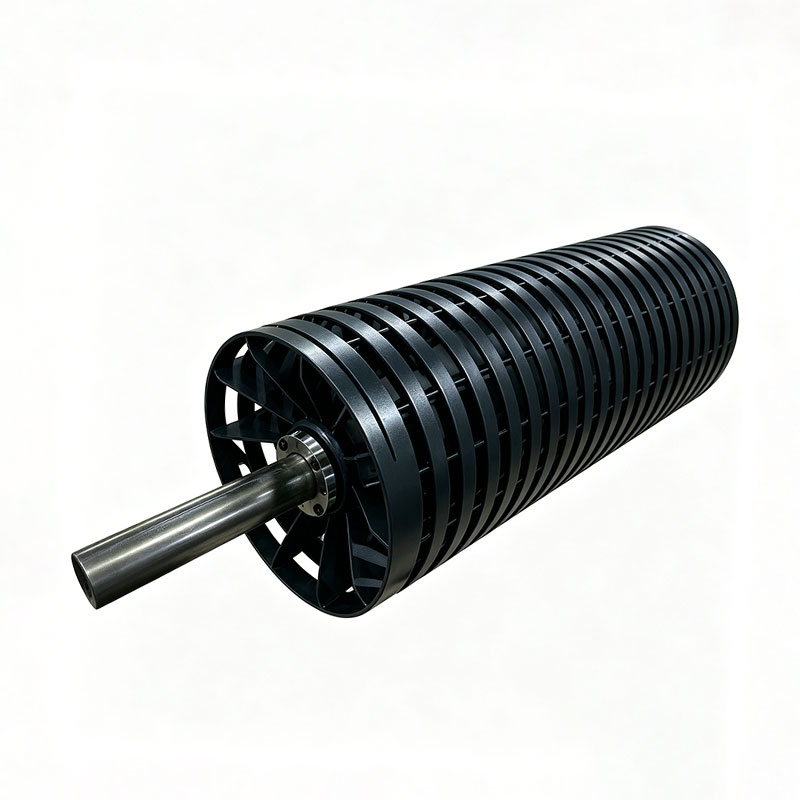

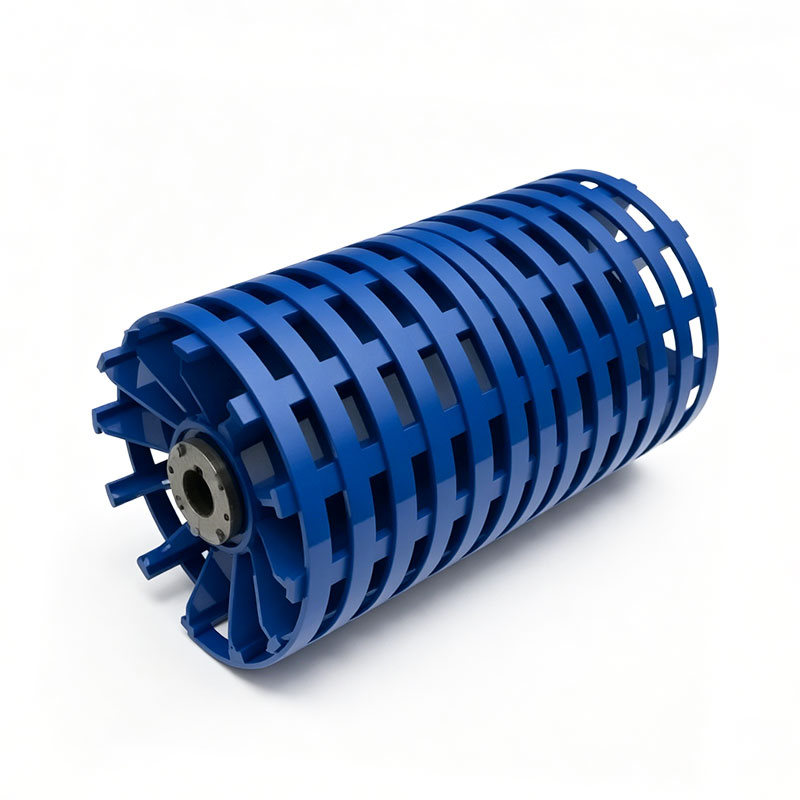

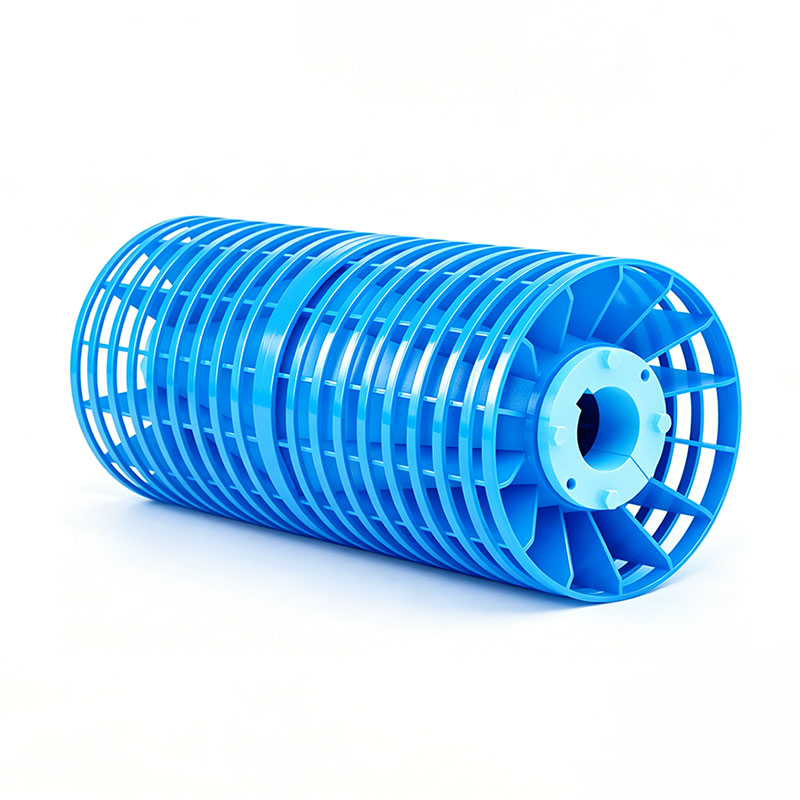

Customized Heavy-Duty Spiral Wrapped Wing Pulley

AstraRoll's Spiral Wrapped Wing Pulleys are engineered to solve the most persistent challenges in bulk material handling: vibration, belt wear, and material buildup. Unlike traditional wing pulleys that create a "beating" effect on the conveyor belt, our high quality spiral design features a continuous flight that maintains constant contact with the belt. This unique helical architecture facilitates the smooth moving of materials by actively ejecting debris away from the belt's path, effectively preventing the "buildup" that leads to belt misalignment.

Designed for the most rigorous industrial environments, these pulleys support a higher loading capacity while delivering exceptional driving quiet wear resistance. By replacing the intermittent contact of standard wings with a smooth, wrapped spiral, our pulleys significantly extend the service life of both the belt and the conveyor components. Furthermore, our spiral wrapped wing pulleys are fully customizable to interface seamlessly with various models of heavy-duty conveyor systems and bulk processing lines.

Technical Parameter

Pulley Type：Self-Cleaning Spiral Wrapped Wing Pulley

Tube/Drum Material：Reinforced Carbon Steel or Heavy-Duty Alloy Steel

Spiral Flighting：Helical-wrapped steel bars for continuous belt contact

Surface Treatment：High Quality Powder Coating or Anti-Corrosive Industrial Paint

Load Capacity：Engineered for higher loading capacity

Shaft Options：Cold-drawn Steel with Keyway or Taper-Lock Hubs

Surface Finish：Smooth-ground spiral edges to prevent belt abrasion

Operating Temp：-20°C to +100°C (Standard); Specialized high-temp builds available

Concentricity：Precision-welded and balanced for high-speed operation

Application Industrial

Mining & Quarrying: Handling of sticky ores, wet sand, and crushed aggregates.

Coal & Power Plants: Ideal for tail pulleys in coal handling where fines are prevalent.

Cement & Steel Mills: Reliable smooth driving in high-dust and high-temperature environments.

Bulk Port Terminals: Large-scale loading systems requiring exceptional driving quiet wear resistance.

Recycling & Waste: Efficient transport of mixed materials prone to sticking.

Why choose AstraRoll's Spiral Wrapped Wing Pulley?

Elimination of Vibration: The continuous helical wrap provides consistent belt support, facilitating smooth moving and reducing mechanical stress on bearings.

Advanced Self-Cleaning: The spiral design naturally directs material away from the center of the pulley, ensuring stable smooth driving without buildup.

Extended Belt Longevity: By removing the "beating" action of standard wings, our pulleys reduce belt fatigue and prevent internal carcass damage.

Reinforced Durability: Constructed to support a higher loading capacity, our pulleys are built for 24/7 heavy-duty industrial service.

Engineering Versatility: Furthermore, our spiral wing pulleys are fully customizable to interface seamlessly with various models of industrial conveyor stringers and existing drive systems.

FAQ

Q: How does a spiral wing pulley reduce noise compared to standard wing pulleys?

A: Standard wings hit the belt intermittently, creating a loud rhythmic noise. The spiral wrap maintains constant contact, providing exceptional driving quiet wear resistance and nearly silent operation.

Q: Can these be used as drive pulleys?

A: They are primarily used as tail, take-up, or tension pulleys to facilitate smooth moving and self-cleaning. Our pulleys are fully customizable to interface seamlessly with drive components if required for specific low-tension applications.

Q: Does the spiral direction matter?

A: Yes. We design the spiral to eject material toward the outside of the conveyor, ensuring a high quality self-cleaning action that keeps the belt path clear.

Q: Are these pulleys suitable for wet or sticky materials?

A: Absolutely. The spiral flighting is specifically designed to prevent the "packing" of sticky materials, ensuring consistent smooth driving even in damp environments.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
