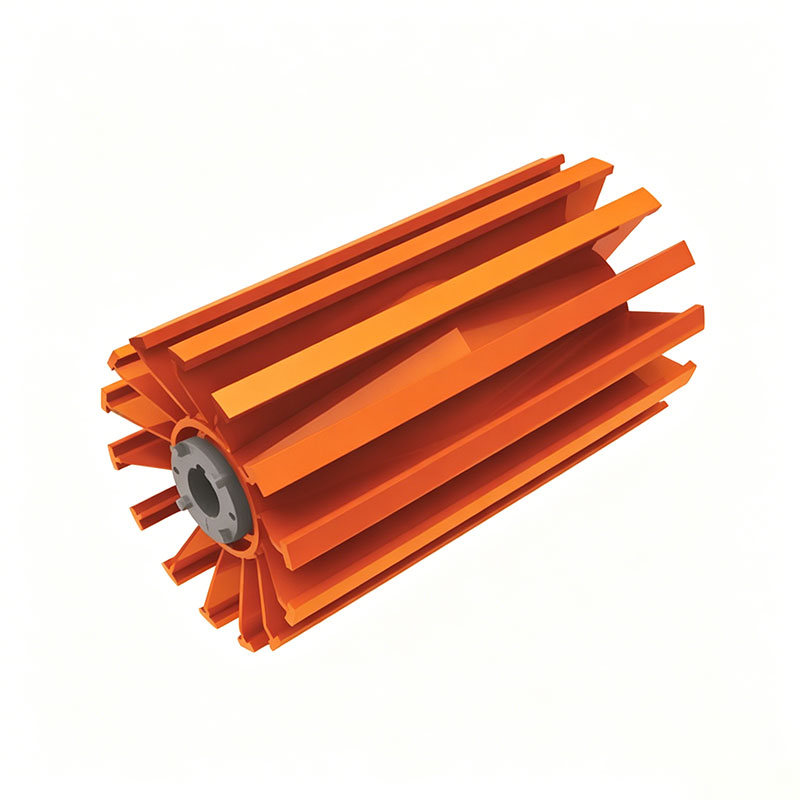

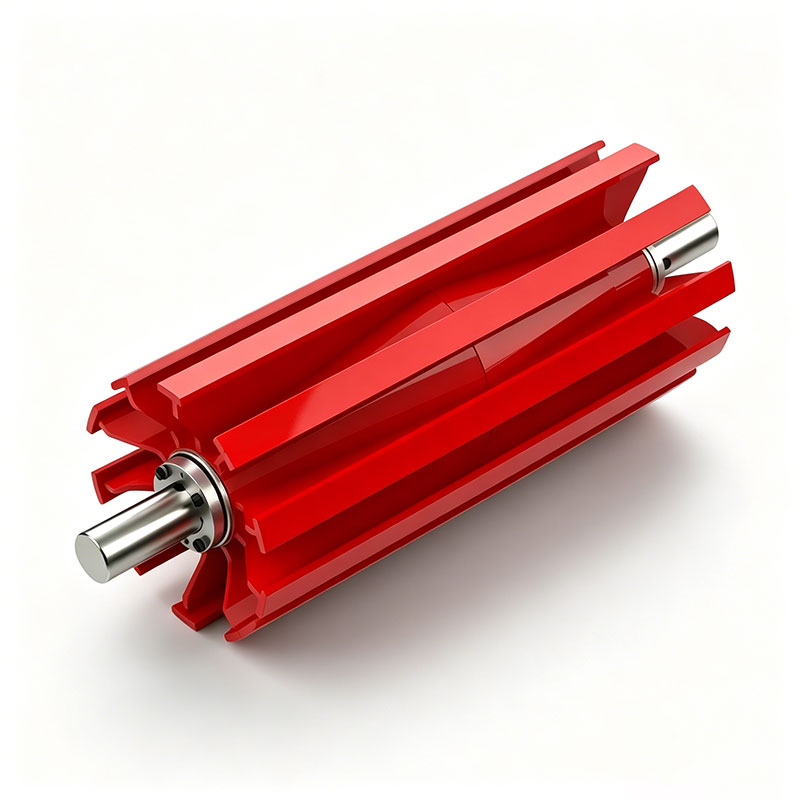

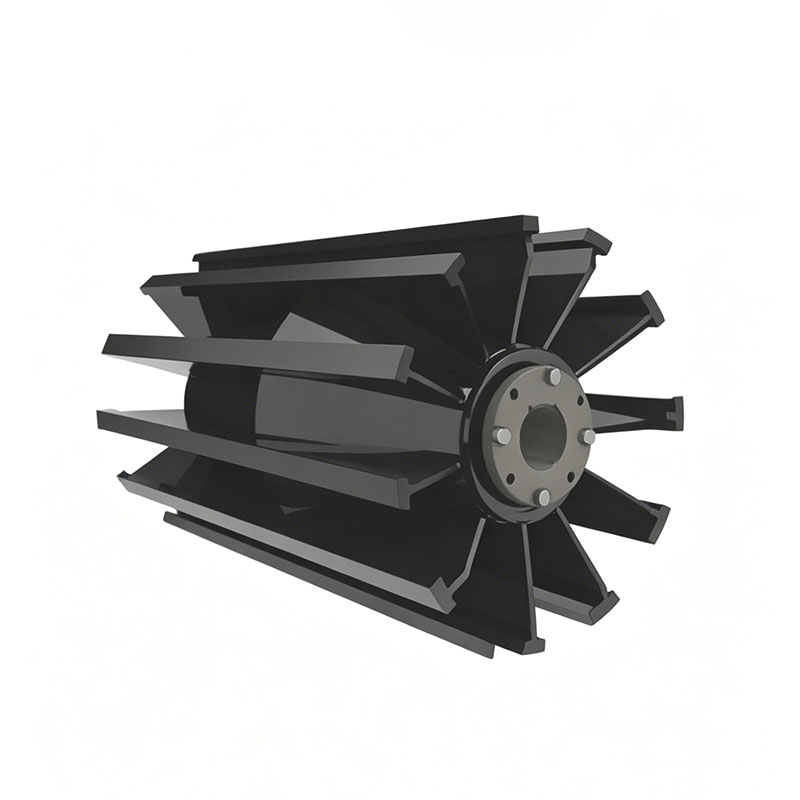

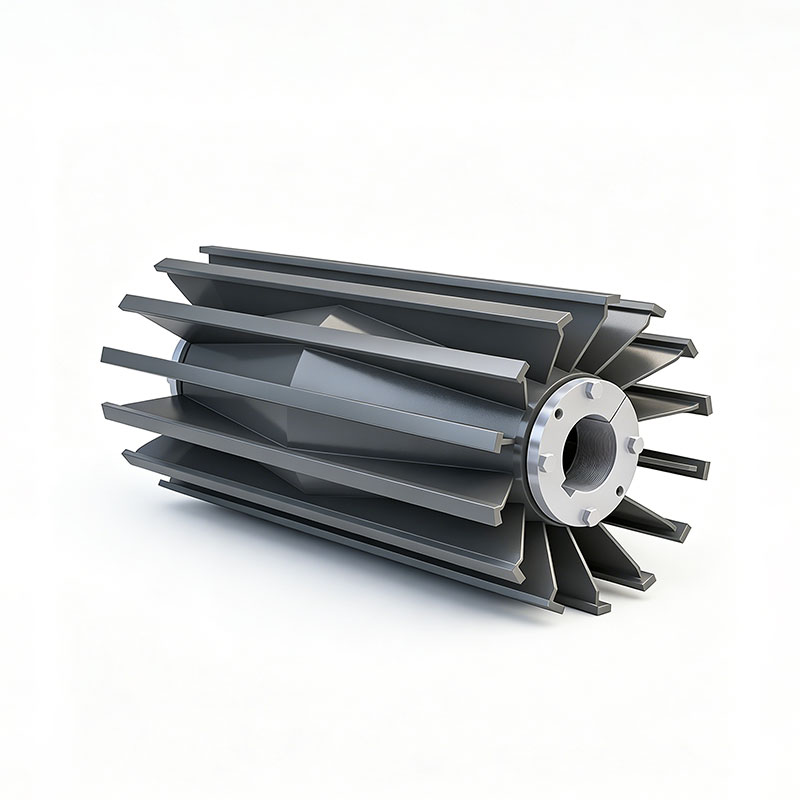

Mine and Quarry-Duty Wing Pulley

AstraRoll's Mine and Quarry-Duty Wing Pulleys are high-strength self-cleaning components designed to survive the most punishing material handling conditions. Unlike standard drum pulleys that allow material to be trapped between the belt and the face, our high quality wing design utilizes individual steel wings to facilitate smooth moving by ejecting rocks, ores, and abrasive debris away from the belt. This architectural design effectively prevents material buildup and protects the conveyor belt from punctures and premature wear.

Constructed for maximum durability in high-tension applications, these pulleys support a higher loading capacity than standard industrial alternatives. Each wing is precision-welded to a heavy-duty central tube to deliver exceptional driving quiet wear resistance and stable smooth driving. Furthermore, our mine and quarry-duty wing pulleys are fully customizable to interface seamlessly with various models of primary crushers and heavy-duty conveyor systems.

Technical Parameter

Pulley Class: Mine-Duty / Quarry-Duty (Exceeding CEMA Standards)

Construction: Heavy-duty individual wings with gusseted reinforcement

Tube/Drum Material: Reinforced Carbon Steel or Alloy Steel (Q235B/Q345B)

Surface Treatment: High Quality Anti-corrosive Industrial Coating or Powder Coating

Load Capacity: Engineered for higher loading capacity in high-tension circuits

Bearing Type: Double-row Spherical Roller Bearings with multi-labyrinth seals

Surface Finish: Smooth-ground wing edges to prevent belt abrasion

Temperature Range: -25°C to +100°C (Reliable for smooth driving in extreme climates)

Shaft Options: Cold-drawn Steel with Taper-Lock, XT, or QD Hubs

Application Industrial

Open-Pit Mining: Heavy-duty tail sections for coal, iron ore, and copper transport.

Quarrying & Aggregates: Handling of crushed stone, gravel, and sand in high-dust environments.

Cement Production: Self-cleaning pulleys for raw material and clinker transport.

Port Terminals: Bulk loading and unloading systems for mineral concentrates.

Heavy Construction: Mobile crushing and screening plants requiring high quality durability.

Why choose AstraRoll's Mine and Quarry-Duty Wing Pulley?

Superior Self-Cleaning Action: The open-wing design allows abrasive material to fall through the pulley instead of being crushed against the belt, facilitating smooth moving.

Reinforced Structural Integrity: Built with thicker steel wings and end plates to support a higher loading capacity in high-impact zones.

Advanced Belt Protection: Rounded wing edges and precision spacing ensure stable smooth driving while minimizing vibration and belt fatigue.

Exceptional Reliability: Engineered for exceptional driving quiet wear resistance, reducing maintenance downtime in remote mining locations.

Engineering Versatility: Furthermore, our mine-duty wing pulleys are fully customizable to interface seamlessly with various models of legacy conveyor frames and heavy-duty drive units.

FAQ

Q: How does the "wing" design prevent belt damage?

A: By allowing material to escape through the wing openings, the pulley prevents "packing," which facilitates smooth moving and stops sharp rocks from being pressed into the belt carcass.

Q: Do you offer reinforcement rings for extremely high-tension applications?

A: Yes. Our pulleys are fully customizable to interface seamlessly with optional reinforcement rings, which support an even higher loading capacity for heavy-duty mining circuits.

Q: Are these pulleys suitable for wet or muddy conditions?

A: Absolutely. The self-cleaning wings are specifically designed to shed wet mud and fines, ensuring stable smooth driving and consistent tracking in all weather conditions.

Q: Can you provide specific hub and bushing configurations?

A: Yes. We offer high quality Taper-Lock, XT, and QD bushing options to ensure the pulley facilitates smooth moving within your existing mechanical setup.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
