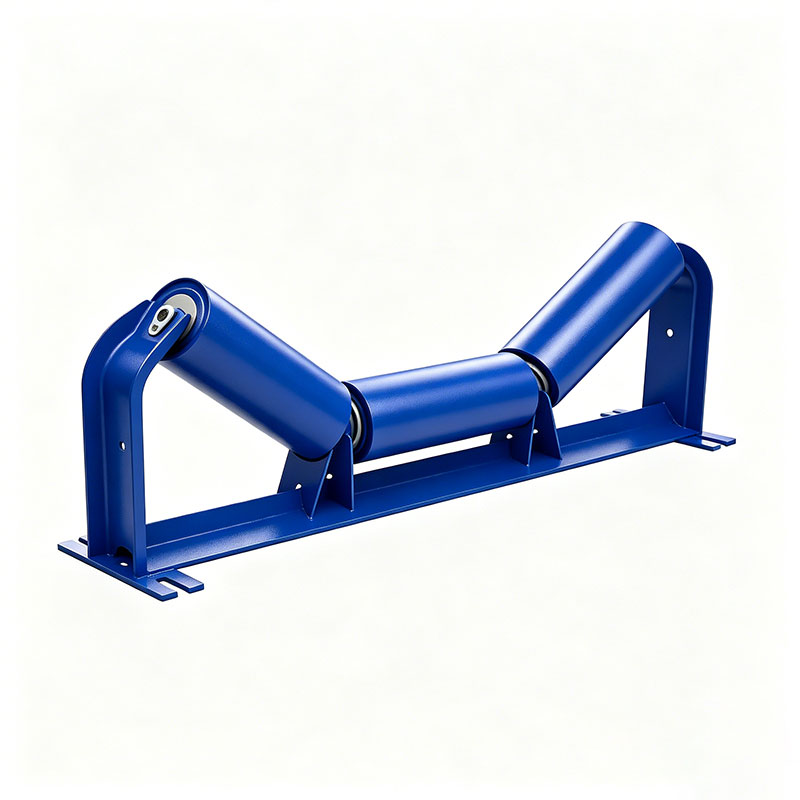

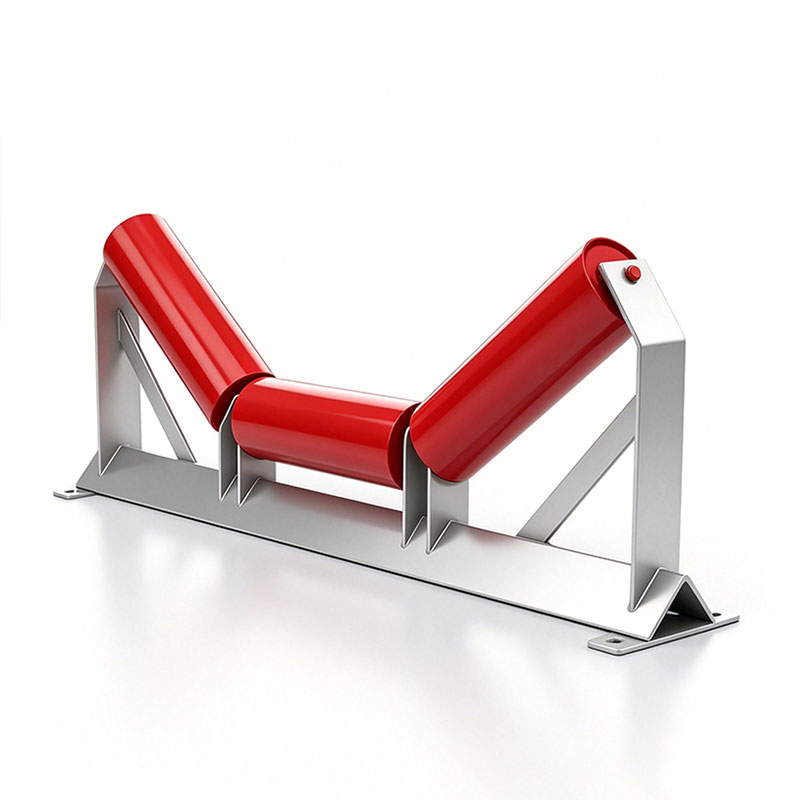

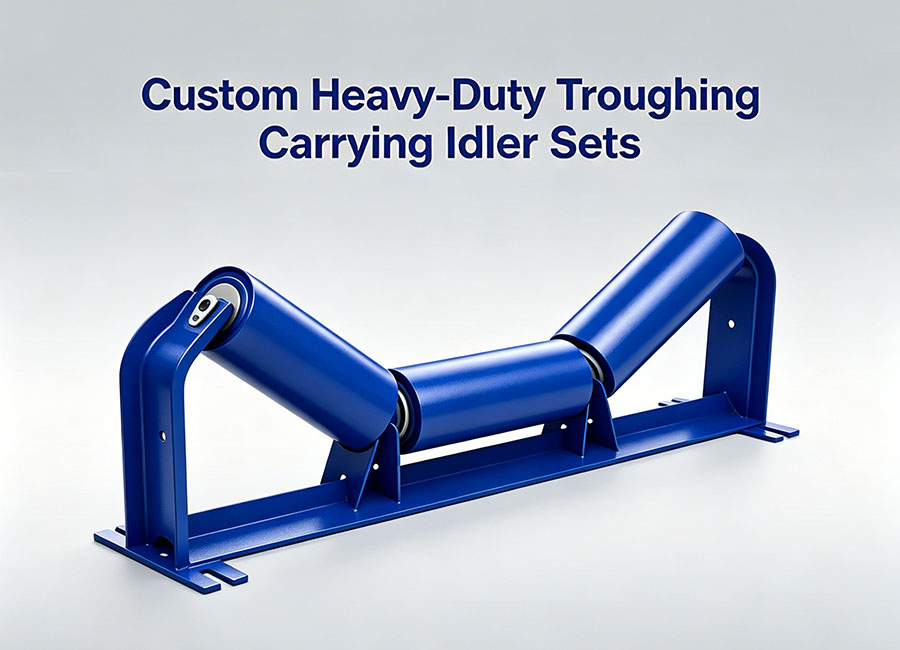

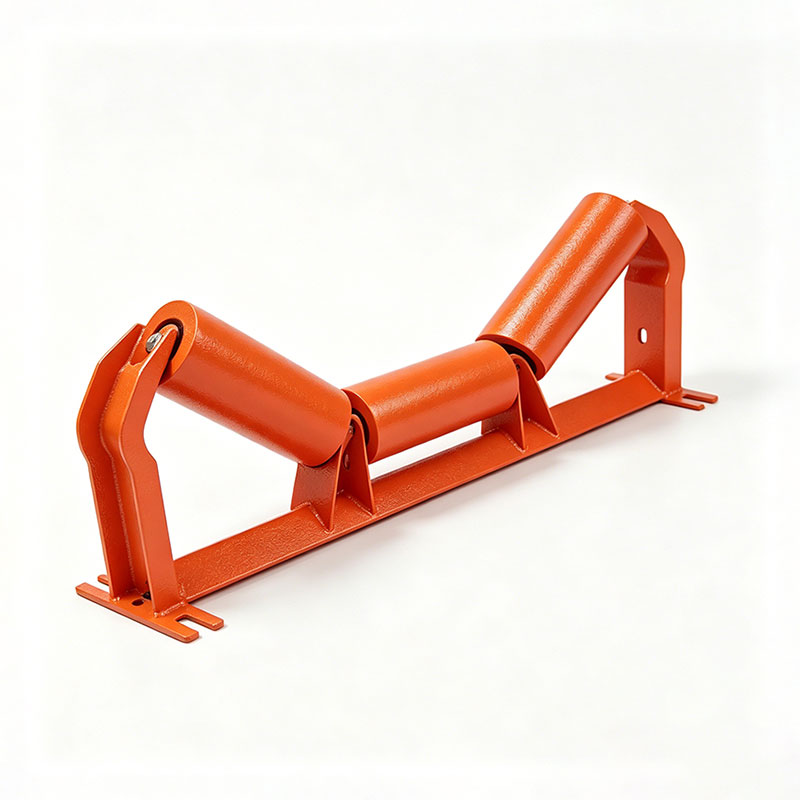

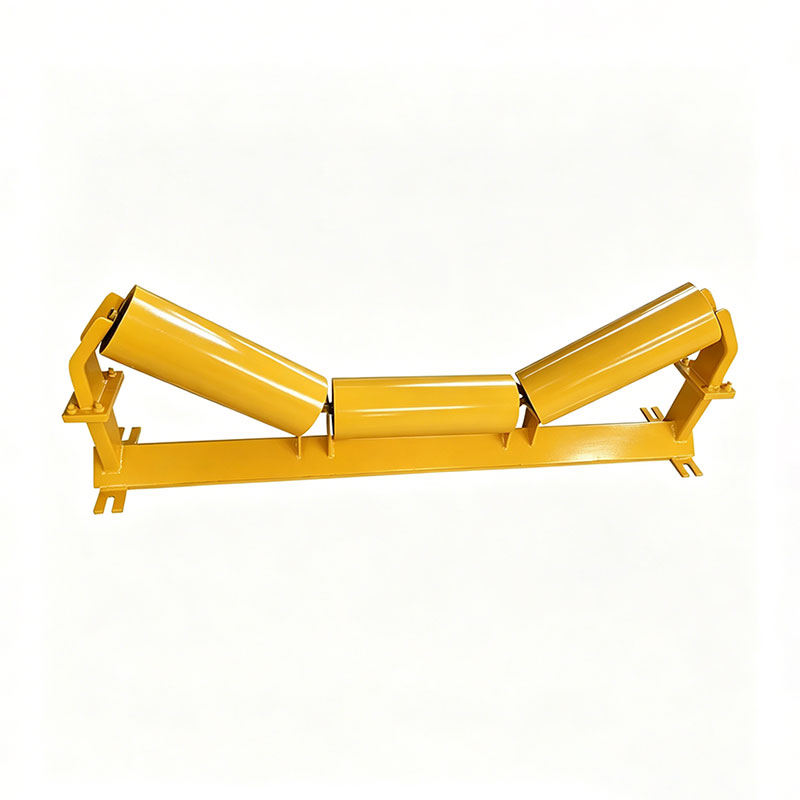

Custom Heavy-Duty Troughing Carrying Idler Sets

AstraRoll's Heavy-Duty Troughing Carrying Idler Sets are the structural backbone of high-performance conveyor systems, specifically engineered to support and shape the belt for maximum volume transport. By utilizing a precision-angled three-roll configuration, these idlers create a consistent trough that facilitates the smooth moving of loose bulk materials—such as coal, crushed stone, and iron ore—while preventing costly spillage and edge wear.

Designed for the rigors of heavy industry, our idler sets are reinforced to support a higher loading capacity over long-distance spans. Each roller is integrated with a multi-stage labyrinth sealing system to protect high-grade bearings from the ingress of dust, grit, and moisture. This meticulous engineering ensures exceptional driving quiet wear resistance and reliable smooth driving, even in the most abrasive mining and quarrying environments.

Technical Parameter

Roller Material: High-Precision Carbon Steel (ERW) or Seamless Steel Pipe

Troughing Angle: 20°, 30°, 35°, or 45° (Customizable)

Surface Treatment: High Quality Powder Coating, Galvanizing, or Painting

Sealing System: Triple Labyrinth Seal (Dust-proof & Water-proof)

Bearing Type: Deep Groove Ball Bearing (C3/C4 clearance for high loads)

TIR (Run-out): ≤0.5mm for ultra-stable smooth moving

Loading Capacity: Engineered for higher loading capacity (Standard & Heavy-Duty)

Application Industrial

Mining & Metallurgy: Primary transport of coal, iron ore, copper, and gold in open-pit and underground mines.

Aggregate & Quarrying: High-volume movement of crushed stone, gravel, and sand.

Cement & Construction: Reliable feeding of limestone and raw materials into kilns and silos.

Power Plants: Efficient coal handling systems for boiler feeding and stockpiling.

Port & Bulk Terminals: High-speed loading and unloading of bulk vessels for international trade.

Why choose AstraRoll's Heavy-Duty Troughing Carrying Idler Sets?

Optimized Load Distribution: Our frames are mathematically engineered to support a higher loading capacity, ensuring the belt maintains its profile under maximum material weight.

Extended Bearing Life: Featuring a superior labyrinth seal, our rollers are protected from contamination, delivering unmatched driving quiet wear resistance and reduced maintenance costs.

Low Rotational Resistance: Precision dynamic balancing and low TIR (Total Indicator Reading) ensure smooth moving and significant energy savings for long-distance conveyors.

Corrosion-Resistant Finish: We apply high quality industrial coatings that protect the steel core from oxidation, ensuring stable smooth driving in humid or coastal environments.

Smart Installation Design: Furthermore, our troughing idler sets are fully customizable to interface seamlessly with various models of conveyor stringers and standard mounting brackets for easy drop-in replacement.

FAQ

Q: What troughing angle should I choose for my material?

A: Typically, 35° is the industry standard for coal and ore to ensure smooth moving, while 45° is used for lighter, higher-volume materials. We can customize the angle to match your specific bulk density.

Q: Are these idlers suitable for high-speed conveyor lines?

A: Yes. AstraRoll idlers are dynamically balanced to ISO standards to prevent vibration, ensuring smooth driving and protecting your belt from premature wear at high speeds.

Q: How do you handle extreme dust or water in the mining environment?

A: Our rollers utilize a high quality triple labyrinth seal combined with a grease-filled chamber, which provides a physical barrier against particles, ensuring long-term driving quiet wear resistance.

Q: Can you manufacture idlers to match non-standard frame sizes?

A: Absolutely. Our idler sets are fully customizable to interface seamlessly with various models of conveyor structures, regardless of the original manufacturer’s specifications.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
