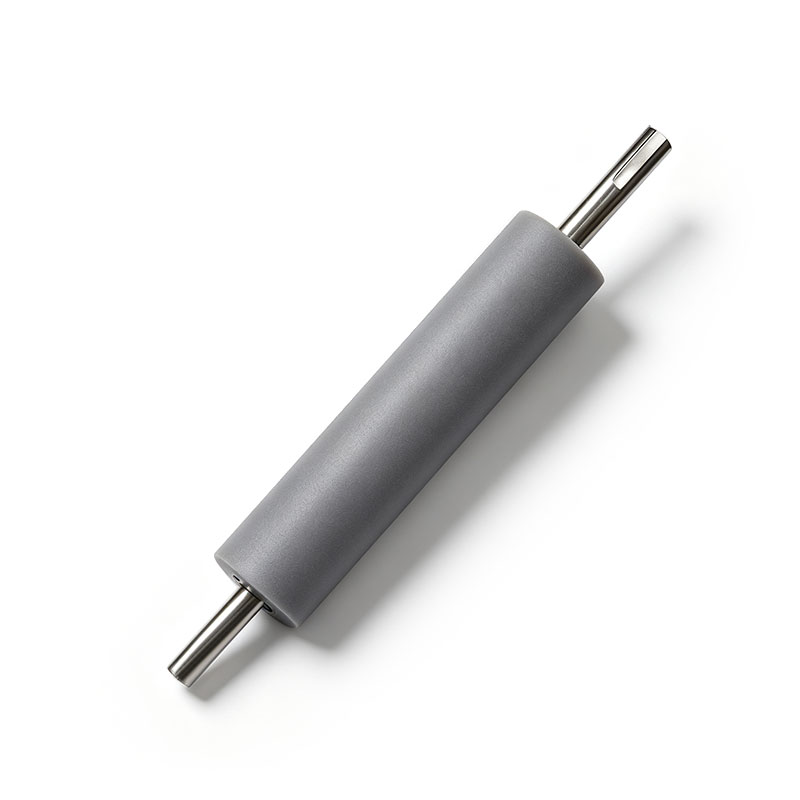

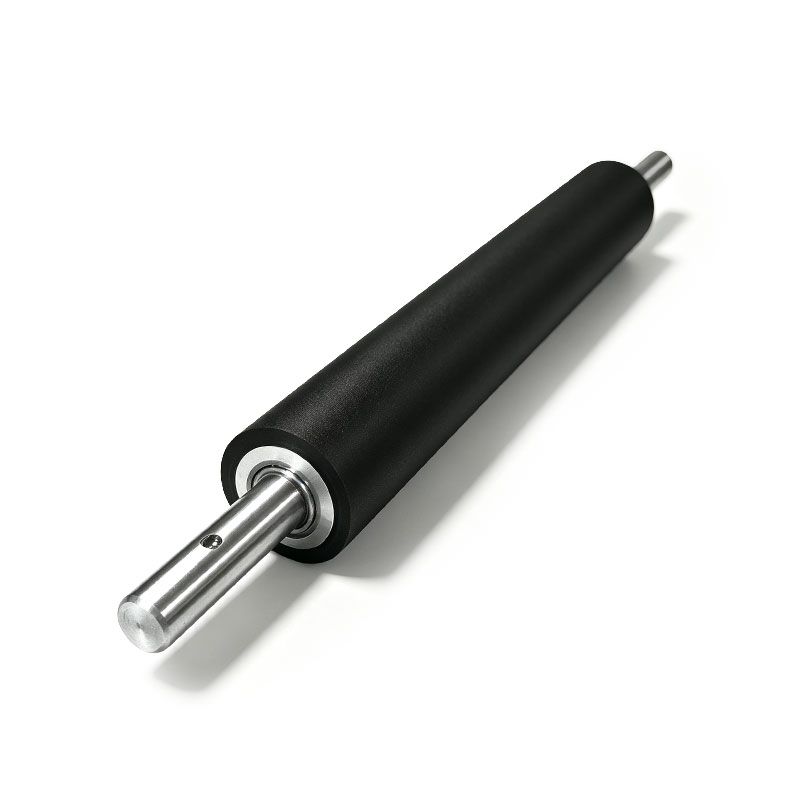

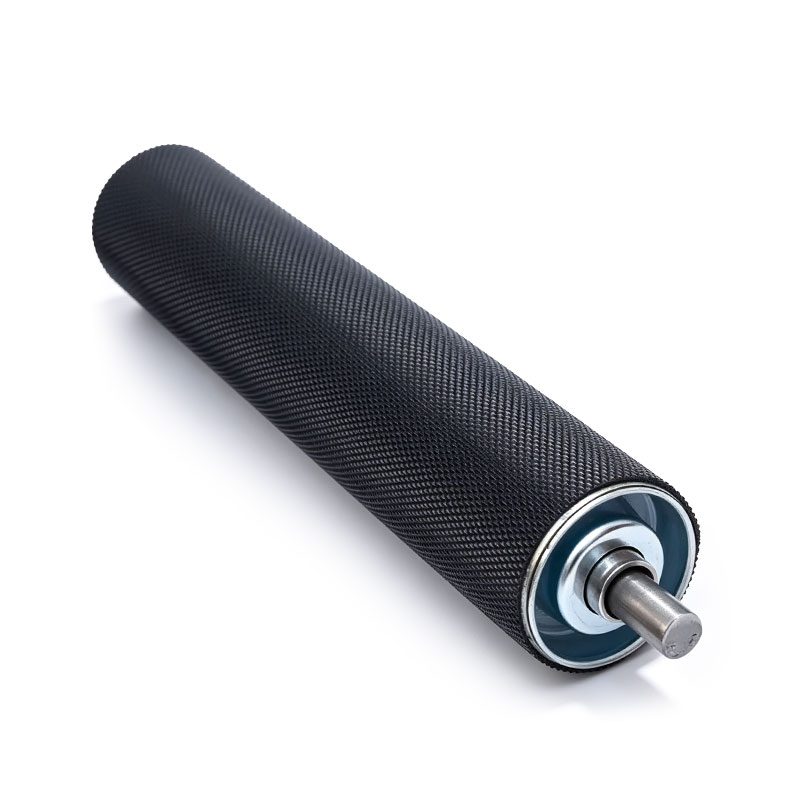

Custom Rubber Roller for Slitter Rewinder Machines

The AstraRoll Custom Rubber Roller for Slitter Rewinder Machines is engineered to deliver precise web control, uniform nip pressure, and continuous traction during demanding slitting and rewinding processes. In high-speed converting machinery, improper rubber hardness, surface eccentricity, or poor pressure distribution can lead to severe material defects—such as uneven roll density, web tracking errors, film telescoping, and surface scratching.

Our heavy-duty rubber rolls resolve these operational challenges. Built on precision-ground steel or aluminum cores, AstraRoll covers each roller with specialized elastomer compounds suited to your specific substrate requirements. Utilizing high-precision CNC turning and cylindrical grinding, our rubber rollers ensure exact concentricity and dynamic stability even under intense continuous nip loading. Whether utilized as rider/pressure rolls, traction feed rollers, or lay-on nip rolls, AstraRoll rubber rollers secure flawless material winding quality.

Technical Parameters

Product Framework: Heavy-Duty Precision Rubber Pressure / Nip Roller

Rubber Compound Base: Polyurethane (PU), Nitrile (NBR), EPDM, Silicone, Neoprene

Hardness Window: 30 Shore A – 95 Shore A (Customizable to web elasticity)

Core Metal Base: High-Grade Carbon Steel Tubing / Stainless Steel / Lightweight Aluminum

Surface Finish Profile: Ra 0.4μm - Ra 1.6μm (Ground finish / Matte / Mirror polished)

Special Cover Treatment: Anti-static formulation, non-marking, anti-adhesive, oil/chemical resistant

Dynamic Balancing: ISO 21940 G2.5 standard for high-speed operation (600 m/min)

Concentricity Profile: TIR (Total Indicator Runout) ≤0.020 mm via CNC cylindrical grinding

Primary Applications & Industry Uses

Slitter Rewinder Rider & Lay-on Rolls: Applies steady, uniform nip pressure directly against rewinding rolls to eliminate air entrapment and prevent telescoping.

Flexible Packaging & Film Converting: Ideal for pulling, pressing, and guiding delicate PE, PET, BOPP, and CPP films without leaving pressure marks or scratches.

Paper & Board Slitting Machinery: Functions as heavy-duty draw and nip rolls, resisting deep grooving and wear under continuous paper edge friction.

Foil & Non-Woven Processing: Provides precise grip and anti-static control during high-speed rewinding of aluminum foils, textiles, and composite materials.

Why Choose AstraRoll's Rubber Rollers?

Uniform Nip Pressure Distribution: Formulated with high-resilience elastomer chemistry, our rubber covers maintain uniform deformation across the entire face length, guaranteeing consistent contact pressure and preventing uneven roll density.

Non-Marking & High Abrasion Immunity: Engineered specifically for continuous industrial friction, AstraRoll rubber formulations resist abrasion, tearing, and chemical exposure, ensuring long service intervals without marking delicate printed surfaces.

Precision CNC Grinding for Strict TIR Control: Concentricity errors cause severe web vibration at high operating speeds. Every rubber roller is CNC precision-ground to achieve TIR ≤0.020 mm and dynamically balanced to ISO G2.5 standards.

Custom Anti-Static & Non-Stick Integration: Optional anti-static additives permanently dissipate friction static during high-speed film slitting, while customized surface textures prevent film-sticking and adhesive transfer.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
