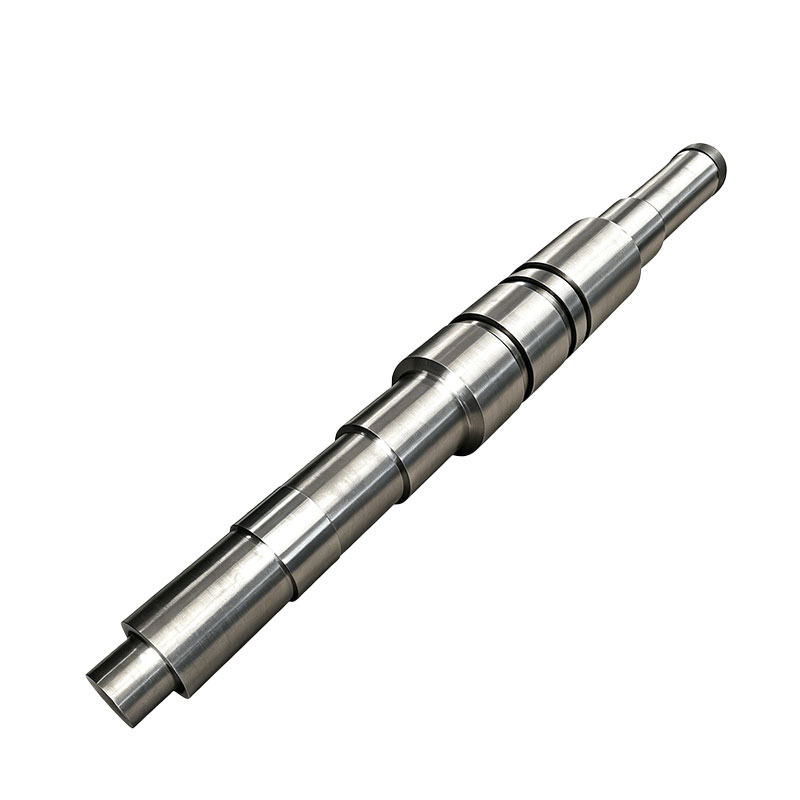

Custom High-Strength Stepped Forged Steel Shafts for Heavy-Duty Applications

The AstraRoll Technical Advantage

We engineer our forged stepped shafts to master the extreme physics of heavy-duty power transmission:

Optimized Grain Flow: Unlike cutting a stepped shape out of a solid cylindrical bar (which cuts through the metal's natural grain), forging shapes the hot metal so that the internal grain lines follow the stepped contours of the shaft. This dramatically increases the yield strength and fatigue resistance at the critical diameter transition zones.

Zero Internal Voids: Cast shafts often harbor microscopic air pockets or porosity that lead to crack propagation under heavy torque. AstraRoll's multi-ton forging presses crush these voids, creating an ultra-dense, homogeneous steel matrix.

Micron-Precision Journal Grinding: A heavy-duty stepped shaft must interface flawlessly with massive roller bearings and gears. We CNC-grind the critical mounting steps to precise dimensional tolerances (e.g., h6 or g6 fits) and an ultra-smooth surface finish (Ra 0.8 or better) to prevent bearing premature failure.

Rigorous NDT Quality Control: Every heavy-duty shaft undergoes strict Non-Destructive Testing (NDT), including Ultrasonic Testing (UT) for deep internal flaws and Magnetic Particle Testing (MT) for surface micro-cracks, ensuring 100% reliability before it leaves our facility.

Key Specifications

Please note: AstraRoll heavy-duty stepped shafts are 100% custom-forged and CNC-machined to your exact engineering blueprints.

Maximum Length: Custom forged up to 10+ meters (Depending on diameter and weight).
Maximum Diameter: Custom forged from 100mm up to 1,500mm+.
Weight Capacity: Capable of forging and machining massive shafts weighing from 50 kg up to 30+ metric tons.
Dimensional Tolerance: Precision ground to micrometers as per client ISO/DIN specifications.

Why Choose AstraRoll?

1. Turnkey Heavy Manufacturing

Sourcing massive steel components often requires managing multiple vendors—one to forge the raw blank, another to heat-treat it, and a third to machine it. AstraRoll houses heavy open-die forging presses, deep-hole drilling machines, large-scale heat treatment furnaces, and massive CNC lathes all under one roof, providing a seamless, cost-effective, turnkey manufacturing solution.

2. Specialized Spline & Gear Hobbing

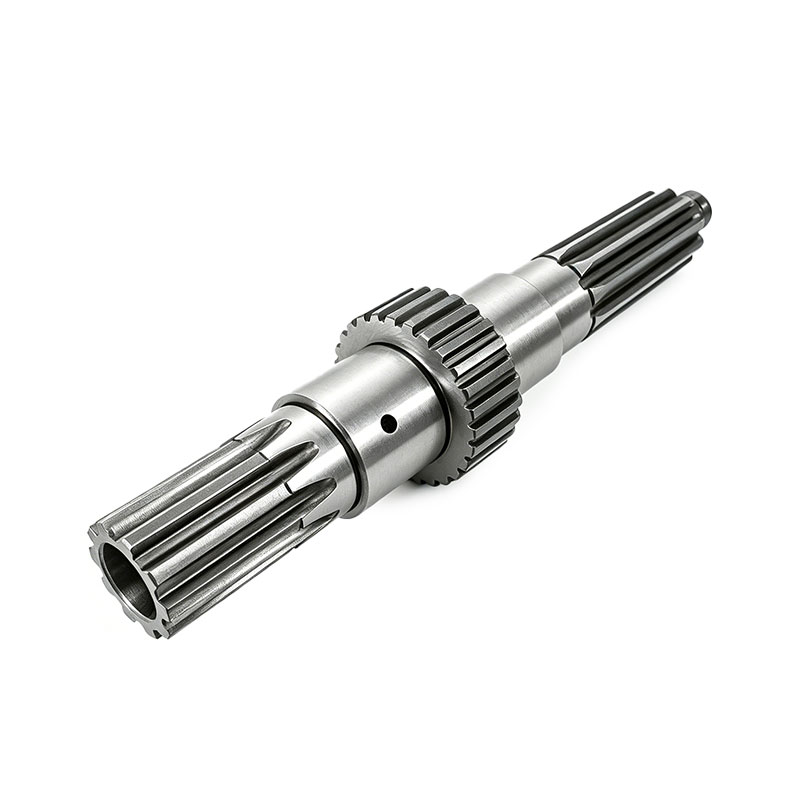

 If your stepped shaft requires integrated drive splines, AstraRoll's heavy-duty gear hobbing and broaching departments can machine involute, straight-sided, or serrated splines directly into the shaft, complete with surface induction hardening to prevent spline wear during violent torque transfer.

Frequently Asked Questions (FAQs)

Q: Do I need to provide the raw forging drawing or just the final machined drawing?
A: You only need to provide the final machined blueprint (CAD/PDF) outlining your required dimensions, tolerances, and material grade. Our engineering team will calculate the necessary forging allowances, draft the raw forging plan, and handle the entire process from the raw ingot to the finished precision component.

Q: What type of heat treatment is best for a heavy-duty stepped shaft?
A: Most high-strength alloy shafts (like 4140 or 4340) undergo a full Quench and Temper (Q&T) process to establish a tough, shock-resistant core. Subsequently, the specific "steps" or journals where bearings or seals sit are Induction Hardened to create a hard, wear-resistant outer shell while keeping the core ductile.

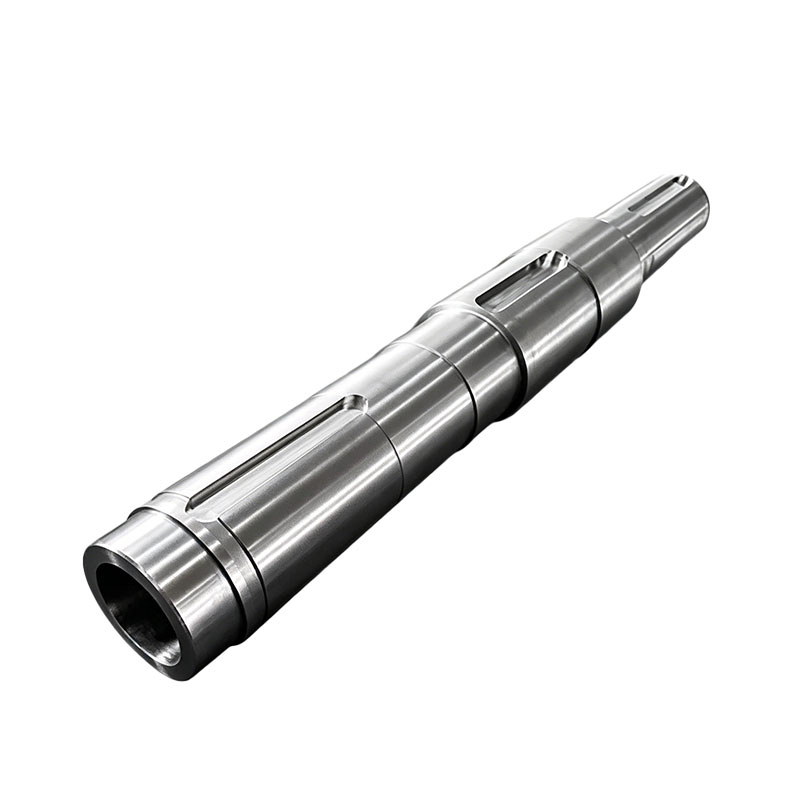

Q: Can you manufacture hollow stepped shafts?
A: Yes. For aerospace applications or specific heavy machinery where weight reduction is critical without sacrificing torsional strength, AstraRoll utilizes deep-hole drilling and precision boring techniques to manufacture high-strength hollow stepped shafts.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
