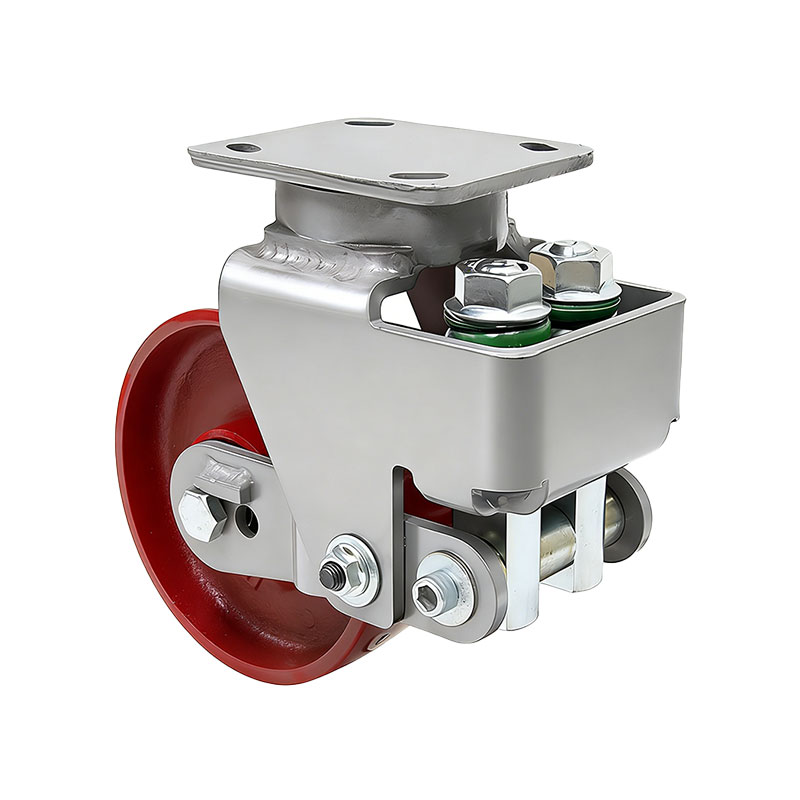

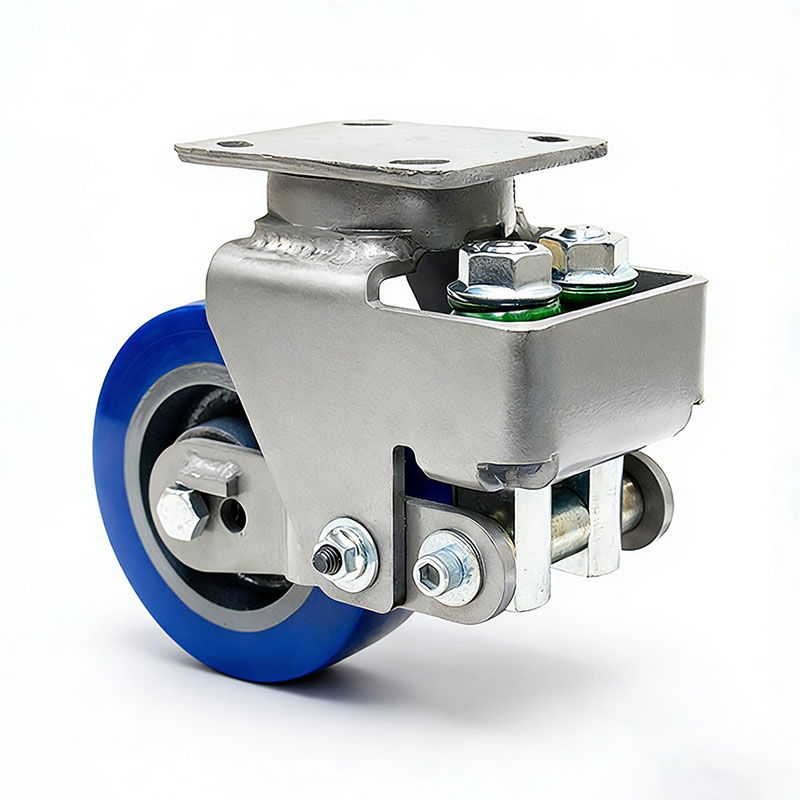

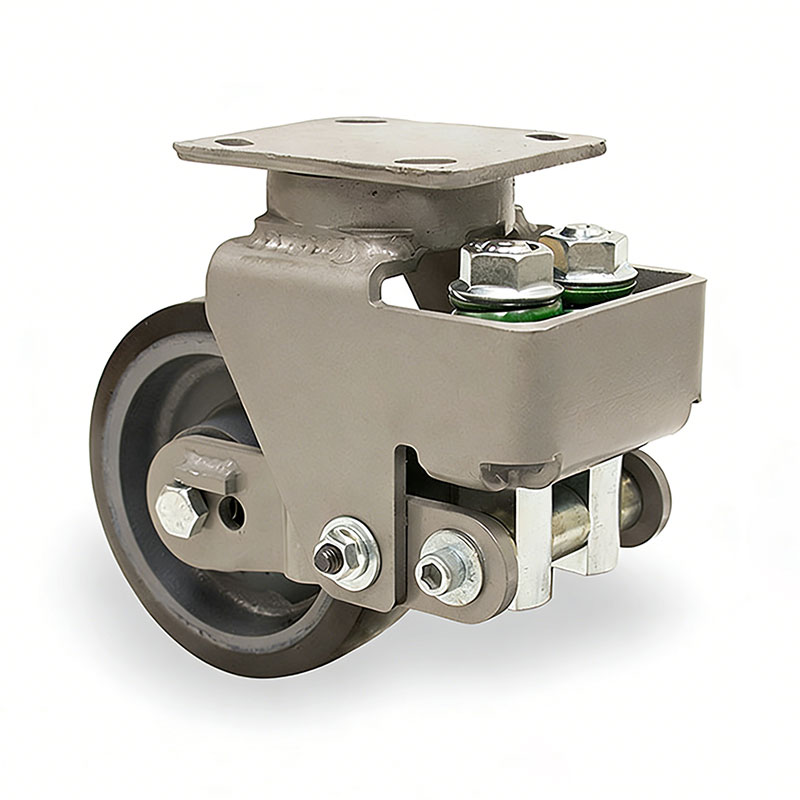

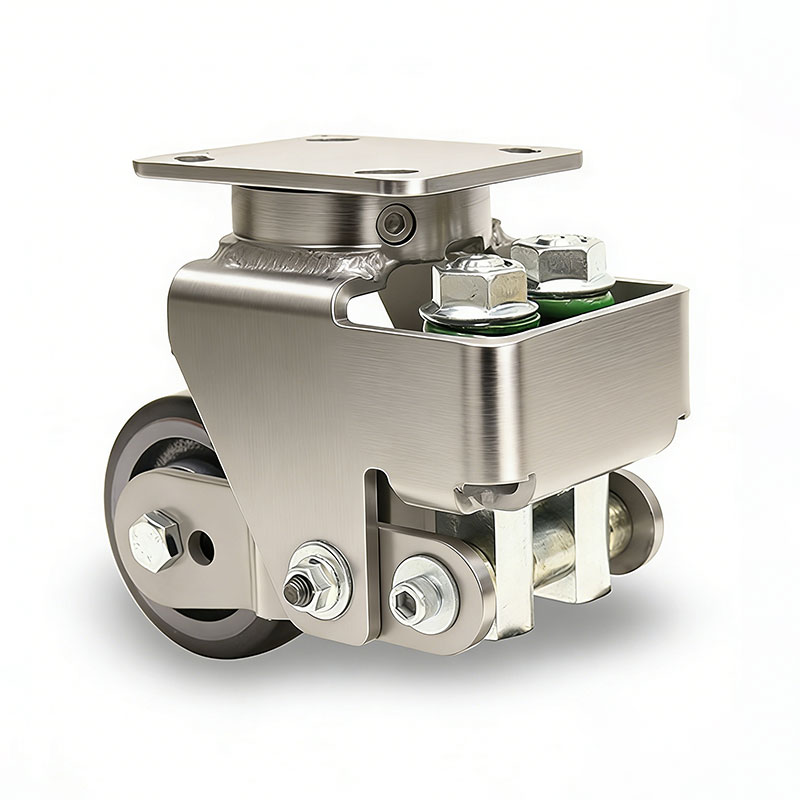

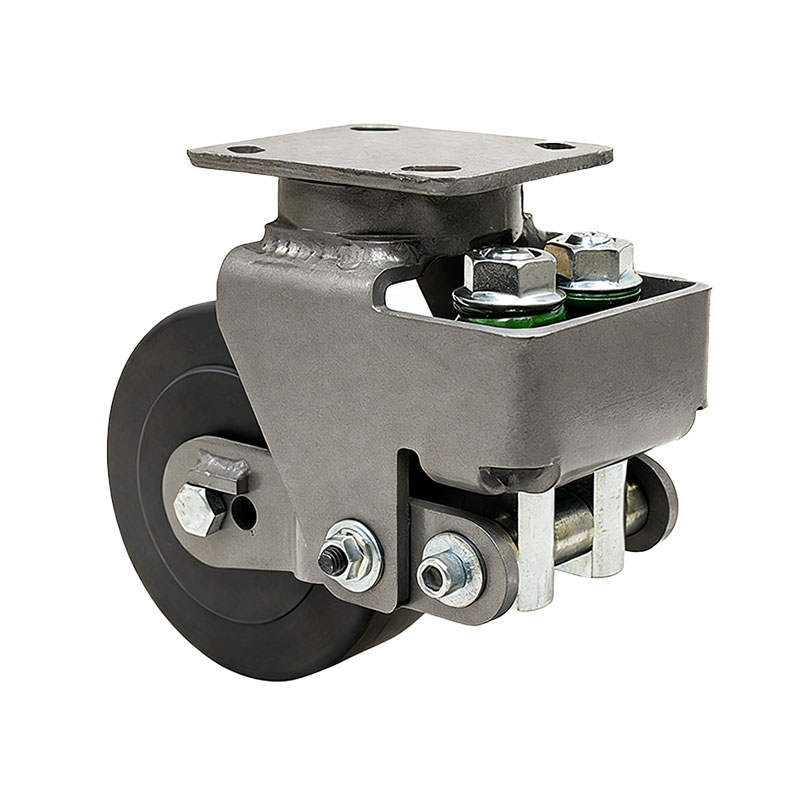

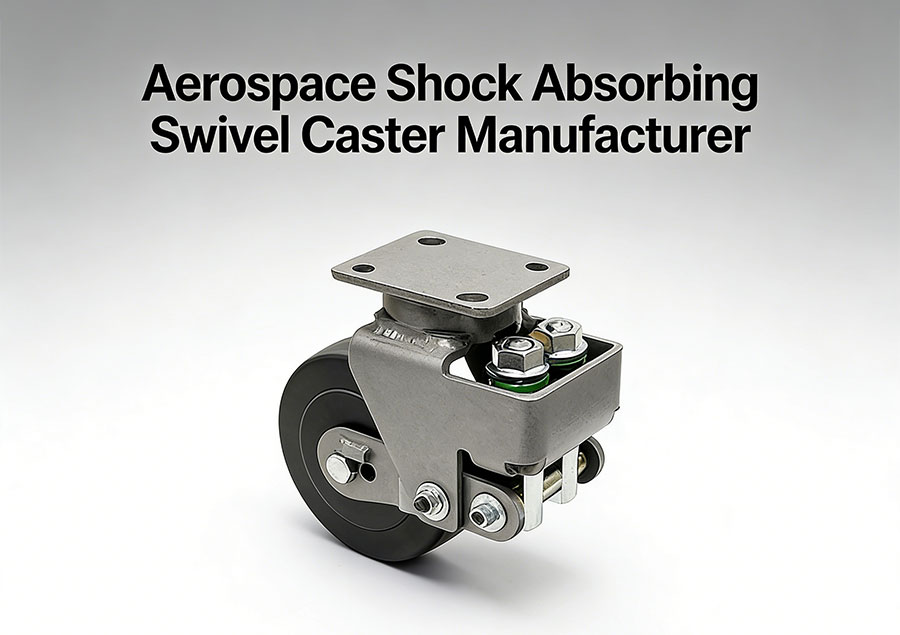

Aerospace Shock Absorbing Swivel Caster Manufacturer

Product Features & Engineering Specs

Vibration-Dampening HR Polyurethane: Our 95 Shore A High-Rebound polyurethane is chemically engineered to dissipate high-frequency floor chatter, providing a second layer of protection alongside the mechanical springs.

Maintenance-Free Kingpinless Swivel: High-value aerospace loads are heavy. Our kingpinless raceways eliminate the weak center-bolt, ensuring effortless swiveling and zero maintenance in 24/7 assembly environments.

High-Speed Towing Stability: Designed for power-towed applications on airport tarmacs or factory floors, the integrated suspension prevents "caster shimmy" and cart swaying at speeds up to 6–8 mph.

Precision Sealed Ball Bearings: Every wheel is fitted with dual sealed precision ball bearings to minimize rolling resistance and ensure a maintenance-free service life in clean-room environments.

Corrosion-Resistant Finish: All steel components are heavily zinc-plated or can be upgraded to stainless steel for use in chemical washdown or outdoor aerospace hangers.

Key Attributes

Wheel Diameter: 6", 8", 10", 12" (Custom sizes available for low-profile stands).
Load Capacity: 500 lbs – 5,000 lbs (225 kg - 2,270 kg) per caster.
Tread Material: High-Rebound Polyurethane or Elastic Rubber.
Hardness: Shore A 85-95 (Optimized for vibration absorption).
Brake Type: Total Lock, Side Lock, or 4-Position Directional Lock.
Bearing Type: Precision Sealed Ball Bearings or Tapered Roller Bearings.
Mounting Type: Extra-Thick Forged Steel Top Plate.

Why Choose AstraRoll?

Precision Engineering & Asset Safety
Custom Spring Calibration: We provide an engineering consultation to match the spring tension to your specific payload weight, ensuring the suspension "floats" perfectly under your exact operational conditions.
Aerospace-Grade Durability: Our rigs are constructed from high-tensile, cold-rolled steel with hardened swivel raceways, built to withstand the rigorous safety standards of aerospace ground support equipment.

Customization for Specialized Labs
ESD-Safe & Non-Marking: For satellite and semiconductor clean rooms, we offer conductive polyurethane treads that prevent static discharge while ensuring your floors remain pristine.

Frequently Asked Questions (FAQ)

Q: How do I know which spring capacity to choose?
A: This is critical. If the spring is too strong, it won't compress, and your cargo will feel the shock. If it's too weak, it will bottom out. We recommend choosing a spring capacity where your average load weight sits at roughly 50-70% of the spring's maximum compression limit.

Q: Can these be used for outdoor towing on tarmac?
A: Yes. These casters are excellent for outdoor use because the suspension handles the cracks and transitions of tarmac far better than rigid casters. For high-speed outdoor towing, we recommend our 10" or 12" models with tapered roller bearings.

Q: Do shock-absorbing casters require more maintenance?
A: Our kingpinless swivel designs are maintenance-free. However, we recommend a visual inspection of the springs once every 6 months in high-cycle environments to ensure the tension remains optimal and the hardware is secure.

Q: Will these casters lower the overall height of my cart?
A: Actually, shock-absorbing casters are typically taller than standard casters because of the spring housing. If you have strict height clearances, please consult our engineering team so we can provide a low-profile shock-absorbing solution.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
