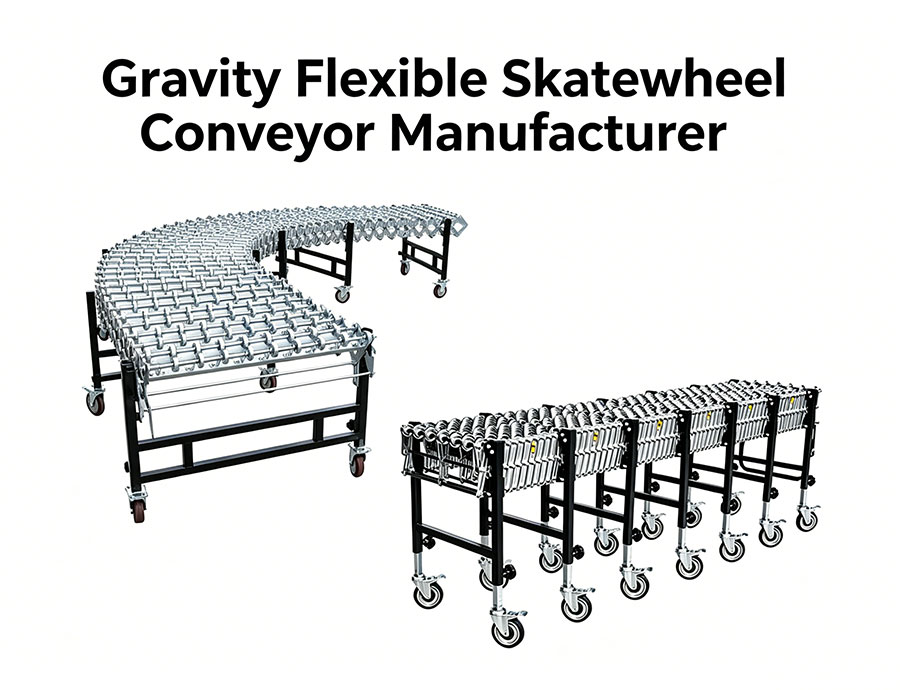

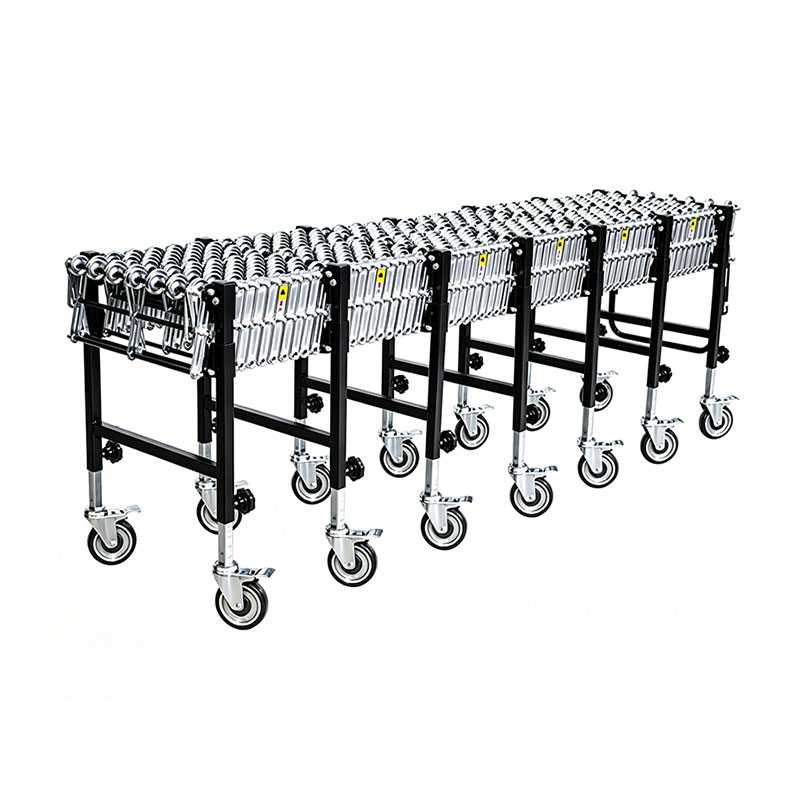

Gravity Flexible Skatewheel Conveyor Manufacturer

The AstraRoll Technical Advantage: Mobility Meets Durability
Flexible conveyors often suffer from sagging frames or broken axles after a few months on a busy shipping dock. We over-engineer our systems to survive continuous industrial abuse:

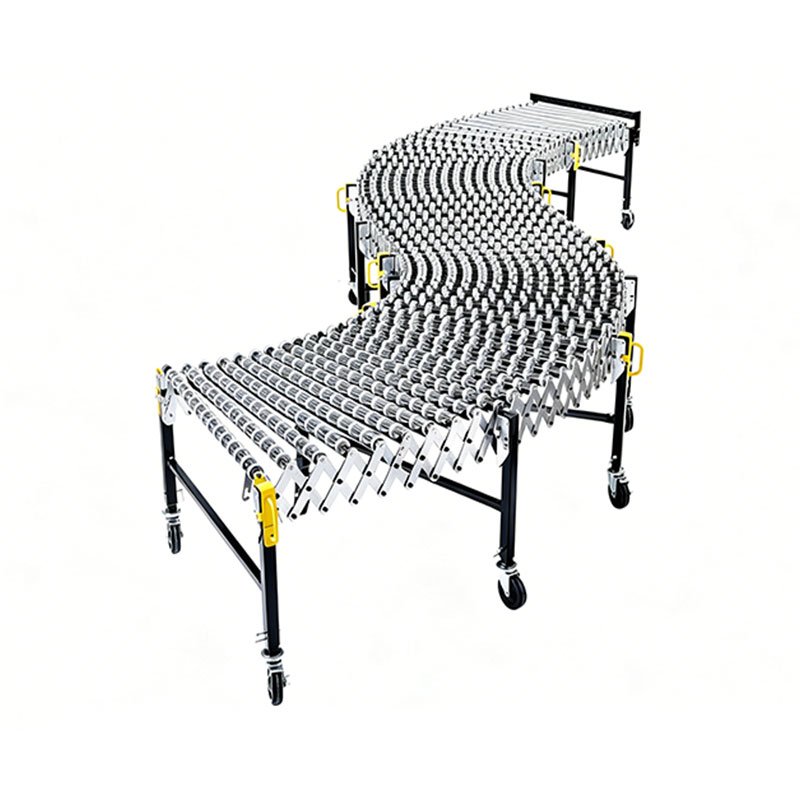

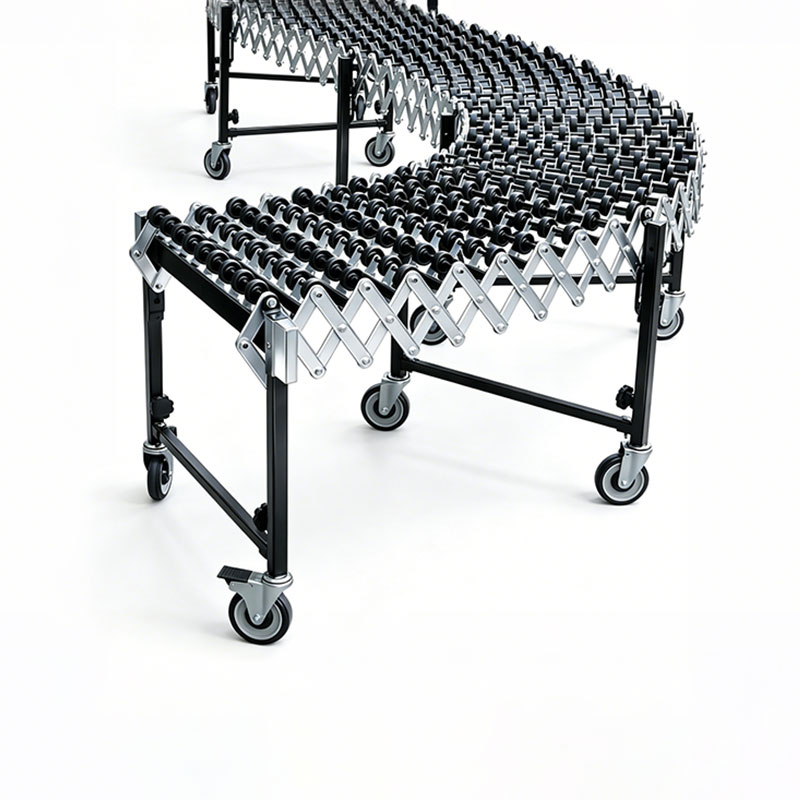

Superior Curve Tracking: When a standard roller conveyor is curved, the inner and outer edges of the roller spin at the same speed, causing boxes to skew and jam. Our heavy-duty skate wheels spin independently on solid steel axles. This differential action ensures that parcels stay perfectly centered, even through tight 180-degree U-turns.

4:1 Compaction Ratio (The Accordion Effect): Floor space is incredibly expensive. Our structural steel side-plates utilize an advanced accordion skatewheel conveyor design that collapses tightly. A 24-foot conveyor shrinks down to just 6 feet for easy storage under pallet racking when the loading dock is clear.

AstraRoll Caster Foundation: A mobile conveyor is only as reliable as its wheels. Every telescopic leg is equipped with our proprietary 5-inch Polyurethane Swivel Casters with Total Locks. They roll effortlessly over rough dock plates and lock down completely solid to prevent the conveyor from shifting during high-speed loading operations.

Product Features & Engineering Specs

Customizable Wheel Materials: Choose between zinc-plated / PU skatewheels depending on your specific payload. Zinc-plated steel provides indestructible wear resistance for heavy wooden crates, while PU (Polyurethane) offers a quieter ride, high-friction grip, and floor protection for delicate operations.

High-Capacity Axles: We utilize 5/16" (8mm) solid steel axles that run completely through the width of the conveyor, ensuring the frame does not bow or twist under heavy carton loads.

Ergonomic Height Adjustment: Telescopic legs feature easy-grip knobs, allowing operators to quickly adjust the height from 28" to 44" (710mm to 1110mm). This creates the perfect downward slope for gravity feeding.

Quick-Connect Drop Hooks: Standard heavy-duty steel hooks on the ends allow you to instantly latch two or more conveyors together to create long, continuous sorting lines across your facility.

Package Stop (End Stop): Every unit includes a fold-down package stop at the discharge end to prevent cartons from falling onto the floor when operators are stepping away from the line.

Key Attributes

Load Capacity: 200 lbs to 300 lbs per linear foot (Depending on width and skatewheel density).
Wheel Options: Zinc-plated / PU skatewheels or High-Impact Nylon.
Skatewheel Spacing: Axle centers compress to 1.25" and expand to 5" (Ensures continuous support for small packages).
Frame Construction: Zinc-plated, heavy-gauge steel side links.

Frequently Asked Questions (FAQ)

Q: Why is this often called an "accordion skatewheel conveyor"?
A: The name comes from the conveyor's expandable side-frames. Much like a musical accordion, the steel side-links fold in on themselves, allowing a massive expandable gravity conveyor to shrink into a highly compact footprint for easy storage.

Q: Should I choose Zinc-plated or PU skatewheels for my warehouse loading/unloading conveyor?
A: If you are handling abrasive items, heavy metal parts, or wooden crates, zinc-plated skatewheels provide the highest impact and wear resistance. If you handle standard corrugated boxes and want to significantly reduce warehouse noise while preventing carton slippage on steep drops, PU (Polyurethane) skatewheels are highly recommended.

Q: Will irregular items or soft polybags work on heavy-duty skate wheels?
A: No. Skatewheel conveyors require items to have a firm, flat bottom (like cardboard boxes or plastic totes). Soft polybags or envelopes will sag between the wheels and jam. For flexible packaging, we strongly recommend our Motor-Driven Roller (MDR) or Belt Conveyors.

Q: Can I connect this to the end of a motorized conveyor line?
A: Absolutely. This is its most common application. It frequently serves as the "tail end" of a powered sorting system, acting as an active warehouse loading/unloading conveyor that extends directly into the back of a semi-truck so workers can easily and ergonomically stack outbound cartons.
