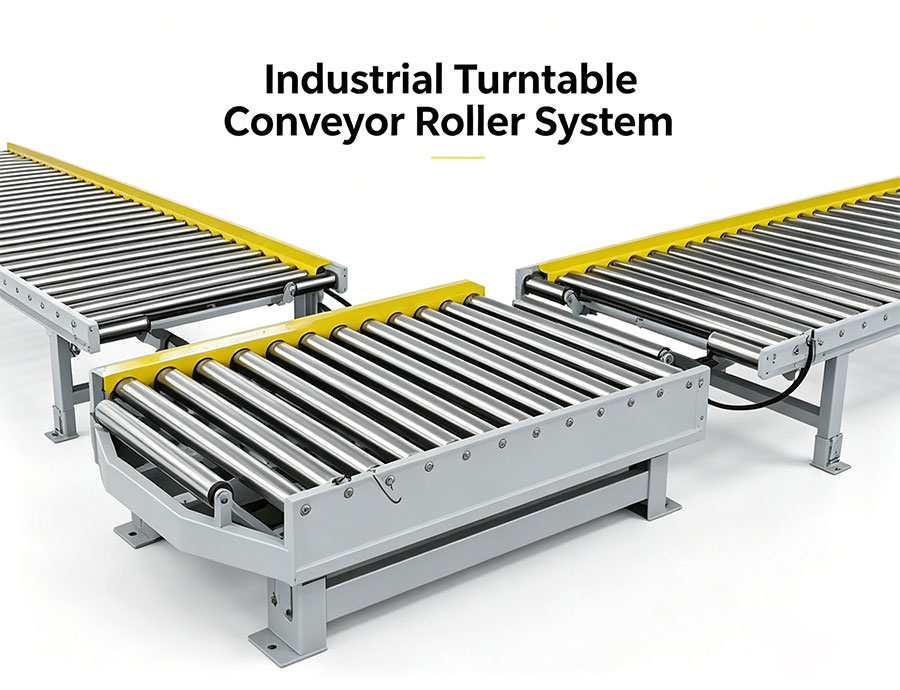

Industrial Turntable Conveyor Roller System

Product Overview

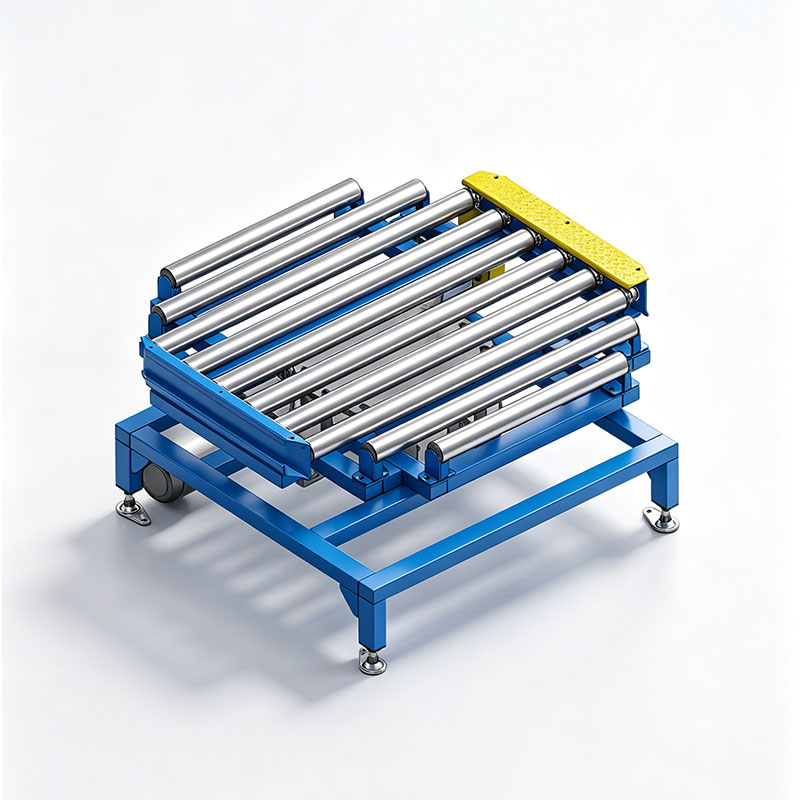

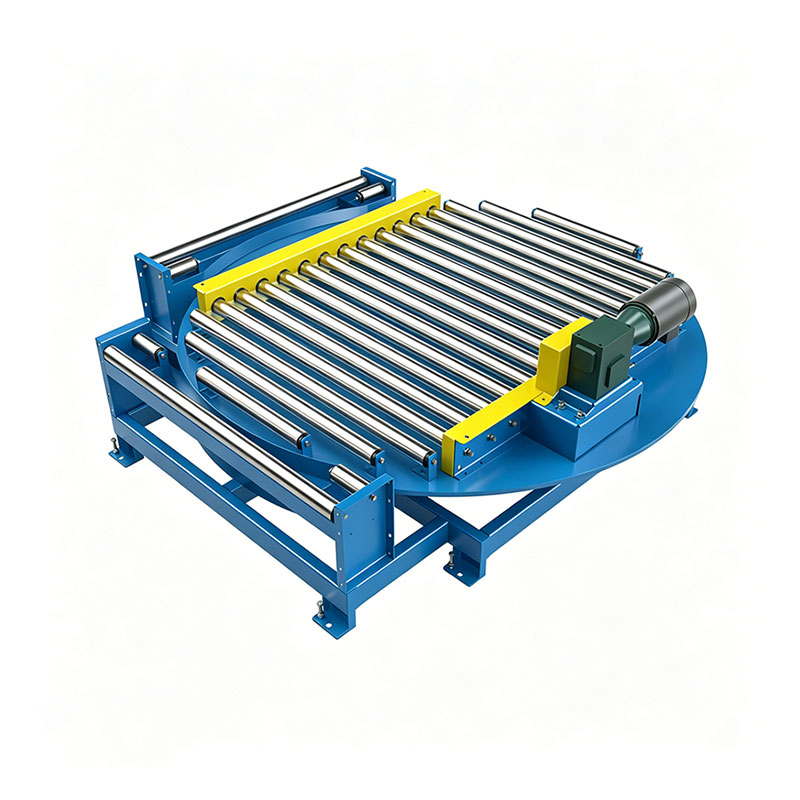

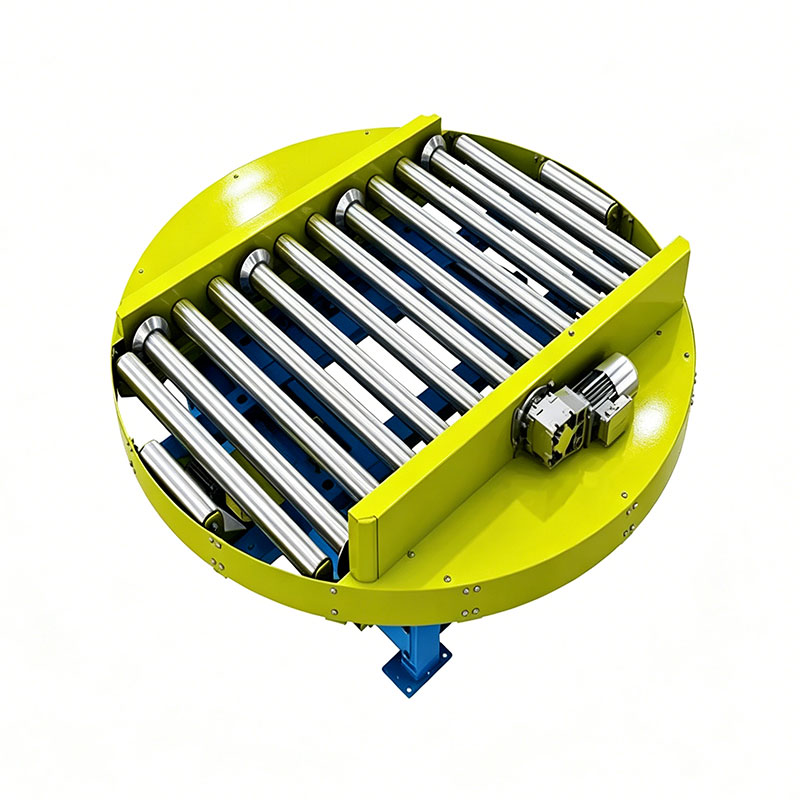

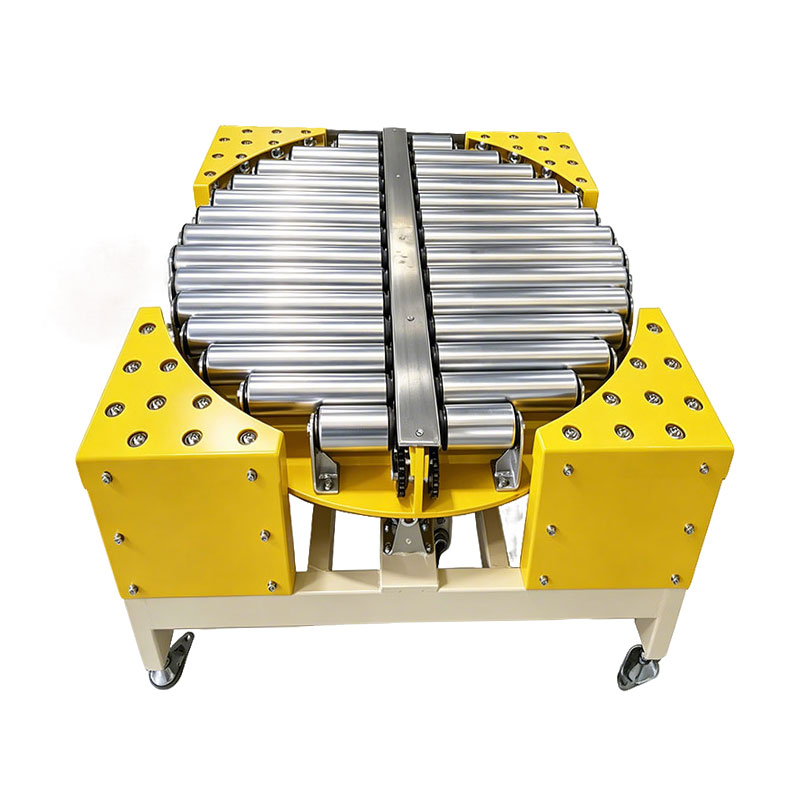

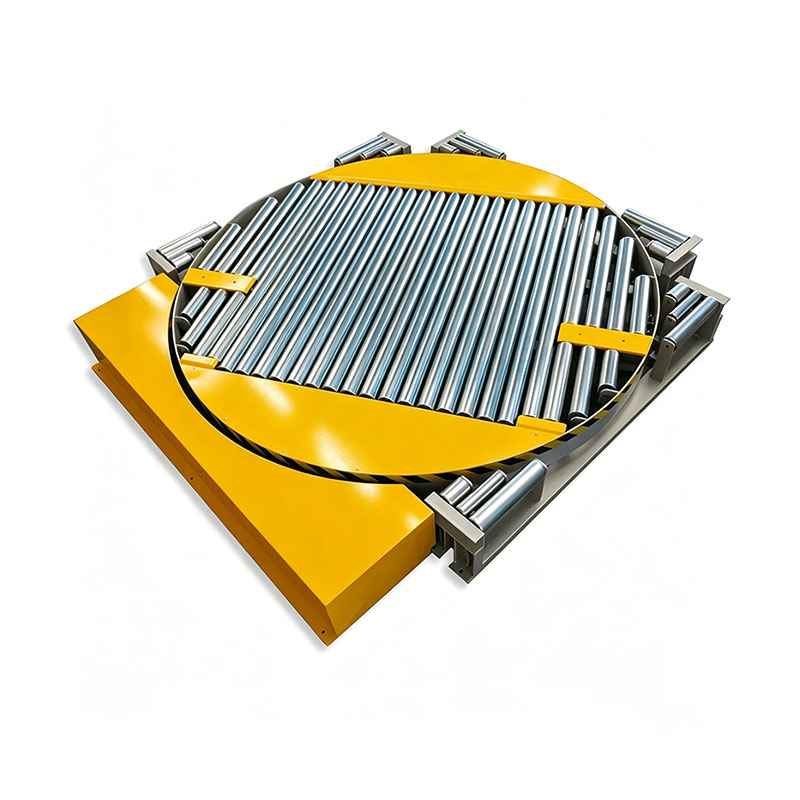

The AstraRoll Industrial Powered Roller Turntable is a precision-engineered solution designed for the heavy-duty rotation of pallets and large containers within automated conveyor systems. This high-performance unit facilitates smooth 90°, 180°, or 360°directional changes, allowing for maximum flexibility in facilities with limited space.

Equipped with a world-class motor drive system, our turntables provide exceptional torque and consistent rotation speed, even under maximum load. Whether integrated into a sorting hub or a robotic palletizing cell, the AstraRoll turntable ensures a stable, "zero-vibration" transition, protecting your goods and enhancing the overall efficiency of your material handling flow.

Key attributes

Rotation Angle: 90°/ 180°/ 270°/ 360°(Programmable)
Max Load Capacity: 500kg - 2,000kg (Heavy-duty custom builds available)
Roller Diameter: ø90mm (Standard & Custom)
Turntable Diameter: ø1200mm / ø1500mm / ø2000mm (Standard & Custom)
Roller Center Spacing: 100~150mm (as pallet size & weight)
Voltage: 220V~380V 3phase 50HZ
Motor Power: 0.75~1.5KW 50/60HZ
Roller Material: Zinc-plated Carbon Steel/ Stainless Steel/ PU Coated
Frame Construction: Heavy-duty Structural Steel (Powder Coated)
Conveying Speed: 5-20 m/min (Adjustable)
Rotation Speed: 3-5 RPM (Smooth start/stop control)

Applications

• Multi-Directional Sorting: Diverting pallets from a single intake line to multiple storage or shipping lanes.
• Robotic Palletizing Cells: Rotating pallets to the correct orientation for robotic arms to stack goods efficiently.
• Space-Constrained Facilities: Enabling 90-degree turns in tight layouts where traditional large-radius curves cannot fit.
• Lithium Battery Manufacturing: Safe handling of heavy battery packs through assembly and testing phases in cleanroom or high-heat conditions.
• End-of-Line Packaging: Integrating with wrapping and strapping machines to streamline the final stages of logistics.

Why Choose AstraRoll's Industrial Turntable Conveyor Roller System?

• Premium Drive Components: Unlike standard conveyors, we utilize SEW motors as a standard configuration to ensure high reliability, low noise, and a longer service life in 24/7 industrial operations.
• Precision Indexing: Our systems feature high-resolution sensors and advanced control logic, ensuring the turntable stops at the exact degree required every single time.
• Seamless Industry Integration: As a trusted supplier for Lead Intelligent, Han’s Laser, and Lyric Automation, our turntables are designed to interface perfectly with top-tier lithium battery and automotive production lines.
• Extreme Durability: Every unit is built using ISO-certified manufacturing processes and undergoes rigorous load-testing before shipment to withstand the most demanding warehouse environments.

FAQ

Q1: What is the maximum weight your turntable can handle?

A: Our standard models handle up to 2,000kg. However, for specialized heavy-industrial applications, we offer customized reinforced versions capable of rotating loads up to 3,000kg.

Q2: Can the rotation angle be customized beyond 90 degrees?

A: Yes. The turntable can be programmed for any specific angle (90°, 180°, 270°) or even continuous 360-degree rotation depending on your workflow requirements.

Q3: Is the turntable compatible with different pallet sizes?

A: Absolutely. We customize the roller length, diameter, and turntable surface area to match your specific pallet dimensions (e.g., Euro, GMA, or custom sizes).

Q4: How does the system ensure the pallet doesn't slide during rotation?

A: We use high-friction rollers (or PU coating) combined with a "Soft-Start/Soft-Stop" VFD control logic to ensure the load remains perfectly stable throughout the rotation process.

Q5: What kind of maintenance is required?

A: Thanks to the high-quality SEW drive and sealed-for-life bearings, maintenance is minimal. We recommend periodic inspection of the drive chain tension and sensor alignment to ensure peak performance.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
