Forged Steel Wheel Manufacturer
Product Overview:

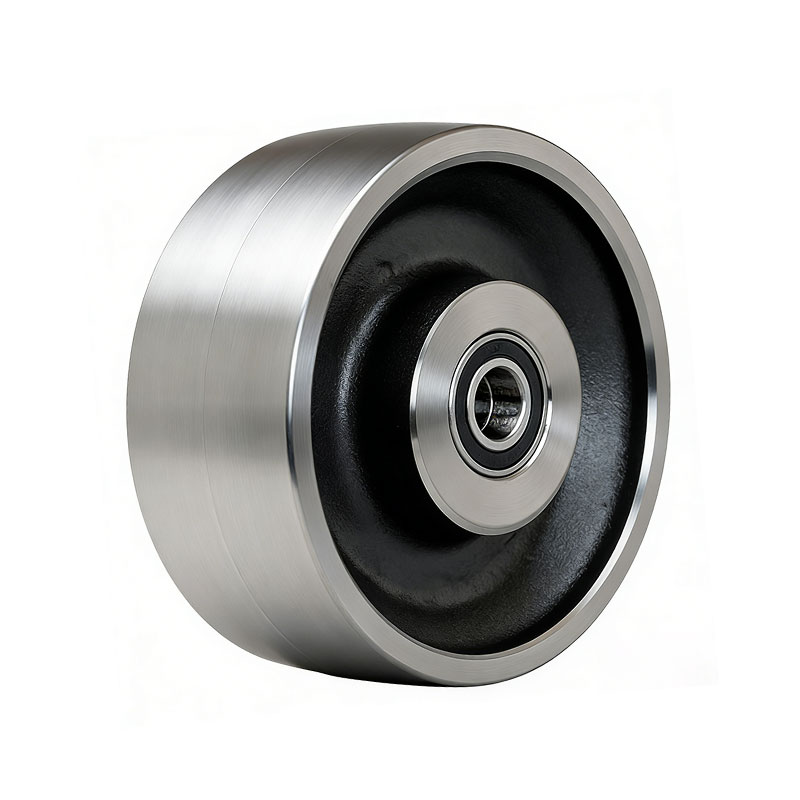

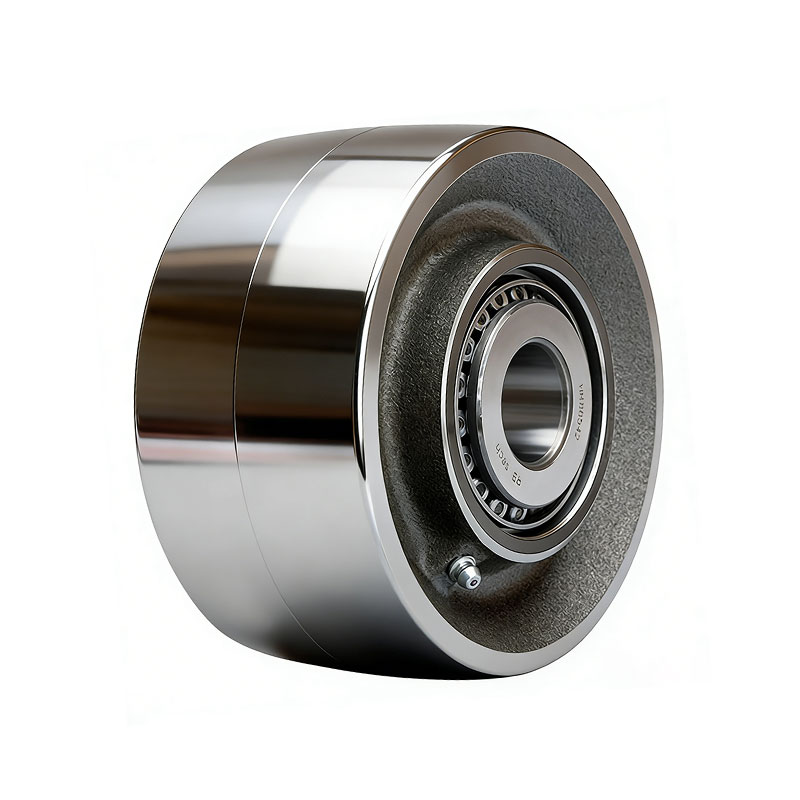

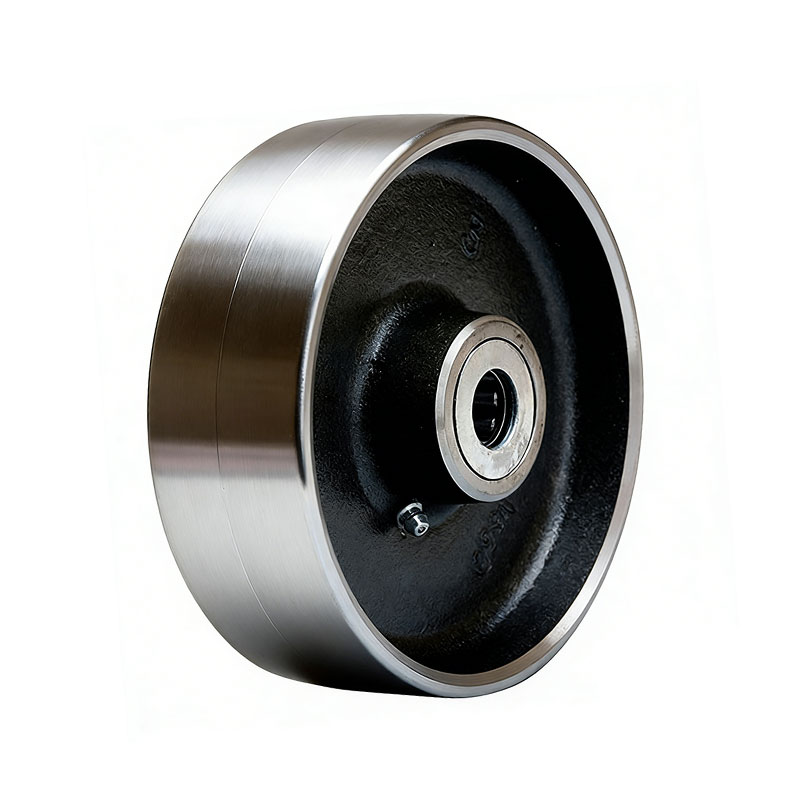

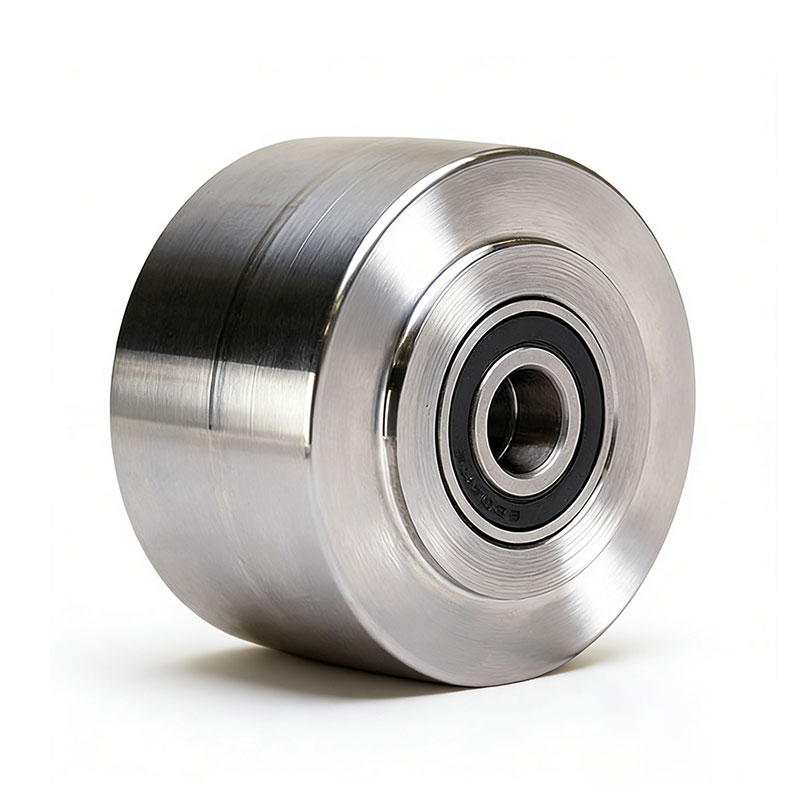

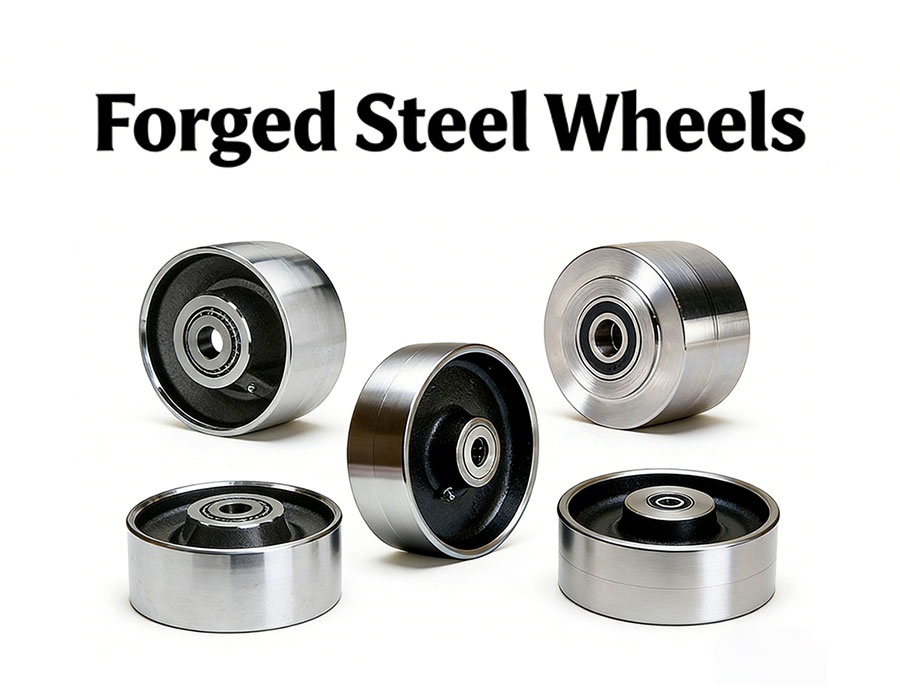

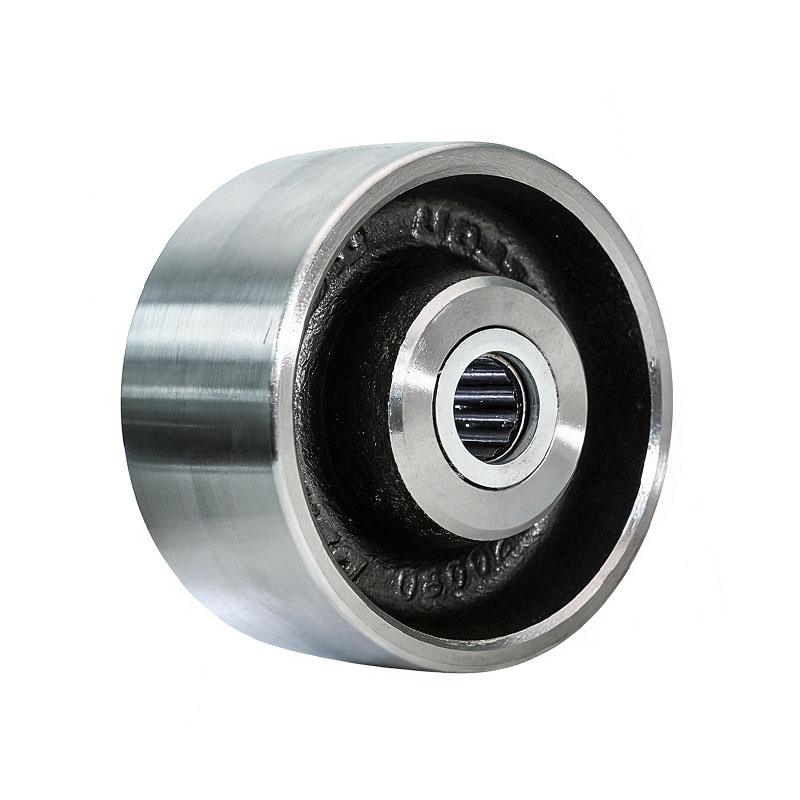

The AstraRoll Forged Steel Wheel is an elite-tier material handling solution engineered for the most punishing environments in the Mining, Steel Milling, and Heavy Manufacturing sectors. Unlike traditional cast wheels, these are forged from solid steel billets under thousands of tons of pressure, creating a dense, defect-free structure that is essential for high-speed Automotive assembly lines and large-scale Logistics Conveyor Systems. In the Glass and Textile industries, their exceptional heat resistance allows them to operate in high-temperature ovens where synthetic wheels would fail. Whether used on inverted angle iron tracks or as heavy-duty drive wheels, AstraRoll forged steel wheels provide maximum safety by bending under extreme impact rather than shatterin.
Inquiry Email: sales@astraroll.com
Forged Steel Wheel Manufacturer Details
Product Features & Details
Unmatched Structural Integrity: The forging process eliminates internal porosity and micro-cracks, resulting in a wheel that is up to 3x stronger than cast alternatives.
Superior Impact Resistance: The aligned grain structure allows the wheel to absorb heavy shocks and "give" under extreme stress without cracking, providing a significantly safer failure mode.
Exceptional Load Capacity: Capable of supporting massive weights—often exceeding 20,000 lbs(9,000 kg) per wheel—making it the strongest wheel option available for heavy industrial carts.
Precision Induction Hardening: Available with a specialized surface treatment that hardens the tread to 58 HRC+ while maintaining a tough, ductile core for maximum wear and impact resistance.
High Temperature Performance: Naturally capable of withstanding temperatures up to 800°F (425°C), making it ideal for furnaces, autoclaves, and foundries.
Zero Maintenance Reliability: Highly resistant to abrasive debris and flat-spotting, requiring virtually no maintenance beyond periodic bearing lubrication.
Key Attributes & Strategic Comparison
Material: High-Grade Carbon Steel (typically AISI 1045 or 4140).
Hardness: Rockwell 80 B (Standard); customizable up toup to HRC 55-60 (Induction Hardened).
Operating Temp: Up to 800°F (425°C).
Tensile Strength: 60,000 – 83,000 PSI.
| Comparison Item | AstraRoll Forged Steel Wheel Advantage |
| Vs. Cast Iron Wheel | Unbreakable: Does not shatter under impact. Higher Capacity: Supports significantly heavier loads in a smaller footprint. |
| Vs. Cast Steel Wheel | Higher Density: No internal air pockets or porosity. Superior Fatigue Life: Directional grain flow provides better resistance to cyclic stress. |
Frequently Asked Questions (FAQ)
Q: What is the main difference between Forged Steel and Cast Steel wheels?
A: Forged wheels are compressed under thousands of tons of pressure, which eliminates the internal porosity (air bubbles) common in castings. This results in a much denser, stronger wheel that is significantly more resistant to impact and fatigue.
Q: Will these wheels damage my factory floors?
A: Because of their extreme hardness, forged steel wheels are recommended for use on steel tracks, inverted angle iron, or heavy steel plates. On standard concrete floors, they may cause wear or indentation if the load is extremely heavy.
Q: Do these wheels require special maintenance for high-temperature use?
A: Yes. For environments exceeding 250°F, it is essential to specify high-temperature bearings and high-heat grease to ensure the wheel continues to rotate freely and to prevent bearing failure.
Q: Can I customize the bore or keyway based on my existing drawings?
A: Absolutely. We offer full CNC machining services to tailor the diameter, tread width, bore size, and keyway or grease fitting locations to match your specific OEM requirements.
Why Choose AstraRoll?
Precision Engineering Support
CNC Machining Excellence: Every wheel is machined for perfect concentricity (TIR) and balance, ensuring smooth tracking and reducing wear on your machine's axles.
Drawing Conversion: We specialize in upgrading legacy cast systems to forged steel, providing custom dimensions that perfectly fit your specific OEM equipment.
Industrial Strength & Reliability
100% Quality Verification: Every forged wheel undergoes rigorous inspection to ensure the metallurgical integrity required for high-stakes industrial environments.
Bespoke Hardening Options: We can selectively harden only the tread or flange, ensuring you get maximum wear protection exactly where your process needs it most.
Q1. Are you a trader or direct factory?
We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.
Q2. What are your main products?
AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.
Q3. What about delivery time?
We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.
Q4. How can I get a quote for customized products?
Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.
Q5. What is your payment?
TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
