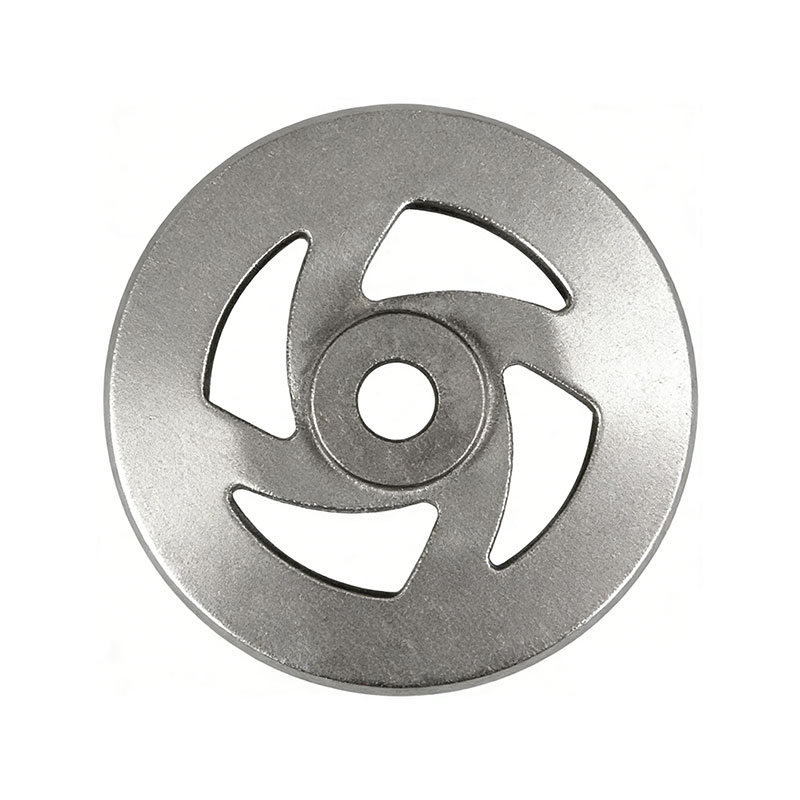

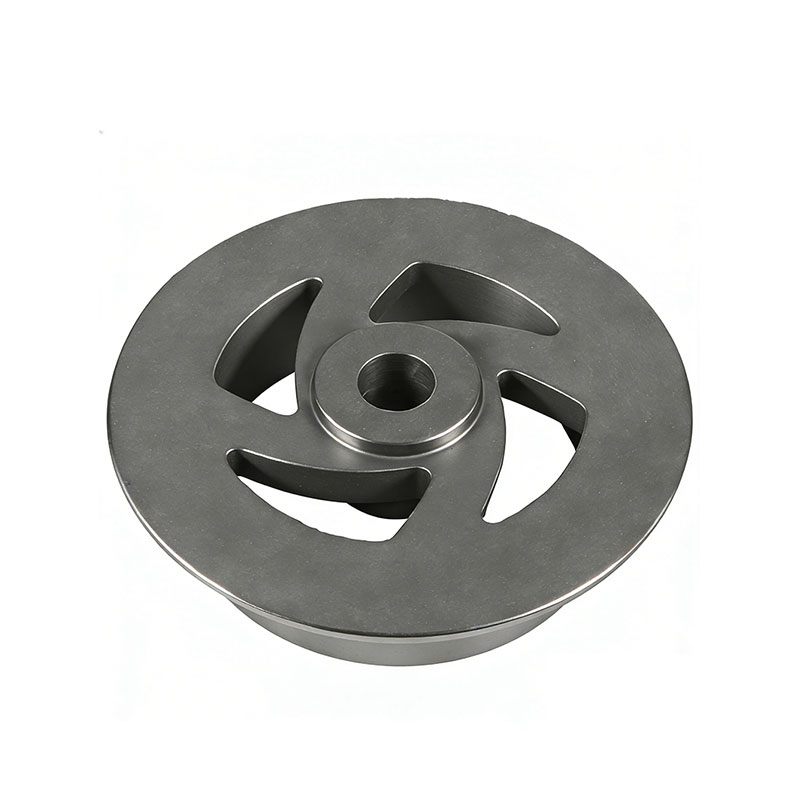

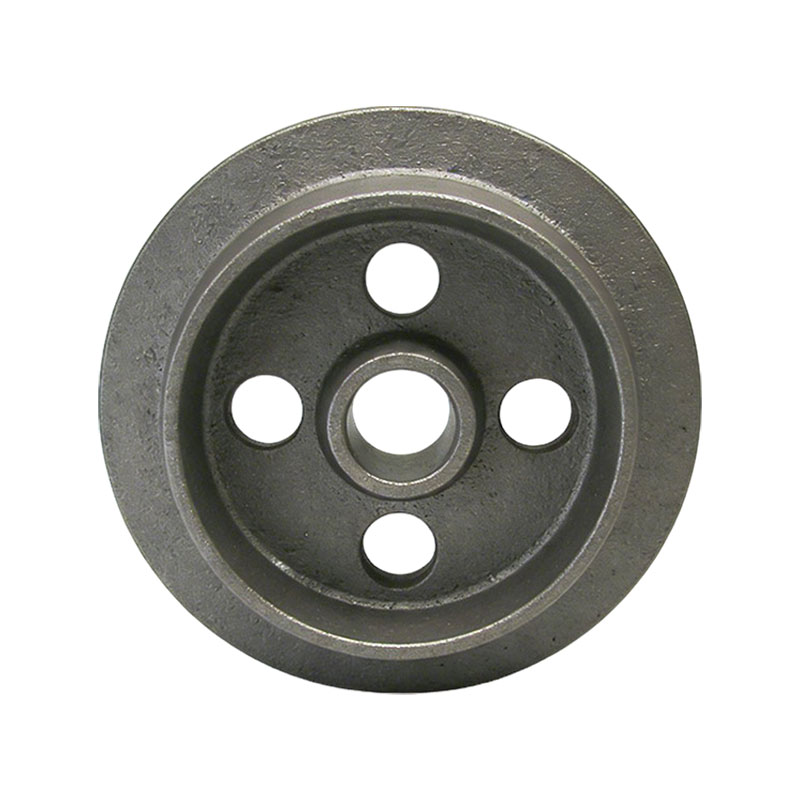

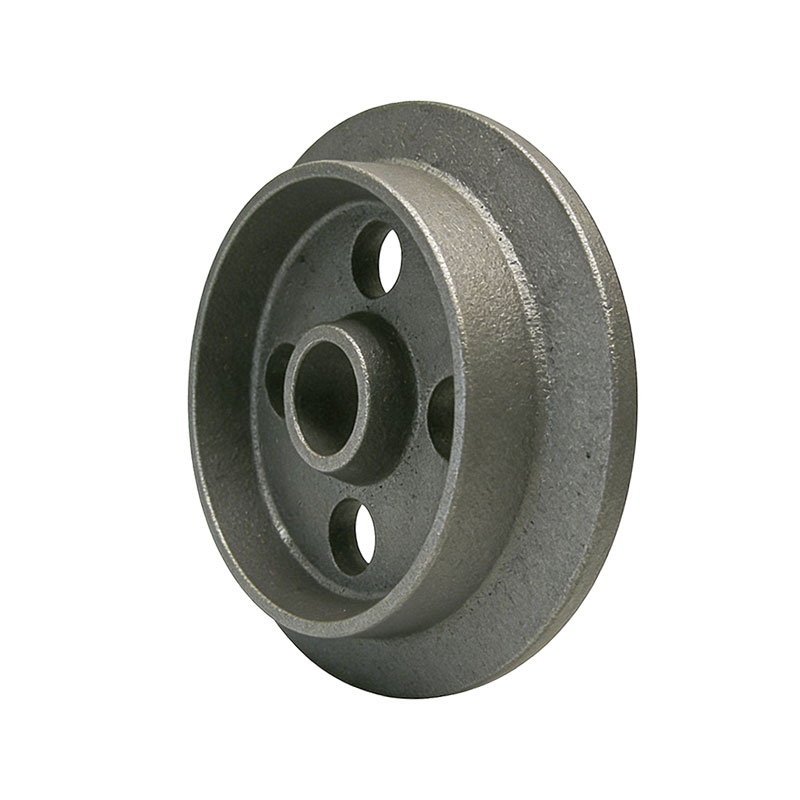

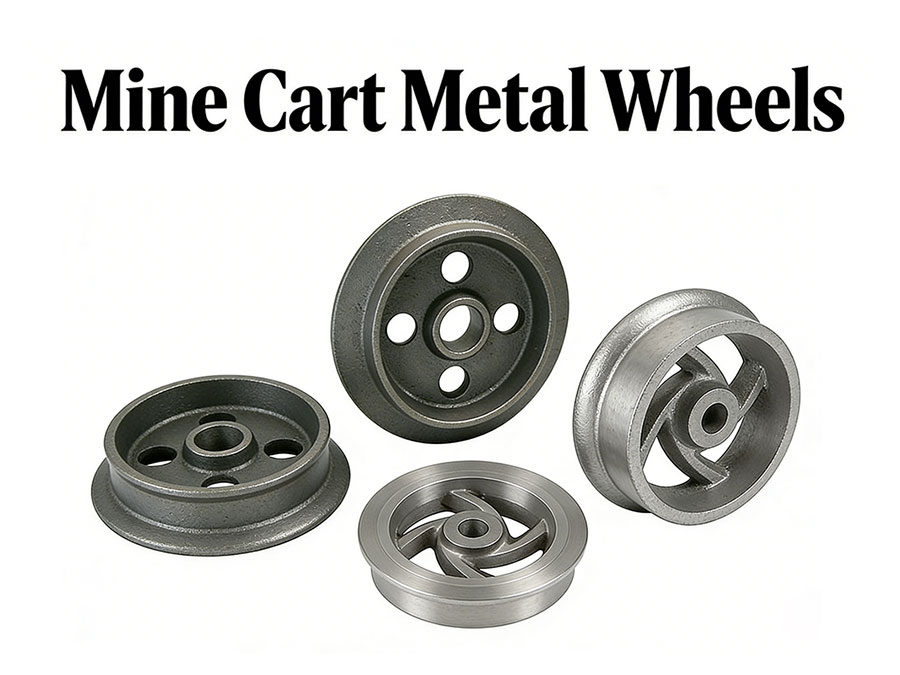

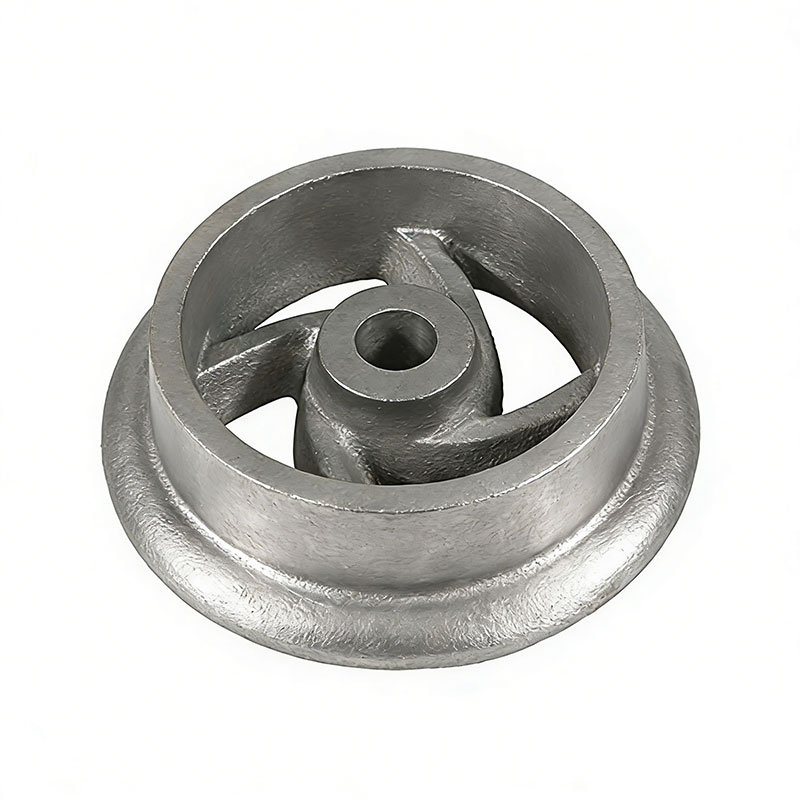

Custom Mine Cart Metal Wheels

The AstraRoll Technical Advantage: Engineered for the Rail
For heavy payloads moving on steel tracks, standard flat wheels are insufficient. We engineer specific geometric profiles to maximize safety and efficiency:

Tread Coning (Tapered Profile): The running surface of the wheel is machined with a slight taper (usually 1:20). As the cart enters a curve, this taper acts as a differential, allowing the outer wheel to travel a greater distance than the inner wheel. This naturally centers the cart on the track, reducing the grinding friction against the flange and ensuring smooth cornering.

Induction-Hardened Flanges: The inner face of the flange takes the brunt of the lateral force. We selectively induction-harden this area to HRC 50-55, preventing the rail from carving into the wheel over time.

Product Features & Engineering Specs

Extreme Shock & Impact Resistance: Available in Drop-Forged Steel or Nodular Ductile Iron. These materials will yield and flex under the massive shock of dropped boulders or derailed drops, eliminating the brittle shattering associated with standard gray cast iron.

Derailment Prevention: Robust single or double flange designs lock the cart onto the rail, ensuring safe transport of hazardous or excessively heavy loads over poorly maintained or temporary mine tracks.

Abrasive Environment Sealing: Equipped with heavy-duty tapered roller bearings protected by labyrinth seals, preventing highly abrasive rock dust, slurry, and water from destroying the wheel internals.

Massive Payload Capacity: Engineered with thick webbing and reinforced hubs to support loads frequently exceeding 10 to 20 tons per axle.

High-Heat Compatibility: For brick kilns and foundries, these wheels can be configured with high-temperature alloys and graphite-based dry lubricants to operate continuously in ovens up to 1000°F (538°C).

Key Attributes & Tolerances

Material Options: Premium Forged Carbon Steel (AISI 1045) or High-Impact Ductile Iron.
Tread Hardness: Base material HB 200, selectively hardened up to HRC 55.
Flange Type: Single Flange (Standard) or Double Flange (For overhead cranes or extreme lateral stability).
Bore Type: Precision-machined for press-fit axles or equipped with tapered roller bearings.

Why Choose AstraRoll?

Precision Engineering for the Rail
Custom Track Fitment: We don't just supply off-the-shelf metal wheels. We engineer the exact tread taper (coning) and flange depth to perfectly match your specific rail gauge and track conditions, drastically reducing derailment risks and track wear.
Complete Wheelset Solutions: Beyond standalone wheels, we can deliver fully assembled, press-fitted wheel-and-axle sets (complete with heavy-duty bearings and labyrinth seals) ready for immediate installation, minimizing your maintenance downtime.

Heavy-Duty Material Expertise
Metallurgical Optimization: We guide you in selecting the exact metallurgical makeup—whether it’s high-impact Ductile Iron for cost-effective surface transport or premium Forged Steel for extreme underground payloads.
Targeted Induction Hardening: We selectively harden only the high-wear zones (like the inner flange and tread) to HRC 50-55, ensuring maximum wear resistance while maintaining a tough, shock-absorbing core to prevent catastrophic shattering.

Frequently Asked Questions (FAQ)

Q: Should I choose Forged Steel or Ductile Iron for my mine carts?
A: For the absolute highest load capacities and deepest underground operations where derailment recovery is nearly impossible, Forged Steel is the premium choice due to its unmatched density and strength. For surface mining, quarries, and general heavy material transport, Ductile Iron offers an exceptionally cost-effective alternative that still provides the necessary impact resistance to prevent shattering.

Q: Do you supply the full wheel-and-axle assembly?
A: Yes. We can supply standalone wheels or complete wheelset assemblies (two wheels press-fitted onto a solid steel axle with customized journal bearings), ready to be bolted directly to your cart chassis.

Q: What information do you need to manufacture a replacement wheel?
A: To ensure a perfect fit, we need your track gauge (the distance between the rails), the rail head width, your required wheel diameter, the axle diameter, and the maximum load weight per cart.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
