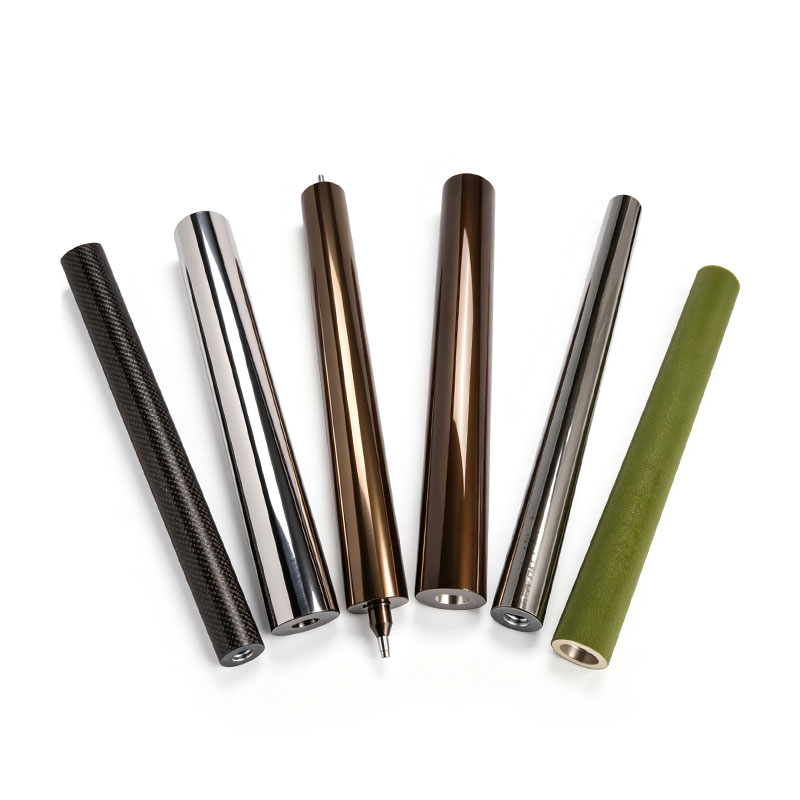

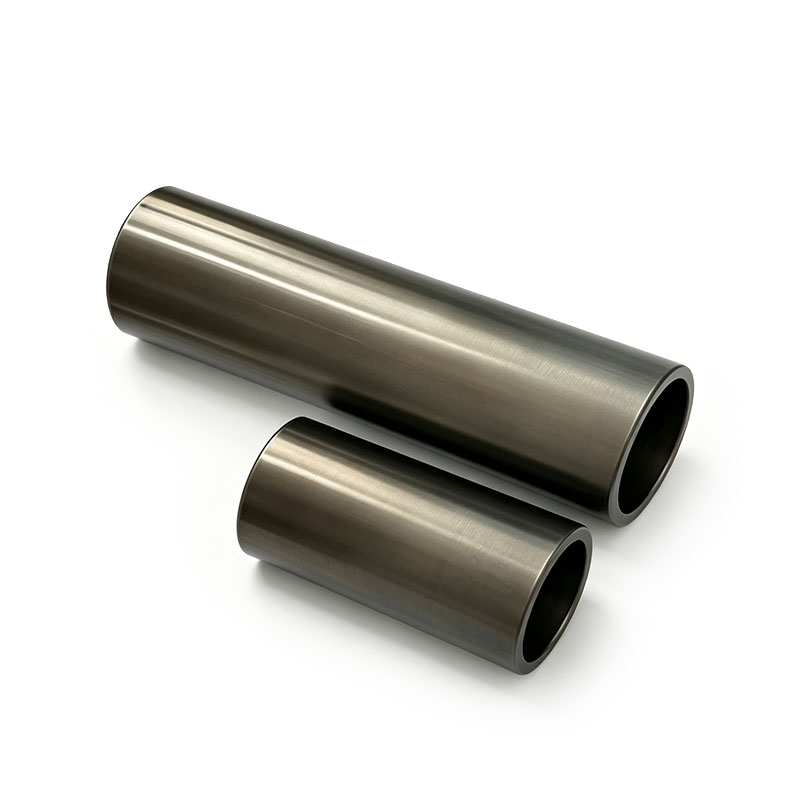

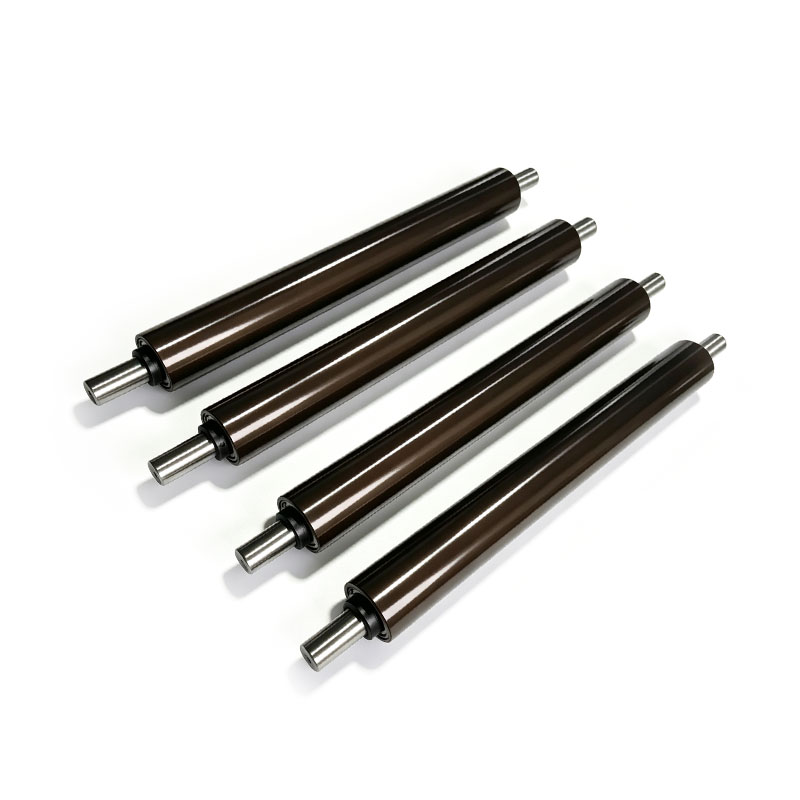

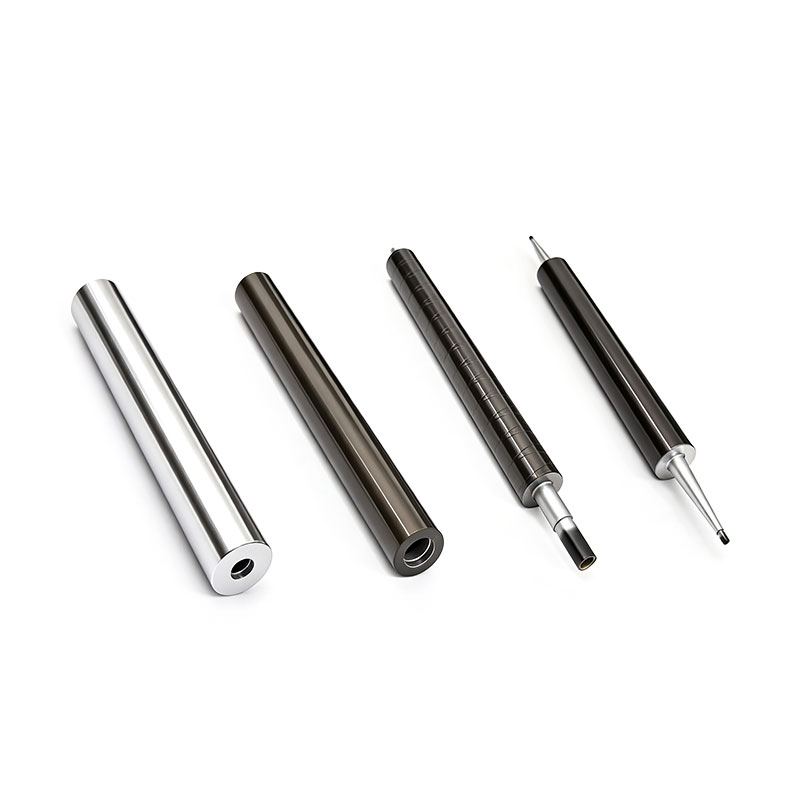

Custom Aluminum Guide Roller for Slitter Rewinder Machines

The AstraRoll Custom Aluminum Guide Roller for Slitter Rewinder Machines is designed to meet the rigorous demands of high-speed web converting, slitting, and tension control systems. During high-speed slitting and rewinding operations, heavy steel rollers introduce excessive rotational inertia, causing web slippage, edge wear, film stretching, and material wrinkles—especially when processing delicate thin films or light-gauge paper.

Our lightweight aluminum guide rolls resolve these converting issues. Manufactured from high-strength, seamless extruded aluminum alloy tubing (6063-T5 / 6061-T6), each roller undergoes computer-controlled internal wall honing and dynamic balancing to achieve minimal rotational torque. Upgraded with an advanced hard-anodized surface finish, the roller provides superior scratch protection, low surface friction, and excellent resistance to corrosion. Whether used as entry/exit idler rollers, tension-sensing rolls, or slitting-zone web spreaders, AstraRoll aluminum rolls deliver flawless, wrinkle-free web alignment.

Technical Parameters

Product Framework: Low-Inertia Precision Aluminum Idler / Guide Roller

Material Base: High-Strength Seamless Extruded Aluminum Alloy (6063-T5 / 6061-T6)

Surface Treatment: Hard Anodized (HV 400–700 / Hardness 45 HRC+), Clear Anodized, PTFE Coating

Wall Structural Design: Internal multi-rib reinforced design for high stiffness & zero deflection

Surface Finish Profile: Ra 0.2μm - Ra 0.8μm (Mirror polished / Matte / Spiral grooved)

Dynamic Balancing: ISO 21940 G2.5 standard matching for high-speed line travel (800+ m/min)

Surface Grooving: Spiral grooves, chevron grooves, cross-hatched air-venting grooves (Optional)

Concentricity & Runout: TIR (Total Indicator Runout) ≤0.015 mm via precision CNC turn-grinding

Primary Applications & Industry Uses

Slitter Rewinder Machines: Used as primary web guide rollers, tension-dancer rollers, and slitting knife anvil guide rolls for film, paper, and foil converters.

Flexible Packaging & Film Extrusion: Ideal for handling BOPP, PET, PE, CPP, and barrier films, preventing static dust attraction and substrate scratching.

Coating & Laminating Lines: Serves as smooth idler rolls through heating, drying, and coating spans where low web tension is critical.

Label & Printing Machinery: Functions as low-drag web transport rollers in narrow-web flexo printing and rotary die-cutting equipment.

Why Choose AstraRoll's Aluminum Guide Rollers?

Ultra-Low Rotational Inertia: Heavy rollers cause web dragging and scratches during acceleration and deceleration. Our optimized aluminum structure reduces roller weight by up to 60% compared to steel, ensuring instant rotational response and zero web slip.

Hard Anodized Surface for Exceptional Wear Immunity:Raw aluminum wears down quickly under continuous web friction. AstraRoll applies an electrolytic hard-anodized layer (HV 400+), transforming the roller surface into an ultra-hard protective barrier resistant to cutting knife contact and abrasive materials.

Precision ISO G2.5 Dynamic Balancing: Unbalanced rollers generate web flutter and uneven slitting edges at high speeds. Every roller is dynamically balanced to ISO G2.5 standards, ensuring vibration-free performance at speeds exceeding 800m/min.

Custom Anti-Wrinkle Grooving Options:To prevent air entrapment at high speeds, AstraRoll offers custom spiral, chevron, and micro-groove patterns that continuously purge boundary layer air and flatten web wrinkles during slitting.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
