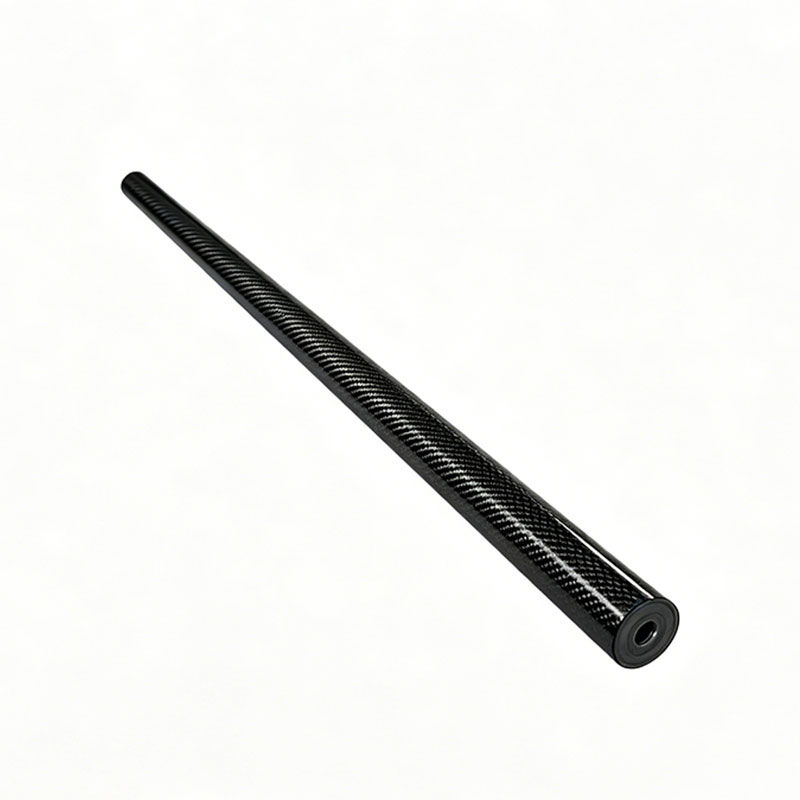

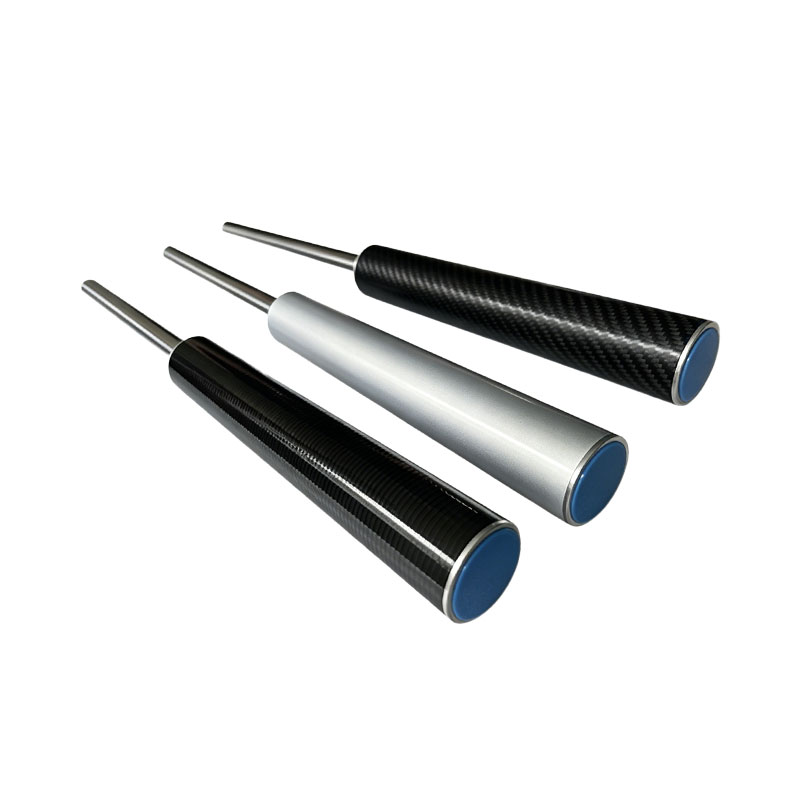

Custom High-Resilience Twill Weave CFRP Rollers for Precision Converting

The AstraRoll Technical Advantage

We engineer our CFRP rollers to provide maximum fatigue life and flawless rotational dynamics:

Twill Weave Structural Integrity: The "over-two, under-two" interlocking pattern of a twill weave is not just for aesthetics. It allows the carbon fibers to conform highly to complex stresses, providing exceptional resilience against micro-impacts, torsional twisting, and delamination compared to standard unidirectional or plain weaves.

Ultra-Low Rotational Mass: By shedding the heavy mass of steel or aluminum, the CFRP roller eliminates the "flywheel effect." It accelerates and decelerates in perfect harmony with your web, ensuring zero surface scratching on sensitive optical films or metallic foils.

High-Resilience Epoxy Matrix: We utilize advanced toughened epoxy resins that absorb and dampen high-frequency machine vibrations before they reach the web, resulting in smoother material flow and fewer tracking errors.

Massive Diameter Capabilities: While most suppliers are limited to small guide tubes, AstraRoll's advanced filament winding and roll-wrapping facilities can produce perfectly concentric CFRP drums with Outer Diameters (O.D.) up to an impressive 1000mm.

Key Specifications

Please note: We calculate the required carbon wall thickness and modulus based on your specific face length and web tension.

Outer Diameter (O.D.): Custom engineered from 30mm up to 1000mm.
Face Length: Custom manufactured up to 6,000mm+.
Weave Pattern: 3K Twill, 12K Twill, or Plain Weave.
TIR (Total Indicator Runout): ≤ 0.02mm (Precision ground finish).
Dynamic Balancing: ISO G1.0 or G2.5 at your maximum operational RPM.

Why Choose AstraRoll?

1. Precision Ground Clear Coats

A raw twill weave surface has microscopic textures that can trap air or dust. For sensitive converting lines, AstraRoll applies a thick, high-durability polyurethane or epoxy clear coat over the twill weave. We then CNC-cylindrical grind this clear coat to a flawless, mirror-like or micro-matte finish, maintaining the beautiful carbon appearance while delivering a perfectly smooth geometric cylinder.

2. Turnkey Drop-In Replacements

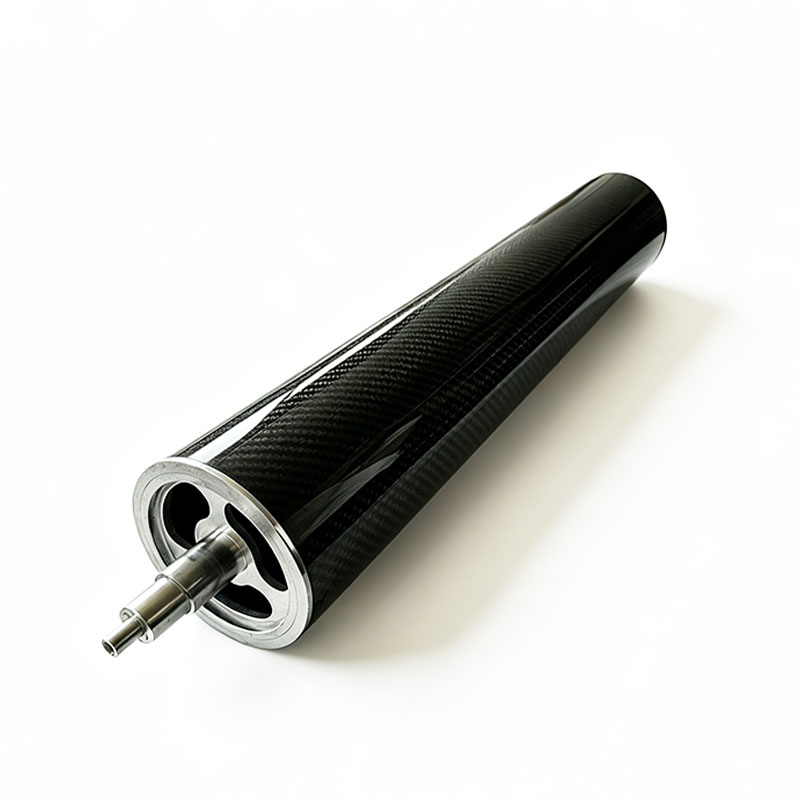

Upgrading to CFRP does not require modifying your machine frame. Simply provide us with the drawings of your existing metal rollers. We will design the internal bearings or bonded metal journals to match your OEM specifications exactly, allowing your maintenance team to perform a quick, plug-and-play upgrade.

Frequently Asked Questions (FAQs)

Q: What is the difference between "Twill Weave" and "Plain Weave" carbon fiber?
A: A plain weave has a strict "one-over, one-under" checkerboard pattern, making it very rigid but slightly brittle. A Twill Weave ("two-over, two-under") has a distinct diagonal pattern. It drapes and conforms better during manufacturing and offers higher resilience and toughness against impact and torsional stress, making it ideal for high-speed dynamic rollers.

Q: Can you really make a CFRP roller with a 1000mm (1 meter) diameter?
A: Yes. While small diameters (50mm - 150mm) are used as guide/idler rollers, massive diameters (up to 1000mm) are frequently utilized as lightweight chilling drums, winding accumulators, or central impression cylinders in specialized converting machinery where a metal drum of that size would be impossibly heavy to drive.

Q: Will the carbon fiber surface wear down over time from paper or film friction?
A: If running highly abrasive materials (like thick paperboard or fiberglass web), a standard clear-coated carbon surface will eventually show wear. For those specific high-abrasion environments, we recommend utilizing the CFRP tube as the lightweight core, and having AstraRoll apply a Tungsten Carbide or hard Polyurethane outer coating for ultimate wear resistance.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
