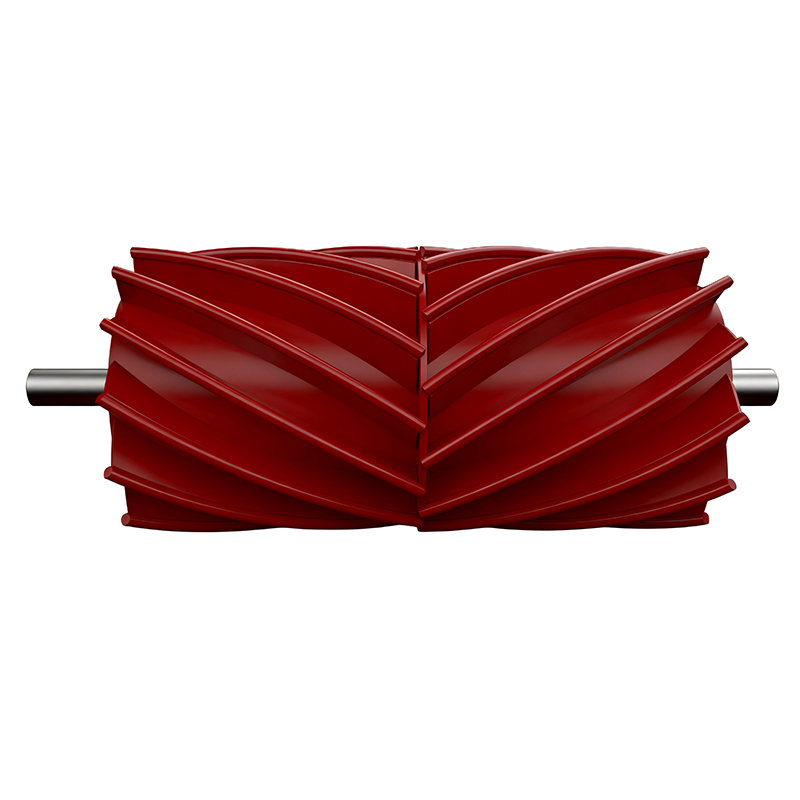

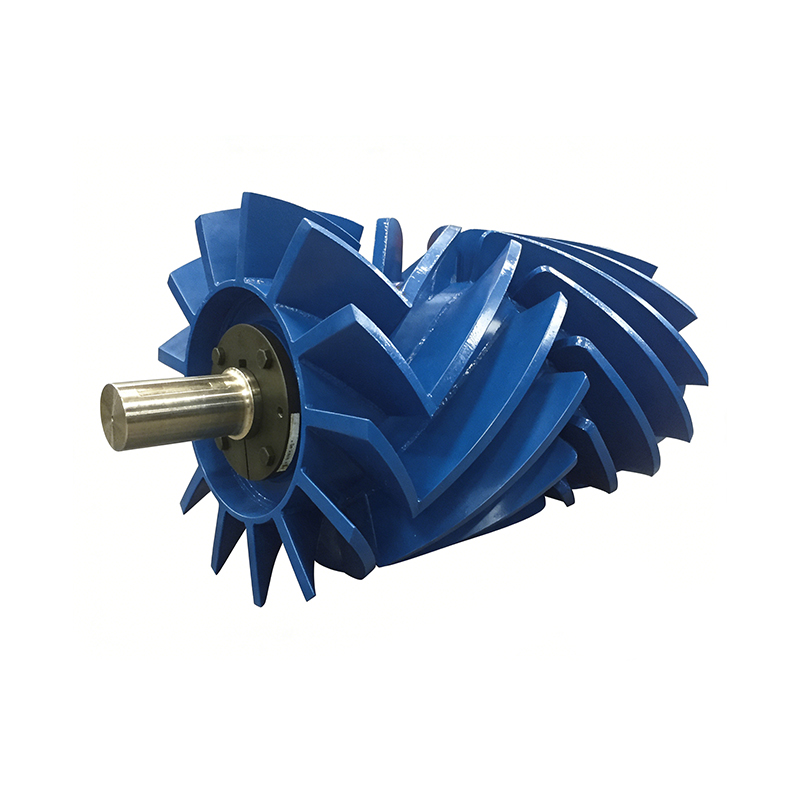

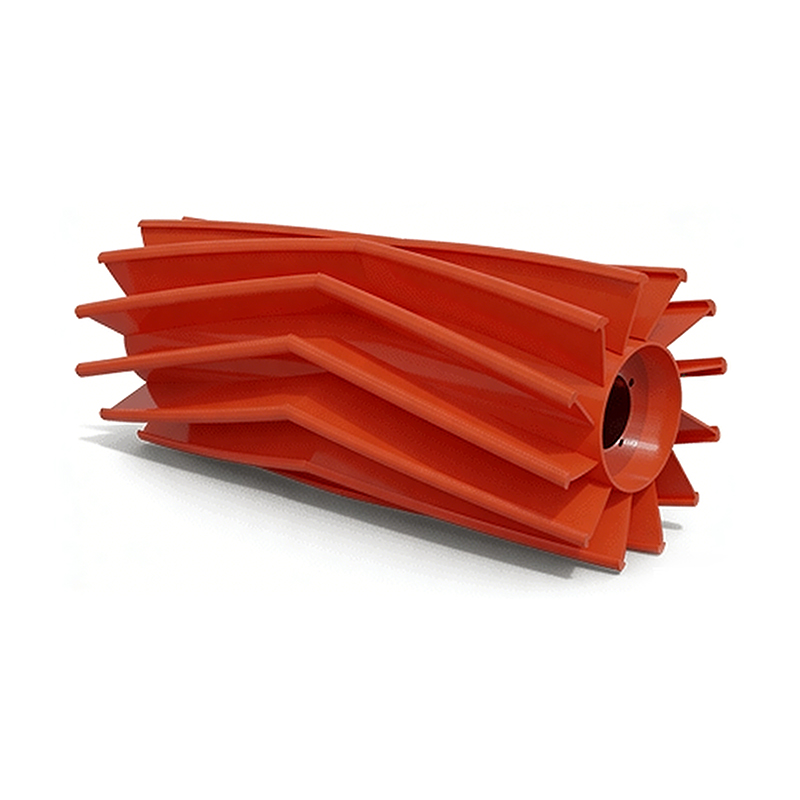

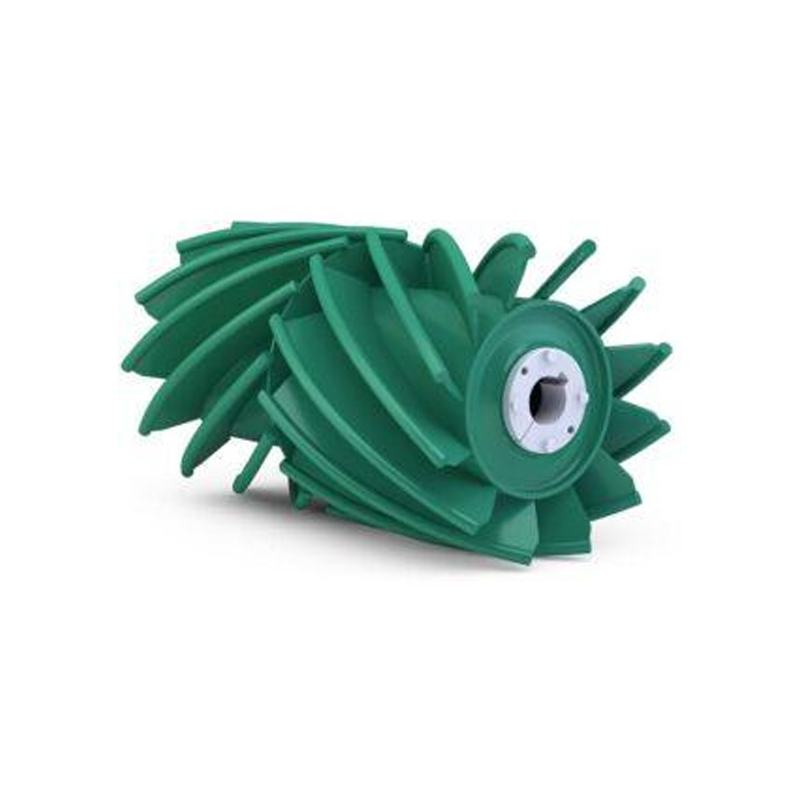

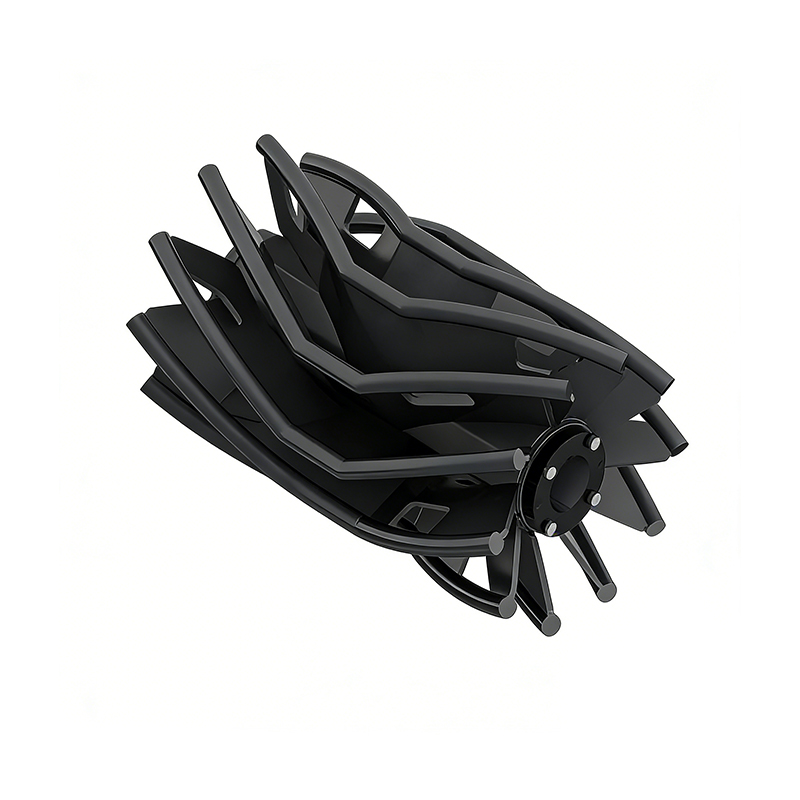

Custom Angled Wing Conveyor Pulley

Product Overview

Wing pulleys are specialized conveyor pulleys designed to operate efficiently in environments where material buildup, moisture, and contamination are common challenges. Unlike conventional drum pulleys, wing pulleys feature an open design with radial steel wings that support the conveyor belt while allowing loose material to fall away, preventing accumulation on the pulley surface.

Structure and Key Components

Central Shaft: Provides structural strength and transmits torque from the drive system. Typically manufactured from high-strength carbon steel to withstand heavy loads.
Wing Plates (Radial Wings): The defining feature of the pulley, these steel wings are arranged radially around the shaft. They create gaps that allow debris, mud, and sticky materials to pass through, delivering a self-cleaning effect.
End Discs / Hubs: Secure the wings to the shaft and ensure proper alignment and structural integrity during operation.
Bearings and Housing: Support smooth rotation and reduce friction, ensuring long-term operational stability.

Working Principle

As the conveyor belt moves over the wing pulley, contact occurs only along the edges of the wings rather than a continuous surface. This reduces the contact area and allows excess material to fall through the gaps due to gravity and belt movement. As a result, the pulley remains clean, minimizing imbalance, vibration, and belt misalignment.

Key Attributes

Material: Carbon Steel, Alloy Steel, Stainless Steel
Surface Treatment: Paint Coating, Basic corrosion protection, Rubber Lagging, Galvanizing, Epoxy Coating
Applications and Industries: Mining and quarrying, Cement plants, Ports and bulk terminals, Power plants, Recycling and waste management, Agriculture
Industry & Conveyor Position: Typically installed at the tail pulley (return side); Also used in take-up sections; Occasionally used as a drive pulley in harsh environments
Environment: Suitable for wet, sticky, muddy, or abrasive materials. Performs reliably in outdoor and dusty environments.
Diameter: Customizable
Face Width: Customizable
Shaft Size: Customizable
Wing Spacing and thickness: Customizable
Self-Cleaning Design: Customizable

Why Choose AstraRoll's Wing Conveyor Pulley?

The wing conveyor pulley of AstraRoll has a self-cleaning design that minimizes material buildup, lowering maintenance frequency and unexpected shutdowns.
Optimized wing spacing and structural balance ensure smooth belt operation and reduced tracking issues.
High-strength steel construction ensures long service life under abrasive and high-load conditions.
AstraRoll provides full customization available for dimensions, shaft design, materials, and coatings to match your specific application.
AstraRoll's strict production control and dynamic balancing ensure stable performance and long-term reliability.
