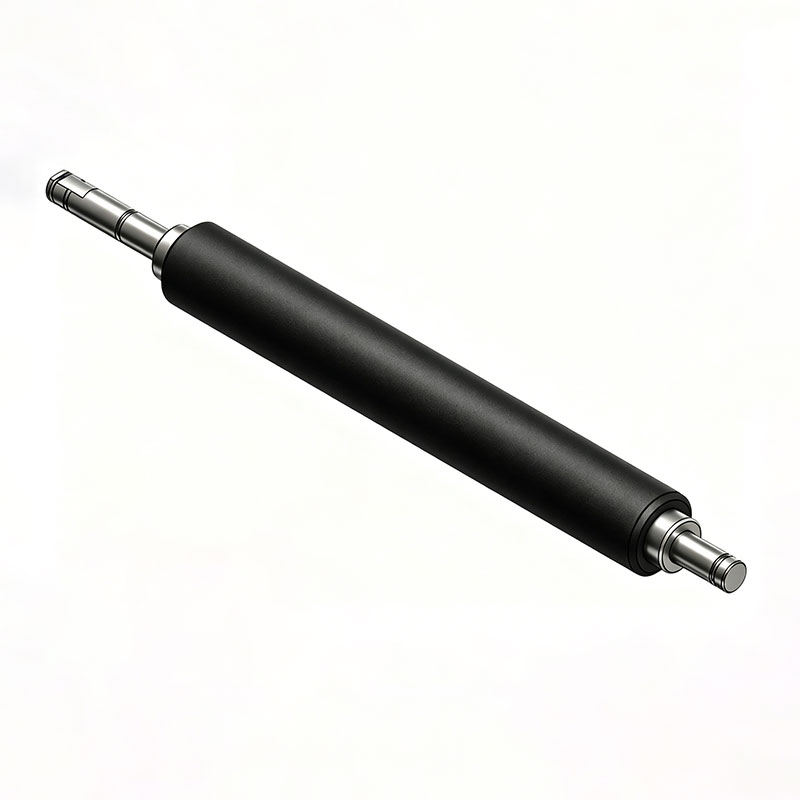

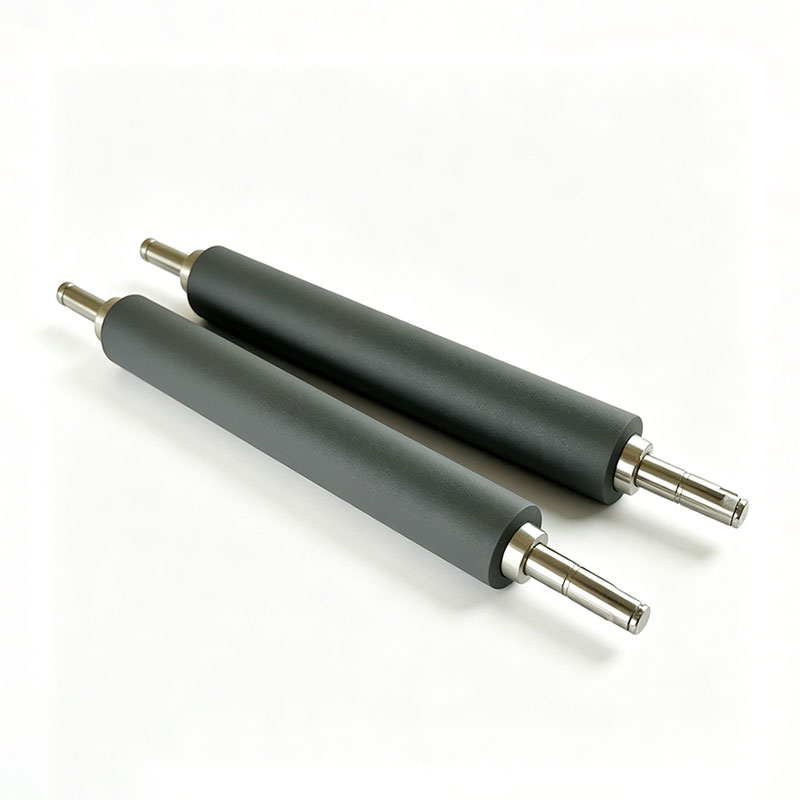

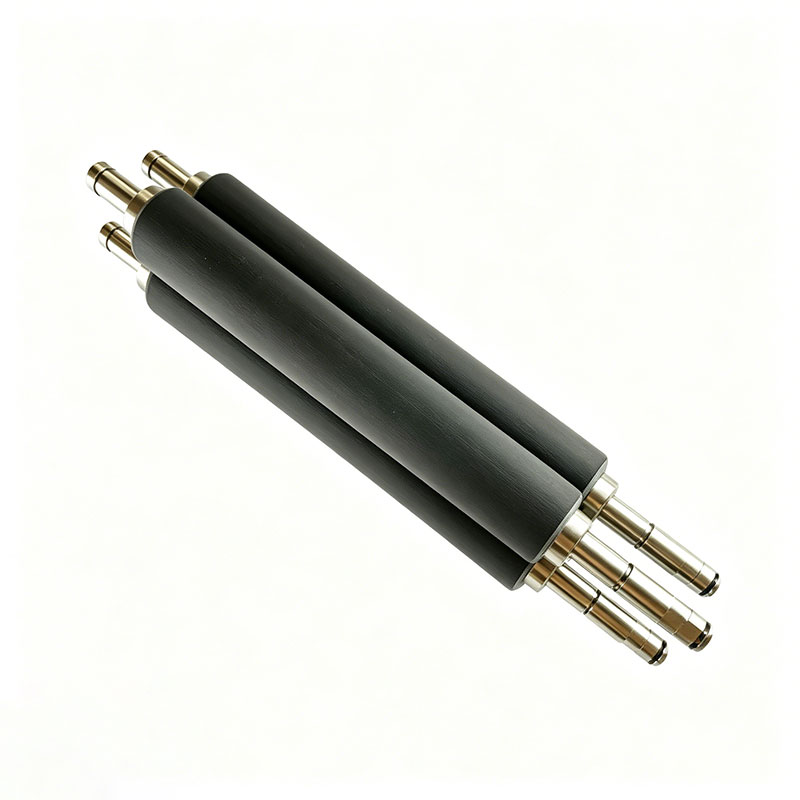

Custom Silicone Rubber Rollers for High-Temp Printing Materials

We compound and vulcanize our silicone rollers in-house to guarantee flawless performance under extreme heat:

Extreme Thermal Endurance: Our industrial-grade silicone formulations resist thermal degradation. They will not crack, glaze, or deform even under continuous 24/7 operation at 250°C, ensuring a perfectly uniform nip pressure over a long service life.

Superior Release Properties: Hot-melt adhesives and thermal inks will aggressively stick to standard rubber. AstraRoll silicone features a natural, non-stick surface, preventing web wrap-arounds and drastically reducing cleaning downtime.

Advanced Core Vulcanization: The severe expansion and contraction of metal cores during heating and cooling cycles can cause inferior rubber coatings to delaminate. We utilize a multi-stage chemical bonding and heat-curing process that guarantees the silicone will never separate from the steel or aluminum core.

Micro-Precision Grinding: A high-temperature roller is only effective if its pressure is uniform. We utilize CNC cylindrical grinders to finish the silicone surface to a strict Total Indicator Runout (TIR) of ≤ 0.02mm, preventing air bubbles in laminating and ensuring crisp, flawless thermal printing.

Key Specifications

Please note: We manufacture the core and compound the silicone entirely to your machinery's specifications.

Outer Diameter (O.D.): Custom from 20mm up to 600mm+.

Face Length: Custom manufactured up to 4,000mm.

Operating Temperature: -40°C to 250°C (-40°F to 482°F). Peak intermittent up to 300°C.

Hardness Tolerance: ± 3 Shore A (Maintained uniformly across the entire face length).

TIR (Total Indicator Runout): ≤ 0.02mm.

Why Choose AstraRoll?

1. Custom Silicone Compounding

Not all high-heat applications are identical. If your thermal printing process also involves high mechanical pressure, standard silicone may tear. AstraRoll's material engineers can blend custom high-tear-strength (HTS) silicone compounds that provide both the required heat resistance and extreme physical durability for demanding web tensions.

2. Factory-Direct Recovering Services

When your current silicone rollers eventually wear out, cut, or groove, do not throw away the expensive metal shafts. Ship your worn rollers to the AstraRoll facility. We will strip the old coating, re-machine the journals if necessary, apply a brand-new silicone vulcanized coating, and grind it to OEM dimensions at a fraction of the cost of a new assembly.

Frequently Asked Questions (FAQs)

Q: How do I choose the correct Shore A hardness for my printing application?
A: The hardness depends on the substrate you are pressing against. For delicate, thin plastic films or uneven surfaces, a softer silicone (e.g., 30A to 50A) is recommended as it conforms easily. For high-speed flat laminating or pressing rigid materials like wood veneers and metals, a harder silicone (e.g., 70A to 85A) is required to apply focused pressure.

Q: Can silicone rollers withstand the chemical solvents used to clean printing ink?
A: While silicone is the ultimate champion of heat resistance, it is generally sensitive to certain harsh hydrocarbon solvents (like toluene or MEK), which can cause the rubber to swell. If you must clean the roller, we recommend using isopropyl alcohol or mild, silicone-safe cleaners. If heavy solvent resistance is more important than extreme heat, let our engineers know, and we may recommend a specialty fluorosilicone or EPDM blend.

Q: Can you provide "crowned" silicone rollers?
A: Yes. Under heavy nip pressure, long rollers can slightly bow in the center. We can CNC-grind a parabolic "crown" (making the center slightly larger in diameter than the edges) to compensate for this deflection and ensure a perfectly flat pressure profile across your printing

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
