Aluminum Alloy Roller Manufacturer
Product Overview

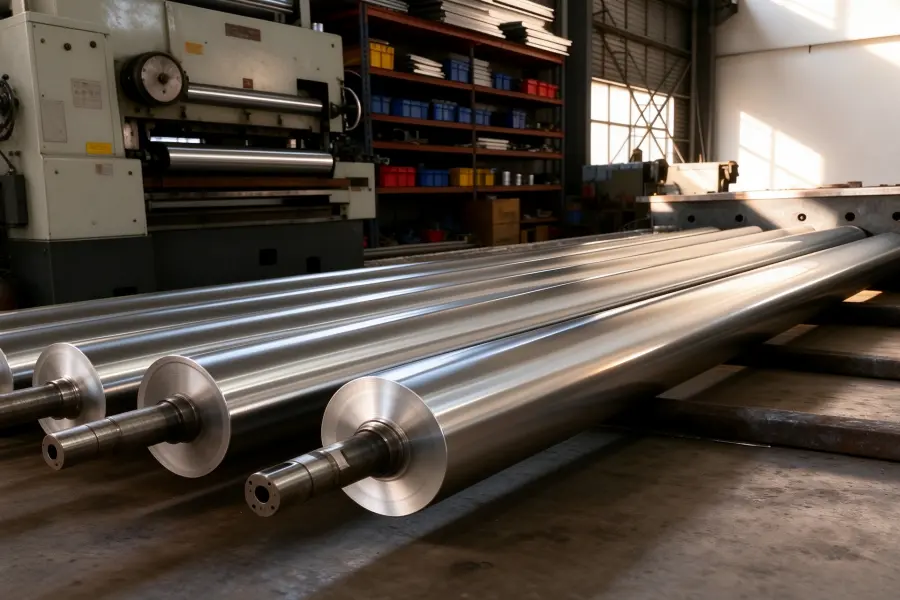

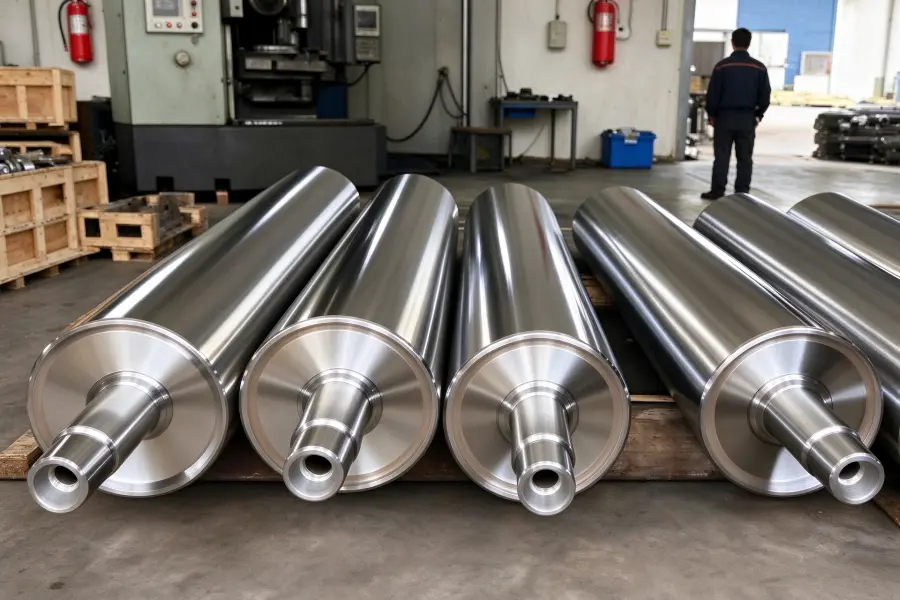

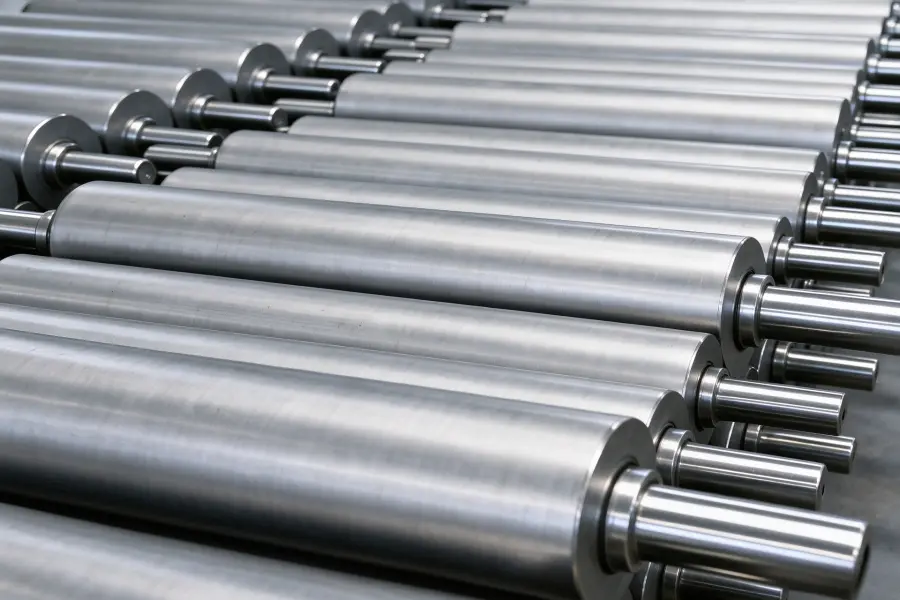

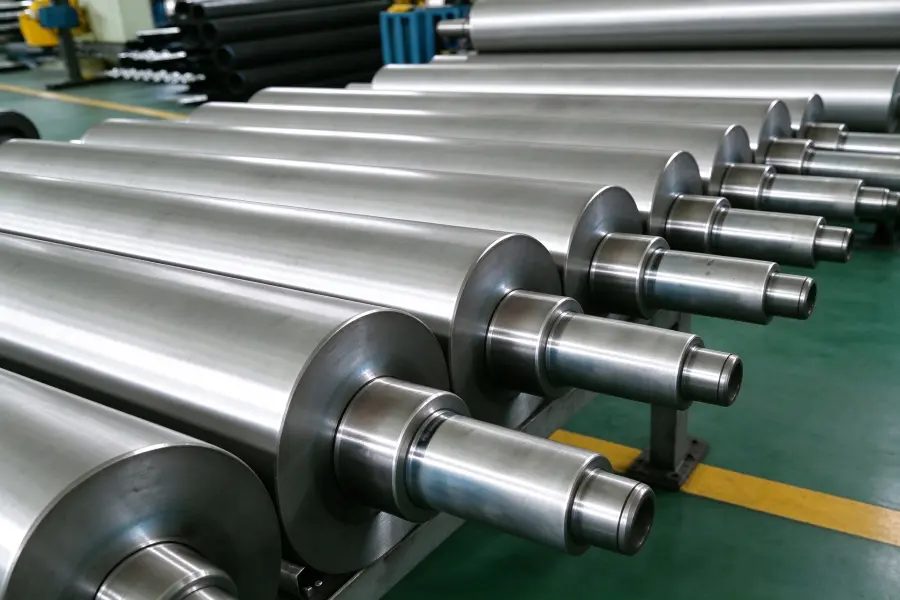

The aluminum alloy roller, also widely referred to as aluminum guide roller or aluminum web roller, is a precision lightweight industrial roller fabricated from extruded aluminum alloy tubing. It is engineered to deliver low rotational inertia, outstanding straightness, superior heat dissipation and natural corrosion resistance, which together make it the preferred choice for high-speed web handling processes in the converting industry. Compared with carbon steel rollers of the same size, an aluminum alloy roller weighs considerably less, thereby reducing bearing load, cutting driving power consumption and enabling faster acceleration and deceleration on modern production lines. As a professional aluminum alloy roller factory in China, AstraRoll supplies custom aluminum rollers, aluminum air shafts and specialty aluminum rollers to slitter rewinder manufacturers, film blowing machine builders, printing press producers, copper foil and lithium battery equipment suppliers across more than 30 countries.
Structure and Construction
A standard aluminum alloy roller is composed of four core components.
- Aluminum alloy tube body - the main working barrel, commonly made of 6063-T5 or 6061-T6 extruded aluminum alloy. For long or wide rollers, internal reinforcing ribs are added to improve rigidity, roundness and resistance to bending under sustained web tension.
- Shaft and axle - precision turned and ground shaft available in carbon steel, stainless steel or aluminum alloy, machined to tight tolerance to ensure accurate bearing seating.
- Surface treatment layer - plain finish, ordinary anodizing, hard anodizing, PTFE coating, ceramic coating, sandblasting or grooved machining, selected according to the web material and friction requirements.
- Bearing and housing assembly - sealed ball bearings, precision roller bearings or custom bearing housings, chosen based on operating speed, web tension, load and working environment.
The aluminum barrel and shaft are connected via interference fit or welding to maintain consistent concentricity during continuous high-speed rotation. Internal rib reinforcement effectively prevents bending deformation, allowing long rollers to keep stable web path over extended service life.
Aluminum Alloy Base Material Selection
Different aluminum alloy grades provide different mechanical performance to match various production conditions. AstraRoll offers the following standard alloy options.
- 6063-T5 aluminum alloy - good extrudability, smooth surface finish and cost efficiency; widely used for general guide rollers in packaging, paper and low-speed film processing lines.
- 6061-T6 aluminum alloy - higher tensile strength, rigidity and deformation resistance with good weldability; recommended for high-tension wide web converting, copper foil lines and lithium battery separator production.
The alloy grade can be customized according to roller length, working tension, operating speed and customer technical specifications.
Surface Treatment Options
Surface treatment determines the roller's friction, hardness, anti-stick and wear performance in different applications.
- Ordinary anodizing - corrosion protection and smooth surface for general guide rollers.
- Hard anodizing - high surface hardness up to HV 300 to HV 700, excellent wear resistance for repeated web contact.
- PTFE non-stick coating - low friction and anti-adhesion, ideal for adhesive films and tapes.
- Ceramic coating - high hardness and heat resistance for demanding environments.
- Cross-hatch and fluted grooves - improved web gripping and air release for film spreading.
- Sandblasting - matte uniform surface for specific contact and appearance requirements.
Key Technical Parameters
Below is the core specification summary for AstraRoll aluminum alloy rollers.
| Item | Specification |
| Roller Outer Diameter | 20 mm ~ 320 mm, custom larger size available |
| Working Face Length | Up to 3500 mm+ |
| Shaft Diameter | 8 mm ~ 80 mm, machined per customer drawings |
| Surface Roughness | Ra 0.4 ~ 1.6 µm |
| Hard Anodizing Hardness | HV 300 ~ HV 700 |
| Dynamic Balancing Grade | G2.5 / G6.3 |
| Max Continuous Speed | Up to 800 m/min (medium-width rollers) |
| Working Temperature | Working Temperature |
| Standard Material | 6063-T5 / 6061-T6 |
Notes: Extra-wide rollers require internal reinforcing ribs and will have a reduced maximum operating speed. Working temperature is limited by the selected surface coating.
Manufacturing Process
Manufacturing of aluminum alloy rollers follows a rigorous step-by-step precision workflow.
- Aluminum tube preparation - extruded aluminum tube is cut to required length, end faced and centered.
- Internal rib inspection - verify the integrity of internal reinforcing ribs to guarantee structural stiffness.
- Shaft machining and assembly - shafts are turned, ground and then press-fitted or welded onto both ends of the aluminum barrel.
- Precision external turning - CNC turning on the outer surface to achieve required roundness, straightness and diameter tolerance.
- Surface treatment - anodizing, hard anodizing, PTFE coating, ceramic coating or spiral grooving is processed as requested.
- Dynamic balancing correction - dynamic balancing test and weight removal to meet the specified balancing grade.
- Final inspection - concentricity, diameter tolerance, surface roughness and coating thickness are fully verified before packing.
Application Scenarios
Aluminum alloy rollers are widely adopted in precision web-handling industries.
- Plastic film and flexible packaging converting - guide rollers for BOPP, PET, CPP and PE film slitting, rewinding and laminating lines. The lightweight design reduces tension fluctuation during high-speed film travel.
- Copper foil production - guide rollers in rolling, slitting and rewinding lines, where corrosion resistance and clean surfaces protect the high-purity copper foil.
- Printing industry - gravure, flexographic and digital printing machines. Aluminum rollers dissipate heat rapidly and maintain a stable web path to avoid printing registration errors.
- Paper and paperboard processing - paper unwinding, calendering and coating equipment. The smooth anodized surface prevents scratching of the paper surface.
- Textile and nonwoven production - fabric spreading, coating and slitting machines. Low rotational inertia supports fast start and stop operation.
- Lithium battery electrode and separator production - corrosion-resistant aluminum guide rollers for battery film winding lines with a clean, particle-free surface.
- Packaging machinery - form-fill-seal and bag-making machines, guiding thin flexible packaging materials smoothly.
- Web spreading & wrinkle removal - Aluminum scroll rollers are designed for web spreading and wrinkle elimination on thin film and foil substrates.
Customization Capability (OEM / ODM)
AstraRoll supports full customization to satisfy unique project requirements.
- Dimensions - outer diameter, face length and shaft configuration can all be tailored.
- Aluminum material - alloy grade, tube wall thickness and internal rib structure are selectable.
- Surface treatment - hard anodizing, PTFE coating, ceramic coating, straight grooves, spiral grooves or sandblasting can be customized.
- Bearing system - bearing type and bearing housing can be specified.
- High-speed requirement - high-grade dynamic balancing service is available for fast-running web lines.
- Production basis - manufacturing can be carried out strictly according to customer drawings or reference samples.
Our product range also includes aluminum air shafts, perforated aluminum rollers, chevron grooved rollers, anilox rollers and differential shafts to match your full web processing line.
Quality Control and Export

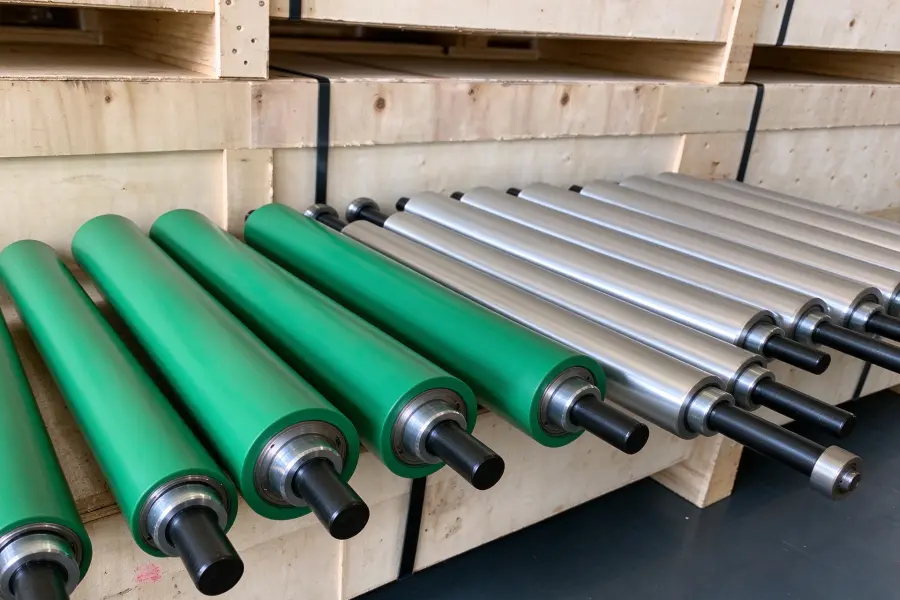

Every aluminum alloy roller undergoes full dimensional inspection. Concentricity, surface finish and coating quality are checked one by one. Finished rollers are individually wrapped to protect the precision surface from scratches during shipment, and shaft ends are protected against corrosion. We can arrange sea freight, air freight or express delivery based on order volume and lead time requirements.
Why Choose AstraRoll
As a China-based aluminum alloy roller manufacturer, AstraRoll combines precision CNC machining with competitive factory pricing and flexible custom service. Direct factory supply delivers cost advantages and shorter lead times. Customers can communicate directly with our engineering team for technical consultation, drawing review and solution optimization for their web handling systems.
Closing Paragraph
AstraRoll is a China-based aluminum alloy roller factory manufacturing a full portfolio of precision aluminum guide rollers, air shafts and specialty aluminum rollers to stabilize web path and minimize tension variation in film, copper foil, printing and flexible packaging converting industries. Custom surface treatments & shaft assemblies, OEM/ODM, international delivery.
