Carbon Fiber Roller Manufacturer
Overview
A carbon fiber roller is a precision cylindrical web-handling component with a main body manufactured from carbon fiber reinforced polymer (CFRP). It consists of a hollow CFRP tube bonded with precision-machined metal end shafts, or built upon aluminum/steel inner cores wrapped with continuous carbon fiber layers. Designed as a practical high-performance alternative to traditional steel and aluminum rollers, AstraRoll carbon fiber rollers combine light weight, good stiffness, low rotational inertia and low thermal expansion.
These custom rollers are widely used for high-speed web handling, precision converting and clean-room production environments, where excess rotating mass or minor deflection can negatively affect finished material quality. Compared to steel rollers of the same outer dimension, AstraRoll carbon fiber rollers reduce weight by 50–70%. This weight reduction allows production machinery to operate at higher line speeds with less vibration, lower motor power consumption and more consistent web tension control across the full working width.
AstraRoll is a China-based carbon fiber roller factory manufacturing lightweight, high-stiffness carbon fiber rollers to reduce deflection and rotational inertia across web converting, lithium battery film, optical film, semiconductor wafer processing, printing, coating and textile industries. Custom roller dimension, shaft, surface treatment and grooved structure specifications are fully supported, with OEM/ODM service and reliable international delivery.
1. Why AstraRoll Carbon Fiber Rollers Outperform Steel & Aluminum Rollers
The switch from metal rollers to carbon fiber rollers delivers measurable performance improvements, based on real material characteristics. Each material property directly influences your production line’s throughput, product yield and maintenance schedule.
Light weight & low rotational inertia
An AstraRoll carbon fiber roller weighs 60–70% less than a steel roller of identical dimensions. The reduced rotating mass lowers rotational inertia, supporting faster acceleration and deceleration during line start-stop, shorter production changeover cycles and reduced energy consumption. For high-speed slitting, rewinding and coating machines, this improvement helps raise practical operating speed and increase production capacity.
Good stiffness-to-weight ratio
High-modulus carbon fiber delivers reliable rigidity without excess weight. Under the same web tension load, an AstraRoll CFRP roller produces smaller deflection than aluminum rollers and can match or exceed the stiffness of steel rollers of equal weight. This keeps web material flat and tension evenly distributed over the full roller face, helping reduce wrinkles, web sagging and lateral material wandering.
Stable thermal performance
Carbon fiber has a low coefficient of thermal expansion (CTE), generally between 0.5–1.5 × 10⁻⁶ /°C. By comparison, steel is around 12 × 10⁻⁶ /°C and aluminum roughly 23 × 10⁻⁶ /°C. When workshop temperatures change, AstraRoll carbon fiber rollers retain stable geometry and avoid thermal expansion or contraction, which brings benefits for precision optical film and lithium battery separator processing.
Vibration damping property
CFRP composite naturally absorbs and suppresses mechanical vibration and resonance. When fitted on production equipment, AstraRoll carbon fiber rollers enable smoother rotation, lower operating noise and reduced web flutter. This helps stabilize material quality and slow wear on bearings and support frames.
Corrosion & chemical resistance
Unlike steel, carbon fiber composite will not rust. Its dense, non-porous surface resists most mild chemical contaminants, making it suitable for clean production environments, humid workshops and applications where metal corrosion is a concern.
2. AstraRoll Product Range & Structural Options
AstraRoll manufactures multiple configurations of carbon fiber rollers to match diverse web processing requirements, covering our full product lineup including idler rollers, guide rollers, grooved spreader rollers, anti-static rollers and wafer-processing precision rollers:
- Full carbon fiber hollow tube rollers: Pure CFRP tube with bonded metal stub shafts. Available in matte or glossy finish, and can be fitted with ceramic coating or anti-static surface treatment. This style is commonly used for high-speed, high-precision production.
- Aluminum-cored carbon fiber rollers: An aluminum inner core wrapped with carbon fiber layers. This structure balances performance and cost, offering satisfactory stiffness at a more economical price.
- Steel-cored carbon fiber rollers: Heavy-duty construction with a steel inner core overwound with carbon fiber. This design is selected for large-diameter rollers that require high rigidity under heavy web tension.

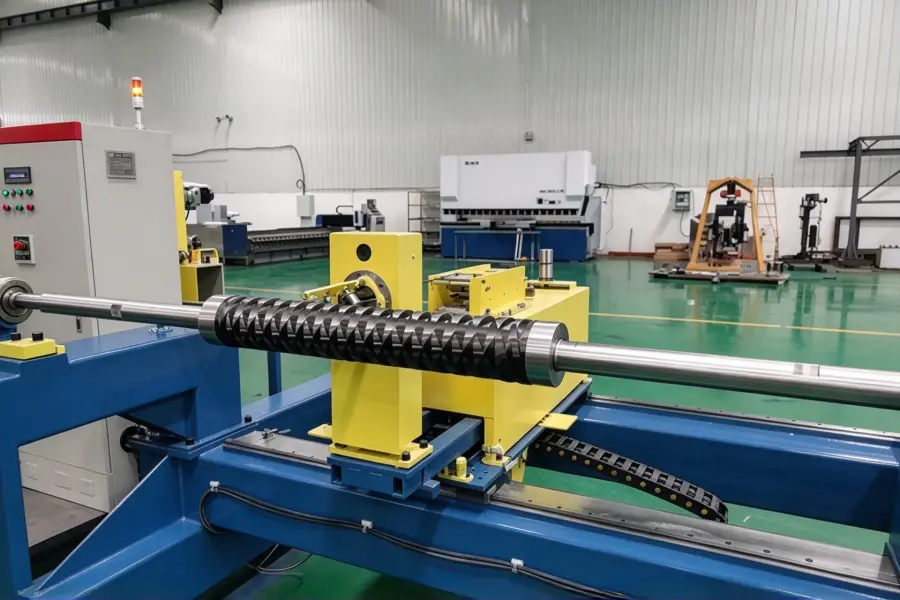

- Grooved / spiral spreader carbon fiber rollers: Custom spiral-grooved surface design, functioning as a web spreader to stretch material and reduce wrinkles on film, foil and nonwoven webs.
- Anti-static carbon fiber rollers: Specially modified conductive surface to dissipate static electricity. This feature is widely required for lithium battery film, optical film and semiconductor manufacturing to lower risks of static discharge damage.

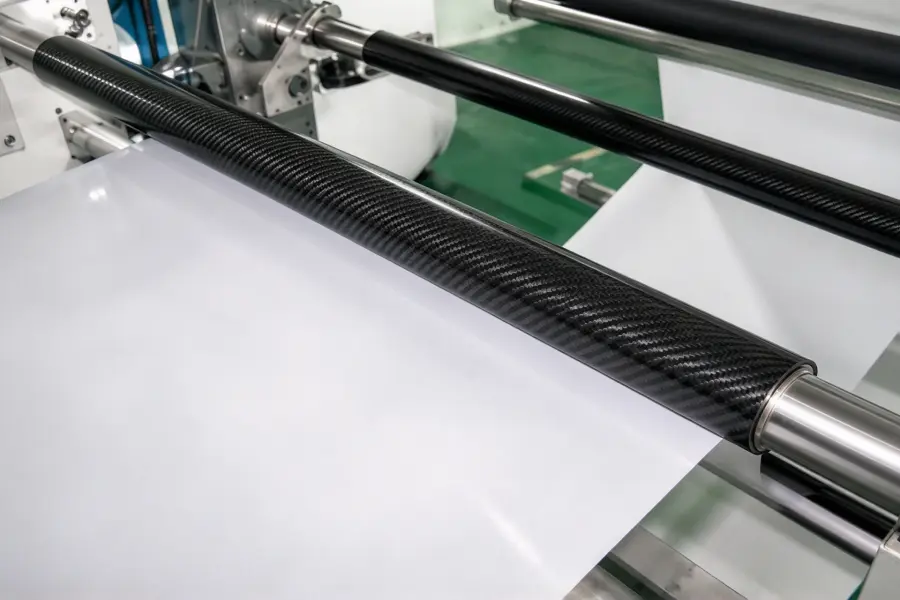

- Idler & guide carbon fiber rollers: Standard non-driven rollers for material guidance and web transportation, widely used across slitting, coating and printing production lines.
3. Technical Reference Parameters
The values listed below are typical reference figures from regular production. Final dimensions and tolerances will be confirmed and manufactured according to customer drawings and field application requirements. Outer diameter range: 20 mm to 800 mm, fully customizable. Effective face length range: 100 mm to 6,000 mm, fully customizable. Tube base material options: full CFRP tube, aluminum core CFRP, steel core CFRP. Shaft style options: solid main shaft, stub shaft, hollow shaft, single-ended shaft. Surface options: glossy, matte, polished, ceramic coating, anti-static conductive finish, spiral grooved. Surface roughness: Ra 0.1 – 3.2 µm. Straightness: controlled within ≤ 0.05 mm per meter. Roundness: controlled within ≤ 0.02 mm. Dynamic balancing: finished to ISO 1940 Grade G2.5 or higher. Coefficient of thermal expansion: 0.5 – 1.5 × 10⁻⁶ /°C. Weight reduction versus equivalent steel roller: up to 60–70%.
4. Core Features & Key Benefits of AstraRoll Carbon Fiber Rollers
- ✅ Ultra-lightweight build: Up to 70% lighter than steel rollers, reducing bearing and frame load, and extending service life of machine components.
- ✅ Favorable stiffness-to-weight ratio: Maintains flat web and uniform tension on wide web widths even at high line speeds, helping reduce bagging, wrinkles and web offset.
- ✅ Low rotational inertia: Supports rapid speed changes, shorter downtime during roll change and lower power draw, well suited for high-speed slitting, coating and rewinding.
- ✅ Low thermal expansion: Retains dimensional stability under temperature variation, suitable for precision optical and battery film production.
- ✅ Good vibration absorption: Suppresses resonance and provides smooth rotation for consistent material transport.
- ✅ Clean, non-contaminating surface: Chemically inert and easy to clean, suitable for cleanroom, semiconductor and hygienic processing lines.
- ✅ Fully customizable construction: Tailor shaft geometry, roller length, diameter and surface treatment to match your unique machine setup.
5. Industries & Application Scenarios
AstraRoll carbon fiber rollers serve precision manufacturing sectors that demand stable, low-inertia web transport:
- General Web Converting: Slitting, laminating, coating, flexo printing and rewinding lines. Low inertia stabilizes web tension and allows higher practical line speed.
- Lithium Battery Industry: Guide, idler and contact rollers for electrode foil, separator and battery film processing. Anti-static options help protect sensitive battery materials.

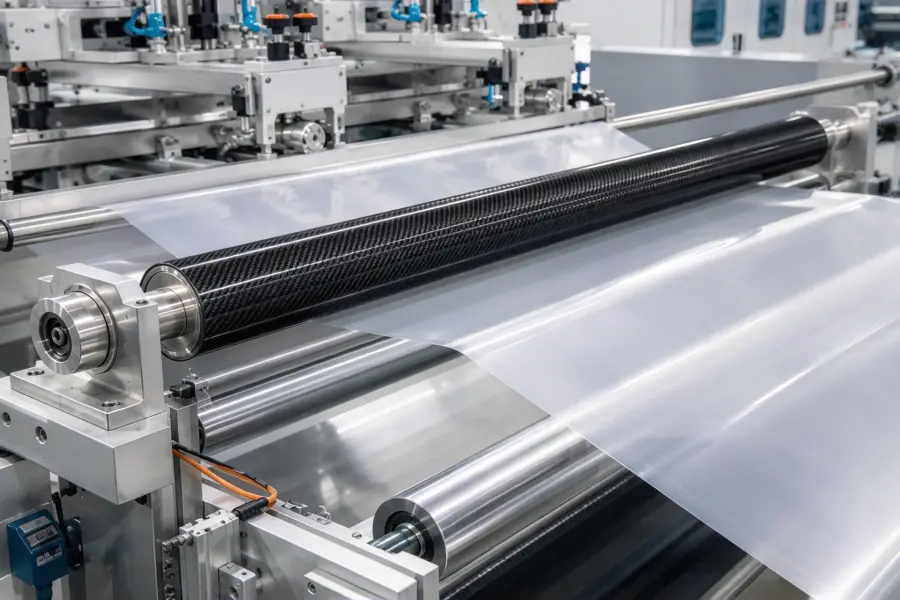

- Optical Film & Display Manufacturing: Precision guide rollers for PET, protective and functional optical films, requiring ultra-clean surfaces and stable geometry.
- Semiconductor Wafer Processing: High-purity carbon fiber rollers for wafer cutting and handling applications, minimizing contamination and static risks.
- Commercial Printing: Low-inertia rollers improve print registration accuracy and reduce web flutter in high-speed printing presses.
- Textile & Nonwoven Production: Lightweight guide rollers for fabric and nonwoven material transport and drying sections.
- Paper Processing: High-speed wide-width guide rollers with low deflection for paper slitting and rewinding.
- Custom Automation Equipment: Special lightweight rollers for custom material handling machinery.
6. Available Surface Treatments from AstraRoll
You can select surface finish tailored to your web material and working environment:
Glossy finish: Smooth low-friction surface, for low-adhesion film and foil handling.
Matte finish: Reduces surface glare and improves web grip for slippery thin films.
Ceramic coating: High-hardness wear-resistant layer, for applications with abrasive web materials.
Anti-static conductive treatment: Dissipates static charge, commonly specified for battery film and semiconductor production.
Spiral / grooved patterns: Works as a spreader roller to stretch webs and reduce wrinkles.
7. AstraRoll Production & Quality Control Workflow

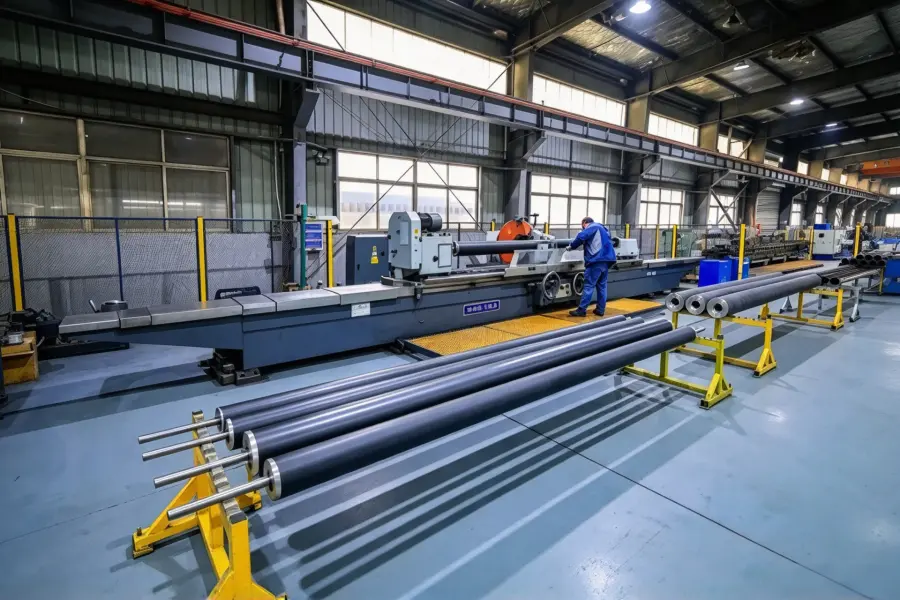

Every AstraRoll carbon fiber roller follows a strict, in-house manufacturing and inspection routine: Raw material incoming inspection → CFRP tube winding or metal core preparation → CNC machining for shaft assembly → bonding of end shafts → precision grinding → dynamic balancing (ISO 1940 G2.5 or higher) → customized surface treatment → final dimensional and visual inspection.

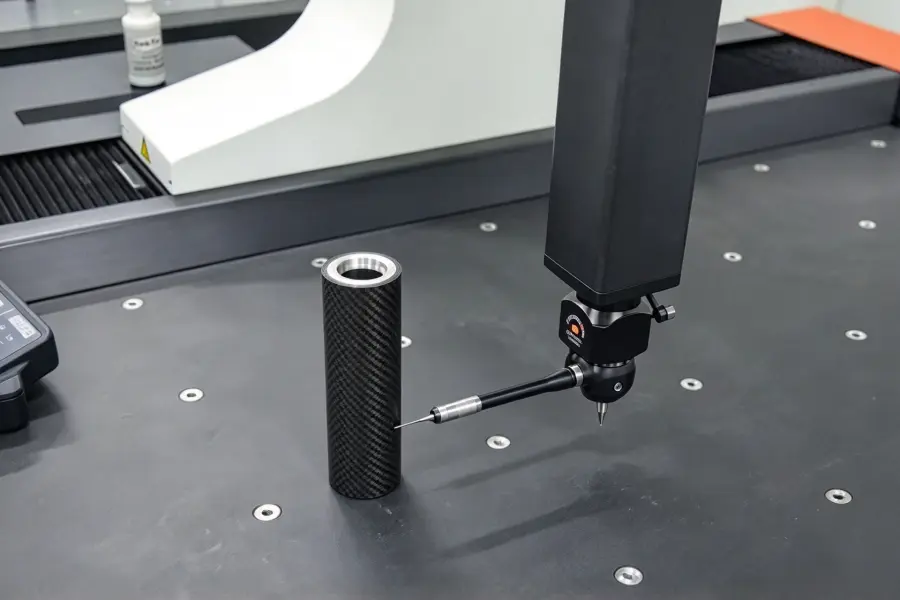

Before shipment, each roller is inspected for straightness, roundness, surface roughness and dynamic balance. Material test certificates and inspection reports can be provided upon request.
8. Customization & OEM / ODM Capability
AstraRoll supports full custom engineering. Our technical team designs each roller according to your machine specifications, drawings, material type and line speed requirements. We can customize outer diameter, working face length, shaft configuration, surface roughness, grooved patterns and anti-static coating.
Send us your 2D/3D drawings, samples or detailed application description, and AstraRoll engineers will recommend the suitable roller solution. OEM and ODM manufacturing services are fully available.
9. Why Global Customers Choose AstraRoll
- Direct China manufacturer, no intermediate traders, with practical factory pricing.
- Complete in-house production, enabling stable control over quality, tolerances and production lead time.
- Rich engineering experience serving web converting, lithium battery, optical film and semiconductor industries.
- Professional engineering support for drawing review, material selection and technical problem solving.

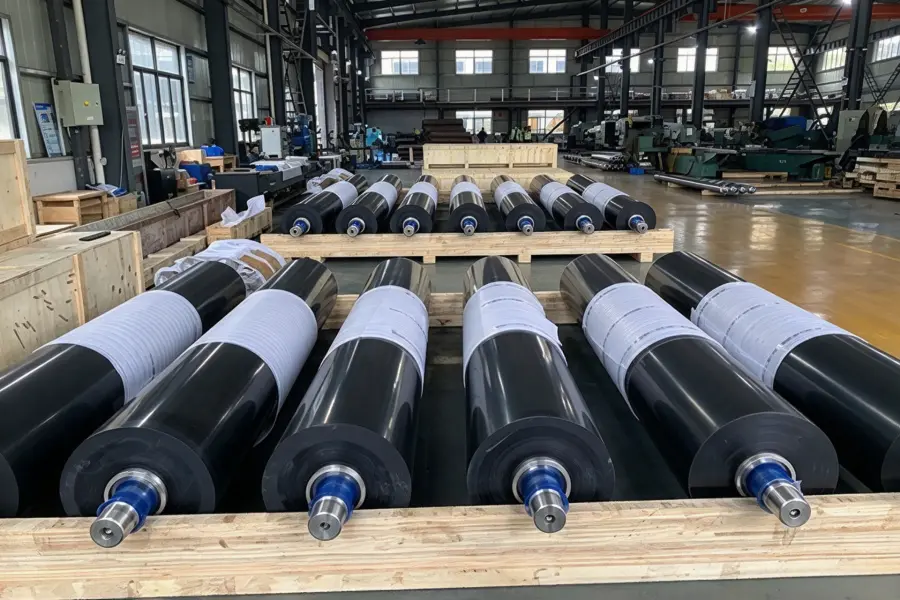

- Standard export protective packaging for sea and air shipment.
- Responsive global after-sales technical support.
10. How to Submit Your RFQ to AstraRoll
To receive an accurate quotation and technical proposal, kindly provide the following information:
1.Roller outer diameter and effective working face length
2.Shaft drawing, dimensions or full 2D/3D drawings
3.Required surface finish, roughness and special coating requirements (anti-static / ceramic / grooved)
4.Working line speed, web tension and material type
5.Order quantity and expected delivery schedule
Contact AstraRoll today for professional technical consultation and a competitive quotation.
AstraRoll — Precision Carbon Fiber Rollers for High-Speed Global Industries. Lightweight, low-inertia, custom dimension, shaft & surface treatment, OEM/ODM, worldwide delivery.
