Conveyor Belt System Manufacturer
What We Offer: Two Core Product Lines
AstraRoll serves global material-handling buyers with two interconnected product lines: standalone conveyor spare components and custom complete conveyor belt systems.
We manufacture individual conveyor parts for equipment maintenance, retrofitting and self-assembly projects, including a wide range of conveyor belts, heavy-duty idler rollers, idler brackets and rubber-lagged drive pulleys. Meanwhile, we design and fabricate fully assembled, ready-to-operate conveyor belt systems tailored to on-site requirements. Our product portfolio covers mobile truck-loading conveyors, heavy fixed quarry conveyors and hygienic food-grade conveyor lines. This dual capability enables us to support both spare parts purchasers and turnkey project contractors from a single manufacturing source.
What Is a Conveyor Belt System?
A conveyor belt system is an integrated material-handling assembly that continuously transports bulk or packaged goods along a predefined route. A standard assembly consists of a conveyor belt, drive pulley, idler rollers, supporting steel frame, loading hopper, discharge chute, belt take-up mechanism, protective guards and optional electrical control packages. Powered by a motor and gearbox at the head end, the drive pulley creates traction to move the belt, while idler rollers support the loaded carrying side and empty return side of the belt.
Unlike separate conveyor spare parts, a complete conveyor belt system is an end-to-end engineered solution. All key parameters including conveying capacity, belt speed, maximum incline angle, lump size and ambient operating environment are calculated at the design phase. Instead of generic fixed-size units, AstraRoll customizes every conveyor system to match real site constraints and material characteristics.
Core Components & Construction (Our Spare Part Range)
Our standalone conveyor components are fully compatible with our own conveyor systems and fit most mainstream international conveyor brands. These individual spare parts are available for separate purchase:

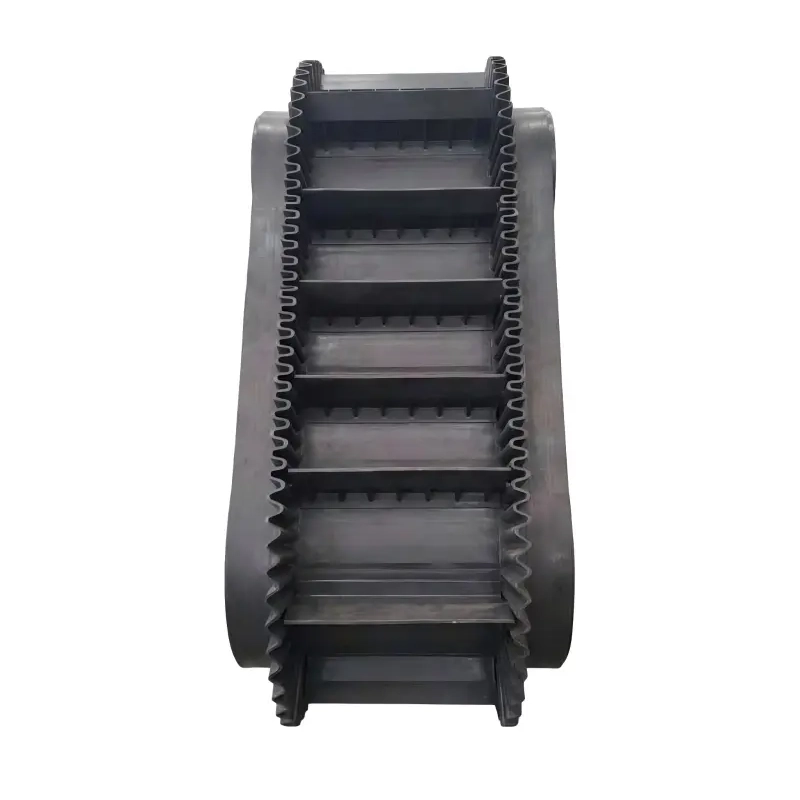

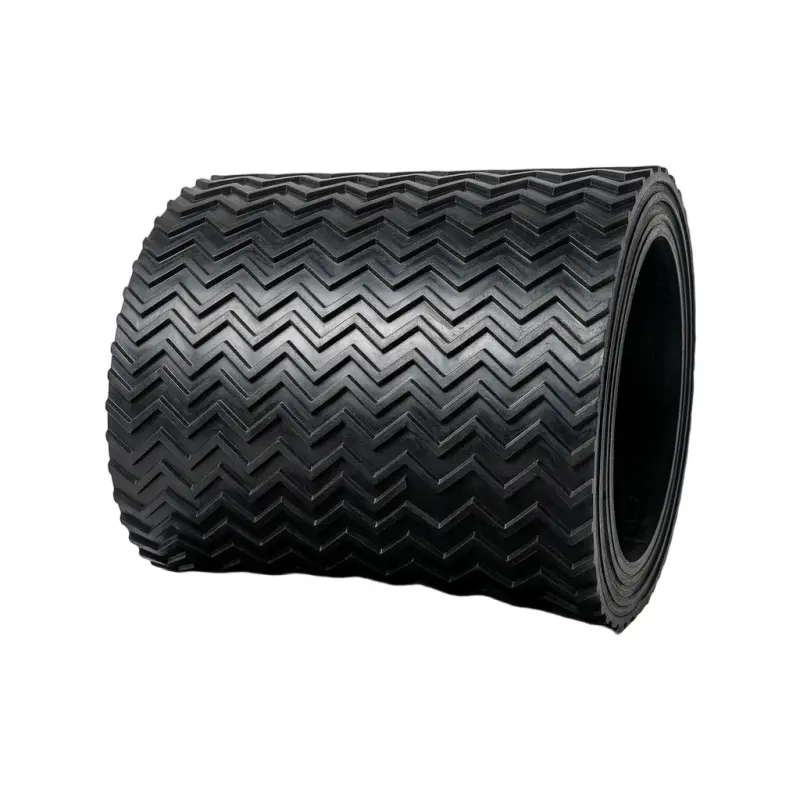

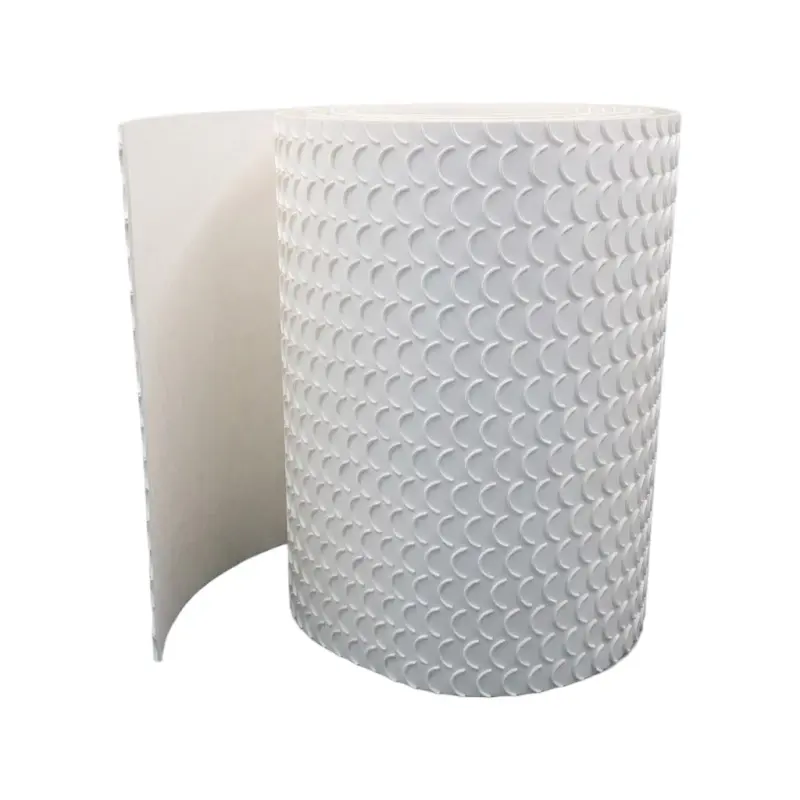

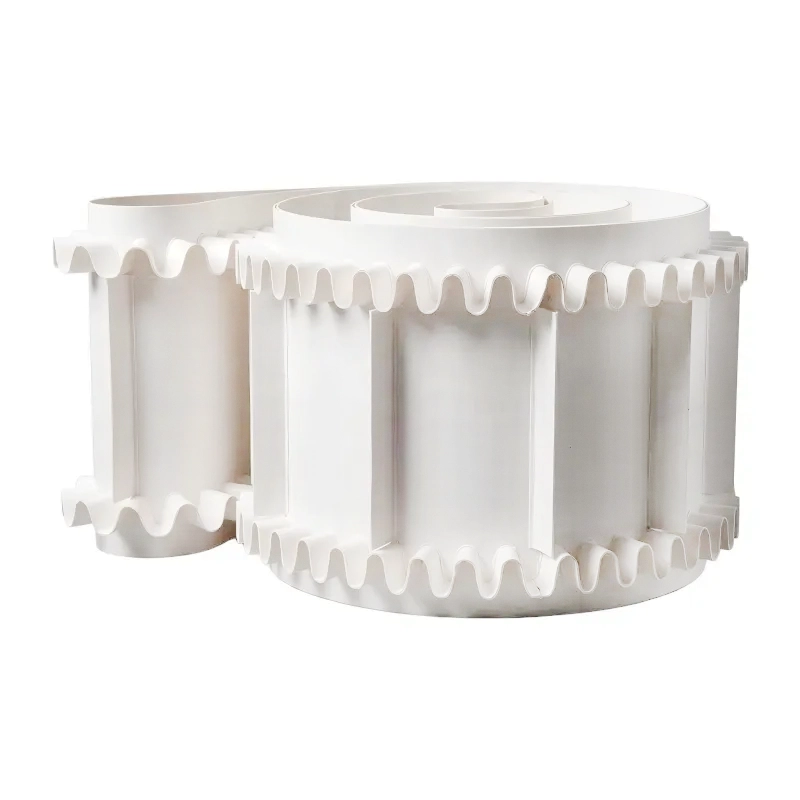

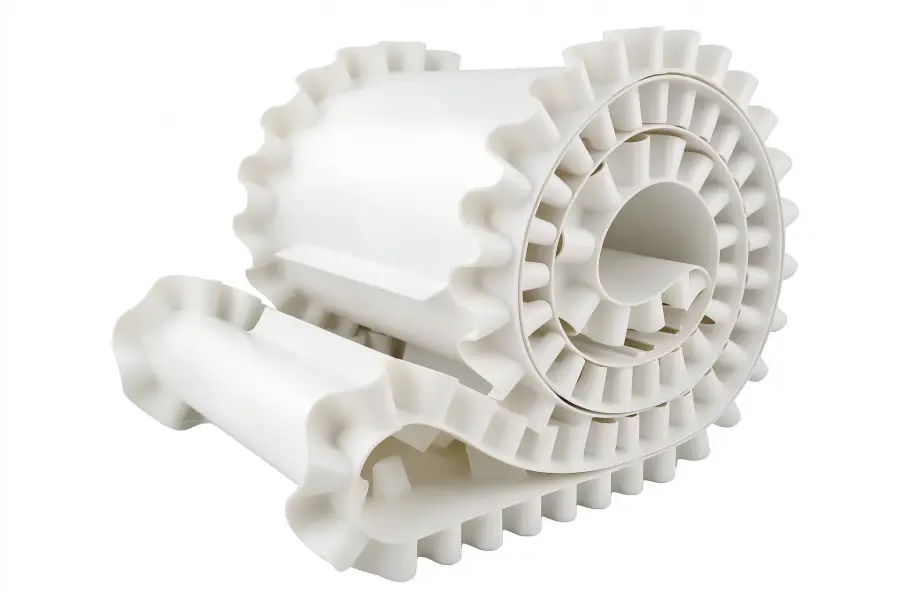

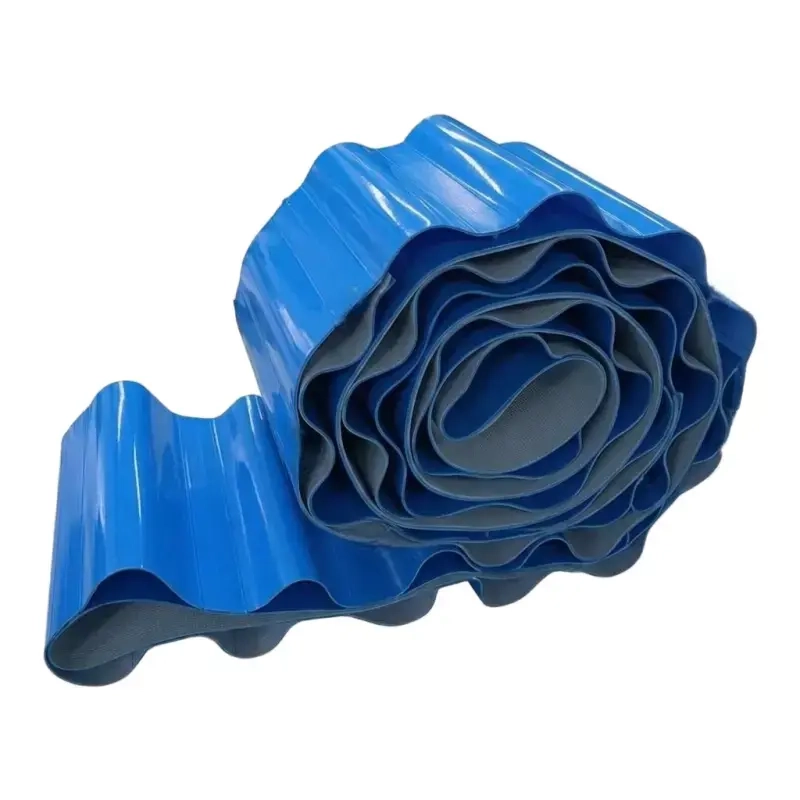

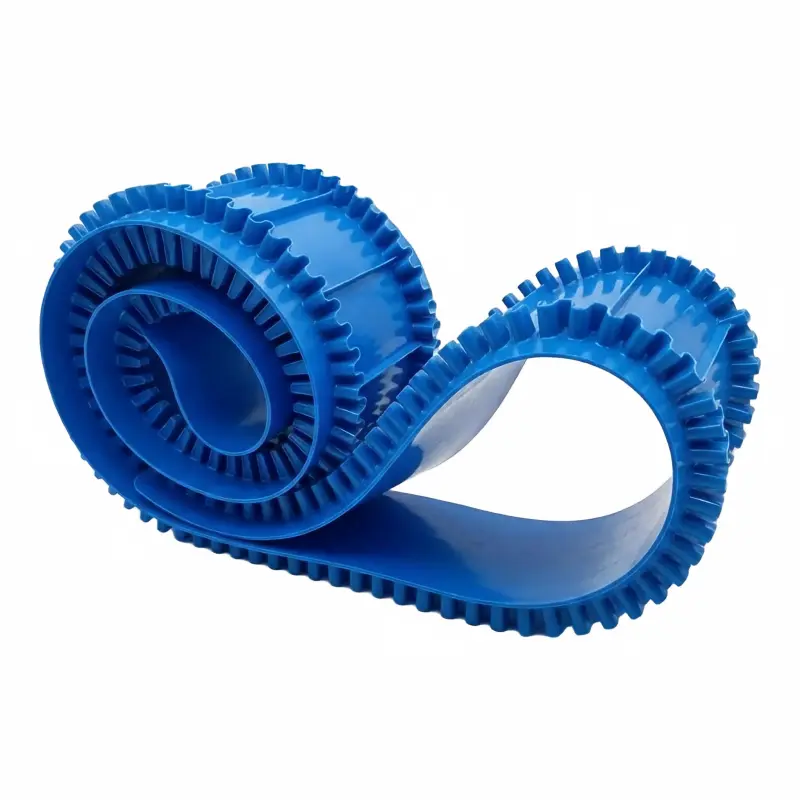

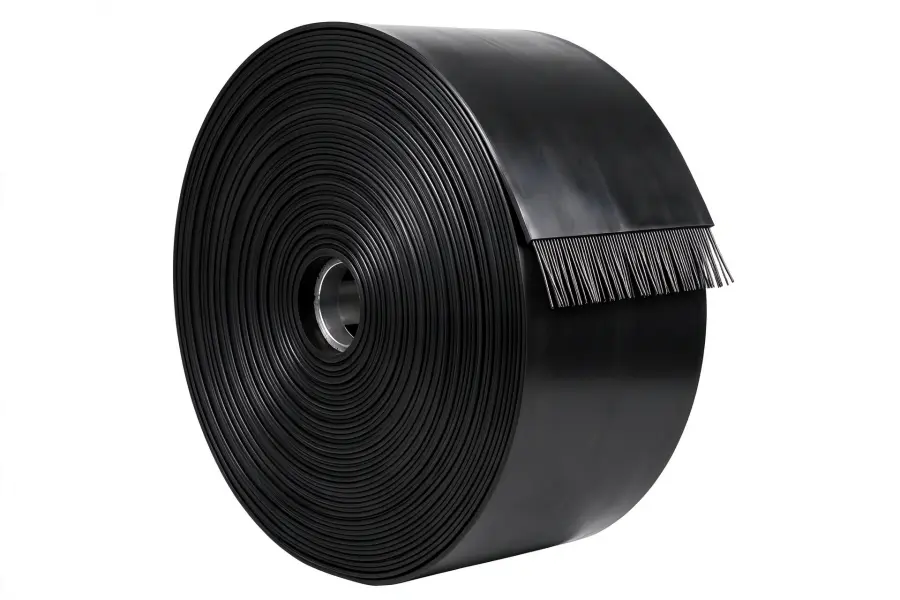

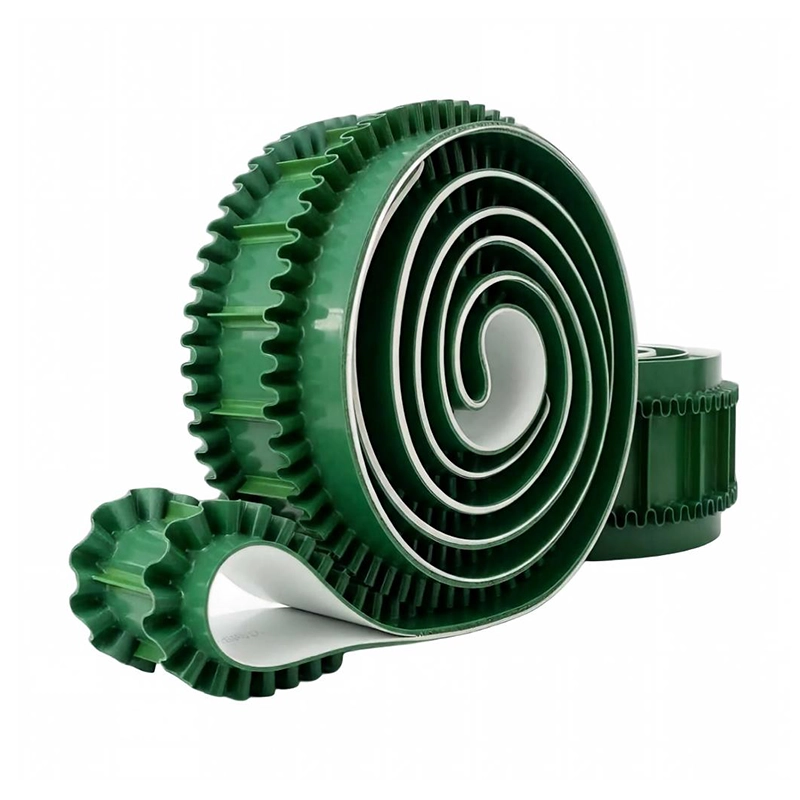

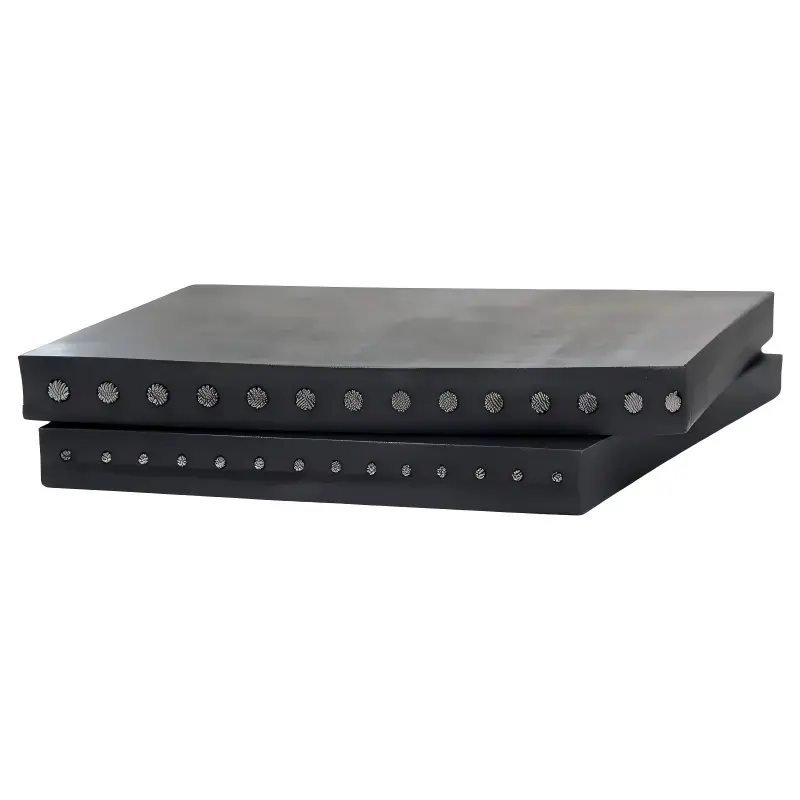

- Conveyor Belts: The load-carrying surface. Material options include rubber, PVC, PU, steel-cord reinforced rubber and polyester fabric. Variants include food-grade white belts, corrugated sidewall belts, chevron cleated belts, flame-resistant mining belts, oil-resistant PVC belts and rough-top industrial belts. Belt width, thickness, tensile strength and surface texture can all be customized.
- Idler Rollers & Brackets: Carbon steel carrying idlers, trough idlers, impact idlers fitted with rubber discs, plus matching idler support brackets. Multi-stage labyrinth sealing protects bearings from dust, water and grit, delivering extended service life under heavy bulk material conditions.

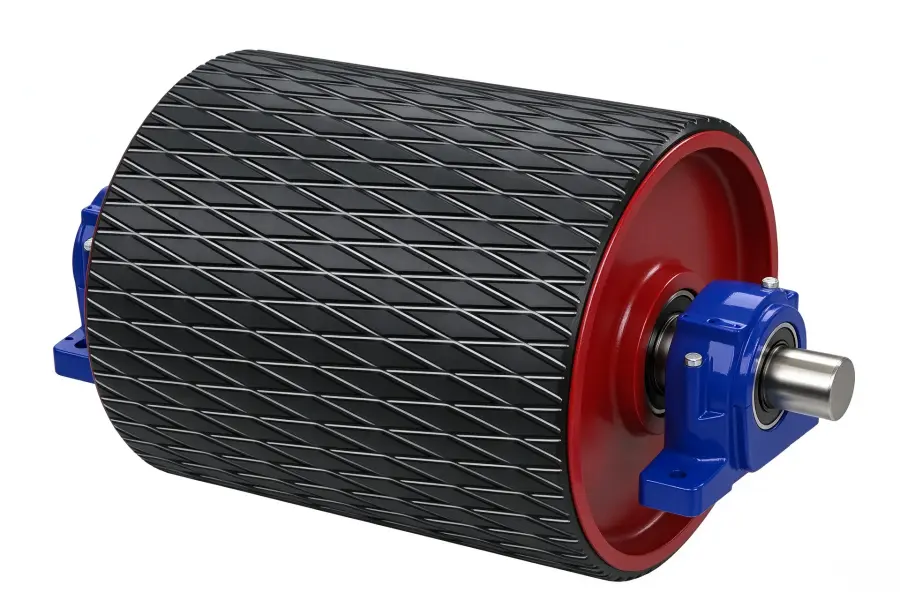

- Rubber-Lagged Drive Pulleys: Head drive pulleys with bonded rubber lagging to increase friction, prevent belt slippage and reduce component wear for heavy-load conveying applications.
- Auxiliary accessories: Skirt plates, belt scrapers, safety guards and tension take-up assemblies.
Every component is machined and inspected under strict dimensional tolerances to ensure interchangeability and stable performance during long-term continuous operation.
Types of Complete Conveyor Belt Systems
AstraRoll builds custom finished conveyor belt systems for diverse working scenarios. Our full machine range includes:

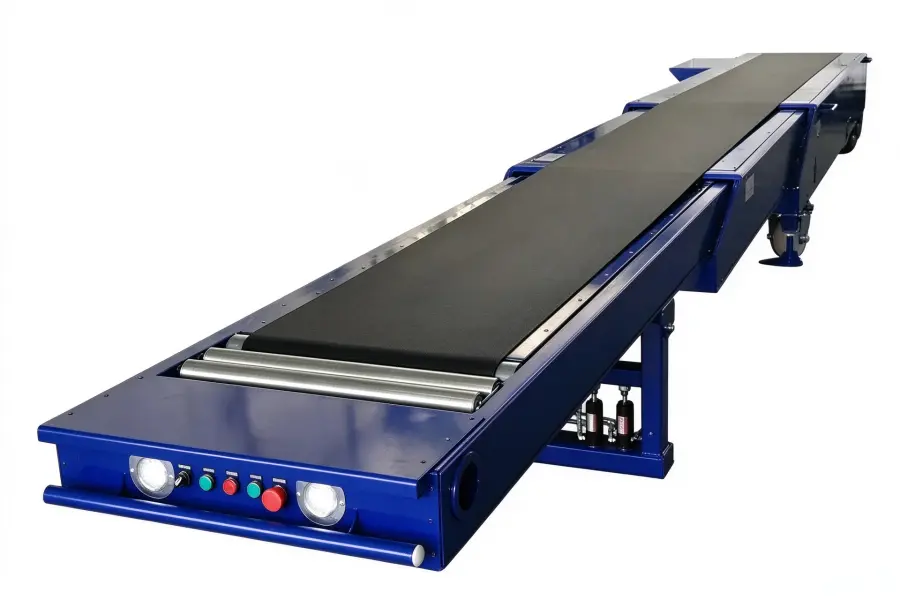

- Movable telescopic belt conveyor system: Extendable boom design for truck loading, container filling and warehouse stacking.
- Truck loading and unloading roller & belt conveyors: Mobile or fixed units to streamline loading and unloading operations at logistics yards.
- Stainless steel PVC belt conveyor system: Corrosion-resistant stainless steel frame paired with hygienic belt materials.

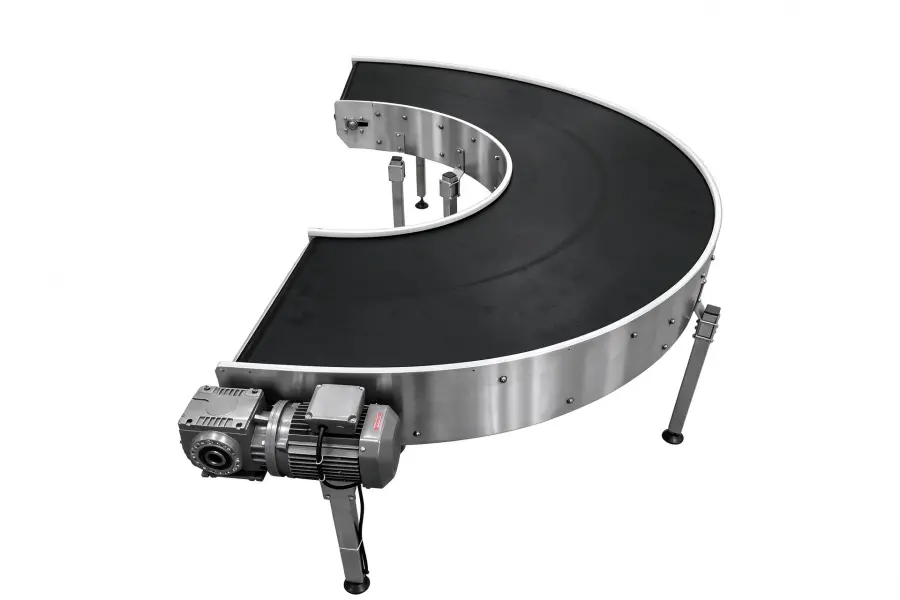

- 90-degree curved belt conveyor system: Space-saving curved routing to change material transfer direction without additional transfer stations.
- Food Grade PU belt conveyor system: Washdown-friendly structure, food-contact approved belts for food processing and packaging lines.

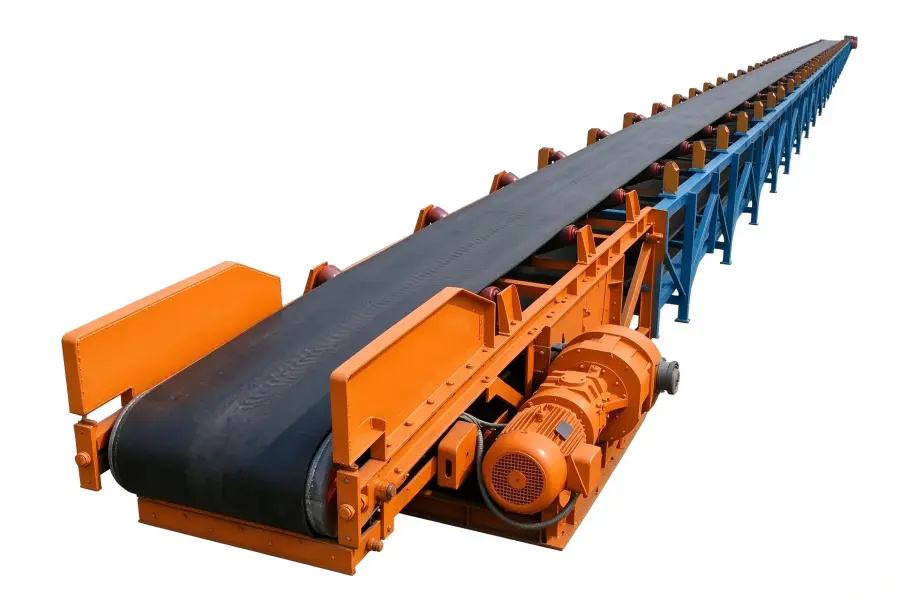

- High-capacity stone quarry belt conveyor system: Heavy-duty abrasion-resistant fixed conveyors for transporting crushed stone, aggregate and mine ore.
- Modular plastic belt conveyor system: Interlocking plastic modular belts with simple disassembly, cleaning and layout reconfiguration.
- Mobile rubber belt conveyor system: Portable relocatable conveyors for temporary stockpiling and bulk material transfer sites.
Technical Design Parameters
All conveyor systems and component selections are engineered based on core technical data prior to production:
- Conveying Capacity: Throughput measured in tonnes per hour, which determines belt width, belt speed and idler spacing. Our range covers small packaging lines up to thousands of tonnes per hour for mining and quarry sites.
- Belt Width: Standard sizes: 500 mm, 650 mm, 800 mm, 1000 mm, 1200 mm, 1400 mm; custom widths available on request.
- Belt Speed: Typical operating speed ranges from 1 m/s to 3.5 m/s, adjusted according to material type and throughput requirements.
- Incline Angle: Maximum safe slope, limited by the material’s angle of repose and belt surface pattern. Chevron cleated belts are applied for steep-angle conveying to prevent material sliding.
- Center Distance: The span between head pulley and tail pulley, defining total frame length and required idler set quantity.
- Drive Power: Motor power calculated to overcome material load, belt friction and overall system resistance.
- Environmental Adaptation: For outdoor, high-dust, high-temperature, wet or food-hygiene environments, we adjust belt grade, roller sealing, frame material and surface coating accordingly.
Application Scenarios
Our dual product portfolio of conveyor components and complete conveyor systems serves multiple global industrial sectors:
Mining, Quarry & Cement Industry
Heavy-duty conveyor systems and matching spare parts including steel-cord rubber belts, impact idlers and rubber-lagged drive pulleys transport crushed aggregate, ore and rock over long distances. High wear resistance and dust sealing are prioritized for 24-hour continuous operation.
Food Processing
Food-grade PU/PVC conveyor belts and stainless steel complete conveyor systems handle food ingredients and packaged goods. Materials comply with food-contact standards, paired with easy-clean frame structures.
Port, Warehouse & Logistics
Telescopic, mobile and curved conveyor belt systems accelerate container and truck loading. Clients also purchase individual spare belts and rollers for routine equipment maintenance and replacement.
Agriculture & Grain Handling
Conveyor equipment transfers grain, feed and agricultural bulk products with low breakage and effective dust control.
General Manufacturing
Modular plastic belt conveyors and standard PVC belt systems for production lines, plus spare components for factory conveyor maintenance.
Core Advantages of AstraRoll
- Dual product supply: One manufacturer supplying both individual conveyor spare parts AND full turnkey conveyor belt systems. Customers can source separate replacement components or order fully assembled conveyor machines in one transaction.
- In-house integrated engineering: Our team designs both components and complete systems, guaranteeing perfect compatibility of all parts.
- Fully customisable: Custom material, dimension, structural layout, capacity and speed according to customer drawings and site conditions. OEM & ODM services supported.
- Broad material selection: Rubber, PVC, PU, carbon steel, stainless steel and plastic options to meet different hygiene, abrasion and corrosion requirements.
- Rigorous factory quality inspection: Every finished conveyor system and separate component undergoes factory testing before shipment. Test reports can be supplied upon request.
- Export-grade packaging and reliable worldwide international delivery.
Custom Service Process
Customers have two purchasing routes: ordering separate conveyor spare parts or custom complete conveyor belt systems. For spare parts orders: Provide specifications, dimensions, material requirements and quantity. For full conveyor system projects: Share site layout, material properties, required hourly capacity, belt speed, incline and environmental conditions. Our engineering team reviews your data, creates technical drawings and manufactures tailor-made conveyor equipment. We accept small trial orders and large bulk project orders.
Quality Control
Raw material incoming inspection is performed before production. During manufacturing, we inspect roller concentricity, belt tensile strength, pulley rubber lagging bonding quality and steel frame welding. For finished conveyor systems, we test assembly alignment, belt tracking, idler rotation and drive operation. Third-party inspection can be arranged as requested by overseas buyers.
Why Choose AstraRoll
As a China-based professional conveyor manufacturer, AstraRoll differentiates itself by supplying both standalone conveyor components and custom complete conveyor belt systems. Whether you need replacement idler rollers, conveyor belts, drive pulleys for existing equipment, or fully engineered conveyor machines for new industrial projects, we deliver reliable, cost-effective conveying solutions. Our in-house production, custom engineering and export-focused service make us a trusted long-term partner for distributors, system integrators and end-users worldwide.
