What Is an Idler Roller?
An idler roller — commonly referred to as an idler — is a passive, non-powered supporting component installed along the length of a belt conveyor system. Unlike a drive drum or head pulley, an idler roller has no independent driving power of its own. It rotates freely, driven synchronously by the movement of the conveyor belt as it passes over it.
Idler rollers perform three fundamental jobs in any belt conveyor line. First, they support the weight of the conveyor belt and the material carried on it, preventing excessive belt sag between support points. Second, they reduce the running friction between the belt and the supporting structure, which lowers overall system power consumption. Third, they help maintain correct belt alignment and absorb impact at loading points, which protects both the belt and the conveyed material from premature wear and damage.
Because of these core functions, idler rollers are among the most widely used spare parts in material handling equipment. They are found wherever bulk or packaged materials are transported by belt — from heavy mining operations to light packaging and printing production lines.

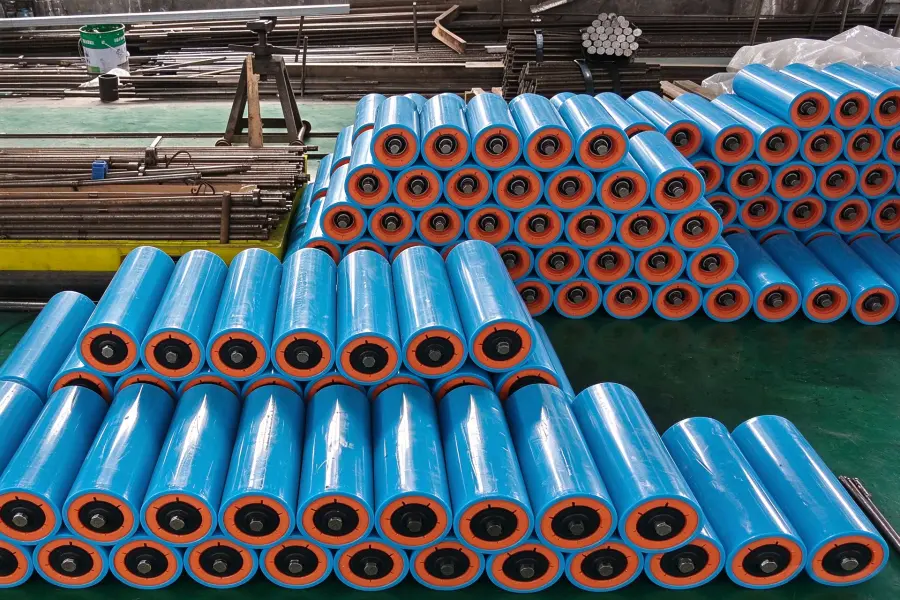

AstraRoll is a China-based idler roller factory that manufactures a diversified range of industrial idler rollers and specialty idler rollers for multiple industrial conveying systems. Our product range covers troughing carrying idlers, flat return idlers, impact buffer idlers, self-aligning idlers, spiral self-cleaning return idlers, garland idlers, and HDPE and stainless steel idler rollers. Custom dimensions, surface treatments, shaft and bearing configurations, OEM/ODM service, and international delivery are all available.
Core Structure and Construction
A standard idler roller assembly consists of several precisely matched components.
- Roller shell (tube): The cylindrical outer body that contacts the belt. Standard construction uses seamless carbon steel tube, with optional stainless steel or HDPE plastic depending on the working environment and load.
- Shaft: A solid round shaft, machined to tight dimensional tolerance. Both live shaft (rotating shaft) and dead shaft (fixed shaft) configurations are available to match different mounting systems.
- Bearing set: Deep groove ball bearings, selected in precision grade to deliver low rotational resistance. Bearing size is calculated according to roller diameter, applied load, and belt linear speed.
- Sealing system: A multi-stage labyrinth seal combined with a grease-retention design. This structure blocks dust, mud, and moisture from entering the bearing housing, which is the single most important factor in extending idler service life.
- Bearing housings and end caps: Secure the bearings in position and protect internal components from external contamination.
Every component is dimensionally controlled during production, so that rollers run true, rotate smoothly, and maintain consistent performance across a full production batch.
Complete Product Range
AstraRoll manufactures a full series of idler rollers, each designed for a specific position and duty on the conveyor line.
- Troughing (carrying) idler rollers: The primary carrying-side idlers for bulk material transport. Mounted in sets, they form a trough shape that holds loose granular or powdery materials on the belt during transit.
- Flat return idler rollers: Installed on the return side of the conveyor to support the empty belt on its way back, keeping the return path stable and low-friction.
- Vee return idler rollers: A V-shaped arrangement used on the return side to improve belt tracking and prevent lateral wandering.

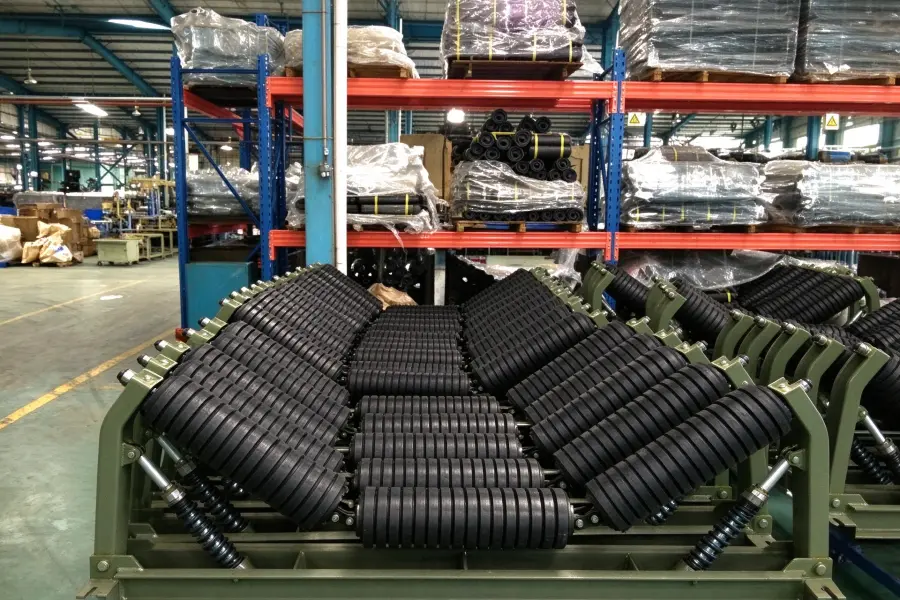

- Impact buffer idler rollers: Positioned at material loading and transfer points, these rollers are built with reinforced structure and cushioning to absorb the shock of heavy falling material and protect the belt from impact damage.
- Self-aligning (training) idler rollers: Equipped with an automatic adjusting mechanism, they sense belt misalignment during operation and actively correct the belt's lateral position, reducing belt edge wear and spillage.
- Spiral self-cleaning return idler rollers: A helical spiral structure mounted on the roller surface scrapes off sticky or built-up material from the belt, preventing material accumulation and keeping the return side clean.
- Garland idlers: Suspended multi-roller assemblies that flex with the belt contour, commonly used on long-distance and heavy-load conveying lines to distribute load and improve belt support.
- HDPE idler rollers: Lightweight plastic idlers with excellent corrosion resistance and low noise, suited to light and medium load conditions.
- Stainless steel idler rollers: Anti-corrosion type for humid, chemical, or hygiene-sensitive environments.

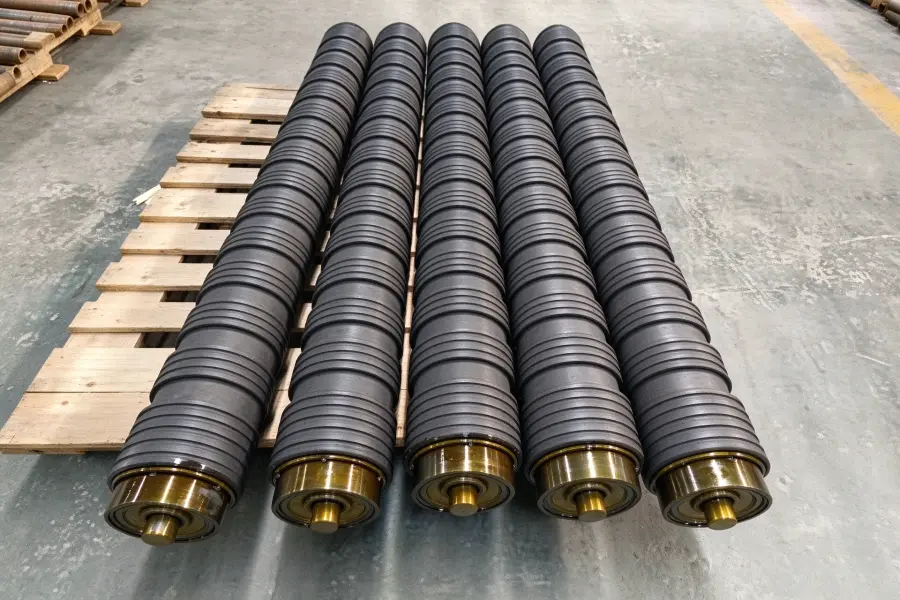

- Rubber disc return idler rollers: Equipped with rubber discs that reduce belt abrasion and resist material adhesion on the return side.
Materials Selection
The choice of roller material directly affects performance, durability, and cost.
- Carbon steel: The standard heavy-duty option. It provides high mechanical strength and is the most common choice for general industrial conveyor lines.
- HDPE (high-density polyethylene): Low weight, excellent corrosion resistance, and low running noise. Ideal for light to medium load applications and for environments where steel would corrode quickly.
- Stainless steel (304/316): Resistant to rust and chemical corrosion, recommended for wet, corrosive, or food- and hygiene-sensitive working conditions.
- Rubber coated / rubber disc: Provides cushioning and impact absorption, reduces belt wear, and improves anti-sticking performance.
Surface treatments such as zinc plating and rubber coating can be applied on request to meet specific environmental and performance requirements.
Technical Specifications
The following reference parameters are typical for AstraRoll standard idler rollers. All values can be engineered and customized to match customer drawings and working conditions.
Standard outer diameter options include 60 mm, 76 mm, 89 mm, 102 mm, 108 mm, 114 mm, 127 mm, 133 mm and 159 mm. Roller overall length is fully customized according to client technical drawings. Common shaft diameter selections cover 20 mm, 25 mm, 30 mm, 35 mm and 40 mm. The maximum allowable belt linear speed for our standard idler rollers is up to 3.5 m/s. The working temperature range for standard units spans from −20 °C to +80 °C. We adopt precision deep groove ball bearings as standard configuration, paired with multi-stage labyrinth seal plus grease retention structure for reliable sealing performance.
Application Scenarios
Idler rollers are essential spare parts for general belt conveyor systems. Because they are standardized passive components, their application range is very broad and is not limited to any single industry.
In mining, quarrying, and coal handling, heavy-duty idler rollers support long overland belt conveyors carrying ore, coal, aggregate, and overburden. Impact idlers at loading points absorb the shock of large falling rocks, while self-aligning idlers maintain belt tracking on uneven terrain.
In logistics, warehousing, and distribution centers, idler rollers are used on light and medium belt conveyor systems for sorting, packing, and transporting parcels and cartons. HDPE and low-friction rollers help reduce noise and energy use in high-cycle environments.
In packaging and printing, idler rollers transport rolls, sheets, cartons, and finished goods through production and finishing lines. Specialized rollers, including non-stick and precision-coated types, ensure smooth, clean handling of materials.
Beyond these examples, idler rollers are equally suited to cement plants, power stations, port terminals, grain processing facilities, metallurgical works, and food processing lines — wherever belt conveyors are used to move bulk or packaged material over fixed routes.
Both stationary and mobile belt conveyor equipment can be equipped with AstraRoll idler rollers.
Key Product Advantages
- Multi-stage labyrinth dust and waterproof sealing, effective in dusty and wet working environments.
- Low starting and running rotational resistance, which reduces total conveyor power consumption.
- Strict dynamic balance control for smooth rotation and low running noise.
- High structural rigidity for stable load-bearing capacity and a long service cycle.
- Full customization: dimensions, materials, surface treatment, bearing, and shaft configuration.
- OEM and ODM service, with production carried out strictly according to customer technical drawings.
- Complete inspection before shipment, with quality test reports available on request.
- Export-grade packaging and reliable international delivery.
Custom Service
AstraRoll supports full custom fabrication for idler rollers. Customers can provide technical drawings, load requirements, belt speed parameters, and environmental conditions. Our engineering team reviews the specifications and produces tailor-made idler rollers to match each conveyor project exactly. We accept both small trial orders and large-scale bulk production.
Quality Control
Every batch of idler rollers undergoes inspection before packing, covering tube wall thickness, shaft dimensional tolerance, bearing preload, rotational resistance, sealing assembly, and dynamic balance. Raw material traceability is maintained throughout production, and third-party inspection can be arranged to provide buyers with independent quality verification.
Why Choose AstraRoll

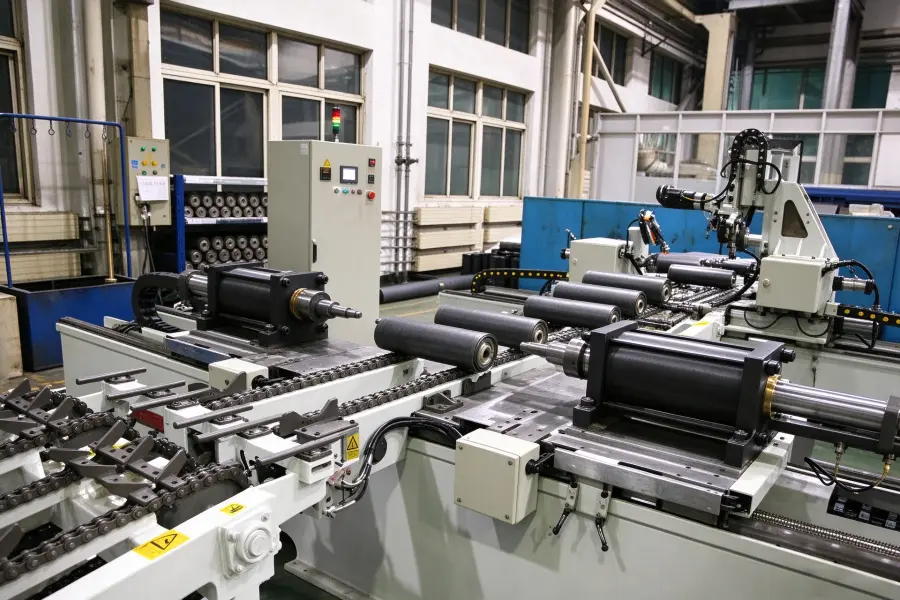

As a dedicated Chinese manufacturer of industrial idler rollers, AstraRoll combines in-house engineering, precision machining, and rigorous quality control to deliver idler rollers that perform reliably under demanding conditions. With a complete product range, flexible customization, and an export-oriented service system, we are a dependable partner for conveyor system builders, equipment integrators, and end users worldwide.
