Polyurethane Roller Manufacturer
Company Profile
AstraRoll is a professional polyurethane roller manufacturer based in China, specializing in the design, precision machining, rubber and polyurethane covering, and advanced surface finishing of industrial rollers for the global converting industry. For more than a decade, AstraRoll has focused its production capability on high-performance industrial rollers, with polyurethane (PU) coated rollers as one of our flagship product lines. Widely recognized as PU rollers or urethane rollers, these components are essential for printing, coating, laminating, conveying, paper making, packaging and many other web processing applications.
AstraRoll supplies hundreds of rollers annually to clients across Europe, the Americas, Southeast Asia and the Middle East. We have built a solid reputation for stable dimensional quality, durable surface performance and responsive technical service.
What Is a Polyurethane Roller?
A polyurethane roller is an industrial roller whose outer working surface is covered with a layer of cast polyurethane elastomer. This PU covering is bonded to a steel, stainless steel or aluminum core, providing an elastic, wear-resistant, and chemical-resistant contact surface for the material being processed.
Polyurethane is chosen over conventional rubber because it offers an outstanding combination of high load capacity, excellent abrasion resistance, good tear strength and resistance to oils, solvents and many chemicals. These properties make PU rollers ideal for demanding production environments where rubber rollers wear out too quickly or where precise surface hardness and rebound characteristics are required.
The term “polyurethane roller” covers a broad family: PU drive rollers, PU coating rollers, PU conveyor rollers, PU printing rollers and PU pinch rollers. Depending on the application, the PU covering can be cast in different hardness grades, ranging from soft elastomers for gripping to harder grades for precision metering and coating.
Why Polyurethane Instead of Rubber?
Many buyers ask why they should choose a polyurethane roller over a traditional rubber roller. The answer lies in performance under load and wear.
1. Superior Abrasion Resistance
Polyurethane elastomer typically provides several times longer service life than natural or synthetic rubber under the same abrasive conditions, especially when handling paper, film, fabric, mineral particles or abrasive coatings.
2. Higher Load Capacity
PU rollers can withstand higher nip pressures and heavier loading without permanent deformation, making them suitable for heavy-duty conveying and high-pressure coating applications.
3. Better Tear and Cut Resistance
Polyurethane offers excellent tear strength, resisting cuts, nicks and edge damage that would quickly destroy a rubber cover.
4. Chemical and Oil Resistance
PU formulations resist oils, greases, many solvents and weak acids, extending roller life in industrial environments where rubber degrades.
5. Precise Hardness and Rebound Control
Polyurethane can be formulated to exact Shore hardness from 20 Shore A to 75 Shore D, allowing engineers to select the ideal surface for gripping, metering, coating or pressure application.
6. Excellent Rebound and Low Compression Set
PU rollers return quickly to original shape after load removal, maintaining consistent performance and reducing downtime for roller replacement.
Product Types
AstraRoll manufactures a wide range of polyurethane rollers to match different machinery and working conditions.
1. PU Drive Rollers
Used to pull or advance a web, sheet, belt or product through a machine. The high-friction PU surface prevents slippage while providing excellent wear life.
2. PU Coating & Metering Rollers
Used in coating, gluing, laminating and metering systems where a precise, uniform layer is applied to a substrate. Hardness and surface finish are tailored to achieve exact coating weight.
3. PU Conveyor & Handling Rollers
Designed for conveying lines, packaging equipment and material handling systems, providing durable, quiet and slip-resistant support for transported products.
4. PU Printing Rollers
Used in flexographic, gravure and offset printing for ink transfer and impression. Surface precision is critical to print quality.
5. PU Pinch / Nip Rollers
Used in pairs to grip and pull webs under controlled pressure, common in bag-making, laminating and converting machines.
6. Custom-Shaped PU Rollers
Special profiles, grooves, flanges and non-round shapes can be produced to meet unique machine designs.
Core & Surface Material Options
AstraRoll offers several core materials and PU formulations to satisfy different industrial requirements.
Core / Substrate Materials
- Carbon steel cores: standard economical choice for most applications.
- Stainless steel SS304 / SS316 cores: corrosion resistance for wet, chemical and food-contact environments.
- Aluminum cores: lightweight construction for low-inertia and high-speed applications.
PU Surface Hardness Range
- Soft grade: 20–55 Shore A, for gripping, soft-contact and gentle handling.
- Medium grade: 55–90 Shore A, the most common range for drive, conveyor and coating rollers.
- Hard grade: 90 Shore A – 75 Shore D, for precision metering, high-pressure and abrasive conditions.
Surface Finish Options
- Smooth polished surface for precision coating and printing.
- Ground surface with controlled roughness for specific gripping requirements.
- Grooved or fluted surface for air release and chip evacuation.
- Conductive or anti-static PU for electronics and packaging industries.
Technical Specifications
All AstraRoll polyurethane rollers are manufactured to order according to client drawings and application parameters. Our standard production range includes roller diameters from 30 mm to 500 mm, working widths up to 6,000 mm, and overall lengths up to 6,500 mm. PU covering thickness ranges from 5 mm to 40 mm depending on application.
Typical hardness tolerance is ±2 Shore A, and critical diameter tolerance is held within ±0.05 mm. AstraRoll supplies both static and dynamic balancing, and can provide official balance test reports complying with ISO 1940 G2.5 or higher. Operating temperature range depends on PU formulation but is generally from -20°C to +80°C continuous, with special formulations available for higher temperatures.
Manufacturing Process & Quality Control
AstraRoll follows a complete, traceable production process to guarantee consistent roller quality.
1. Design & Drawing Review
Our engineers confirm core material, PU hardness, covering thickness, surface finish and mounting structure based on your machine and application requirements.

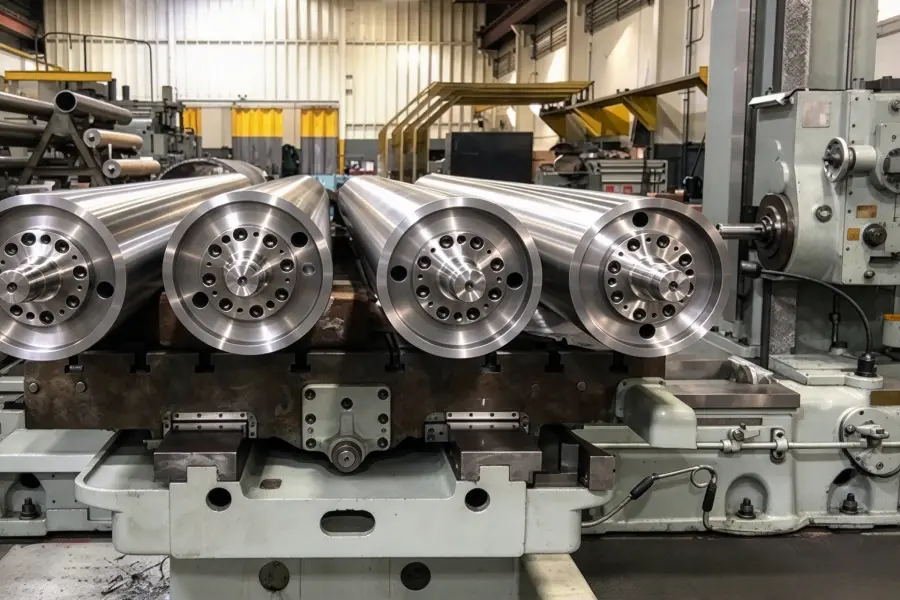

2. Core Machining
Steel or stainless cores are precision turned on CNC lathes to achieve accurate dimensions and surface preparation for strong PU bonding.

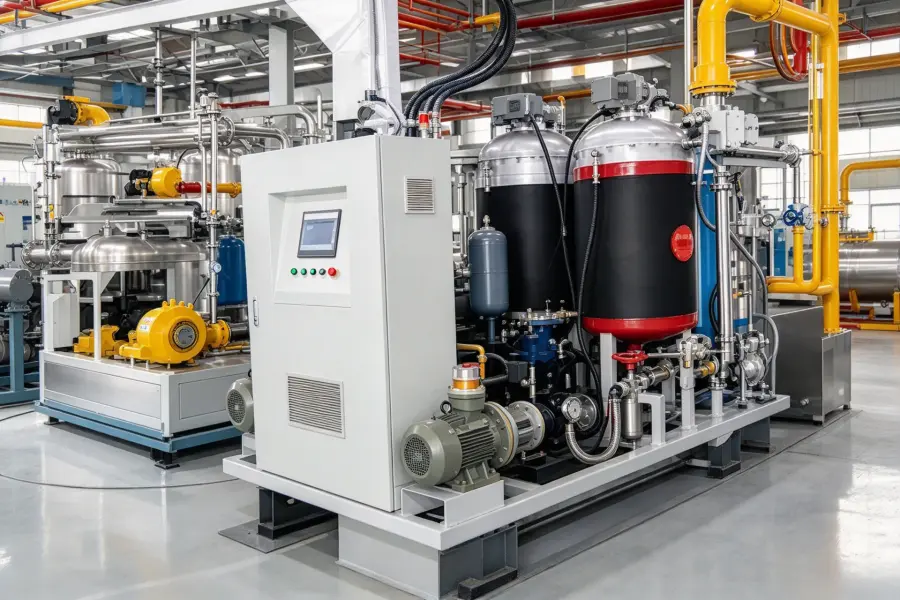

3. PU Casting & Curing
Polyurethane is mixed, cast and cured onto the core under controlled conditions to ensure uniform density, correct hardness and strong adhesion without delamination.
4. Grinding & Finishing
The cured PU surface is cylindrical or centerless ground to final diameter, hardness verification and required surface roughness.
5. Balancing
Rollers are dynamically balanced on precision equipment, with reports available for high-speed applications.
6. Inspection & Packaging
Dimensional, hardness and surface checks are recorded, then rollers are protected and packed in heavy-duty wooden crates for export.
AstraRoll’s production system is ISO 9001 certified. Raw materials are traceable through batch numbers, and material certificates are available on request.
Applications & Industries
AstraRoll polyurethane rollers are installed across a wide range of industries.
In printing and packaging, our rollers support flexo, gravure and offset printing, as well as bag-making, lamination and slitting machines. In paper and tissue production, PU rollers handle paper, release paper and coated paper converting. In textile and nonwoven processing, they serve fabric finishing, dyeing and spreading equipment.
For packaging and conveying lines, AstraRoll supplies durable PU drive, idler and handling rollers for cartons, products and bagged goods. In the lithium battery and electronics industries, we provide anti-static and precision PU rollers for copper foil, aluminum foil and electrode web handling. AstraRoll also supplies PU rollers for coating, gluing and metering systems in flexible packaging, adhesive tape and medical substrate production.
Why Choose AstraRoll as Your Polyurethane Roller Supplier
AstraRoll is a direct manufacturer, not a trading company. Customers receive competitive factory pricing and direct access to professional technical support.
We offer flexible OEM and ODM service. Buyers can order custom sizes, hardness, surface finish and core materials based on drawings or application parameters. ODM design support is available for machine builders developing new equipment.
AstraRoll accepts one-piece minimum order quantity, allowing customers to test a single roller before bulk procurement. Fully assembled units with bearings, brackets and shafts can be supplied ready for installation.
Standard rollers typically ship within 15–20 working days, and custom designs within 30–40 working days. We use reinforced export wooden packaging and prepare complete customs documentation for worldwide delivery.
Customization Options
Every production line is unique. AstraRoll’s engineering team can discuss core material selection, optimal PU hardness and covering thickness, surface finish and roughness requirements, and groove or profile designs. We also support custom mounting configurations including shaft ends, bore and flange structures, as well as conductive, anti-static and high-temperature PU formulations.
Shipping & After-Sales Service
All AstraRoll polyurethane rollers are packed in heavy-duty wooden cases with internal cushioning. We provide complete export documentation, flexible Incoterm options and technical installation guidance. AstraRoll offers a 12-month warranty against material and workmanship defects, with after-sales support via email and phone.
FAQ
Q: What is the difference between a PU roller and a rubber roller?
A: Polyurethane offers higher wear resistance, load capacity and tear strength than conventional rubber, providing longer service life in demanding applications.
Q: Can you supply custom hardness?
A: Yes. We cast PU from 20 Shore A to 75 Shore D to meet your exact requirements.
Q: What is your MOQ?
A: One piece, so you can test quality before bulk ordering.
Q: Do you provide balancing reports?
A: Yes, every roller can be supplied with static and dynamic balance test documents.
Q: What information do you need for a quote?
A: Diameter, working width, application, line speed, PU hardness and mounting details. Drawings are welcomed.
Contact Us
Send your inquiry with diameter, width, application and hardness requirement to AstraRoll. Our team will prepare a detailed quotation within 24 hours and help you select the ideal polyurethane roller for a durable, high-yield processing line.
