Silicone Roller Manufacturer
What is Silicone Roller

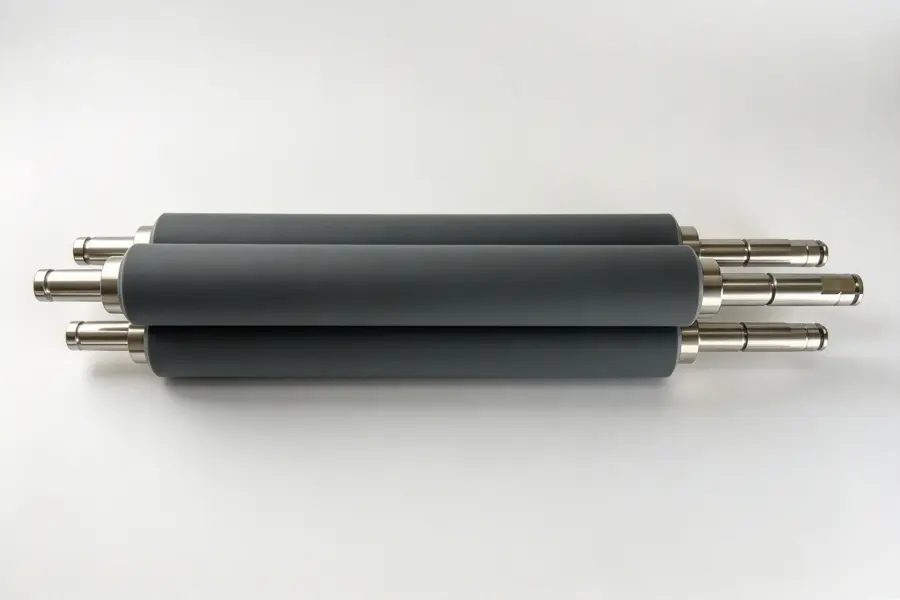

A silicone roller consists of a precision-machined metal core bonded with vulcanized solid silicone rubber or Liquid Silicone Rubber (LSR). As a critical component for continuous web production lines, it delivers reliable heat resistance, non-stick release properties, uniform nip pressure and stable elasticity under high-temperature operating conditions.
Our product portfolio includes solid silicone rollers, liquid silicone (LSR) rollers, sponge foam silicone rollers, ESD anti-static silicone rollers, FDA food-grade silicone rollers, grooved rollers and V-groove silicone guide rollers.
Key Material & Performance Specifications
- Continuous Working Temperature Range:-60℃ ~ +300℃
- Hardness Range:20 Shore A ~ 90 Shore A, tolerance ±3 Shore A
- Silicone Cover Thickness: 3 mm ~ 35 mm
- Roller Outer Diameter: 20 mm ~ 500 mm
- Maximum Effective Working Length: up to 6000 mm
- Concentricity Tolerance: ≤0.02 mm for high-precision grade
- Surface Options: Matte, finely ground, super mirror finish, custom texture, grooved or V-profiled surface
- Roller Core Material: Carbon steel, 304 / 316 stainless steel, aluminum alloy
- Custom Silicone Formulations: FDA food-compliant, ESD anti-static, low compression set, high tear resistance, nano-smooth LSR for optical-grade applications
Core Advantages
1.Excellent High & Low Temperature Resistance
Maintains stable physical properties across a wide temperature range. Ideal for thermal laminating, heat transfer, hot stamping, film stretching and solar encapsulation processes. This performance cannot be achieved by standard PU rollers.
2.Non-stick Release Surface
Resists adhesion to hot melt adhesives, plastic films, EVA, inks and foils. Minimizes residue buildup and simplifies roller cleaning.
3.Uniform Pressure Distribution
The elastic silicone cover ensures consistent nip pressure across the full roller width, protecting delicate thin substrates such as optical films, copper-clad films and textile fabrics.
4.Multiple Custom Formulations Available
Custom silicone compounds tailored for food contact, static dissipation, ultra-smooth optical surfaces or low compression requirements. The LSR variant produces nano-level super mirror surfaces for high-end film manufacturing.
5.Strong Bonding & Anti-Delamination Treatment
Metal cores undergo sandblasting and specialized priming before silicone vulcanization, preventing separation between the silicone cover and metal shaft during long-term continuous production.
Application Industries & Typical Equipment
1.Plastic Film Converting
MDO stretching rollers for BOPET; rollers for PVDF cast film, PET / TPU / PP film coating; pull nip rollers, corona treater rollers.
2.Solar Photovoltaic
High-temperature non-stick silicone rollers for EVA solar encapsulation lamination processes.
3.Electronics, Semiconductor & PCB
ESD anti-static silicone rollers for PCB and semiconductor substrate processing and hot pressing of thin electronic films.
4.Food Processing & Packaging
FDA food-grade silicone rollers for dough sheeting and food packaging machinery for direct food-contact applications.
5.Textile Industry
Silicone rubber rollers for textile printing, dyeing and fabric calendering; polyband expander rollers for wrinkle-free fabric web guiding.
6.Heat Transfer & Hot Stamping
High-temperature silicone nip rollers for heat transfer printing, foil hot stamping and thermal laminating machines.

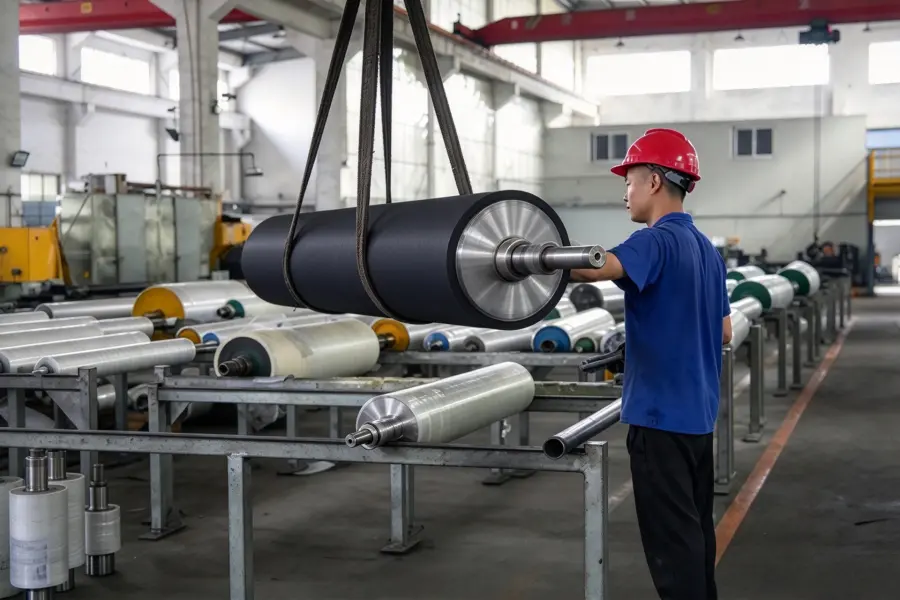

Manufacturing Process & Quality Control
1.Drawing review and core material selection based on working conditions
2.Metal core turning, cylindrical grinding, sandblasting and primer pre-treatment
3.Silicone compound mixing, wrapping and high-temperature vulcanization (or LSR casting)

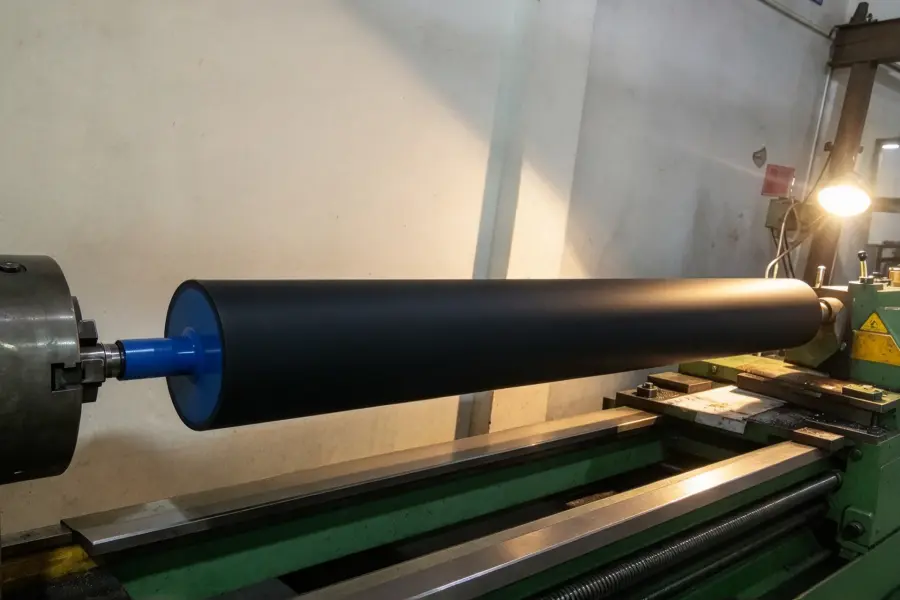

4.CNC cylindrical grinding and optional mirror surface polishing
5.QC inspection: dimensions, concentricity, Shore hardness, surface roughness and visual inspection
6.Dynamic balancing to ISO 1940 G2.5 for high-speed web lines
7.Surface protection and heavy-duty export wooden packaging
AstraRoll factory holds ISO9001 certification. Raw material batch certificates and test reports can be provided upon request.
Custom Service & Order Info
- OEM / ODM custom service: custom dimensions, hardness, surface texture, grooved or V-groove profiles
- Sample support: 1-piece sample order available for performance validation
- Shipping documents: Commercial invoice, packing list, Certificate of Origin, material test certificates
- Global delivery via sea freight, air freight or express
FAQ
Q: What is the difference between silicone roller and polyurethane (PU) roller?
A: Silicone rollers are engineered for high-temperature processes with non-stick release features. PU rollers offer superior wear resistance for room-temperature conveying, slitting and web guiding applications.
Q: Can you supply FDA food grade silicone roller?
A: Yes, we provide FDA-compliant silicone formulations suitable for direct food contact.
Q: What is LSR liquid silicone roller?
A: Liquid Silicone Rubber (LSR) rollers are cast from liquid silicone material, delivering ultra-smooth super mirror surfaces for high-precision optical film coating and cast film production lines.
Q: What technical data do you need for quotation?
A: Roller diameter, effective working length, shaft drawing, operating temperature, required hardness, surface requirements and target application equipment.
Q: Is anti-static ESD silicone roller available?
A: Yes, we can customize targeted surface resistance for PCB and semiconductor production environments.
Contact Us
Send your roller specifications or technical drawings to AstraRoll. Our engineering team will evaluate your operating conditions and provide a professional proposal and quotation within 24 hours.
