Custom Rubber Feeding Wheel for Heidelberg CD102

Product Overview

AstraRoll's Custom Rubber Feeding Wheel is engineered as a direct-fit replacement for the feeder head of the Heidelberg Speedmaster CD102 and SM102 offset presses. Positioned above the paper stack, this pressing/friction wheel works in tandem with the suction and blowing nozzles to separate and forward individual sheets into the press. Worn or glazed wheels are a primary cause of double-sheet feed, misfeeds, and registration errors.

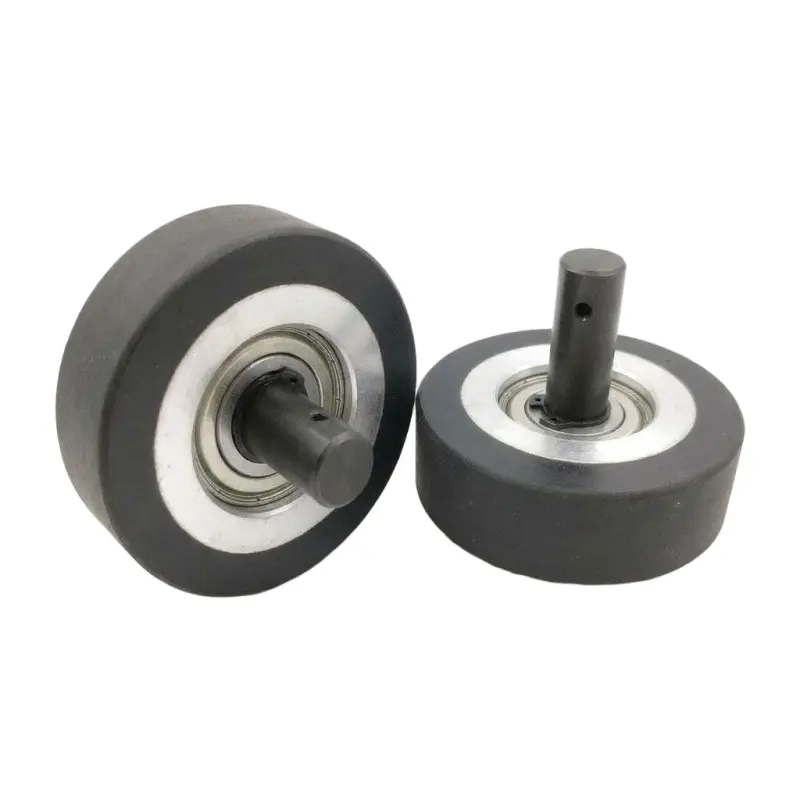

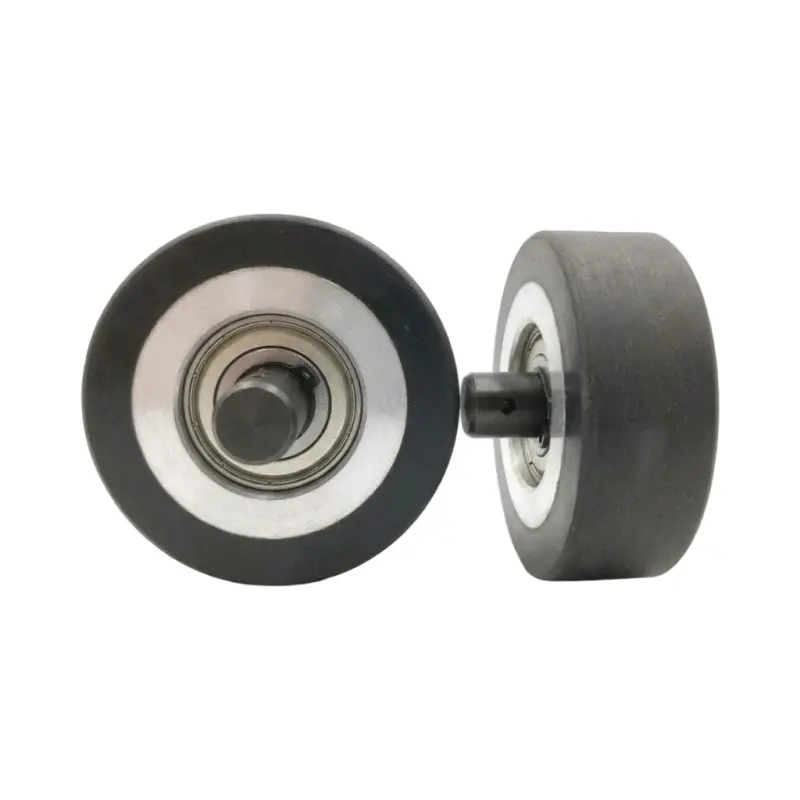

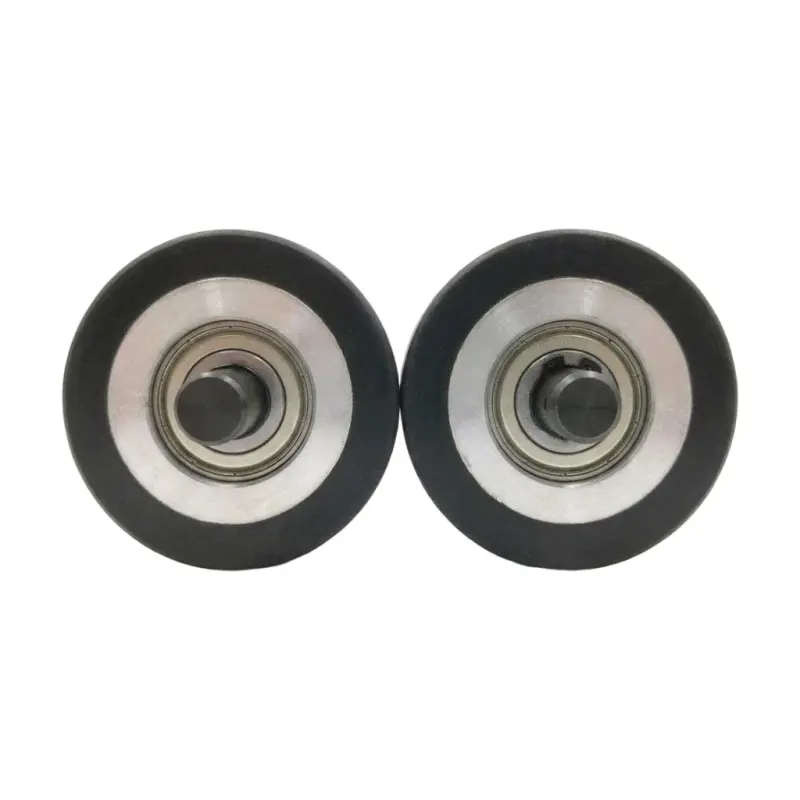

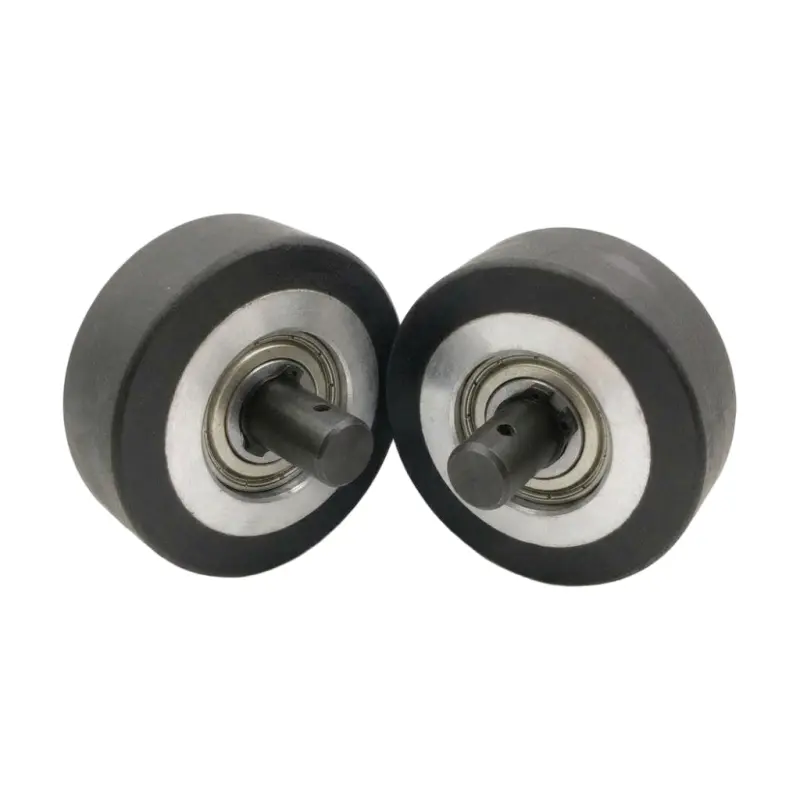

Our feeding wheel is supplied as a complete assembly, integrating the rubber outer ring, steel core, ball bearing, and mounting pin. This eliminates the need for workshop pressing equipment during replacement, minimizing press downtime.

Technical Specifications

• Product Name: Custom Rubber Feeding Wheel (Feeder Pressing Wheel)
• Compatible Press: Heidelberg Speedmaster CD102 / SM102
• Component Type: Complete Assembly (Rubber Wheel + Bearing + Pin Shaft)
• Outer Diameter (OD): 22 mm (Reference)
• Overall Thickness: 10 mm (Reference)
• Outer Ring Material: High-Friction NBR Rubber (PU or Silicone on request)
• Inner Core Material: Machined Steel
• Bearing Type: Deep Groove Ball Bearing (Pre-installed)
• Mounting Type: Pin Shaft with Cross-Hole
• Customization: Rubber hardness, color, and custom dimensions available based on physical sample.

(Important Note: Feeder wheel dimensions vary across different CD102/SM102 production years and feeder models. The 22mm OD / 10mm thickness is a common reference.)

Application

Heidelberg CD102 / SM102 Feeders: Replacement for worn, glazed, or flat-spotted feeding wheels.

Sheet Separation: Provides reliable friction grip to prevent double-sheets and misfeeds.

Commercial & Packaging Printing: Ensures continuous, high-speed paper feeding.

Why Choose AstraRoll's CD102 Feeding Wheel?

Complete Drop-In Assembly: Includes the bearing and cross-hole pin pre-installed, saving maintenance time and avoiding improper bearing installation.

High-Friction Rubber Compound: Optimized NBR formulation provides consistent grip and prevents paper slippage, maintaining feeder accuracy.

Reference Dimensions Provided: 22mm OD and 10mm thickness are standard references. Custom machining is available against your exact OEM drawing or physical sample.

Factory-Direct Supply: Strict dimensional inspection before shipment. Custom compounds and bulk orders supported.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
