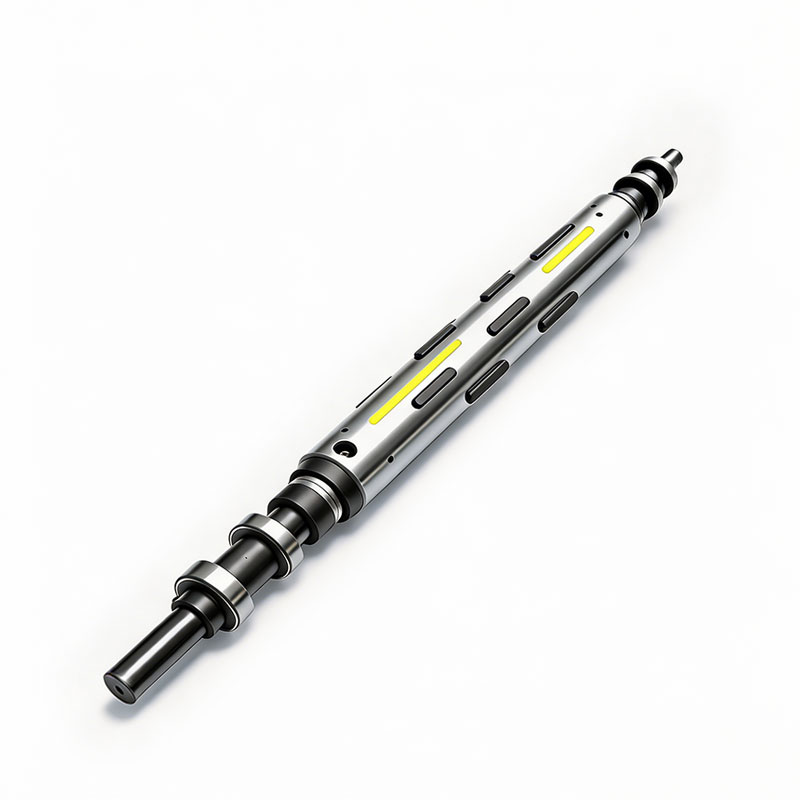

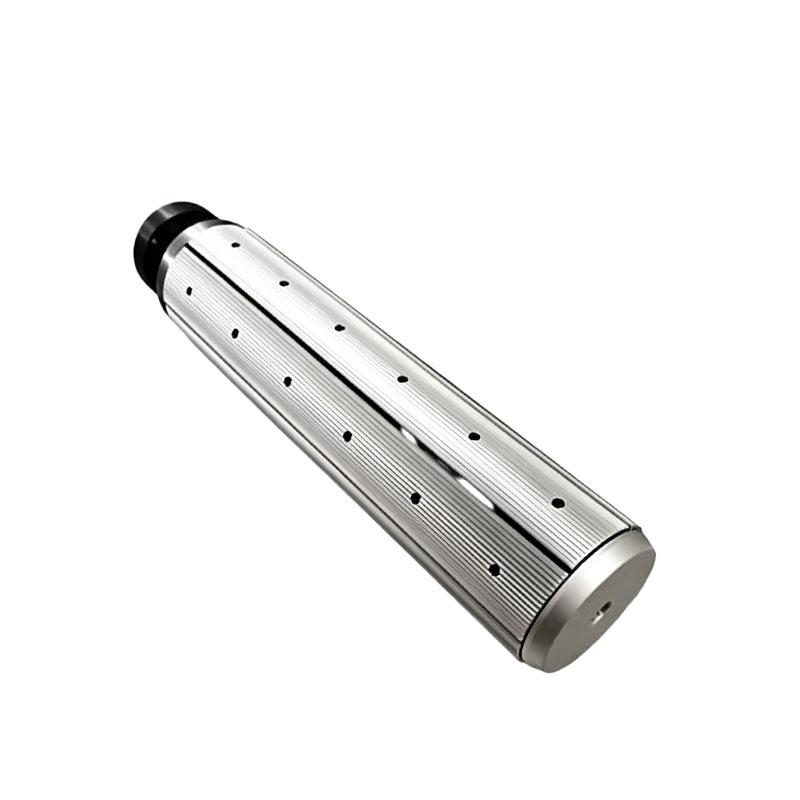

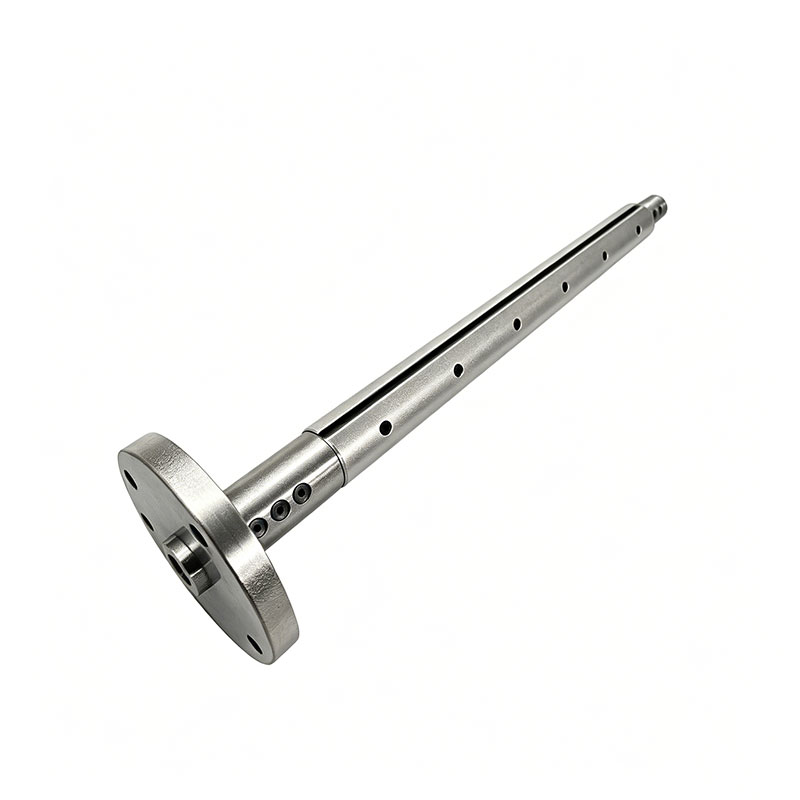

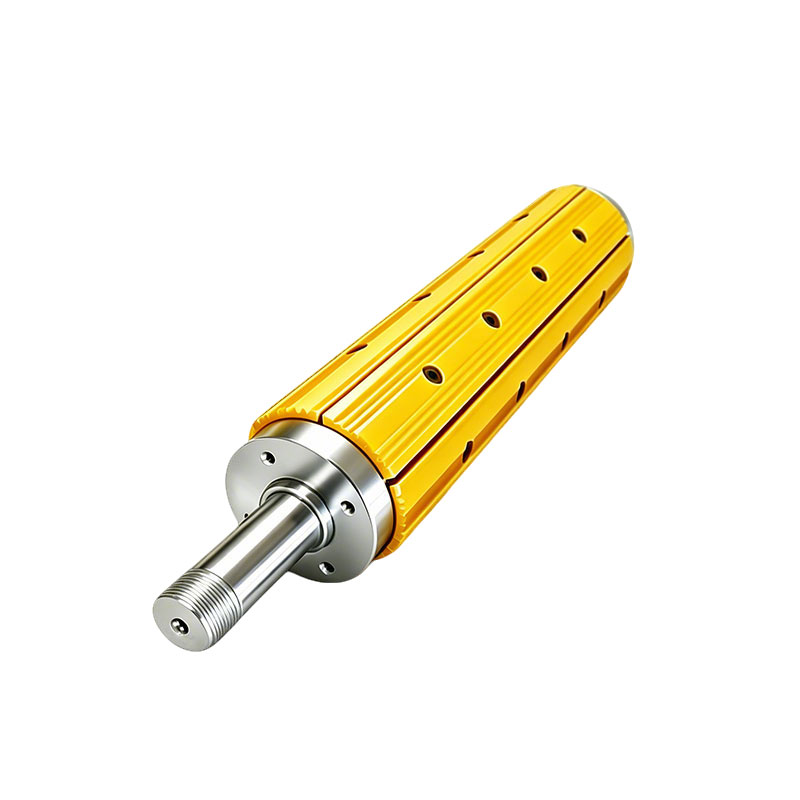

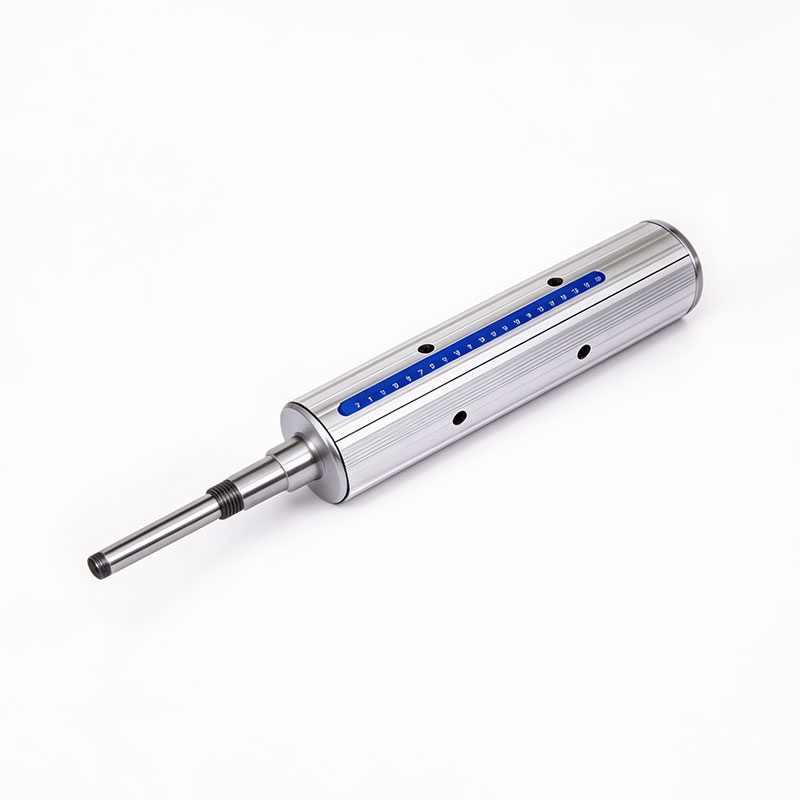

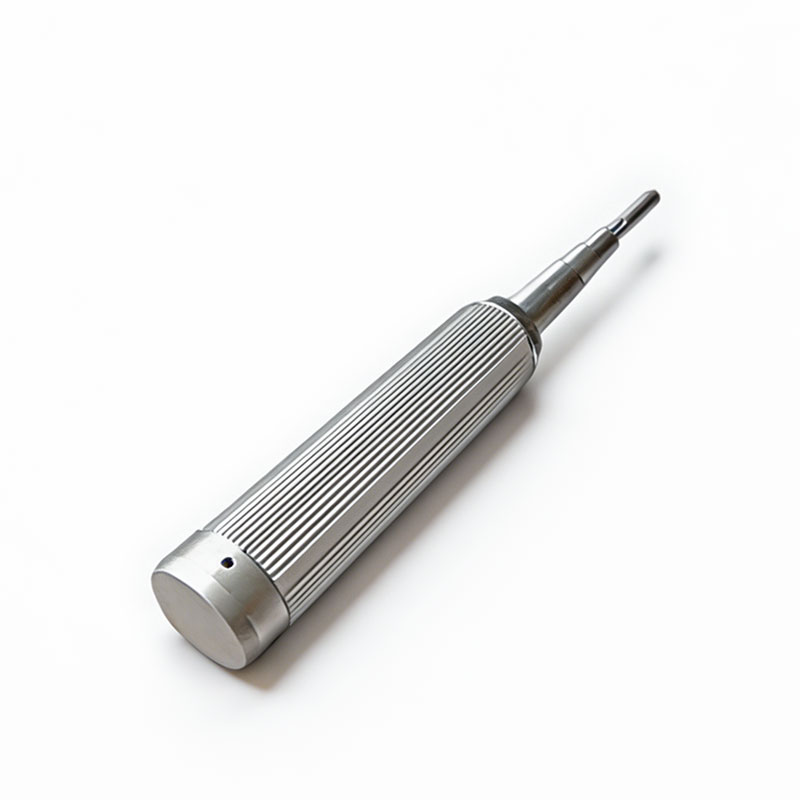

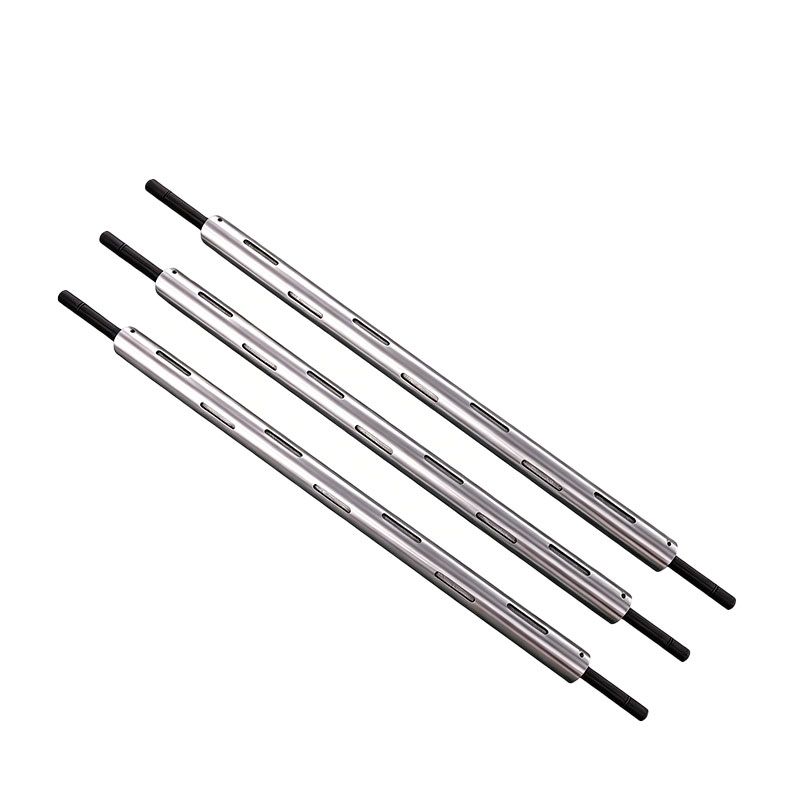

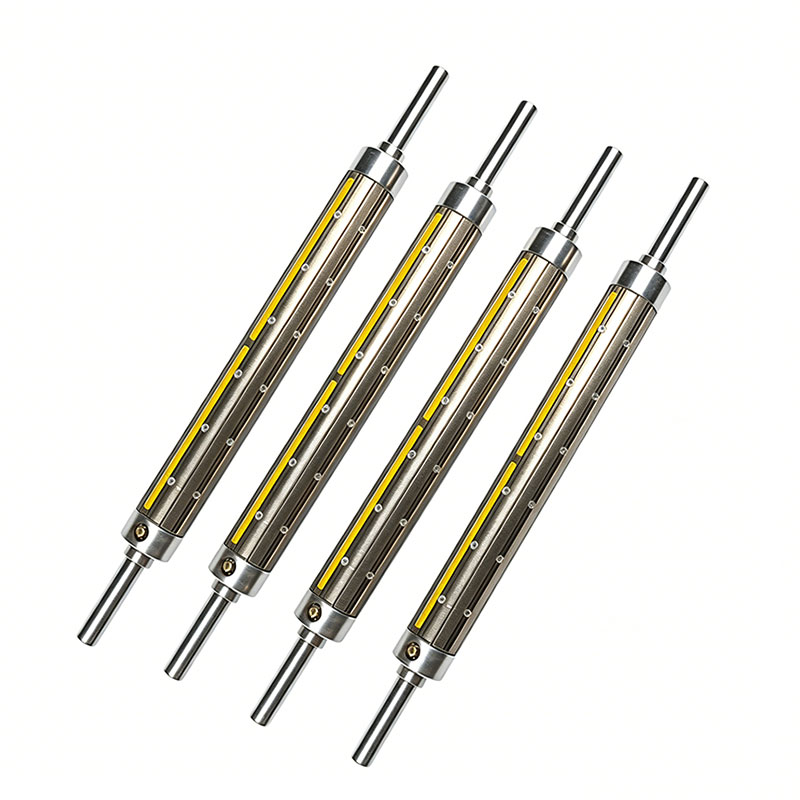

Custom Precision Aluminum Leaf Air Shafts for Thin-Walled Cores

The AstraRoll Technical Advantage

We engineer our leaf shafts to provide absolute web concentricity and total core protection:

360-Degree Radial Expansion: The interlocking aluminum leaves expand uniformly outward. This eliminates the "point-loading" of standard lug shafts, ensuring that thin-walled cores remain perfectly round, which prevents web-tension pulsing at high speeds.

Perfect Dynamic Concentricity: Because the leaves form a nearly solid outer cylinder when expanded, the master roll remains dead-center on the shaft's axis. This micro-precision allows for flawless multi-lane slitting and high-speed rotogravure printing.

Multi-Lane Slitting Superiority: When slitting a wide web into multiple narrow rolls (e.g., 20mm wide tape or labels), a standard lug shaft may have gaps where a narrow core isn't fully gripped. The continuous surface of a leaf shaft guarantees that every single narrow slit is locked tightly in place.

Aerospace-Grade Ergonomics: Fabricated from optimized multi-chamber aluminum alloy, these shafts drastic reduce rotational inertia and operator lifting fatigue without sacrificing structural rigidity or load capacity.

Key Specifications

Please note: We manufacture the journal ends and overall length entirely to your OEM machine drawings.

Standard Outer Diameters (O.D.): 1.5", 2", 3" (76mm), 4", 6" (152mm), and 8".
Face Length: Custom manufactured from 200mm up to 4,000mm+.
Working Air Pressure: 0.6 MPa (6 Bar / ~87 PSI).
Expansion Range: ~6mm to 8mm expansion beyond the resting diameter.
Material Architecture: Hard-Anodized Aluminum Leaves & Body + Forged Carbon Steel End Journals.

Why Choose AstraRoll?

1. Coreless Winding Optimization

If your facility is moving toward eco-friendly "coreless" winding (winding film or tissue directly onto the shaft without a cardboard core), standard air shafts will not work. AstraRoll engineers specialized leaf shafts with high-friction coatings and engineered leaf-tapers, allowing you to wind the material directly onto the expanded leaves and slide the finished roll off effortlessly once deflated.

2. Modular Bladder Replacement

A punctured internal bladder should not result in a scrapped shaft. AstraRoll leaf shafts feature a bolted, modular journal design. In the event of a bladder failure after years of heavy use, your maintenance team can simply remove the end journal, slide the leaves off, and replace the internal polyurethane bladder on the factory floor in minutes.

Frequently Asked Questions (FAQs)

Q: When exactly should I choose a "Leaf Type" shaft instead of a "Lug Type" shaft?
A:You should specify a Leaf Type shaft if:

• You are using thin-walled cardboard or plastic cores that crush easily.
• You are slitting wide master rolls into many very narrow rolls (like labels or tape).
• You are performing coreless winding. (Note: If you are running thick, heavy-duty cardboard cores for massive master rolls, a Lug Type shaft is generally preferred for its aggressive torque-biting capabilities).

Q: Does the aluminum leaf shaft have a lower weight capacity than a steel shaft?
A: Yes, aluminum has a lower deflection threshold than heavy-walled carbon steel. For 90% of converting, packaging, and printing applications, aluminum provides more than enough strength. However, if you are winding extreme weights (e.g., a 2-ton roll of metallic foil), we will recommend building the leaf shaft with a solid steel body instead of aluminum.

Q: Can you manufacture the shaft to fit our existing safety chucks?
A: Absolutely. The aluminum body is standard, but the steel end journals (the shaft ends) are completely custom-machined. Simply provide us with a drawing of your current shaft ends (or the safety chuck dimensions), and we will manufacture a perfect drop-in replacement.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
