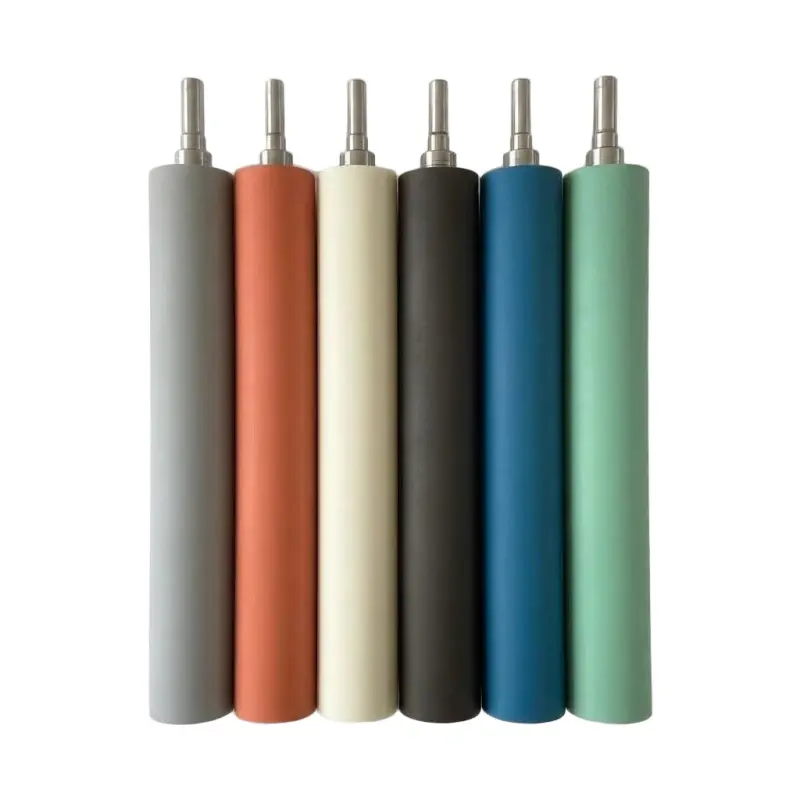

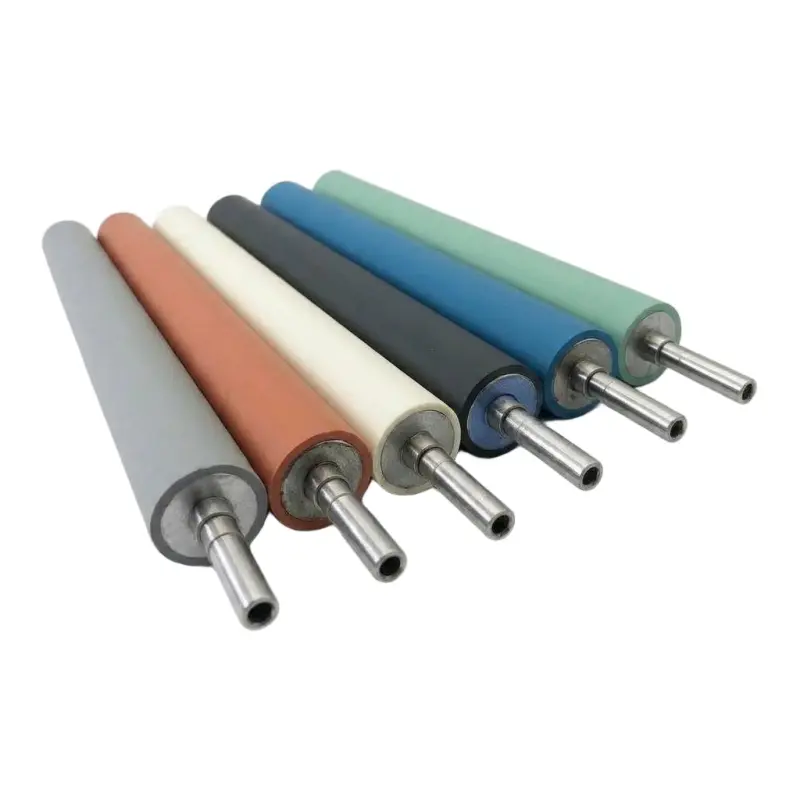

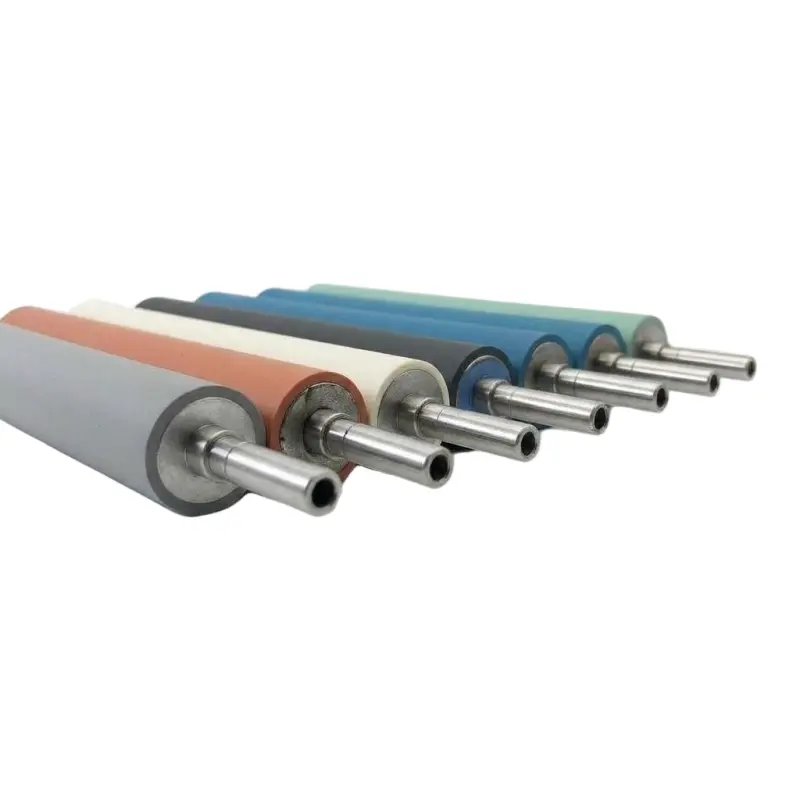

Custom Rubber Roller for GTO 46 Printing Press
Product Overview:
AstraRoll manufactures direct-fit replacement rubber rollers compatible with Heidelberg GTO 46 offset presses. Featuring the OEM color-coded end-cap system (Blue, White, Yellow, Red, Green), operators can identify and install the correct roller without referencing part numbers.
Standard compound is premium NBR (Nitrile). Hardness is strictly matched: 30–35 Shore A for conventional ink, 40–45 Shore A for UV ink, and 25–30 Shore A for dampening. Custom-verified against OEM drawings or physical samples for a true drop-in fit.
Roll Function: Printing Roller
Industry Applications: Industry, Printing, Packaging
Inquiry Email: sales@astraroll.com
Custom Rubber Roller for GTO 46 Printing Press Details
AstraRoll's Custom Rubber Rollers are engineered as direct-fit replacements for the inking and dampening units of the Heidelberg GTO 46 offset press. The GTO 46 is a compact A3-format sheetfed press widely used for short to medium commercial runs. Maintaining correct roller dimensions, hardness, and surface condition is essential for consistent ink transfer and print quality.
Our range covers the full set of positions, with each roller identified by the OEM color-coded end-cap system for error-free installation.
Technical Specifications
Reference Dimensions (mm) — Inking Unit
| Position | Color Code | Diameter (mm) | Rubber Length (mm) | Total Length (mm) |
|---|---|---|---|---|
| Ink Form Roller | Blue | 45.5 | 453 | 536 |
| Ink Form Roller | White | 47.5 | 453 | 536 |
| Ink Form Roller | Yellow | 49.5 | 453 | 536 |
| Ink Form Roller | Red | 51.5 | 453 | 536 |
| Transfer / Ductor | Blue | 45.5 | 453 | 536 |
Reference Dimensions (mm) — Conventional Dampening Unit
| Position | Color Code | Diameter (mm) | Rubber Length (mm) | Total Length (mm) |
|---|---|---|---|---|
| Water Form Roller | Green | 46 | 463 | 536 |
| Water Ductor | Green | 46 | 463 | 536 |
(Note: Dimensions above are standard references. Final specifications are verified against your OEM drawing or physical sample before production.)
Compound & Hardness (Station-Specific)
Conventional Ink Rollers: Premium NBR, 30–35 Shore A.
Conventional Dampening Rollers: Premium NBR, 25–30 Shore A (softer for water transfer).
UV Ink Rollers (Optional): Specialized high-shear compound, 40–45 Shore A.
UV Dampening Rollers (Optional): Specialized soft compound, 25–30 Shore A.
Application
Heidelberg GTO 46 Presses: Full-set replacement for worn, glazed, or swollen rollers.
Commercial Offset Printing: Consistent ink film splitting for short to medium runs.
UV & Specialty Printing: Dedicated compounds for UV ink and water systems.
Why Choose AstraRoll?
Error-Free Color-Coded Installation: Matches Heidelberg’s position identification system directly, eliminating maintenance guesswork.
Strict Station-Matched Hardness: We do not mix UV ink and water roller specifications. You get exactly what the ink system requires.
True Drop-In Fit: Machined to OEM dimensions or custom-verified against your physical sample.
Factory-Direct Supply: Strict dimensional inspection before global shipment.
Q1. Are you a trader or direct factory?
We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.
Q2. What are your main products?
AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.
Q3. What about delivery time?
We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.
Q4. How can I get a quote for customized products?
Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.
Q5. What is your payment?
TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
