Cathode Roller Factory: Where Titanium Surface Meets Electrodeposition Precision

Every electrolytic copper foil production line relies on one mission-critical core component: the cathode roller. It is the large precision titanium drum where copper ions deposit uniformly to form ultra-thin copper foil, then peel continuously at stable line speed for lithium-ion batteries, CCL and PCB substrates. Seemingly simple in rotary form, it demands extreme precision in manufacturing: a cathode roller must maintain ultra-low surface roughness, strict cylindricity and concentricity; it must run smoothly at high rotation speed within corrosive electrolyte environments; and it must sustain stable electrodeposition for long continuous production cycles. That is why professional copper foil manufacturers do not source cathode rollers from generic machinery vendors — they partner with a cathode roller factory that fully controls every production stage: titanium shell fabrication, core assembly, precision grinding, surface finishing, dynamic balancing and full performance testing. This article explains what a cathode roller is, how a specialized factory builds it, and why AstraRoll's cathode roller factory has become a trusted supplier for electrolytic copper foil plants worldwide.

What Is a Cathode Roller?

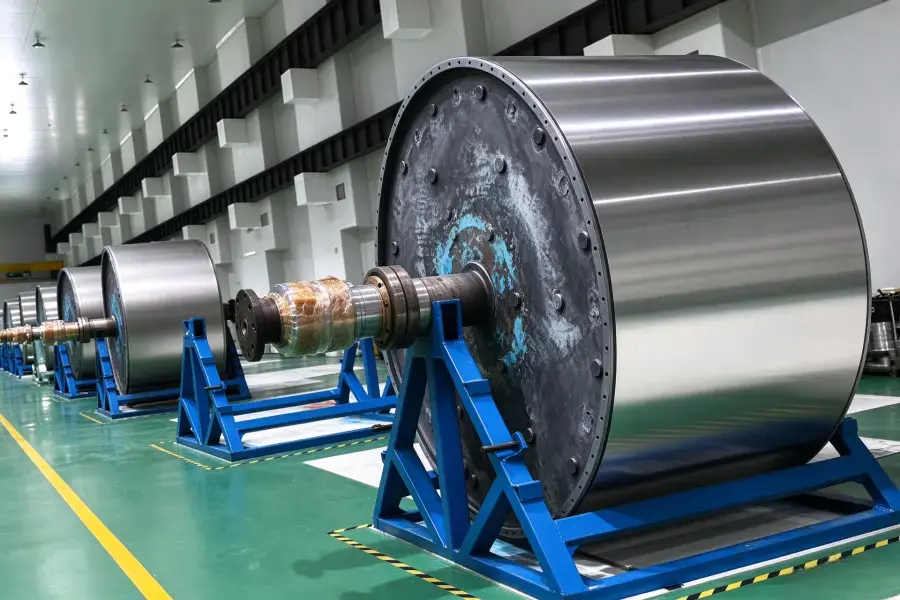

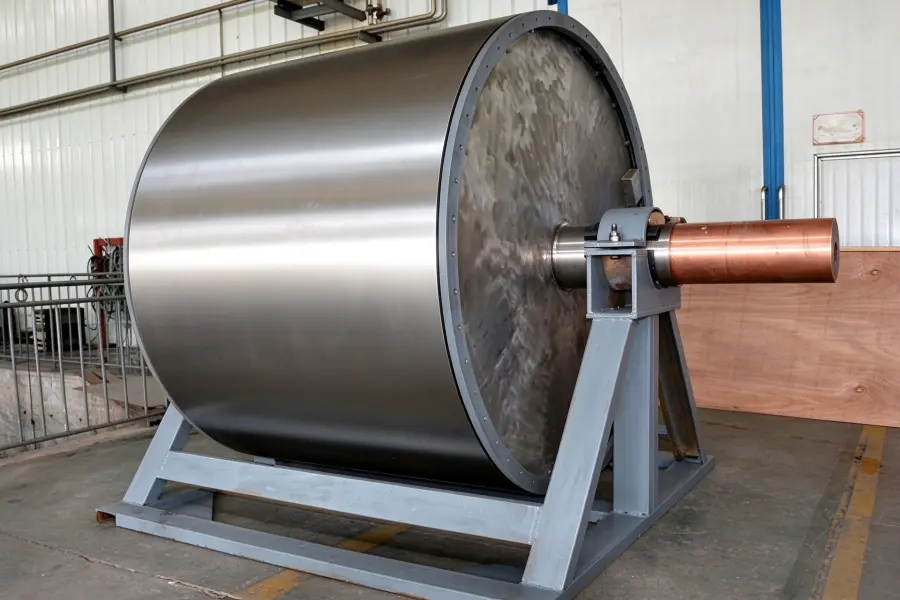

A cathode roller is a large rotating cylindrical drum, mainly constructed from high-purity titanium shell with steel core structure, mounted on heavy-duty shaft assembly, installed inside electrolytic cells as the negative electrode for copper electrodeposition. Copper ions precipitate on its polished outer surface to form continuous copper foil, which is stripped off for downstream battery or electronic material processing. The final copper foil quality is directly governed by four core parameters strictly controlled by the factory:

• Titanium shell material – high-purity titanium with excellent corrosion resistance to sulfuric acid electrolyte, stable conductivity and long service life.
• Surface roughness & topography – controlled Ra value and uniform surface texture, determining copper foil grain structure, peel strength and surface quality.
• Dimensional precision – cylindricity, roundness and straightness, to guarantee consistent foil thickness across the full working width.
• Concentricity & dynamic balance – minimal vibration during high-speed rotation, avoiding foil thickness fluctuation and surface defects.

The Main Types of Cathode Rollers

A professional cathode roller factory delivers customized drums for different copper foil grades, as each production line targets distinct foil specifications:

• Cathode roller for lithium battery copper foil – ultra-fine polished surface, strict roughness control, for 4.5μm ~ 12μm ultra-thin battery copper foil.
• Cathode roller for PCB / CCL copper foil – optimized surface texture for standard and high-temperature resistant circuit board copper foil.
• Reconditioned cathode roller service – precision re-grinding, surface repair and refurbishment for used cathode rollers to restore original surface performance.
• Large-width custom cathode roller – customized shell width and diameter for high-capacity continuous copper foil production lines.

Each cathode roller is built to order: outer diameter, working width, shaft structure, conductive assembly, surface roughness and end connection interfaces are all engineered according to customer’s electrolytic machine parameters.

Inside the AstraRoll Cathode Roller Factory

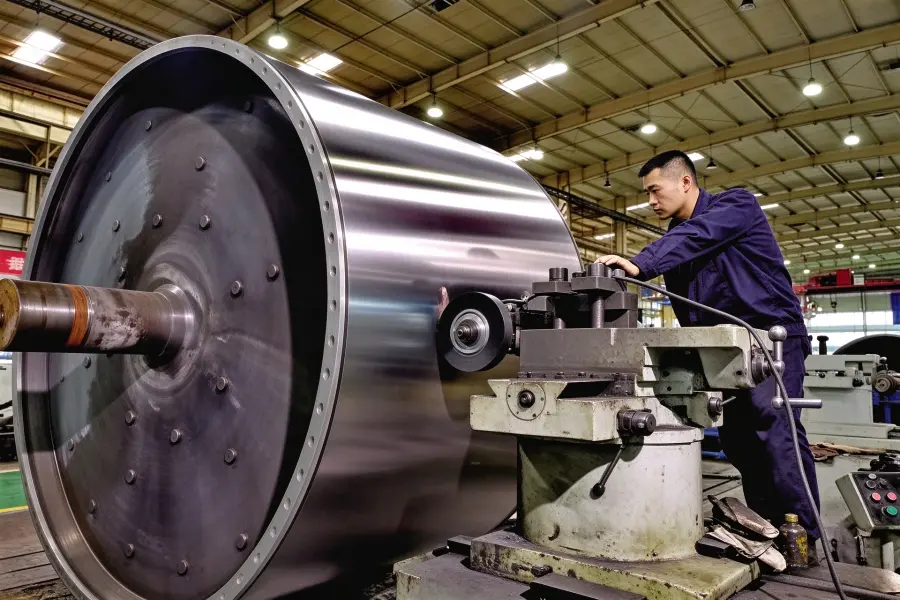

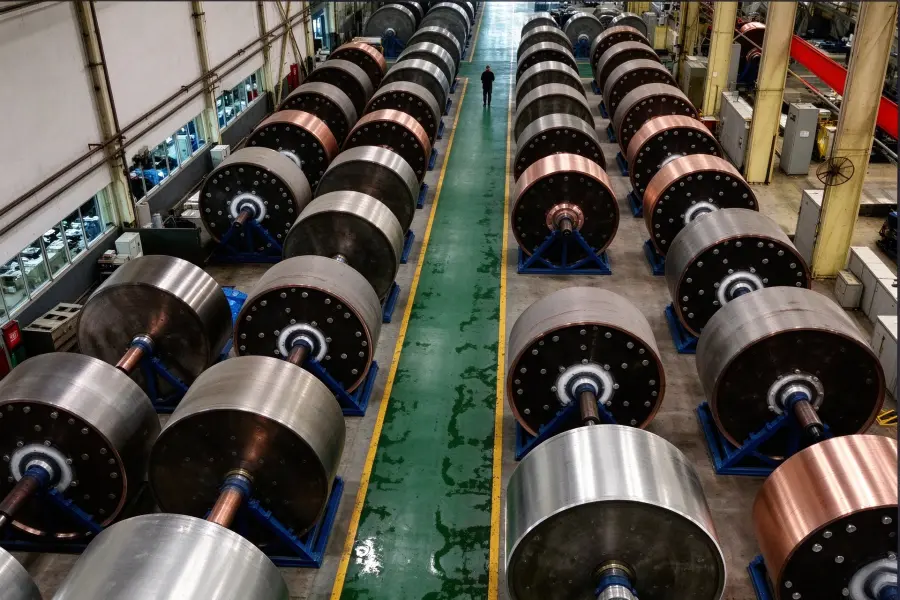

AstraRoll's cathode roller workshop is a dedicated precision manufacturing plant, not a general metal workshop handling cathode rollers as side jobs. Production proceeds in tightly controlled sequential stages:

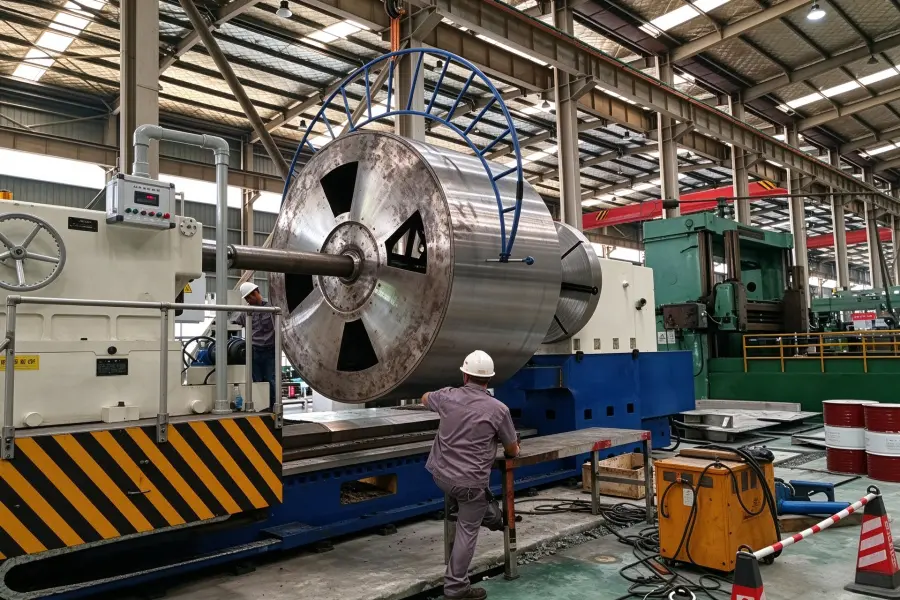

1.Core & shaft machining

The heavy load steel core and rotary shaft are cut, turned and ground on large CNC lathes to customer specified journal, keyway, conductive connector and end fitting dimensions. Straightness and journal tolerance are held to ultra-precision standards; any runout or misalignment will trigger vibration, thickness variation and foil surface defects during electrolysis.

2.Titanium shell forming & assembly

High-purity titanium plate undergoes rolling, welding, post-weld stress relief and machining to form rolled & welded cylindrical shell. The titanium shell is assembled onto steel core with controlled preload, eliminating residual stress which would deform the roller under thermal and chemical operating conditions. Weld inspection and stress relief treatment are mandatory to avoid distortion in electrolyte environment.

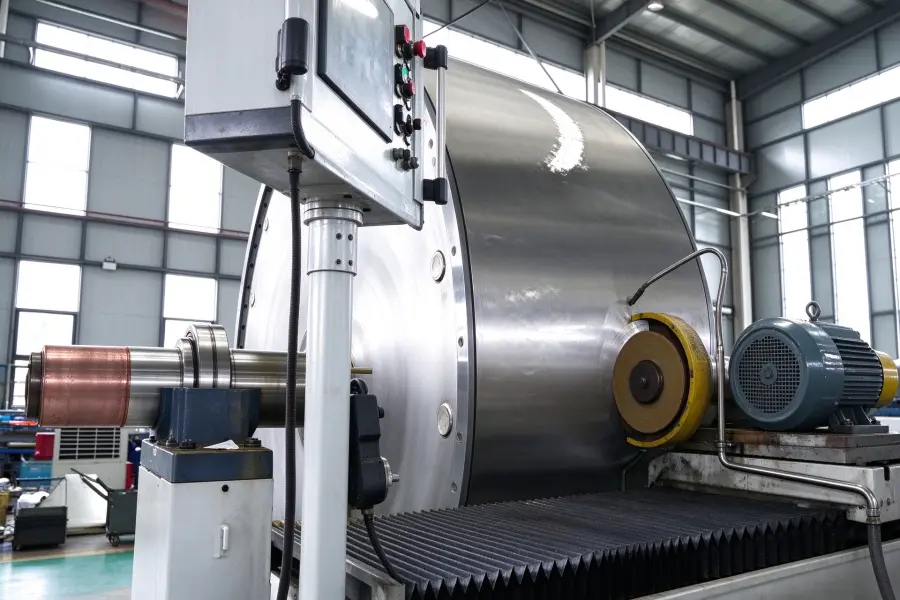

3.Precision grinding & surface finishing

Multi-stage coarse and fine grinding, followed by ultra-precision polishing to reach required surface roughness. This process defines the topography that controls copper deposition behavior and foil peel performance. Surface defects, scratches and waviness are eliminated layer by layer.

4.Dynamic balancing & run test

Every finished cathode roller undergoes high-speed dynamic balancing and rotary runout inspection, checking concentricity, vibration amplitude and rotary stability. Full test reports are delivered together with the roller.

Materials and Quality Control

• Shell and core – high purity titanium shell for electrolyte corrosion resistance; high strength alloy steel core for structural rigidity and load bearing. Custom cladding and special surface treatment options available.
• Surface treatment grades – multiple polishing grades tailored for battery copper foil, PCB copper foil and specialty foil requirements.
• QC stages – raw material inspection, welding non-destructive testing, in-process dimensional survey, surface roughness mapping, cylindricity/roundness measurement, dynamic balancing and final rotary test, full inspection records for every finished roller.
• Documentation – material test certificates, NDT reports, balancing reports and surface inspection data provided for lithium battery and electronics regulated production lines.

Industries We Supply

AstraRoll cathode rollers serve customers in:

• Lithium battery copper foil manufacturing – power battery, energy storage battery copper foil production
• PCB & Copper Clad Laminate (CCL) – circuit board base copper foil lines
• Specialty electronic foil – ultra-thin copper foil for 5G, semiconductor and advanced electronic materials
• Cathode roller maintenance & reconditioning – on-site or factory refurbishment service for existing production drums

Custom Engineering: Your Copper Foil Line, Our Factory

Nearly every AstraRoll cathode roller is custom engineered, for each electrolytic foil machine features unique diameter, width, shaft interface and conductive assembly. A typical custom project workflow:

• You provide equipment drawing, old cathode roller sample, or full technical parameters: outer diameter, working width, shaft journal size, surface roughness requirement, conductive structure and end mounting specs.
• Our senior mechanical and surface engineering team reviews the design within two working days, identifying risks related to stress, vibration and electro-deposition performance.
• You receive formal quotation, production lead time and tooling cost if required.
• Material test and segment trial machining available upon request for validation.
• Mass production starts after drawing confirmation, all rollers delivered with balancing, dimensional and surface inspection reports.
• If you have legacy cathode rollers from discontinued OEM suppliers, we provide reverse engineering: fully match shell dimensions, surface specs, shaft assembly and mounting interface so refurbished/replacement roller fits directly into your existing electrolytic cell.

Why Buyers Choose an AstraRoll Factory

• Single-factory full responsibility – titanium shell, core assembly, polishing, balancing and testing completed in-house; unified warranty for the whole cathode roller assembly.
• Factory-direct pricing – you purchase directly from manufacturer without trading company markup.
• Professional process engineering – communication with engineers familiar with electrolytic copper foil, electro-deposition, surface finishing and line speed requirements, not generic sales scripts.
• Verified precision before shipment – full inspection data and test reports for every finished drum.
• Complete service portfolio – new cathode roller manufacturing, roller reconditioning, on-site technical support for copper foil production lines.

Common Questions Buyers Ask

Q: What sizes can you manufacture?
A: We produce cathode rollers with outer diameter from Ø800 mm up to Ø2200 mm, working width from 600 mm to over 2100 mm. Custom sizes beyond this range are available upon separate quotation.

Q: What surface roughness grade fits my copper foil?
A: It depends on target foil thickness, battery / PCB application and your electrolyte formula. Send us your foil specification and line parameters and our engineers recommend the suitable surface finishing grade.

Q: Can you replicate my existing cathode roller?
A: Yes. Send your old roller or technical drawings and we reverse-engineer all parameters: dimensions, surface roughness, shell structure, shaft and mounting interface for direct drop-in replacement.

Q: Do you test every roller before delivery?
A: Each cathode roller is dynamically balanced, runout tested and surface inspected, full measurement reports attached with shipment.

Q: What is your MOQ and lead time?
A: For new custom cathode rollers, typical lead time is 60–90 working days after drawing confirmation. Refurbishment/reconditioning lead time is 25–45 working days. MOQ is 1 unit.

Get a Quote from the Cathode Roller Factory

If you are evaluating cathode roller manufacturers in China, or troubled by poor foil quality caused by roller vibration, surface scratches or uneven deposition, send us your drawing or used roller sample. Our engineering team responds within two working days with technical feasibility review, price and delivery schedule. AstraRoll: the cathode roller factory where titanium surface meets electrodeposition precision.
