Electromagnetic Roller Manufacturer

AstraRoll is an electromagnetic roller manufacturer in China producing precision electromagnetic rollers for industrial machinery and processing equipment. Custom specifications & surface treatment, OEM/ODM, worldwide delivery.

Electromagnetic Roller Factory: Where Magnetic Force Meets Precision Engineering

Every magnetic separation line, automated parts-conveying system, and tension-control station relies on one underrated critical component: the electromagnetic roller. This precision-manufactured cylinder generates a controllable magnetic field to attract, hold, convey or release ferrous materials. Typical applications include separating steel scrap from recycling streams, securing steel sheets during processing, applying braking tension to moving webs, and lifting or transferring metal workpieces across production lines.

Though simple in principle, electromagnetic rollers demand strict manufacturing standards. The roller surface must deliver a stable, uniform magnetic field; the shaft must maintain precise concentricity at operating speeds. It also needs reliable heat dissipation and wear resistance for thousands of hours of continuous operation. Professional buyers avoid generic catalogue products and partner with specialized roller factories that manage the full production workflow: magnetic core & pole design, coil winding, shaft machining, dynamic balancing and magnetic field testing.

AstraRoll also manufactures high-precision induction heating rollers (also called electromagnetic heating rollers). Unlike magnetic electromagnetic rollers that generate magnetic attraction force, induction heating rollers operate on electromagnetic induction, converting electrical energy into thermal energy inside the roller body. No steam or thermal oil circulation is required. These rollers deliver uniform, stable and controllable surface temperature for film lamination, BOPP film, photovoltaic film, lithium battery diaphragm production, paper calendering, coating, non-woven hot rolling and composite hot pressing.

This article explains electromagnetic rollers, our factory manufacturing process, and why AstraRoll, a trusted Chinese roller manufacturer, is the preferred supplier for global magnetic conveying, magnetic separation and thermal web processing lines.

What Is an Electromagnetic Roller?

An electromagnetic roller is a rotating cylinder built around an internal electromagnet. Laminated magnetic cores are wound with copper or aluminium coils and assembled onto a shaft, powered by DC supply. When current passes through the windings, a magnetic field forms on the roller surface to attract ferromagnetic materials including steel, iron, nickel, cobalt and related alloys. Once power is cut or polarity reversed, the magnetic field weakens, releasing ferrous materials.

The roller functions as a controllable magnetic switch on a rotating surface. This controllability is the key advantage over permanent magnetic rollers. Operators can adjust magnetic strength, switch the magnetic function on/off and reverse polarity — features unavailable with permanent magnets. Unlike permanent magnetic rollers, AstraRoll electromagnetic rollers support real-time adjustment of magnetic attraction force for processes requiring controlled material holding and release.

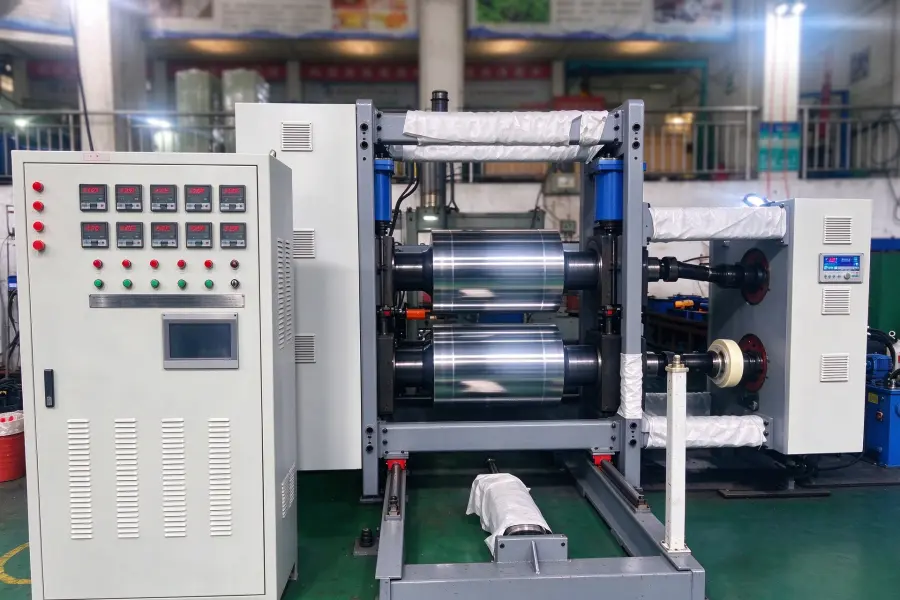

Induction Heating Roller (Electromagnetic Heating Roller)

Our induction heating roller series adopts electromagnetic induction heating powered by AC medium-frequency power supply:

• Precise surface temperature control with ±1℃ tolerance, uniform heating across the full working width
• Fast heating rate and low thermal inertia, more energy-efficient than traditional thermal oil rollers and steam rollers
• Closed-loop temperature monitoring; adjustable temperature range from ambient up to 300℃. Higher temperature versions are available upon request with upgraded roller material and cooling design
• Seamless roller surface, anti-stick and wear-resistant; hard chrome plating optional
• Custom OD, working length, shaft structure and installation dimensions according to customer machine specifications

The real-world performance of all rollers depends on tightly controlled engineering parameters:

• Magnetic core material and design — laminated silicon/electrical steel to concentrate magnetic flux, reduce eddy current loss and prevent overheating.
• Winding specification — copper or aluminium conductors, winding turns, insulation class (Class F / Class H optional) and rated current, jointly defining magnetomotive force and surface magnetic strength.
• Pole geometry and face pattern — pole layout determines magnetic uniformity, holding force distribution and material release performance at the separation edge.
• Surface material and treatment — wear-resistant stainless steel or engineered shells to protect coils, resist abrasive materials and avoid magnetic distortion.
• Concentricity, dynamic balancing & thermal management — rotational accuracy, vibration level and heat dissipation determine service life, reliability and operational consistency.

These parameters must be engineered as an integrated system to achieve rated performance. At AstraRoll, our R&D and engineering team treat every electromagnetic roller and induction heating roller as a complete electro-mechanical assembly instead of separate parts, ensuring stable long-term operation under continuous heavy loads.

The Main Types of Electromagnetic Rollers & Induction Heating Rollers

AstraRoll, a professional China roller factory, supplies the full portfolio of electromagnetic rollers and induction heating rollers. Different working conditions require custom magnetic/thermal circuits and mechanical structures:

• Magnetic separator / head-pulley rollers — installed as the head pulley of belt conveyors or separation decks. Strong magnetic fields extract ferrous contaminants from non-material streams (aggregates, recycled plastics, glass cullet, minerals, food raw materials), separating metal from non-metal materials by different trajectories.
• Magnetic conveying rollers — attract and transport ferrous workpieces, steel sheets, cans and blanks without mechanical clamps. Multiple rollers work in series for indexing, positioning and accumulation.
• Electromagnetic tension and brake rollers — widely used in web handling, printing, slitting and rewinding. Adjustable braking torque maintains stable tension for film, paper and aluminium foil. Magnetic field strength directly corresponds to braking torque.
• Magnetic sheet/lifter rollers — short high-flux rollers. Energize to pick and hold steel sheets and laminations; de-energize to release workpieces, commonly used in stacking, de-stacking and blank feeding stations.
• Demagnetizing / degaussing rollers — remove residual magnetism from workpieces processed by magnetic equipment, preventing fine metal powder adhesion and interference with downstream operations.
• Induction heating rollers (electromagnetic heating rollers) — thermal processing rollers for film lamination, BOPP film, photovoltaic film, lithium battery diaphragm, paper calendering, coating machines, adhesive tape, non-woven hot rolling, plastic thermoforming, textile heat setting and composite hot pressing.
• Custom engineered rollers — tailor-made to customer specifications, including water-cooled / forced-air-cooled electromagnetic rollers, special shells for corrosive or abrasive environments, multi-zone magnetic rollers and custom-temperature induction heating rollers.

All roller types are custom built: OD, working length, shaft size, pole arrangement / heating zone layout, magnetic strength or target temperature, supply voltage and mounting dimensions are customized to match machine requirements. All custom rollers from AstraRoll undergo strict simulation and prototype testing before mass production.

Inside the AstraRoll Roller Factory

AstraRoll’s roller workshop is a dedicated production line rather than a general machining shop producing rollers as side orders. Magnetic and heating rollers have unique failure modes; electrical faults, overheating, magnetic defects and uneven temperature must be eliminated at the design phase.

Magnetic Core & Pole Assembly

Magnetic cores are made of stamped and stacked electrical steel laminations pressed to precise pole geometry and density. Laminations reduce eddy current loss and core overheating. Pole tips are precision machined and aligned to ensure uniform magnetic distribution across the full width. Dimensional inspection and magnetic testing are performed at this stage; misalignment will create hot spots or weak magnetic zones and is rejected before next processes. For induction heating rollers, we design dedicated induction coil layout and thermal conduction structures to guarantee consistent roller surface temperature.

Winding and Insulation

Copper or aluminium coils are wound to specified wire gauge and turns, with insulation class selected according to continuous operating current and ambient temperature. Windings are varnish-dipped or resin-impregnated and cured to resist vibration, moisture and contamination. Insulation resistance testing is mandatory before acceptance; shorted turns will burn the roller during operation. All winding procedures follow standardized insulation processes to extend roller service life.

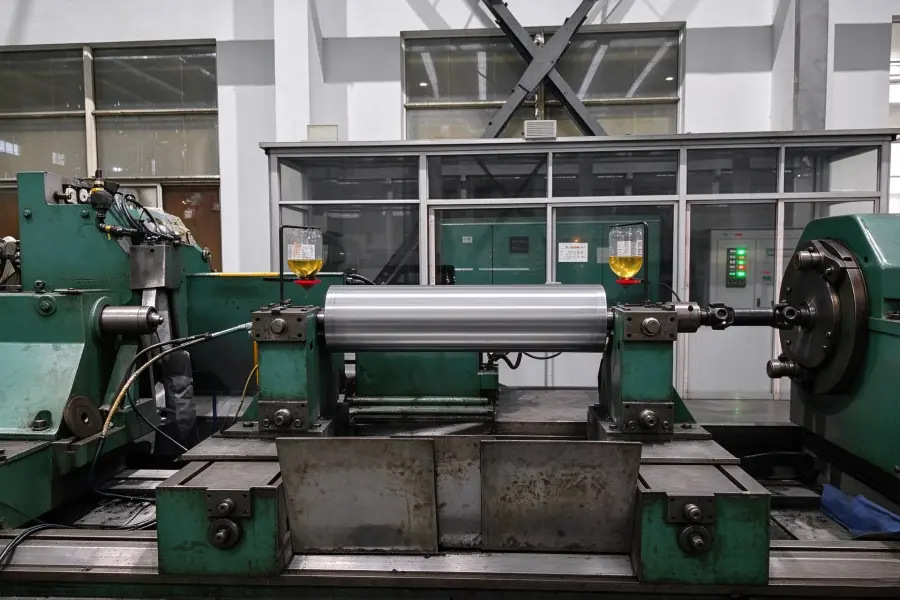

Shaft and Housing Machining

High-strength steel shafts are selected based on roller length and load capacity, precision turned and ground on CNC lathes to meet customer requirements for journals, keyways and end connections. Shells and end caps are machined to accommodate magnetic cores / induction coils and protect internal windings. Straightness and journal tolerances are tightly controlled. Out-of-spec rollers will cause vibration, premature bearing wear, uneven gaps or inconsistent temperature distribution.

Shell Fitting and Sealing

Precision machined shells (stainless steel for corrosion and wear resistance; composite materials for special magnetic, weight or thermal requirements) are assembled over internal components with sealing protection against dust, moisture and process chemicals. Sealing and surface finishes are customized for different working environments: washdown applications, abrasive media, mineral dust and food-contact requirements. Induction heating rollers adopt seamless shells, with optional hard chrome plating for anti-stick and wear resistance.

Assembly and Dynamic Balancing

Magnetic cores, shafts, shells and wiring components are assembled into finished rollers. Brush or slip-ring power feed units are fitted and aligned. Every finished roller from AstraRoll undergoes dynamic balancing (ISO 1940 standard) and run-in testing at operating speed to check concentricity, vibration and rotational stability.

Performance Testing

• Electromagnetic rollers: Energized test with full-width surface magnetic scanning to verify magnetic strength and uniformity. Supply voltage, current draw, insulation resistance and temperature rise are recorded.
• Induction heating rollers: Full-width temperature uniformity test, closed-loop temperature control test and thermal cycle aging test. Test reports are supplied with every shipment.

Materials and Quality Control

Roller materials are selected to meet three core requirements: electrical conductivity, mechanical load bearing and environment resistance.

• Magnetic core: Laminated silicon / electrical steel with controlled pole stacking, high permeability and low loss.
• Induction heating coil: High-temperature resistant conductors and insulation materials for stable thermal output.
• Windings: Copper or aluminium conductors with matched insulation class, varnish or resin impregnated for mechanical and environmental protection.
• Shafts and housings: High-strength steel shafts; stainless steel shells for corrosion, washdown and food-grade applications; engineered shells for special magnetic or thermal demands.
• Power feed assembly: Slip rings or brushes selected for target voltage and duty cycle to deliver stable long-lasting power supply.
• Seals and bearings: Environmentally specified. IP-rated sealing for dusty / washdown conditions; heavy-duty bearings for high radial loads.

QC Workflow: Incoming material inspection, core / coil inspection, winding insulation resistance test, in-process dimensional check, shell sealing test, dynamic balancing, final energized performance test (magnetic test for electromagnetic rollers / temperature uniformity test for heating rollers). Inspection records archived for every batch.

Documentation: Material certificates, insulation & electrical test reports, balancing reports, magnetic field / thermal uniformity data available for regulated industries: food contact, mining, electronics, automotive and new energy film manufacturing. AstraRoll archives full test records of every roller for global after-sales maintenance and technical traceability.

Industries We Supply

AstraRoll rollers operate reliably worldwide across multiple industries:

• New energy film, coating & lamination — induction heating rollers for lithium battery diaphragm, photovoltaic film, BOPP film, nonwoven hot rolling and paper calendering.
• Mining, aggregates and recycling — magnetic head pulleys and drum separators removing ferrous contaminants from crushed rock, sand, coal, glass cullet, plastics and e-scrap.
• Metal processing and fabrication — magnetic conveying and lifting rollers for steel sheets, plates, blanks and stampings; demagnetizing rollers for post-processing workpieces.
• Automotive and appliance assembly — magnetic rollers for feeding, positioning and accumulating ferrous parts along production transfer lines.
• Printing, converting and packaging — electromagnetic brake & tension rollers controlling web tension for films, foils, paper and laminates.
• Food and beverage — magnetic separation of metallic contaminants from bulk raw materials with food-grade surface options.
• Material handling and logistics — magnetic conveying and indexing of cans, blanks and ferrous packages.

Custom Engineering: Your Machine, Our Factory

Nearly all AstraRoll rollers are custom manufactured, as each machine has unique OD, working length, load and power requirements. A typical custom order workflow:

1.You provide drawings, worn sample rollers or parameter list: OD, working length, shaft size, required magnetic strength / target temperature, duty cycle, supply voltage and mounting dimensions.
2.AstraRoll engineers review your design within 2 working days, identifying risks affecting magnetic performance, electrical safety, thermal stability and running performance.
3.We issue formal quotation and lead time; tooling quotation if required.
4.Sample roller production and shipment for on-site line test.
5.Mass production after sample approval, with dynamic balancing, electrical and performance test reports attached.

If you own legacy rollers from discontinued OEM brands, AstraRoll can perform reverse engineering. We fully match dimensions, circuit design, winding parameters, performance and mounting interfaces for both electromagnetic rollers and induction heating rollers, requiring no machine modification during replacement.

Why Buyers Choose AstraRoll Factory ​​​​​​​

• ​​​​​​​Single factory accountability: Magnetic core / induction coil, winding, shaft, shell, balancing and testing completed in-house. Unified warranty for the whole roller assembly.
• Factory-direct pricing: Buy directly from AstraRoll factory, no trading company markup.
• Professional engineering support: Communicate with engineers familiar with magnetic circuits, induction heating, winding design, thermal loads and line speeds, not generic sales scripts.
• Sample validation before mass production: Verify design performance via samples before bulk order commitment.
• Traceable quality documentation: Magnetic / thermal uniformity reports, electrical, balancing and dimensional certificates provided per shipment.

Common Questions Buyers Ask

What sizes can you produce?

​​​​​​​AstraRoll manufactures electromagnetic rollers and induction heating rollers from 100 mm OD to 800 mm OD, working length from 200 mm to over 3000 mm. Shaft diameter customized per journal specification. Non-standard sizes beyond this range quoted separately.
​​​​​​​
What magnetic strength / temperature range do I need?

• For electromagnetic rollers: Depends on material type, workpiece weight and conveying speed. Send us material data, feed rate and line speed; our engineering team designs winding and pole structure to match your target magnetic field.
• For induction heating rollers: Provide target temperature, film material, line speed and temperature tolerance for our thermal design.

Can you replicate my existing roller?

Yes. Send your old roller or engineering drawings. AstraRoll reverse-engineers dimensions, circuit, winding, performance and mounting structure, ensuring drop-in replacement.

Do you test rollers before shipment?

Every roller is dynamically balanced and energized load tested. Magnetic rollers come with magnetic field reports; induction heating rollers are delivered with temperature uniformity reports, plus electrical inspection documents.

What power supply options are available?

We support standard DC voltages 24V, 48V, 110V and 220V for electromagnetic rollers. Induction heating rollers adopt AC medium-frequency power supply. Custom voltage available upon request.

What is your MOQ and lead time?

Standard rollers: MOQ 2–5 pcs, lead time 10–15 working days. Custom / OEM rollers: 20–35 working days after drawing confirmation. Simple prototype samples: 7–10 working days. Complex custom samples: 12–18 working days.

What is the difference between electromagnetic roller and induction heating roller?

Electromagnetic roller creates magnetic field to attract ferrous metals for separation, conveying and web braking. Induction heating roller uses electromagnetic induction to generate heat for film lamination, coating and hot pressing. Two distinct roller series for completely different working purposes.

Get a Quote from the AstraRoll Roller Factory

If you are comparing Chinese roller manufacturers or troubled by roller overheating, insufficient magnetic force, poor temperature uniformity, excessive vibration and premature failure, please send your drawings or sample roller. Our engineers will reply within 2 working days with feasibility evaluation, quotation and lead time.
