Rubber Roller Manufacturer
Overview
AstraRoll is a trusted custom rubber roller manufacturer based in China, delivering precision rubber rollers for web processing machinery worldwide. Supported by seasoned engineers and full in-house manufacturing capacity, we produce rubber rollers strictly according to customer drawings, samples and site operating conditions, offering complete OEM and ODM services for lithium battery, paper, nonwoven, film, printing, textile and wood sanding industries. Our custom rubber rollers maintain stable long-term performance on high-speed production lines, resolving common production challenges such as web wrinkling, surface scratching, static accumulation, uneven nip pressure and material slippage. A rubber roller consists of a precision-machined metal core wrapped with vulcanized rubber material. Unlike bare metal rollers, the rubber covering provides controllable friction, uniform nip pressure, protection for delicate substrates and vibration absorption. These core functional advantages make rubber rollers irreplaceable for conveying, pressing, spreading, cleaning and squeezing continuous web materials. Since every production line operates under unique conditions, rubber formula, roller hardness, surface texture and dimensions are fully customized to match your machine specifications. Operating temperature, contact media, line speed and expected service life all define the final roller design, and we never supply generic one-size-fits-all roller products.
Metal Core Manufacturing

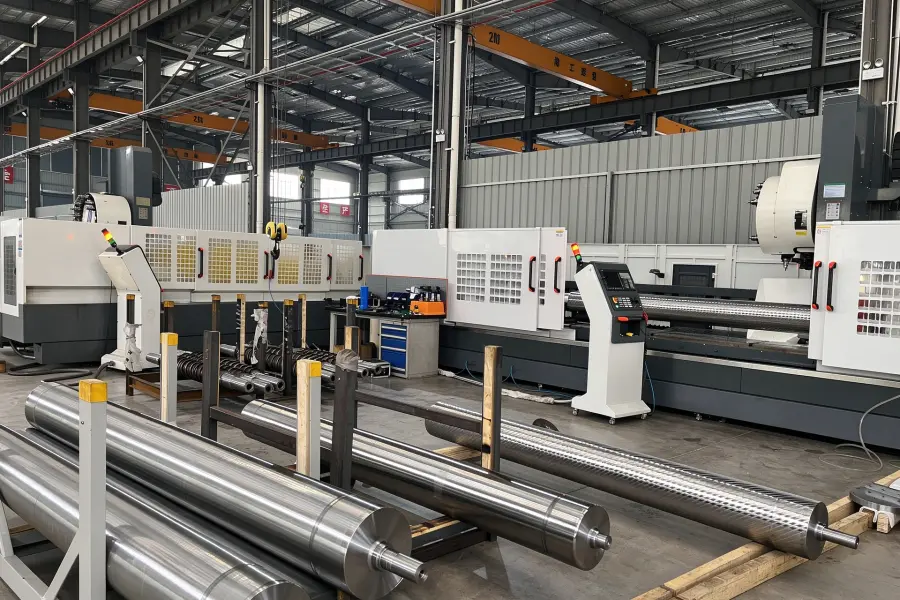

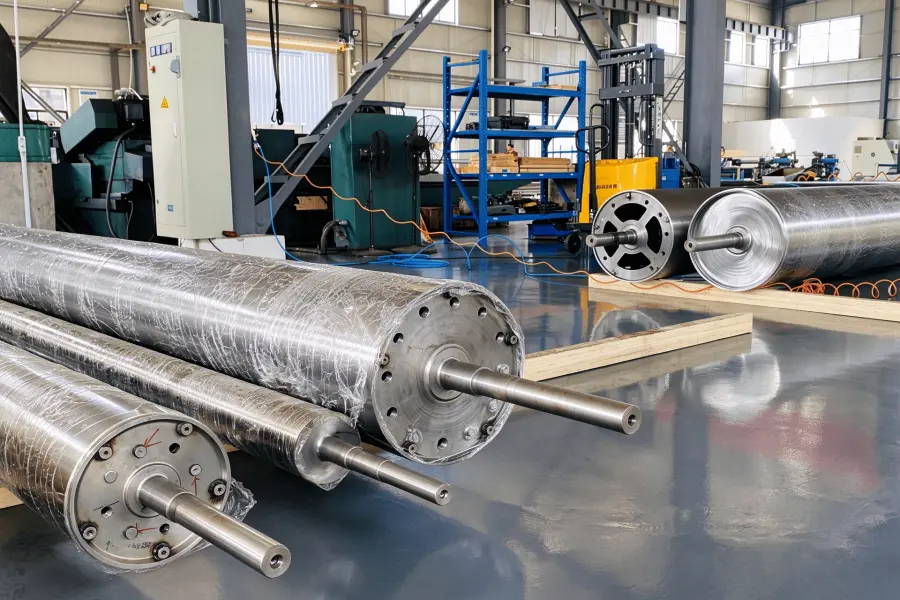

We start every custom order with metal core fabrication. Carbon steel, alloy steel, stainless steel or aluminum cores are selected based on load weight and working environment. CNC turning and cylindrical grinding ensure high dimensional accuracy.
- Outer diameter tolerance reaches ±0.05 mm for standard industrial rollers
- High-precision rollers for coating and slitting equipment achieve ±0.02 mm or tighter The metal surface undergoes thorough cleaning and professional adhesive treatment before rubber wrapping. This bonding treatment prevents rubber delamination under continuous heavy load and repeated pressure cycling, one of the most frequent failure issues seen in low-quality rubber rollers. Straightness, roundness and runout are fully inspected to ensure vibration-free rotation at high operational speeds.
Rubber Material Options
Our rubber compound portfolio covers NBR nitrile rubber, Neoprene, EPDM, anti-static rubber, ebonite hard rubber and cork-rubber composite materials. Hardness ranges from 20 Shore A soft rubber for gentle squeezing applications up to 95 Shore A ultra-hard rubber for heavy nip compression.
- Standard rubber grades sustain continuous working temperatures up to 100°C
- High-temperature resistant versions can run stably within 120–150°C NBR offers outstanding oil resistance and wear performance, widely adopted for paper and nonwoven slitter nip rollers. Neoprene balances heat resistance and tear strength, ideal for banana spreader rollers designed to eliminate web wrinkles. EPDM features excellent thermal stability and anti-aging performance, making it a top choice for continuous high-speed printing lines. Anti-static rubber suppresses static discharge and dust attraction, a vital property for lithium battery film processing. Ebonite coated rollers withstand corrosive chemicals for harsh chemical processing environments, and cork-rubber composite wrapping delivers non-marking contact surfaces for aluminum foil and other easily scratched substrates. We can also provide custom colour options including green NBR and red EPDM to match your equipment requirements.
Vulcanization and Surface Machining
We strictly manage vulcanization processes with high-strength adhesive systems, firmly bonding rubber layers to metal cores to resist edge lifting and surface peeling under heavy continuous operation. All finished rollers pass bonding integrity inspection and dynamic balance correction before shipment. We also provide custom surface machining options to satisfy different production requirements:

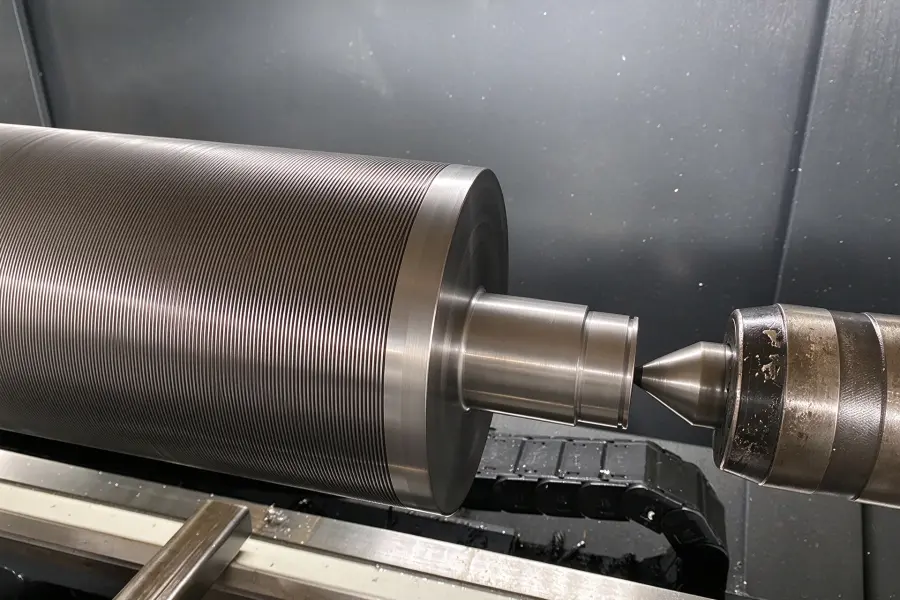

- Spiral grooves: release trapped air, spread web and reduce film wrinkles
- Diamond grooves: enhance surface traction for stable material conveying
- Custom channel patterns: adjust pressure distribution across roller face Special surface treatments for anti-adhesion, washable contact surfaces and easy cleaning are available upon request. We also manufacture electromagnetic induction heated rubber rollers and heat fuser rollers for digital printing and copying equipment.
Available Roller Types
Our manufacturing scope covers all mainstream rubber roller types for industrial processing.
- Nip rollers deliver uniform compression for laminating and squeezing tasks
- Banana, or bow, rollers stretch and flatten webs to remove wrinkles on film, paper and foil
- Squeeze rollers drain excess liquid during washing and coating processes, including mercerizing foulard squeeze rollers for textile
- Guide rollers maintain precise web tracking throughout the production line, including cork rubber wrapped aluminum guide rollers and anti-static guiding rollers
- Spreader rollers prevent edge curling, custom rubber spreader rollers for wrinkle elimination
- Heatable rubber rollers support thermoforming and lamination, including electromagnetic induction heating rollers and fuser heat/pressure rollers for copiers and digital printers
- Sticky cleaning rollers remove dust and contaminants from optical films and lithium battery separators
- Paper feed rollers for printing and packaging machines
- Washable contact rollers designed for slitting and rewinding machines Every roller variant is manufactured to your exact dimensions and performance requirements.
Industry Applications
AstraRoll rubber rollers serve multiple high-demand industrial sectors, these are our most popular application markets.
- Lithium battery: ultra-high-hardness rubber rollers used on electrode coating and rolling equipment, where tight tolerance and static control directly affect battery quality
- Paper and nonwoven: custom NBR nip rollers and slitter rubber rollers handle high line speeds and heavy loads with consistent cross-web pressure for slitter rewinder machines
- Film processing: banana rollers and spiral grooved rollers eliminate wrinkles, sticky cleaning rollers protect sensitive film surfaces
- Printing and packaging: flexo printing rubber rollers and paper feed rollers guarantee stable ink transfer and uniform pressure for premium finished products
- Textile: mercerizing squeeze rollers remove processing liquids without damaging fibers
- Wood sanding: heat resistant soft rubber rollers support stable sanding operation
- Chemical processing: ebonite coated rubber rollers resist corrosive media for harsh working conditions Our engineering team selects the proper rubber compound, hardness and surface finish to match your unique application.
Why Choose AstraRoll
Quality checks run through every production phase, from raw material incoming inspection to final dimensional testing. We verify rubber hardness, diameter, length, concentricity and dynamic balance to ensure full compliance with your specifications. Finished rollers receive anti-rust treatment and export-grade packaging before delivery. Our engineers provide timely technical support, assisting with material selection at the design stage and after-sales consultation. With full OEM and ODM capability, AstraRoll can manufacture rollers from your drawings, or co-develop new roller designs for your equipment. We support fully customized solutions including custom rubber colours, grooving patterns, heating structures and special surface properties such as washable, anti-static and high temperature resistance. As a dedicated Chinese rubber roller factory, AstraRoll combines experienced engineering, complete production facilities and diverse material options to deliver reliable custom rubber rollers for global web processing machinery. Whether you need a single replacement roller or a full batch for new machines, we deliver consistent quality and on-time shipment. Contact our team and share your drawings, samples or operating parameters, and we will provide a tailored solution for your rubber roller project.
