Custom Heidelberg SM74 Printing Rubber Roller

Product Overview

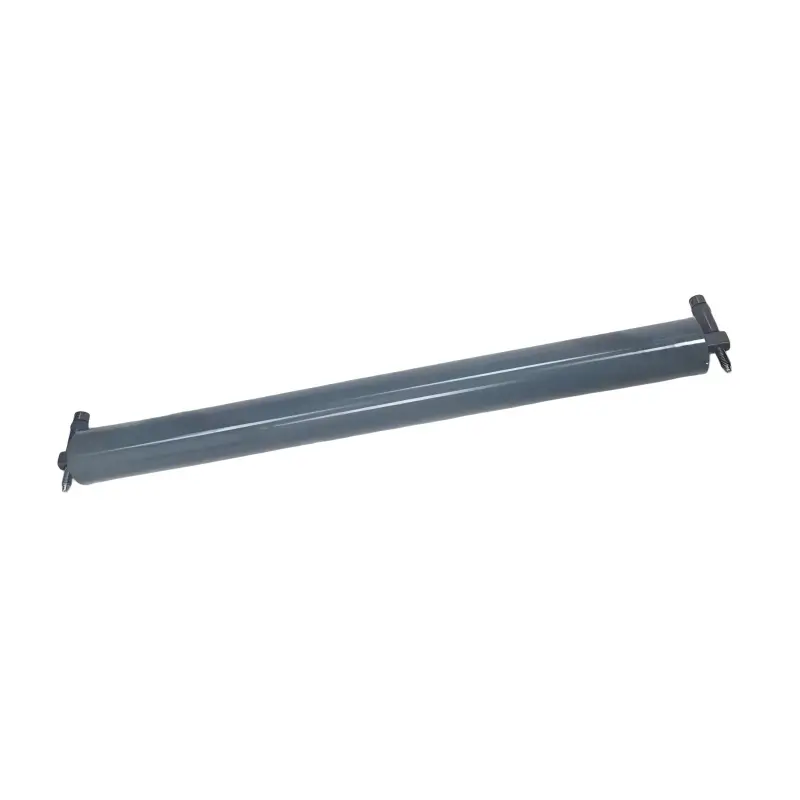

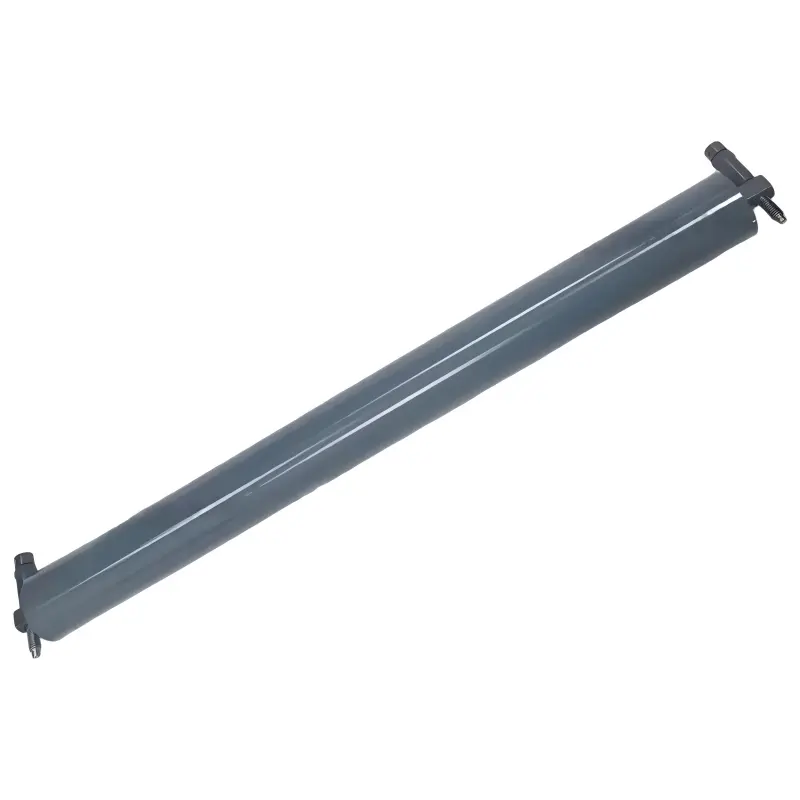

AstraRoll‘s Custom SM74 Intermediate Roller is engineered for the Z roller (bridge roller) or specific form roller positions in the Heidelberg Speedmaster SM74 inking/dampening system. In operation, this roller transfers a controlled ink film to stabilize ink-water emulsification.

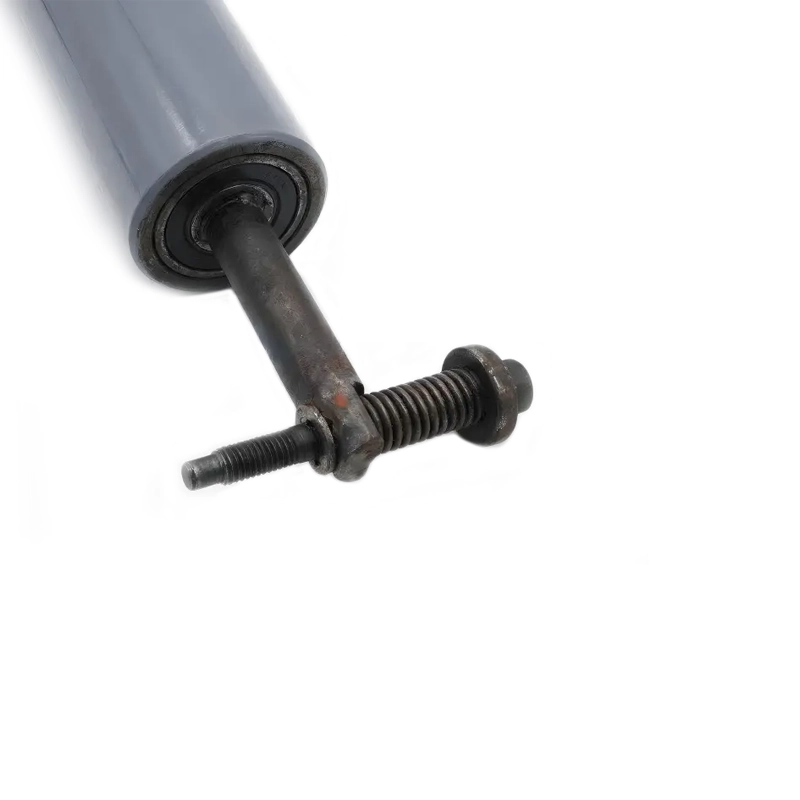

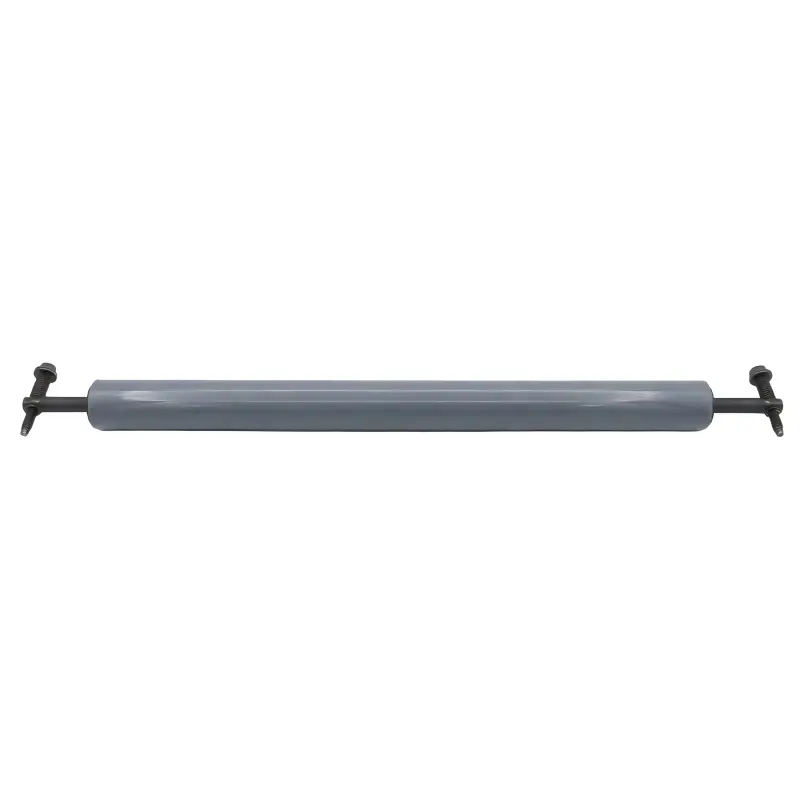

The defining feature of this roller is its integrated threaded adjustment arm assembly at both ends. Unlike standard rollers with fixed journals, the threaded spindles and lock nuts allow maintenance technicians to precisely dial in the contact pressure against adjacent rollers—a critical setting for consistent ink film splitting and avoiding roller bounce or stripe marks.

The roller body is available in Rilsan (Polyamide/Nylon) for high solvent resistance, or High-Hardness Rubber (NBR/EPDM) to match the exact tactile requirement of your press. The precision steel core and custom-machined spindles ensure reliable, long-term operation.

Technical Parameter

• Product Name: Custom Heidelberg SM74 Intermediate Roller
• Compatible Press: Heidelberg Speedmaster SM74 / PM74
• Component Type: Intermediate / Form Roller with Threaded Adjustment Arms
• Standard Outside Diameter: 46.0 mm (Reference)
• Surface Material Options: Rilsan (Polyamide) OR High-Hardness Rubber (NBR/EPDM)
• Surface Hardness: Rilsan: 90–100 Shore A / Rubber: 85–95 Shore A
• End Configuration: Threaded Spindles with Lock Nuts & Cross-Hole Pin Journals
• Core Material: Precision Steel
• Adjustment Function: Micro-adjustment of nip pressure against adjacent rollers
• Customization: Diameter, coating material, thread pitch, spindle length, and journal configuration verified strictly against your OEM drawing or physical sample.

(Critical Note: The thread pitch (e.g., M8, M10) and spindle arm length are machine-specific. AstraRoll custom-machines this component to your sample. Please provide physical dimensions or photos for verification before placing a bulk order.)

Application

Heidelberg SM74 / PM74 Presses: Replacement for worn or damaged intermediate/transfer rollers with adjustment mechanisms.

Inking–Dampening Bridge: Transfers ink film to the dampening form roller for stable emulsion control.

Nip Pressure Adjustment: Threaded arms allow precise setting of contact pressure, reducing bounce and print defects.

Why Choose AstraRoll’s SM74 Roller?

Custom-Machined Threaded Arms: We do not assume a universal thread size. The spindles and lock nuts are machined to match your exact OEM specification or physical sample.

Correct Material Matching: We supply Rilsan or High-Hardness Rubber based on your original machine's requirements to prevent ink swelling or improper ink transfer.

Strict Quality Control: CNC-ground body for uniform diameter, ensuring smooth rotation and even ink distribution.

Factory-Direct Supply: Direct from our machining facility to your pressroom, ensuring competitive pricing and fast lead times.
