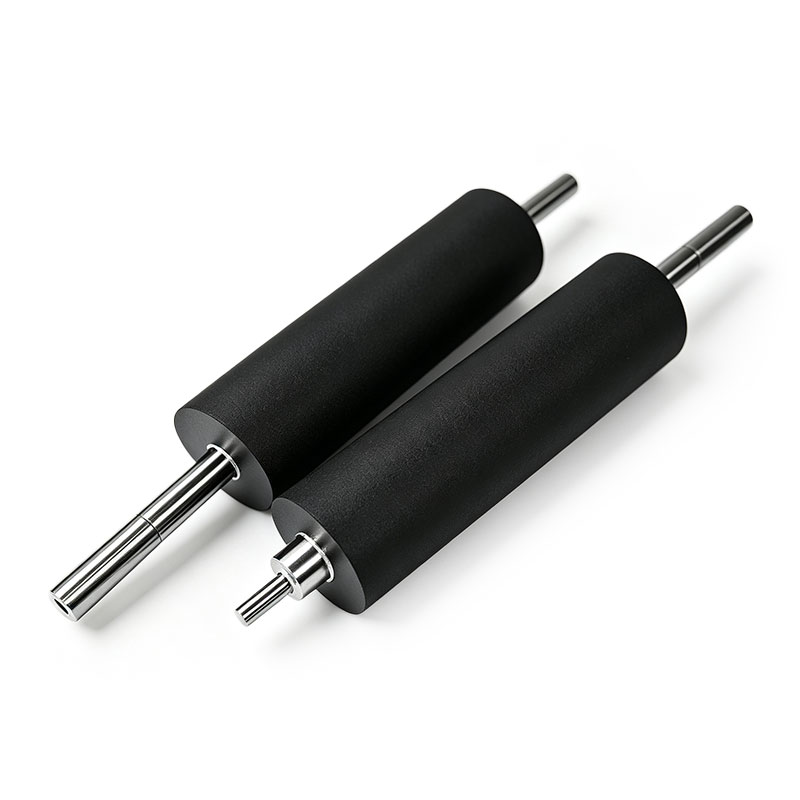

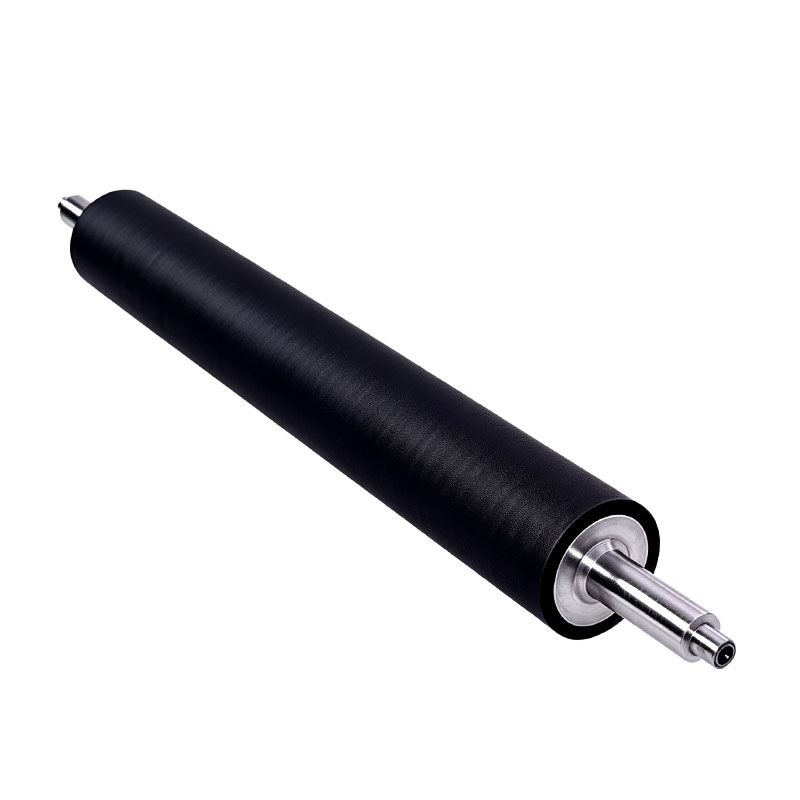

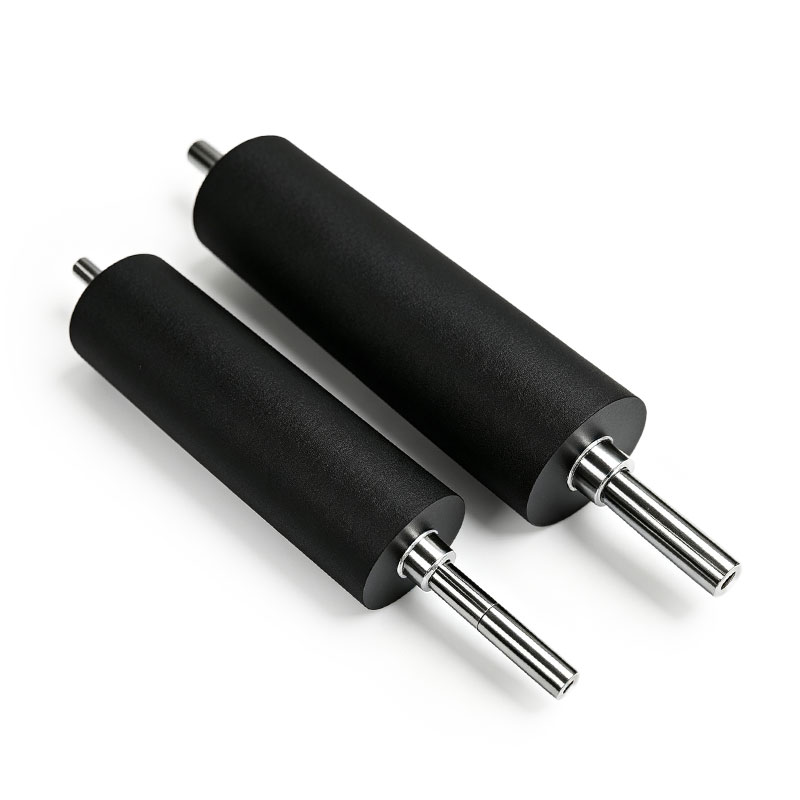

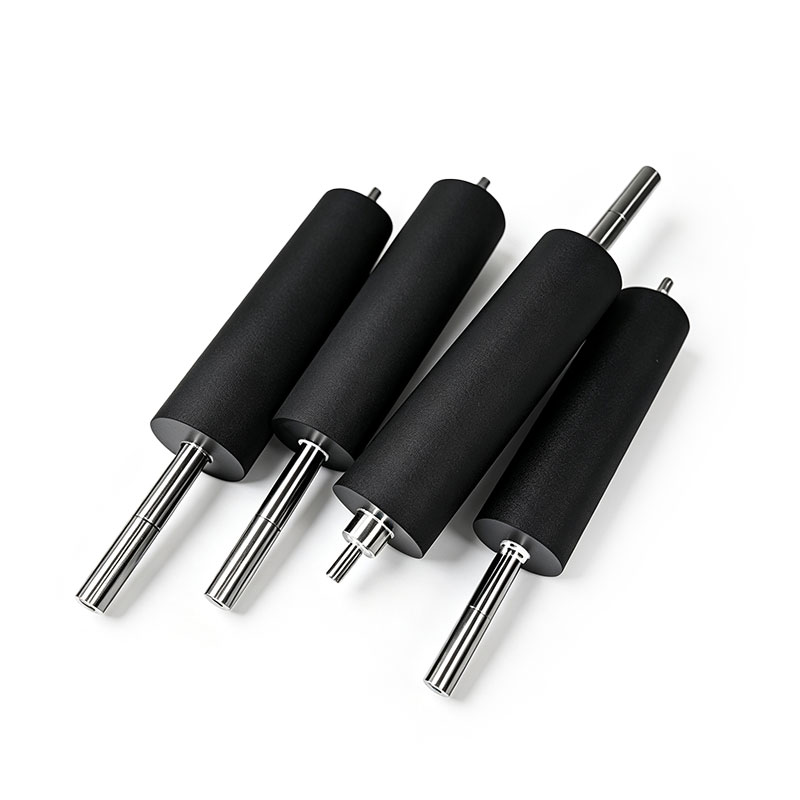

Custom High Temperature Resistant Neoprene Rubber Roller

The AstraRoll Custom High Temperature Resistant Neoprene Rubber Roller is a premium, heavy-duty industrial component engineered specifically to withstand the combined forces of elevated temperatures, mechanical shear, and aggressive chemical environments. In modern roll-to-roll manufacturing—such as high-speed printing, laminating, coating, and textile converting—rollers are subjected to continuous thermal stress. Standard industrial rubber formulations tend to dry out, glaze over, harden, or develop surface micro-cracks under these conditions, leading to uneven pressure distribution and premature line failure.

Our heat-resistant chloroprene rubber (Neoprene/CR) rollers completely eliminate these production bottlenecks. By utilizing a proprietary, thermally stabilized polymer matrix vulcanized over a precision-engineered steel or iron core, AstraRoll delivers a roller that maintains its native elastomeric recovery, steady traction coefficient, and flawless surface finish even during extended operational campaigns. It provides the ideal balance of resilience and ruggedness, ensuring smooth, wrinkle-free web guiding and precise fluid transferring without deformation.

Technical Parameters

Product Framework: Precision Molded Heat-Resistant Neoprene (CR) Industrial Roller

Coating Elastomer: High-Grade Thermally Stabilized Neoprene (Chloroprene Rubber)

Base Core Options: Premium Forged Carbon Steel / Seamless Heavy-Wall Steel Tubing

Hardness Window: 45 Shore A - 85 Shore A (±3 Shore A strict tolerance window)

Temperature Range: Continuous stable operation up to 120℃ - 130℃ (Peak spikes up to 150℃)

Surface Precision: TIR (Total Indicator Runout) ≤0.015mm via CNC turn-grinding

Concentricity Profile: High-purity dynamic balancing matching ISO 21940 G2.5 standard

Surface Finish: High-Precision Smooth Ground / Matte / Customized Grooved Patterns

Applications & Industry Uses

High-Speed Offset & Gravure Printing: Ideal for ink duct rollers, dampening system links, and distribution rollers that face friction-induced heat and volatile chemical inks.

Laminating & Calendering Machinery: Operates flawlessly as a pressure or nip roll in thermal laminating lines for plastic films, aluminum foils, and specialty papers.

Textile Dyeing & Finishing Ranges: Suitable for wet and warm processing environments where fabrics undergo intensive chemical treating and drying procedures.

Industrial Coating & Sizing Lines: Perfect for applying hot-melt adhesives, protective coatings, and liquid resins uniformly across wide traveling webs.

Why Choose AstraRoll's Heat-Resistant Neoprene Roller?

Thermal-Stabilized Formula Eliminates Surface Cracking: Continuous thermal exposure degrades low-grade polymers rapidly. Our tailored Neoprene compound maintains constant structural elasticity, excellent resilience, and uniform surface profile even under steady, high-temperature operations, extending your equipment's service life.

Exceptional Chemical & Solvent Swelling Immunity：Industrial converting lines run complex fluid chemistry, petroleum-based inks, and harsh pressroom cleaning agents. AstraRoll’s chemically cross-linked polymer chain structure blocks fluid penetration, maintaining exact outer diameter tolerances and preventing localized roller swelling.

Autoclave Curing Stops Rubber Delamination: The combined impact of extreme heat loops and heavy linear nip pressures can strip inferior rubber jackets right off their cores. We prepare every metal core with high-performance bonding primers before computer-controlled autoclave vulcanization, creating an unbreakable interface fusion.

Micron-Level CNC Grinding for Flawless Web Travel: Any slight vibration or geometric runout at high speeds can cause web wrinkling, tracking errors, or ink-streaking. Every heat-resistant shaft is precision turn-ground to achieve a strict ≤0.015mm TIR relative to the bearing journals, delivering flawless contact synchronization.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
